SERVICE MANUAL

Packaged Terminal

Air Conditioners & Heat Pumps

7,000-15,000 BTUH

Cooling with Electric Heat

Heat Pump with Electric Heat

EKTC07-2G

EKTC09-2G

EKTC12-2G

EKTC15-2G

EKTC07-1G

EKTC09-1G

EKTC12-1G

EKTC15-1G

EKTH07-1G

EKTH09-1G

EKTH12-1G

EKTH15-1G

EKTH07-2G

EKTH09-2G

EKTH12-2G

EKTH15-2G

PACKAGED TERMINAL A/C SERVICE MANUAL Heat Controller, Inc.

E K T C 0 7 - 1 G

UNIT NOMENCLATURE

EKTC—Cooling only with Electric Heat

EKTH—Heat Pump with Electric Heat

BTU/H

07K

09K

12K

15K

VOLTAGE CODE

1=208/230V-60Hz

2=265V-60Hz (consult factory)

MODEL REVISION

G=Green R-410A

Refrigerant Gas

ARCHITECTURAL

OR STAMPED

GRILLE

22”

8” 13.75”

40°

80°

AIR DISCHARGE GRILLE IS REVERSIBLE TO

PROVIDE EITHER 40° OR 80°DISCHARGE ANGLE

42”

RIGHT

LEFT

16”

42”

40”

24”6” 10” 1”

1”

Location of external drain holes

on bottom ange of wall sleeve

AIR OUTLETAIR INLET AIR INLET

AIR DISCHARGE GRILLE CONTROL DOOR

2”min Clearance

to side walls

2”min Clearance

to side walls

Top View

Front View

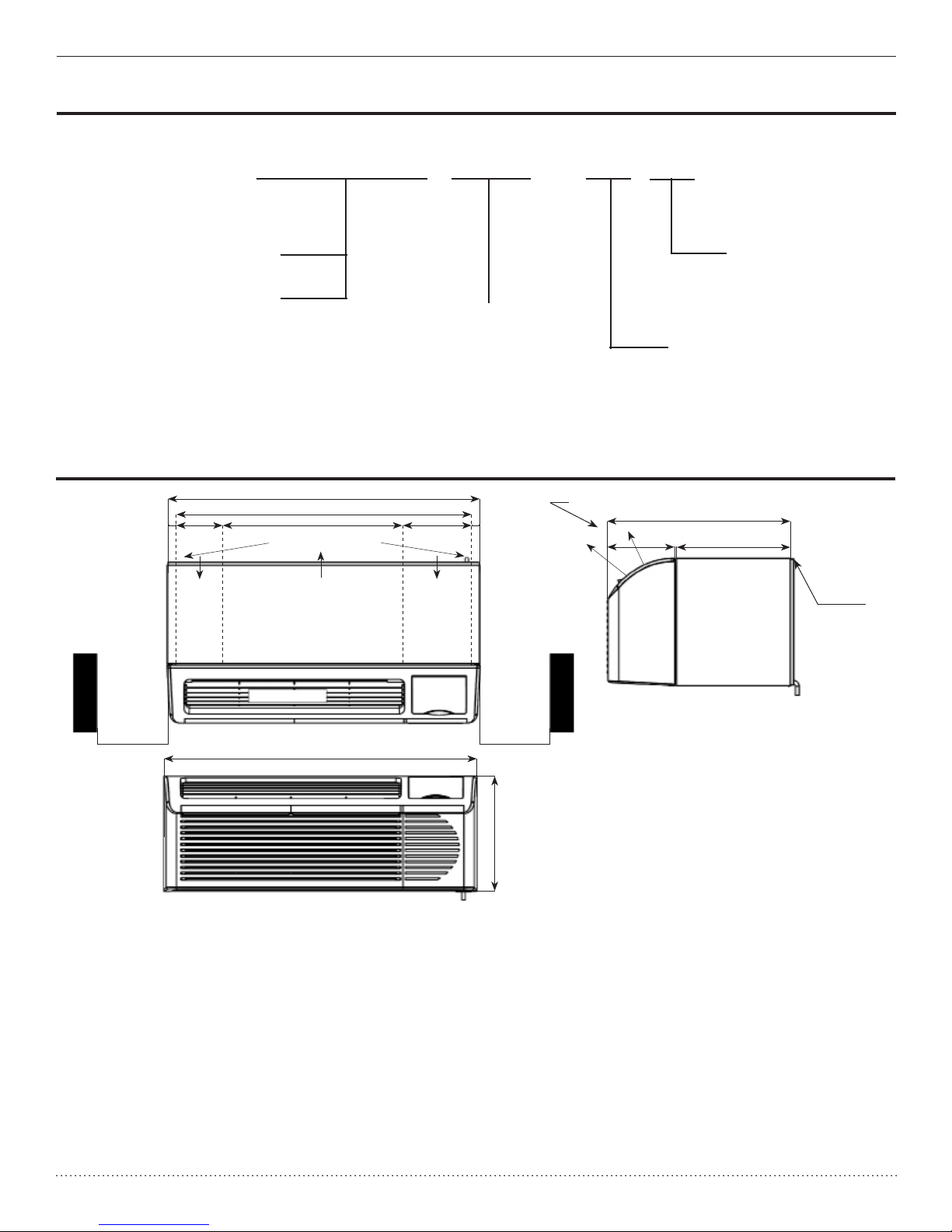

DIMENSIONAL DATA

Heat Controller, Inc. SERVICE MANUAL Packaged Terminal A/C

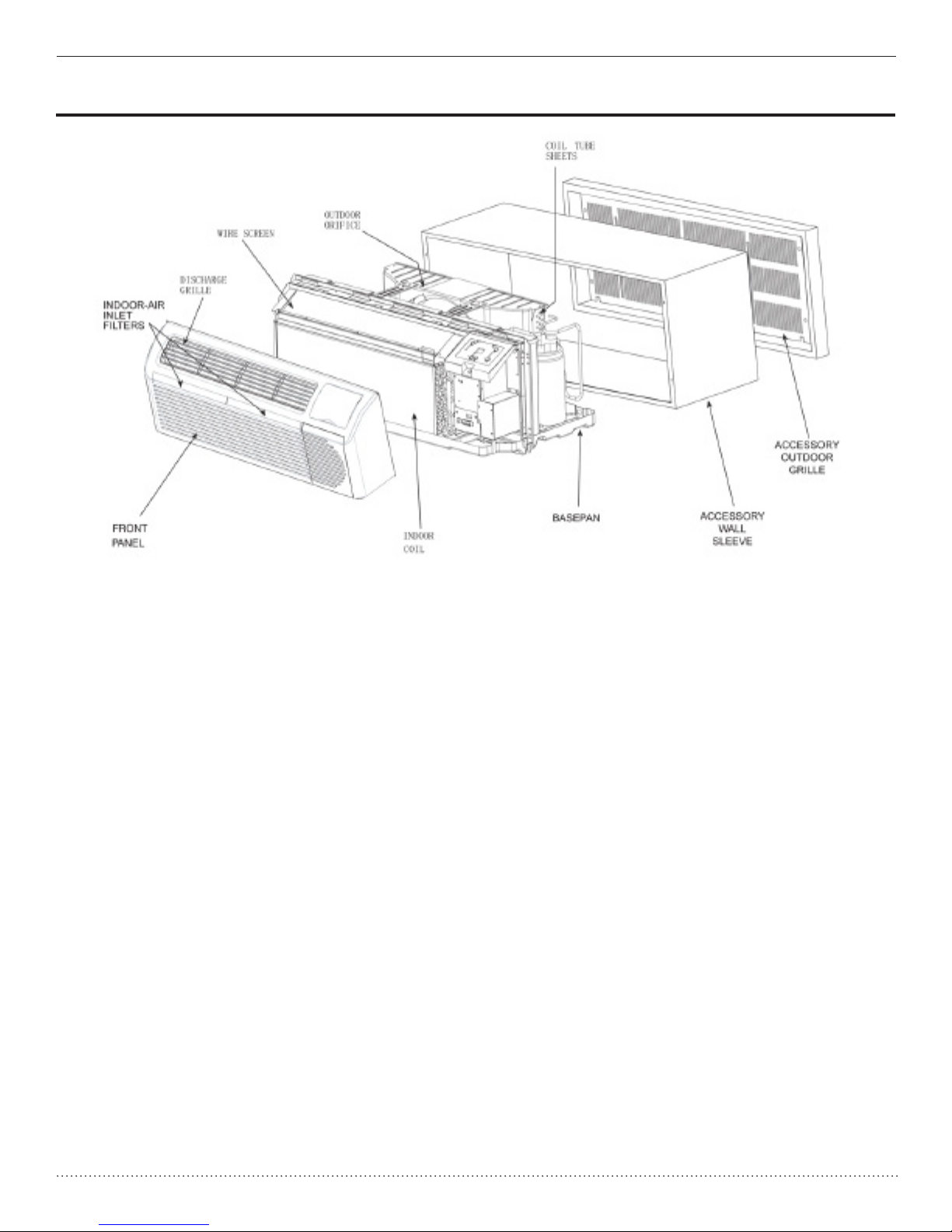

UNIT COMPONENTS

PACKAGED TERMINAL A/C SERVICE MANUAL Heat Controller, Inc.

Model EKTC07-1G EKTH07-1G

Function Cooling Heating Cooling Heating

Rated Voltage 230/208V 230/208V

Rated Frequency 60Hz 60Hz

Indoor

Side

Fan Type-Piece Cross Flow Fan - 1 Cross Flow Fan - 1

Diameter-Length in. (mm) 4.75 x 27.795 (121 x 706) 4.75 x 27.795 (121 x 706)

Evaporator Aluminum n - Aluminum tube Aluminum n - Aluminum tube

Pipe Diameter in. (mm) 1/32” (7.94) 1/32” (7.94)

Row-Fin Gap in. (mm) 2-0.05” (2-1.4) 2-0.05” (2-1.4)

Coil Length x Height x Width in. (mm) 27.5 x 9.75 x 1” (698 x 248 x 25.4) 27.5 x 9.75 x 1” (698 x 248 x 25.4)

Swing Motor Model / /

Output of Swing Motor / /

Fuse (A) / /

Sound Pressure Level dB (A) (H/M/L) 48/46/44 48/46/44

Sound Power Level dB (A) (H/M/L) 58/56/54 58/56/54

Outdoor

Side

Compressor Manufacturer/Trademark Panasonic Panasonic

Compressor Model 5RS062FAA21 5RS062FAA21

Compressor Type Rotary Rotary

L.R.A (A) 19 19

Compressor RLA (A) 2.85 2.85

Compressor Power Input (W) 640 640

Overload Protector B130-140-241E B130-140-241E

Throttling Method Capillary Capillary

Starting Method Capacitor Capacitor

Working Temperature Range °F (°C) 55.4-114.89°F (13-46°C) 55.4-114.89°F (13-46°C)

Condenser Aluminum Fin-Copper Tube Aluminum Fin-Copper Tube

Pipe Diameter in. (mm) 0.28” (7) 0.28” (7)

Rows-Fin Gap in. (mm) 2-0.05” (2-1.3) 2-0.05” (2-1.3)

Coil Length x Height x Width in. (mm) 25 x 13.5 x 1” (635 x 343 x 25.4) 25 x 13.5 x 1” (635 x 343 x 25.4)

Fan Type-Piece Axial Fan–1 Axial Fan–1

Fan Diameter in. (mm) 13.75” (349) 13.75” (349)

Sound Pressure Level dB (A) (H/M/L) 61/59/57 61/59/57

Sound Power Level dB (A) (H/M/L) 71/69/67 71/69/67

Defrosting Mode / /

Fan Motor Speed (rpm) (H/M/L) 1370 1370

Output of Fan Motor (W) 40 40

Fan Motor RLA (A) 0.35 0.35

Fan Motor Capacitor (uF) 2 2

Climate Type T1 T1

Isolation I I

Moisture Protection IP24 IP24

Permissible Excessive Operating Pressure

for the Discharge Side psi (MPa) 580.15 (4) 580.15 (4)

Permissible Excessive Operating Pressure

for the Suction Side psi (MPa) 304.58 (2.1) 304.58 (2.1)

Dimension (W/H/D) in. (mm) 42 x 16 x 21.5 (1069/406/546) 42 x 16 x 21.5 (1069/406/546)

Dimension of Package (L/W/H) in. (mm) 45 x 25.275 x 18.125 (1141/642/460) 45 x 25.275 x 18.125 (1141/642/460)

Net Weight/Gross Weight lbs. (kg) 99.2/19.05 (45/54) 99.2/19.05 (45/54)

Refrigerant Charge oz. (kg) R-410A 23.63 oz. (0.67) R-410A 23.63 oz. (0.67)

Specication and Technical Parameters

The above data is subject to change without notice. Please refer to the nameplate of the unit.

Heat Controller, Inc. SERVICE MANUAL Packaged Terminal A/C

Model EKTC07-2G EKTH07-2G

Function Cooling Heating Cooling Heating

Rated Voltage 265V 265V

Rated Frequency 60Hz 60Hz

Indoor

Side

Fan Type-Piece Cross Flow Fan - 1 Cross Flow Fan - 1

Diameter-Length in. (mm) 4.75 x 27.295 (121 x 706) 4.75 x 27.295 (121 x 706)

Evaporator Aluminum n - Aluminum tube Aluminum n - Aluminum tube

Pipe Diameter in. (mm) 5/16” (7.94) 5/16” (7.94)

Row-Fin Gap in. (mm) 2-0.05” (2-1.4) 2-0.05” (2-1.4)

Coil Length x Height x Width in. (mm) 27.5 x 9.75 x 1” (698 x 248 x 25.4) 27.5 x 9.75 x 1” (698 x 248 x 25.4)

Swing Motor Model / /

Output of Swing Motor / /

Fuse (A) / /

Sound Pressure Level dB (A) (H/M/L) 48/46/44 48/46/44

Sound Power Level dB (A) (H/M/L) 58/56/54 58/56/54

Outdoor

Side

Compressor Manufacturer/Trademark Panasonic Panasonic

Compressor Model 5RS062LAA1 5RS062LAA1

Compressor Type Rotary Rotary

L.R.A (A) 12 12

Compressor RLA (A) 2.45 2.45

Compressor Power Input (W) 645 645

Overload Protector B90-150-24E B90-150-24E

Throttling Method Capillary Capillary

Starting Method Capacitor Capacitor

Working Temperature Range °F (°C) 55.4-114.8°F (13-46°C) 55.4-114.8°F (13-46°C)

Condenser Aluminum Fin-Copper Tube Aluminum Fin-Copper Tube

Pipe Diameter in. (mm) 0.28” (7) 0.28” (7)

Rows-Fin Gap in. (mm) 0.05” (2-1.3) 0.05” (2-1.3)

Coil Length x Height x Width in. (mm) 25 x 13.5 x 1” (635 x 343 x 25.4) 25 x 13.5 x 1” (635 x 343 x 25.4)

Fan Type-Piece Axial Fan–1 Axial Fan–1

Fan Diameter in. (mm) 13.75” (349) 13.75” (349)

Sound Pressure Level dB (A) (H/M/L) 61/59/57 61/59/57

Sound Power Level dB (A) (H/M/L) 71/69/67 71/69/67

Defrosting Mode / /

Fan Motor Speed (rpm) (H/M/L) 1380 1380

Output of Fan Motor (W) 40 40

Fan Motor RLA (A) 0.3 0.3

Fan Motor Capacitor (uF) 1.5 1.5

Climate Type T1 T1

Isolation I I

Moisture Protection IP24 IP24

Permissible Excessive Operating Pressure

for the Discharge Side psi (MPa) 580.15 (4) 580.15 (4)

Permissible Excessive Operating Pressure

for the Suction Side psi (MPa) 304.58 (2.1) 304.58 (2.1)

Dimension (W/H/D) in. (mm) 42 x 16 x 21.5 (1069/406/546) 42 x 16 x 21.5 (1069/406/546)

Dimension of Package (L/W/H) in. (mm) 45 x 25.275 x 18.125 (1141/642/460) 45 x 25.275 x 18.125 (1141/642/460)

Net Weight/Gross Weight lbs. (kg) 119.05/138.89 (45/54) 119.05/138.89 (45/54)

Refrigerant Charge oz. (kg) R-410A 24.69 oz. (0.67) R-410A 24.69 oz. (0.67)

The above data is subject to change without notice. Please refer to the nameplate of the unit.

PACKAGED TERMINAL A/C SERVICE MANUAL Heat Controller, Inc.

Model EKTC09-1G EKTH09-1G

Function Cooling Heating Cooling Heating

Rated Voltage 230/208V 230/208V

Rated Frequency 60Hz 60Hz

Indoor

Side

Fan Type-Piece Cross Flow Fan - 1 Cross Flow Fan - 1

Diameter-Length in. (mm) 4.75 x 27.795 (121 x 706) 4.75 x 27.795 (121 x 706)

Evaporator Aluminum Fin-Copper Tube Aluminum Fin-Copper Tube

Pipe Diameter in. (mm) 0.28” (7) 0.28” (7)

Row-Fin Gap in. (mm) 2-0.05” (2-1.4) 2-0.05” (2-1.4)

Coil Length x Height x Width in. (mm) 27.5 x 9.75 x 1” (698 x 248 x 25.4) 27.5 x 9.75 x 1” (698 x 248 x 25.4)

Swing Motor Model / /

Output of Swing Motor / /

Fuse (A) / /

Sound Pressure Level dB (A) (H/M/L) 50/48/46 50/48/46

Sound Power Level dB (A) (H/M/L) 60/58/56 60/58/56

Outdoor

Side

Compressor Manufacturer/Trademark Mitsubish Samsung

Compressor Model KN073NGFMC G4C085IUBJP

Compressor Type Rotary Rotary

L.R.A (A) 17 18.5

Compressor RLA (A) 3.7 3.6

Compressor Power Input (W) 740 740

Overload Protector Interior Interior

Throttling Method Capillary Capillary

Starting Method Capacitor Capacitor

Working Temperature Range °F (°C) 64.4-109.4°F (18-43°C) 64.4-109.4°F (18-43°C)

Condenser Aluminum Fin-Copper Tube Aluminum Fin-Copper Tube

Pipe Diameter in. (mm) 0.28” (7) 0.28” (7)

Rows-Fin Gap in. (mm) 0.05” (3-1.4) 0.05” (3-1.4)

Coil Length x Height x Width in. (mm) 25 x 13.5 x 1” (635 x 343 x 25.4) 25 x 13.5 x 1” (635 x 343 x 25.4)

Fan Type-Piece Axial Fan–1 Axial Fan–1

Fan Diameter in. (mm) 13.75” (349) 13.75” (349)

Sound Pressure Level dB (A) (H/M/L) 61/59/57 61/59/57

Sound Power Level dB (A) (H/M/L) 71/69/67 71/69/67

Defrosting Mode / /

Fan Motor Speed (rpm) (H/M/L) 1370 1370

Output of Fan Motor (W) 65 65

Fan Motor RLA (A) 0.6 0.6

Fan Motor Capacitor (uF) 2 2

Climate Type T1 T1

Isolation I I

Moisture Protection IP24 IP24

Permissible Excessive Operating Pressure

for the Discharge Side psi (MPa) 580.15 (4) 580.15 (4)

Permissible Excessive Operating Pressure

for the Suction Side psi (MPa) 188.55 (1.3) 188.55 (1.3)

Dimension (W/H/D) in. (mm) 42 x 16 x 21.5 (1069/406/546) 42 x 16 x 21.5 (1069/406/546)

Dimension of Package (L/W/H) in. (mm) 45 x 25.275 x 18.125 (1141/642/460) 45 x 25.275 x 18.125 (1141/642/460)

Net Weight/Gross Weight lbs. (kg) 119.05/138.85 (54/63) 119.05/138.85 (54/63)

Refrigerant Charge oz. (kg) R-410A 33.5 oz. (0.95) R-410A 33.5 oz. (0.95)

The above data is subject to change without notice. Please refer to the nameplate of the unit.

Heat Controller, Inc. SERVICE MANUAL Packaged Terminal A/C

Model EKTC09-2G EKTH09-2G

Function Cooling Heating Cooling Heating

Rated Voltage 265V 265V

Rated Frequency 60Hz 60Hz

Indoor

Side

Fan Type-Piece Cross Flow Fan - 1 Cross Flow Fan - 1

Diameter-Length in. (mm) 4.75 x 27.795 (121 x 706) 4.75 x 27.795 (121 x 706)

Evaporator Aluminum Fin-Copper Tube Aluminum Fin-Copper Tube

Pipe Diameter in. (mm) 0.28” (7) 0.28” (7)

Row-Fin Gap in. (mm) 0.05” (2-1.4) 0.05” (2-1.4)

Coil Length x Height x Width in. (mm) 27.5 x 9.75 x 1” (698 x 248 x 25.4) 27.5 x 9.75 x 1” (698 x 248 x 25.4)

Swing Motor Model / /

Output of Swing Motor / /

Fuse (A) / /

Sound Pressure Level dB (A) (H/M/L) 50/48/46 50/48/46

Sound Power Level dB (A) (H/M/L) 60/58/56 60/58/56

Outdoor

Side

Compressor Manufacturer/Trademark Panasonic Samsung

Compressor Model 5RS072LAA21 G4C085YUAJP

Compressor Type Rotary Rotary

L.R.A (A) 15 19

Compressor RLA (A) 2.9 3.2

Compressor Power Input (W) 750 795

Overload Protector Interior Interior

Throttling Method Capillary Capillary

Starting Method Capacitor Capacitor

Working Temperature Range °F (°C) 64.4-109.4°F (18-43°C) 64.4-109.4°F (18-43°C)

Condenser Aluminum Fin-Copper Tube Aluminum Fin-Copper Tube

Pipe Diameter in. (mm) 0.28” (7) 0.28” (7)

Rows-Fin Gap in. (mm) 0.05” (3-1.4) 0.05” (3-1.4)

Coil Length x Height x Width in. (mm) 25 x 13.5 x 1” (635 x 343 x 25.4) 25 x 13.5 x 1” (635 x 343 x 25.4)

Fan Type-Piece Axial Fan–1 Axial Fan–1

Fan Diameter in. (mm) 13.75” (349) 13.75” (349)

Sound Pressure Level dB (A) (H/M/L) 61/59/57 61/59/57

Sound Power Level dB (A) (H/M/L) 71/69/67 71/69/67

Defrosting Mode / /

Fan Motor Speed (rpm) (H/M/L) 1540 1540

Output of Fan Motor (W) 45 45

Fan Motor RLA (A) 0.35 0.35

Fan Motor Capacitor (uF) 1.5 1.5

Climate Type T1 T1

Isolation I I

Moisture Protection IP24 IP24

Permissible Excessive Operating Pressure

for the Discharge Side psi (MPa) 580.15 (4) 580.15 (4)

Permissible Excessive Operating Pressure

for the Suction Side psi (MPa) 188.55 (1.3) 188.55 (1.3)

Dimension (W/H/D) in. (mm) 42 x 16 x 21.5 (1069/406/546) 42 x 16 x 21.5 (1069/406/546)

Dimension of Package (L/W/H) in. (mm) 45 x 25.275 x 18.125 (1141/642/460) 45 x 25.275 x 18.125 (1141/642/460)

Net Weight/Gross Weight lbs. (kg) 110.23/131.8 (50.5/59.5) 113.54/133/38 (51.5/60.5)

Refrigerant Charge oz. (kg) R-410A 33.5 oz. (0.95) R-410A 35.27 oz. (1.0)

The above data is subject to change without notice. Please refer to the nameplate of the unit.

PACKAGED TERMINAL A/C SERVICE MANUAL Heat Controller, Inc.

Model EKTC12-1G EKTH12-1G

Function Cooling Heating Cooling Heating

Rated Voltage 230/208V 230/208V

Rated Frequency 60Hz 60Hz

Indoor

Side

Fan Type-Piece Cross Flow Fan - 1 Cross Flow Fan - 1

Diameter-Length in. (mm) 4.75 x 27.795 (121 x 706) 4.75 x 27.795 (121 x 706)

Evaporator Aluminum Fin-Copper Tube Aluminum Fin-Copper Tube

Pipe Diameter in. (mm) 0.28” (7) 0.28” (7)

Row-Fin Gap in. (mm) 2-0.05” (2-1.4) 2-0.05” (2-1.4)

Coil Length x Height x Width in. (mm) 27.5 x 9.75 x 1.5” (698 x 248 x 25.4) 27.5 x 9.75 x 1.5” (698 x 248 x 25.4)

Swing Motor Model / /

Output of Swing Motor / /

Fuse (A) / /

Sound Pressure Level dB (A) (H/M/L) 52/50/48 52/50/48

Sound Power Level dB (A) (H/M/L) 62/60/58 62/60/58

Outdoor

Side

Compressor Manufacturer/Trademark Samsung Samsung

Compressor Model G4A110IUBJP G4A110IUBJP

Compressor Type Rotary Rotary

L.R.A (A) 27 27

Compressor RLA (A) 5 5

Compressor Power Input (W) 1095 1095

Overload Protector Interior Interior

Throttling Method Capillary Capillary

Starting Method Capacitor Capacitor

Working Temperature Range °F (°C) 64.4-109.4°F (18-43°C) 64.4-109.4°F (18-43°C)

Condenser Aluminum Fin-Copper Tube Aluminum Fin-Copper Tube

Pipe Diameter in. (mm) 0.28” (7) 0.28” (7)

Rows-Fin Gap in. (mm) 0.05” (3-1.4) 0.05” (3-1.4)

Coil Length x Height x Width in. (mm) 25 x 13.5 x 1.5” (635 x 343 x 25.4) 25 x 13.5 x 1.5” (635 x 343 x 25.4)

Fan Type-Piece Axial Fan–1 Axial Fan–1

Fan Diameter in. (mm) 13.75” (349) 13.75” (349)

Sound Pressure Level dB (A) (H/M/L) 63/61/59 63/61/59

Sound Power Level dB (A) (H/M/L) 73/71/69 73/71/69

Defrosting Mode / /

Fan Motor Speed (rpm) (H/M/L) 1370 1370

Output of Fan Motor (W) 65 65

Fan Motor RLA (A) 0.6 0.6

Fan Motor Capacitor (uF) 1.5 1.5

Climate Type T1 T1

Isolation I I

Moisture Protection IP24 IP24

Permissible Excessive Operating Pressure

for the Discharge Side psi (MPa) 580.15 (4) 580.15 (4)

Permissible Excessive Operating Pressure

for the Suction Side psi (MPa) 188.55 (1.3) 188.55 (1.3)

Dimension (W/H/D) in. (mm) 42 x 16 x 21.5 (1069/406/546) 42 x 16 x 21.5 (1069/406/546)

Dimension of Package (L/W/H) in. (mm) 45 x 25.275 x 18.125 (1141/642/460) 45 x 25.275 x 18.125 (1141/642/460)

Net Weight/Gross Weight lbs. (kg) 119.05/138.89 (54/63) 119.05/138.89 (54/63)

Refrigerant Charge oz. (kg) R-410A 35.27 oz. (1.0) R-410A 35.27 oz. (1.0)

The above data is subject to change without notice. Please refer to the nameplate of the unit.

Heat Controller, Inc. SERVICE MANUAL Packaged Terminal A/C

Model EKTC12-2G EKTH12-2G

Function Cooling Heating Cooling Heating

Rated Voltage 265V 265V

Rated Frequency 60Hz 60Hz

Indoor

Side

Fan Type-Piece Cross Flow Fan - 1 Cross Flow Fan - 1

Diameter-Length in. (mm) 4.75 x 27.795 (121 x 706) 4.75 x 27.795 (121 x 706)

Evaporator Aluminum Fin-Copper Tube Aluminum Fin-Copper Tube

Pipe Diameter in. (mm) 0.28” (7) 0.28” (7)

Row-Fin Gap in. (mm) 2-0.05” (2-1.4) 2-0.05” (2-1.4)

Coil Length x Height x Width in. (mm) 27.5 x 9.75 x 1.5” (698 x 248 x 25.4) 27.5 x 9.75 x 1.5” (698 x 248 x 25.4)

Swing Motor Model / /

Output of Swing Motor / /

Fuse (A) / /

Sound Pressure Level dB (A) (H/M/L) 52/50/48 52/50/48

Sound Power Level dB (A) (H/M/L) 62/60/58 62/60/58

Outdoor

Side

Compressor Manufacturer/Trademark Samsung Samsung

Compressor Model G4A110YUAJP G4A110YUAJP

Compressor Type Rotary Rotary

L.R.A (A) 23 23

Compressor RLA (A) 4.3 4.3

Compressor Power Input (W) 1090 1090

Overload Protector Interior Interior

Throttling Method Capillary Capillary

Starting Method Capacitor Capacitor

Working Temperature Range °F (°C) 64.4-109.4°F (18-43°C) 64.4-109.4°F (18-43°C)

Condenser Aluminum Fin-Copper Tube Aluminum Fin-Copper Tube

Pipe Diameter in. (mm) 0.28” (7) 0.28” (7)

Rows-Fin Gap in. (mm) 0.05” (3-1.4) 0.05” (3-1.4)

Coil Length x Height x Width in. (mm) 25 x 13.5 x 1.5” (635 x 343 x 25.4) 25 x 13.5 x 1.5” (635 x 343 x 25.4)

Fan Type-Piece Axial Fan–1 Axial Fan–1

Fan Diameter in. (mm) 13.75” (349) 13.75” (349)

Sound Pressure Level dB (A) (H/M/L) 63/61/59 63/61/59

Sound Power Level dB (A) (H/M/L) 73/71/69 73/71/69

Defrosting Mode / /

Fan Motor Speed (rpm) (H/M/L) 1540 1540

Output of Fan Motor (W) 45 45

Fan Motor RLA (A) 0.35 0.35

Fan Motor Capacitor (uF) 1.5 1.5

Climate Type T1 T1

Isolation I I

Moisture Protection IP24 IP24

Permissible Excessive Operating Pressure

for the Discharge Side psi (MPa) 580.13 (4) 580.13 (4)

Permissible Excessive Operating Pressure

for the Suction Side psi (MPa) 188.55 (1.3) 188.55 (1.3)

Dimension (W/H/D) in. (mm) 42 x 16 x 21.5 (1069/406/546) 42 x 16 x 21.5 (1069/406/546)

Dimension of Package (L/W/H) in. (mm) 45 x 25.275 x 18.125 (1141/642/460) 45 x 25.275 x 18.125 (1141/642/460)

Net Weight/Gross Weight lbs. (kg) 119.05/138.84 (54/63) 119.05/138.84 (54/63)

Refrigerant Charge oz. (kg) R-410A 35.98 oz. (1.02) R-410A 35.98 oz. (1.02)

The above data is subject to change without notice. Please refer to the nameplate of the unit.

PACKAGED TERMINAL A/C SERVICE MANUAL Heat Controller, Inc.

Model EKTC15-1G EKTH15-1G

Function Cooling Heating Cooling Heating

Rated Voltage 230/208V 230/208V

Rated Frequency 60Hz 60Hz

Indoor

Side

Fan Type-Piece Cross Flow Fan - 1 Cross Flow Fan - 1

Diameter-Length in. (mm) 4.75 x 27.795 (121 x 706) 4.75 x 27.795 (121 x 706)

Evaporator Aluminum Fin-Copper Tube Aluminum Fin-Copper Tube

Pipe Diameter in. (mm) 0.28” (7) 0.28” (7)

Row-Fin Gap in. (mm) 2-0.05” (2-1.4) 2-0.05” (2-1.4)

Coil Length x Height x Width in. (mm) 27.5 x 9.75 x 1.5” (698 x 248 x 25.4) 27.5 x 9.75 x 1.5” (698 x 248 x 25.4)

Swing Motor Model / /

Output of Swing Motor / /

Fuse (A) / /

Sound Pressure Level dB (A) (H/M/L) 52/48/46 52/48/46

Sound Power Level dB (A) (H/M/L) 62/58/56 62/58/56

Outdoor

Side

Compressor Manufacturer/Trademark Panasonic Panasonic

Compressor Model 5PS146FAA21 5PS146FAA21

Compressor Type Rotary Rotary

L.R.A (A) 32.6 32.6

Compressor RLA (A) 6.6 6.6

Compressor Power Input (W) 1485 1485

Overload Protector B205-150-141C B205-150-141C

Throttling Method Capillary Capillary

Starting Method Capacitor Capacitor

Working Temperature Range °F (°C) 55.4-114.8°F (13-46°C) 55.4-114.8°F (13-46°C)

Condenser Aluminum Fin-Copper Tube Aluminum Fin-Copper Tube

Pipe Diameter in. (mm) 0.31” (8) 0.31” (8)

Rows-Fin Gap in. (mm) 0.05” (3-1.4) 0.05” (3-1.4)

Coil Length x Height x Width in. (mm) 25 x 13.85 x 2.25” (635 x 352 x 57.2) 25 x 13.85 x 2.25” (635 x 352 x 57.2)

Fan Type-Piece Axial Fan–1 Axial Fan–1

Fan Diameter in. (mm) 13.75” (349) 13.75” (349)

Sound Pressure Level dB (A) (H/M/L) 65/61/59 65/61/59

Sound Power Level dB (A) (H/M/L) 75/71/69 75/71/69

Defrosting Mode / /

Fan Motor Speed (rpm) (H/M/L) 1370 1600

Output of Fan Motor (W) 65 65

Fan Motor RLA (A) 0.6 0.6

Fan Motor Capacitor (uF) 2.5 2.5

Climate Type T1 T1

Isolation I I

Moisture Protection IP24 IP24

Permissible Excessive Operating Pressure

for the Discharge Side psi (MPa) 580.15 (4) 580.15 (4)

Permissible Excessive Operating Pressure

for the Suction Side psi (MPa) 188.15 (1.3) 188.15 (1.3)

Dimension (W/H/D) in. (mm) 42 x 16 x 21.5 (1069/406/546) 42 x 16 x 21.5 (1069/406/546)

Dimension of Package (L/W/H) in. (mm) 45 x 25.275 x 18.125 (1141/642/460) 45 x 25.275 x 18.125 (1141/642/460)

Net Weight/Gross Weight lbs. (kg) 119.05/138.84 (54/63) 119.05/138.84 (54/63)

Refrigerant Charge oz. (kg) R-410A 38.01 oz. (1.08) R-410A 38.01 oz. (1.08)

The above data is subject to change without notice. Please refer to the nameplate of the unit.

Andere Handbücher für EKTC07-1G

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Heat Controller Klimaanlage Handbücher

Heat Controller

Heat Controller COMFORT-AIRE BG-81H Bedienungsanleitung

Heat Controller

Heat Controller Energy Knight B/A-HMC18AS Bedienungsanleitung

Heat Controller

Heat Controller SMA Series Bedienungsanleitung

Heat Controller

Heat Controller PTAC07A130A Bedienungsanleitung

Heat Controller

Heat Controller Comfort-Aire RG-51B Bedienungsanleitung

Heat Controller

Heat Controller RADS-253A Handbuch

Heat Controller

Heat Controller CD-101L Bedienungsanleitung

Heat Controller

Heat Controller Comfort-Aire BG-123A Bedienungsanleitung

Heat Controller

Heat Controller PE-121A Bedienungsanleitung

Heat Controller

Heat Controller Comfort-Aire BGE-103A Bedienungsanleitung

Heat Controller

Heat Controller RADS-61M Bedienungsanleitung

Heat Controller

Heat Controller PTAC09A130A Bedienungsanleitung

Heat Controller

Heat Controller VMC09SB-1 Service Bedienungsanleitung

Heat Controller

Heat Controller RADS-151G Bedienungsanleitung

Heat Controller

Heat Controller RSE1318-1A Bedienungsanleitung

Heat Controller

Heat Controller Comfort-Aire RAD-61A Bauanleitung

Heat Controller

Heat Controller Comfort-Aire CD-121 Bedienungsanleitung

Heat Controller

Heat Controller COMFORT-AIRE RG-51-5 Bedienungsanleitung

Heat Controller

Heat Controller DMC24CA-1 Bedienungsanleitung

Heat Controller

Heat Controller BG-81G Bedienungsanleitung

Heat Controller

Heat Controller BG-81J Bedienungsanleitung

Heat Controller

Heat Controller Comfort-Aire BG-81A Bedienungsanleitung

Heat Controller

Heat Controller Comfort-Aire RAD-183B Bedienungsanleitung

Heat Controller

Heat Controller REG-123M Bedienungsanleitung

Beliebte Klimaanlage Handbücher anderer Marken

Spheros

Spheros CC 355 Bedienungsanleitung

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Bedienungsanleitung

Panasonic

Panasonic CS-E12HKEW Bedienungsanleitung

nedis

nedis ACMB1WT7 Bedienungsanleitung

Samsung

Samsung AR KV Series Leitfaden

Daikin

Daikin FCFV50A Bedienungsanleitung

Fujitsu

Fujitsu Inverter ASBA30JFC Bedienungsanleitung

Toshiba

Toshiba RAS-M10SMUV-E Bedienungsanleitung

Daikin

Daikin FXLQ20MAVE Bedienungsanleitung

Hitachi

Hitachi RAS-E24CAK Bedienungsanleitung

CIAT

CIAT Magister 2 Series Leitfaden

Bestron

Bestron AAC6000 Bedienungsanleitung

Hisense

Hisense 7K Technisches Handbuch

Frigidaire

Frigidaire FFRE0533S1E0 Bedienungsanleitung

Samsung

Samsung AS09HM3N Bedienungsanleitung

Frigidaire

Frigidaire CRA073PU11 Betriebsanleitung

Soleus Air

Soleus Air GB-PAC-08E4 Bedienungsanleitung

McQuay

McQuay MCK020A Bedienungsanleitung
