Heinner HTCH-440GBK Bedienungsanleitung

TRADITIONAL COOKER HOOD

Model: HTCH-440GBK

www.heinner.ro

Telescopic cooker hood

Suction power: 325,1 m³/h

Color: black glass

www.heinner.com 65W, 50Hz, 220-240V

Before using the appliance, please read carefully this instruction manual and keep it for

future reference.

This instruction manual is designed to provide you with all required instructions related to

the installation, use and maintenance of the appliance.

In order to operate the unit correctly and safety, please read this instruction manual carefully

before installation and usage.

I. INTRODUCTION

II.

II. CONTENT OF YOUR PACKAGE

III.

Telescopic cooker hood

User manual

Warranty card

Thank you for purchasing this product!

www.heinner.com 65W, 50Hz, 220-240V

III. SAFETY PRECAUTIONS

IV.

If this product has arrived damaged, please return for change or repair.

DO NOT INSTALL THIS APPLIANCE IF YOU FOUND IT DANAGED.

Children should be supervised to ensure that they do not play with the appliance.

This appliance is designed for domestic use only.

Any installation work must be carried out by a qualified electrician or competent

person.

There is a fire risk if cleaning is not carried out in accordance with the instructions.

Details concerning the method and frequency of cleaning are stated in the section .

“INSTALLATION AND MAINTENANCE”.

Do not pull on the connection cord, but rather on the plug, to separate the appliance

from the mains.

When cleaning the appliance, it must be off power first.

Important! Always switch off the electricity supply at the mains during installation and

maintenance such as light bulb replacement.

The cooker hood must be installed in accordance with the installation instructions and

all measurements followed.

Please dispose of the packing material carefully. Children are vulnerable to it.

Make sure the ducting has no bends sharper than 90 degrees as this will reduce the

efficiency of the cooker hood.

Cooker hood is for domestic use only.

Do not flambé under the cooker hood.

Do no try to use the cooker hood without the grease filters or if the filters are

excessively greasy!

The air must not be discharged into a flue that is used for exhausting fumes from

appliances burning gas or other fuels.

Do not leave frying pans unattended during use because overheated fats or oils might

catch fire.

Never leave naked flames under the cooker hood.

If the cooker hood is damaged, do not attempt to use.

If the supply cord is damaged, it must be replaced by the manufacturer, its service

agent or similarly qualified persons in order to avoid a hazard.

www.heinner.com 65W, 50Hz, 220-240V

This appliance can be used by children aged from 8 years and above and persons with

reduced physical, sensory or mental capabilities or lack of experience and knowledge if

they have been given supervision or instruction concerning use of the appliance in a

safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

Children should be supervised to ensure that they do not play with the appliance.

The plug must be accessible after installation for isolation in case of any emergency.

The minimum distance between the supporting surface for the cooking vessels on the

hob and the lowest part of the range hood shall be at least 65cm.

There shall be adequate ventilation of the room when the range hood is used at the

same time as appliances burning gas or other fuels

Clean your appliance periodically by following the method given in the chapter

MAINTENANCE

Regulations concerning the discharge of air have to be fulfilled.

Clean the grease filter every month can prevent any risk of fire.

The charcoal filter traps odours and must be replaced at least once a year depending

on how frequent the cooker hood used.

CAUTION: Accessible parts of the hood can become very hot during use with cooking

appliances.

Regarding the instructions for the all necessary spaces with dimensions, the method of

fixing and how the appliance is to be fixed to its support, thanks to refer to the section

“INSTALLATION AND FIXING”

Regarding the instructions for the bulbs replacement information, thanks to refer to

the section “Replacement of the bulb”

www.heinner.com 65W, 50Hz, 220-240V

IV. INSTALATION

METHOD A

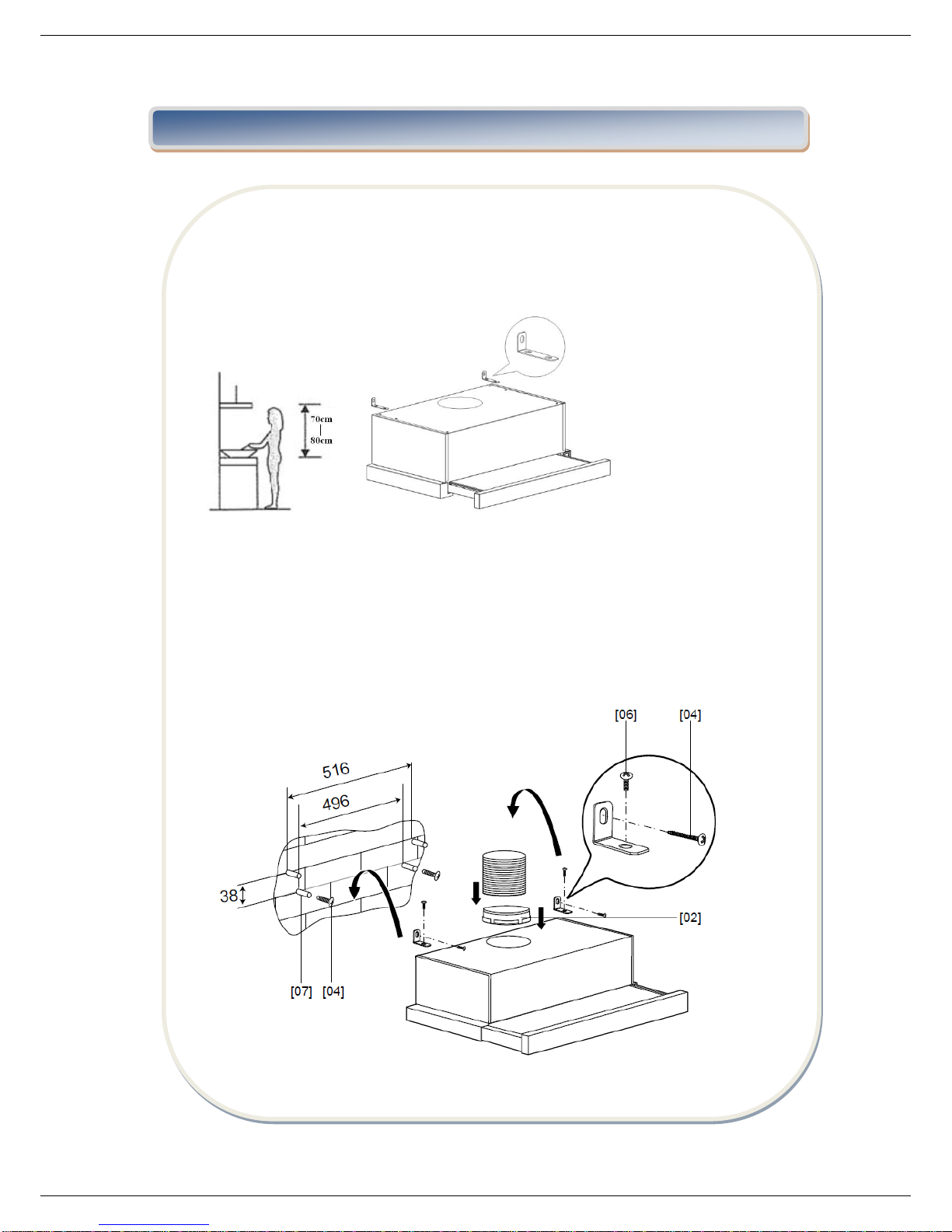

1.Decide the location of the holes for fixing the cooker hood.

2.Install the L-shaped bracket on the top of the hood by two screws (4mm x 10mm)

3. The cooker hood is wall mounted by 4 screws (4mm x 30mm) and wall plugs.

Mount the cooker hood on the wall on the back of the cooker hood by 2 screws (4mm

x 30mm) and wall plugs. Then fix the cooker hood on the wall by 2 screws (4mm x

30mm) and wall plugs through the small L-shaped bracket.

www.heinner.com 65W, 50Hz, 220-240V

4.Fix the one-way-valve to the air outlet of the cooker hood.

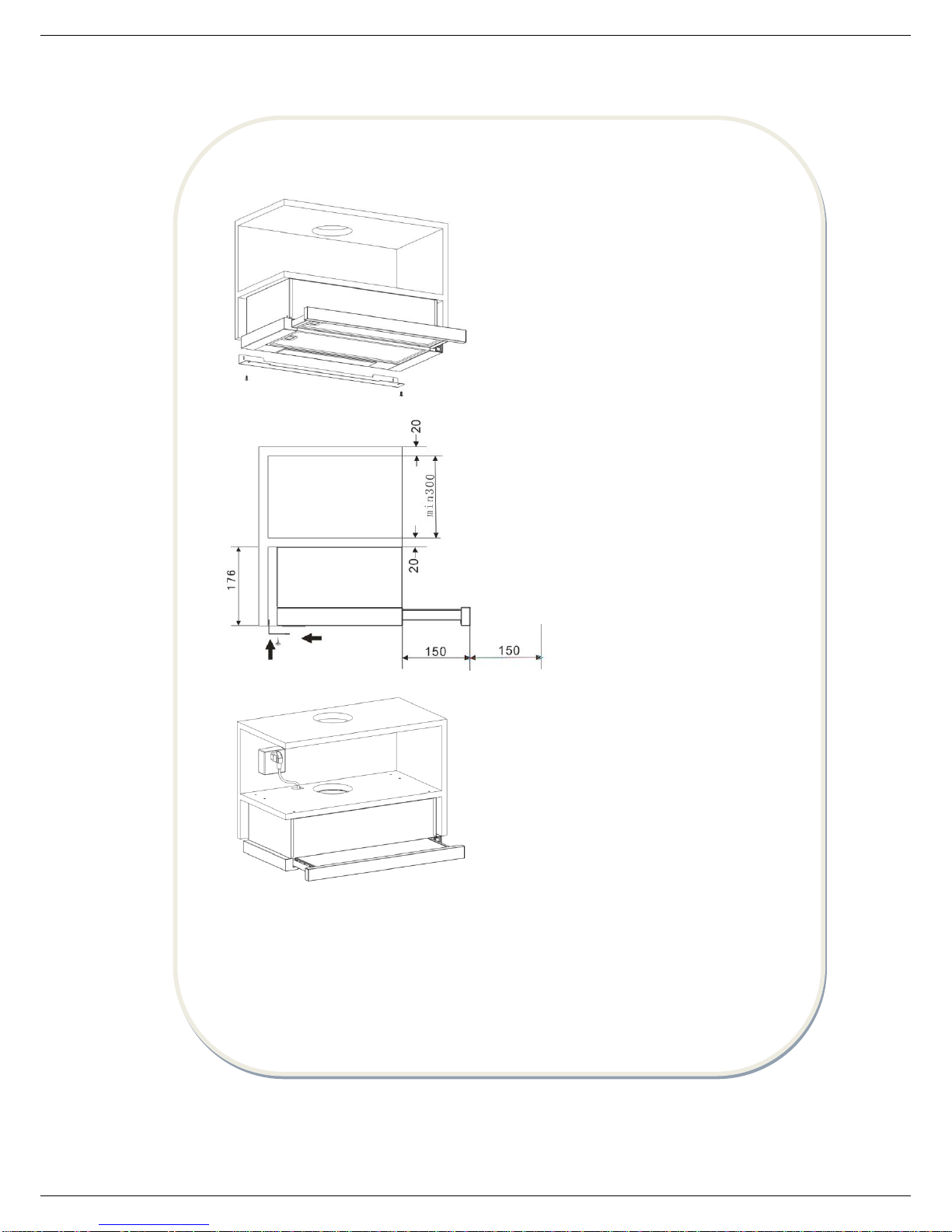

METHOD B

1. Fix the one-way-valve to the air outlet of the cooker hood.

2. Mount the cooker hood

www.heinner.com 65W, 50Hz, 220-240V

If there is gap between the wall and the cooker hood, you may Install the L-shaped

bracket on the bottom of the hood by two screws (3 x 12mm).

The installation of the L-shaped bracket is optional.

www.heinner.com 65W, 50Hz, 220-240V

Rocker switch

1.Insert the power plug into the socket.

Connect the plug into the power.

Push switch ①to , the lamp will be on; push switch ①to “0”, the lamp

will be off.

Push the switch ② into “I、II”, the motor will be on “low、high” two speeds, push

into “0”, the motor will be off.

The power will be connected when pull out the front panel. Conversely, the power

will be automatically disconnected.

V. OPERATION

www.heinner.com 65W, 50Hz, 220-240V

VI. CLEANING AND MAINTENANCE

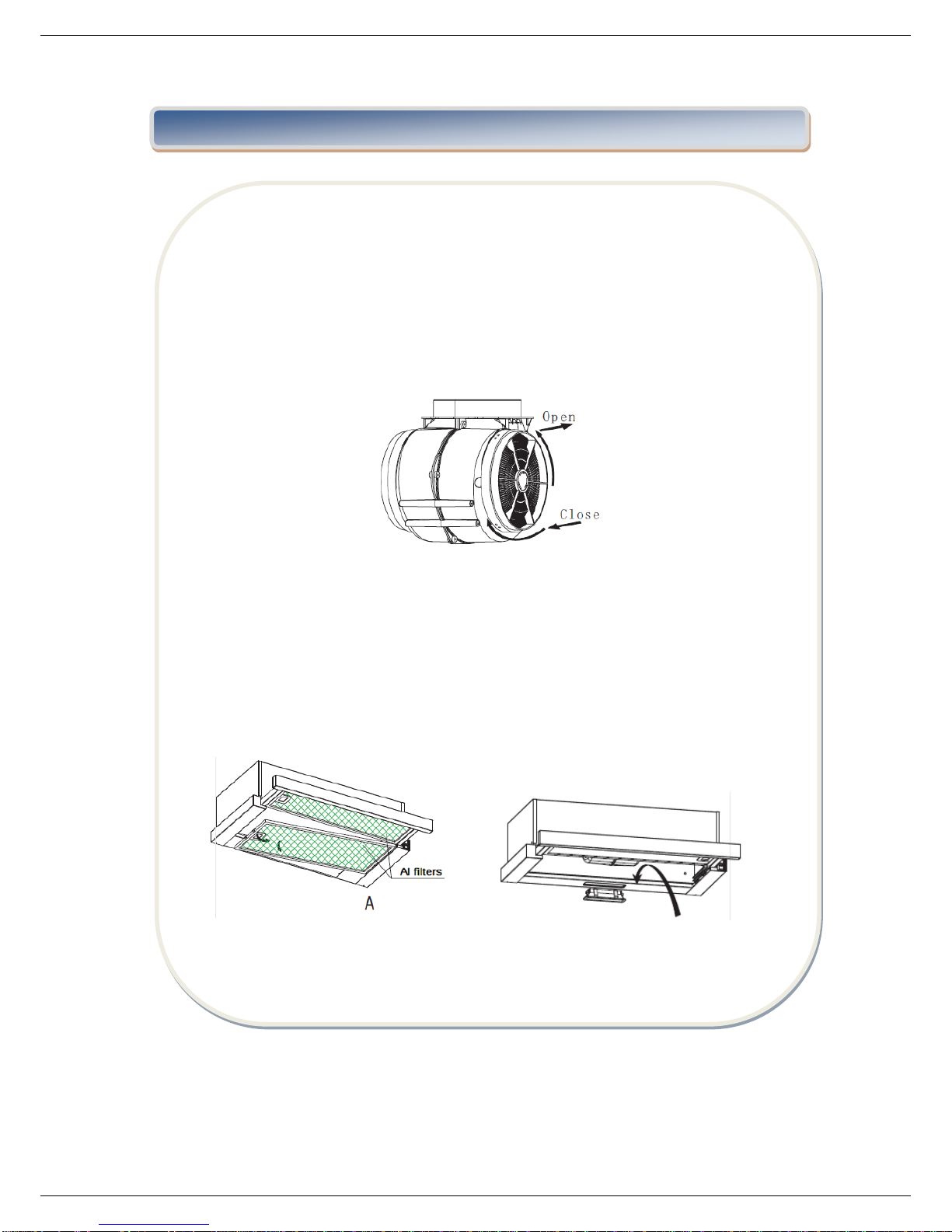

Charcoal bon Filter Replacement (not supplied)

(1) Slide the front part of the cooker hood.

(2) The al filter should be detached first. Press the lock and pull it downward.

(3) Take out the carbon filter by rotating the carbon filter anti-clockwise.

(4) Replace the new carbon filter.

Replacement of the bulb

Switch off the appliance and unplug it.

Slide the front part of the cooker hood.

The al filter should be detached first. Press the lock and pull it downward.

Push the light from inside and pull out the lamp wire from the terminal, and replace a

new one.

www.heinner.com 65W, 50Hz, 220-240V

Environment friendly disposal

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipment’s to

an appropriate waste disposal center.

HEINNER is a registered trademark of Network One Distribution SRL. Other brands and product

names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any

derivative such as translation, transformation, or adaptation without permission from NETWORK

ONE DISTRIBUTION.

www.heinner.com, http://www.nod.ro

This product is in conformity with norms and standards of European Community

Importer: Network One Distribution

Marcel Iancu Street, no 3-5, Bucharest, Romania

Tel: +40 21 211 18 56, www.heinner.com , www.nod.ro

MAINTENANCE

Before cleaning, switch the unit off and pull out the plug.

I. Regular Cleaning

Use a soft cloth moistened with hand-warm mildly soapy water or household cleaning

detergent. Never use metal pads, chemical, abrasive material or stiff brush to clean the unit.

II. Monthly Cleaning for filter

ESSENTIAL: Clean the filter every month can prevent any risk of fire.

The filter collects grease, smoke and dust…... so the filter is directly affecting the efficiency of

the cooker hood. If not cleaned, the grease residue (potential flammable) will saturate on the

filter. Clean it with household cleaning detergent.
