Henderson 80/2 Bedienungsanleitung

80/2 & 80/3 Telescopic system

FITTING INSRUCTIONS –NOTICE DE POSE –MONTAGE HANDLEIDING –MONTAGEANLEITUNG

ISTRUZIONI DI MONTAGGIO –INSTUCCIONES DE MONTAJE

Short Arm

Belt Joint bracket

Belt retain block

Belt clamp

80/2

x 1

x 3

80/3

x 2

x 1

x 6

Long Arm

Fixed Floor guide

Adjustable floor guide bracket

Adjustable floor guide foot

80/2

x 1

80/3

x 2

x 1

x 2

Datum Block

Spanner

Husky Hanger & Apron plate

Second door bracket

80/2

x 1

x 4

x 0

80/3

x 1

x 6

x 1

Universal clip stop

Toothed belt

(Metres)

80/2

x 2

x 3 m

80/3

x 2

x 5 m

System Specification

Maximum Door Width = 1200mm Minimum Door Width = 500mm

Door Thickness Range = 32 > 47mm Maximum Weight per Leaf (80/2 & 80/3) = 80kg

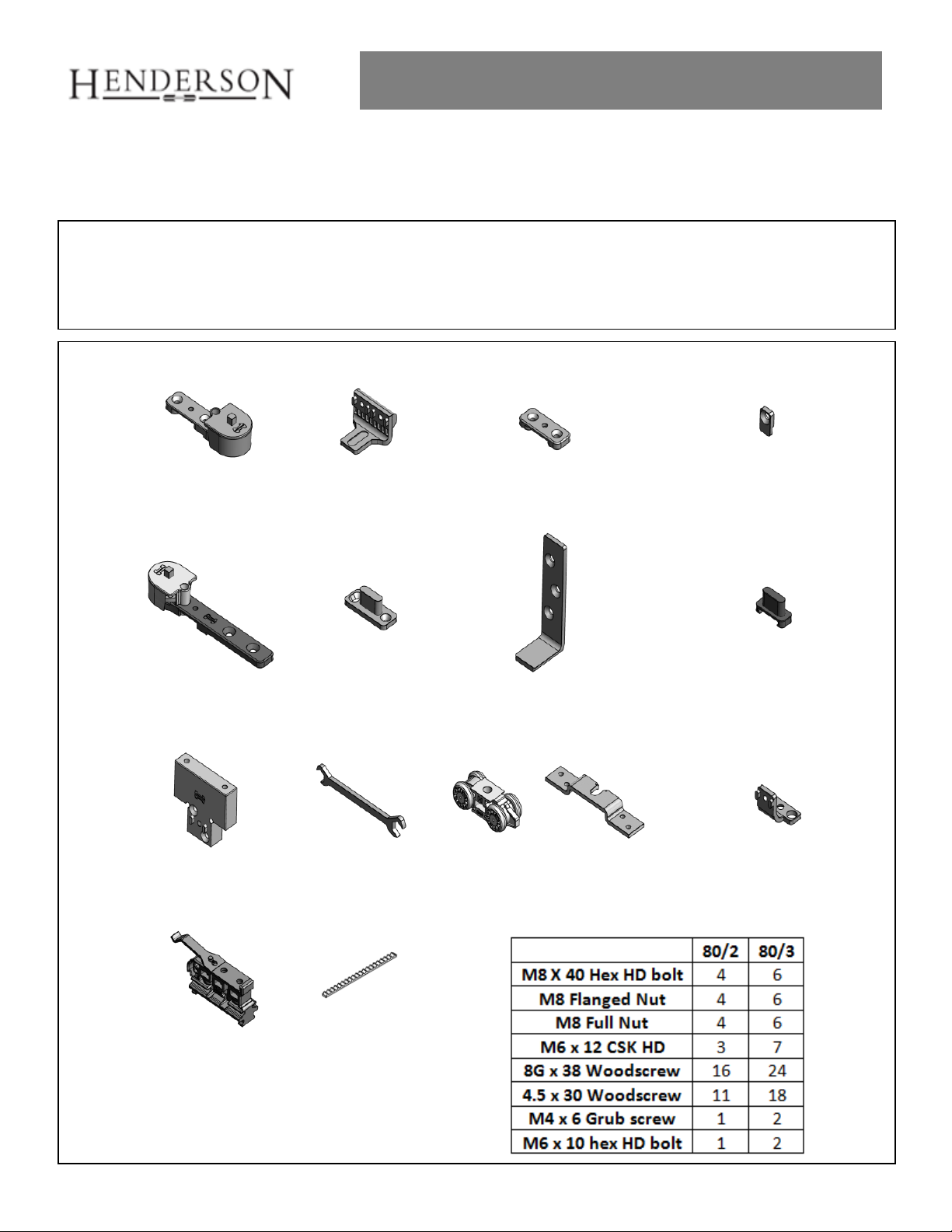

Contents of Kit

Tape

Measure

2, 3, 4 & 5 mm

Allen keys

Posi drive

screwdriver

Spirit level

Tools required

Scissors

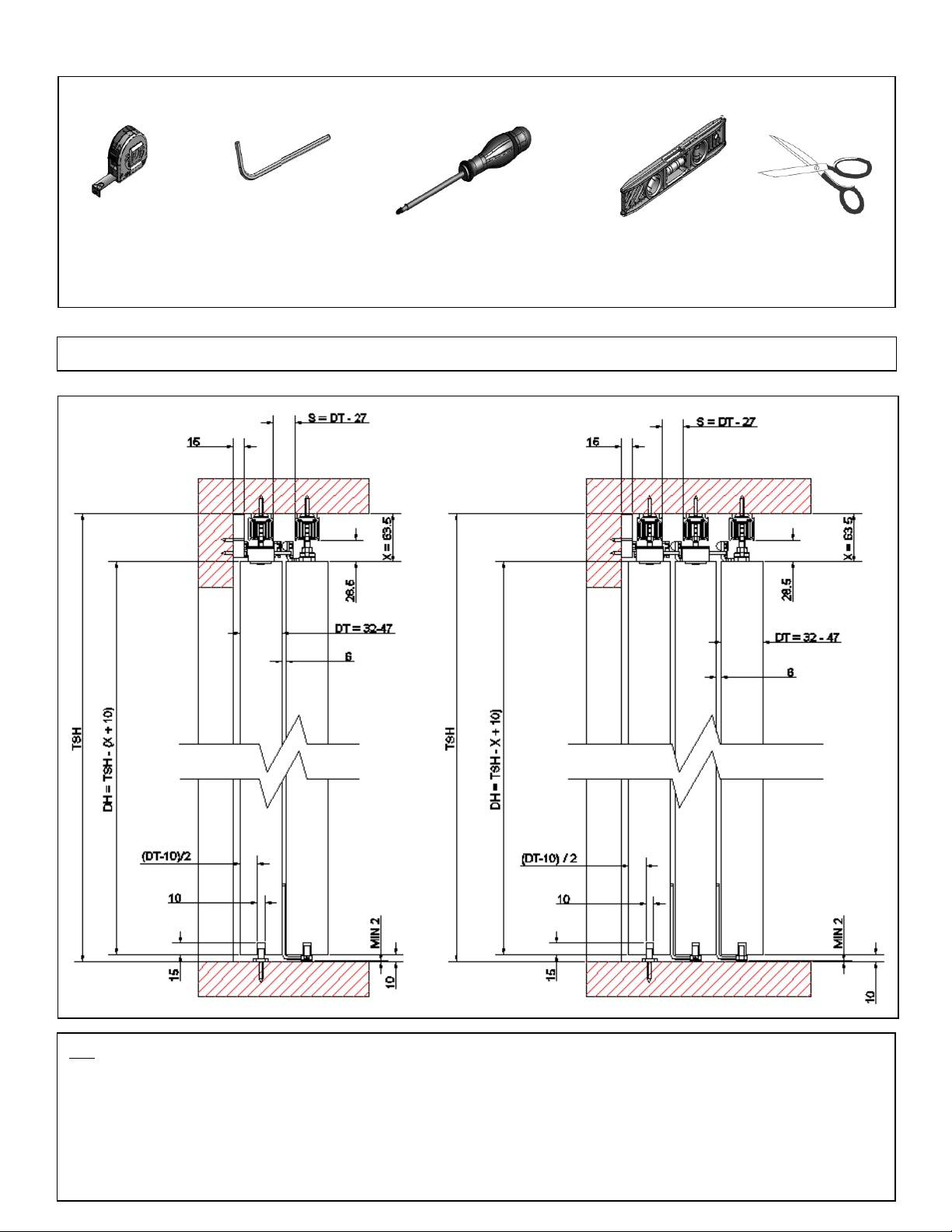

System overview & track installation

KEY

DT = DOOR THICKNESS TSH = TRACK SET HEIGHT

DH = DOOR HEIGHT S = GAP REQUIRED BETWEEN TRACKS

X = PCH RECOMMENDED TOP CLEARANCE (63.5mm)

Door Floor guide routing detail

80/2 Door Overview

(DT –10) /2

80/2Track components

KEY

DW = DOOR WIDTH APP= MAXIMUM RECOMMENDED CLEAR OPENING WIDTH

OL = OVERLAP OF DOORS (RECOMMENDED 70mm)

Doors open final

position

APP = (2 X DW ) –( 2 X OL)

PCH RECOMMEND

OL = 70mm

APP = 2 X DW –140

DW = APP + 140

80/3 Door Overview

80/3Track components

APP = (3xDW) –(3xOL)

PCH RECOMMEND OL = 70mm

APP = 3 x DW –210

DW = APP + 210

Doors open

final position

KEY

DW = DOOR WIDTH APP= MAXIMUM RECOMMENDED CLEAR OPENING WIDTH

OL = OVERLAP OF DOORS (RECOMMENDED 70mm)

1. Attach apron plates (All doors)

2. Attach long arm on follower door

Atta

(DT-20) / 2

8G x 38 Wood Screws

4.5 x 30 Wood Screws

3. Attach short arm on follower doors

4. Remove bearing caps

(DT-20) / 2

4.5 x 30 Wood Screws

5. Loop belt around bearing wheels & cut belt to length

Loop belt around bearing wheels

6. Attach both ends to belt joint bracket

M6 x 12 CSK HD

Belt clamp

IMPORTANT

Belt tension should be sufficient

to allow connection between

doors

7. Clamp bracket should be free to traverse between bearings

8. Re attach bearing caps

Approx 10 > 22mm

depending upon door

thickness

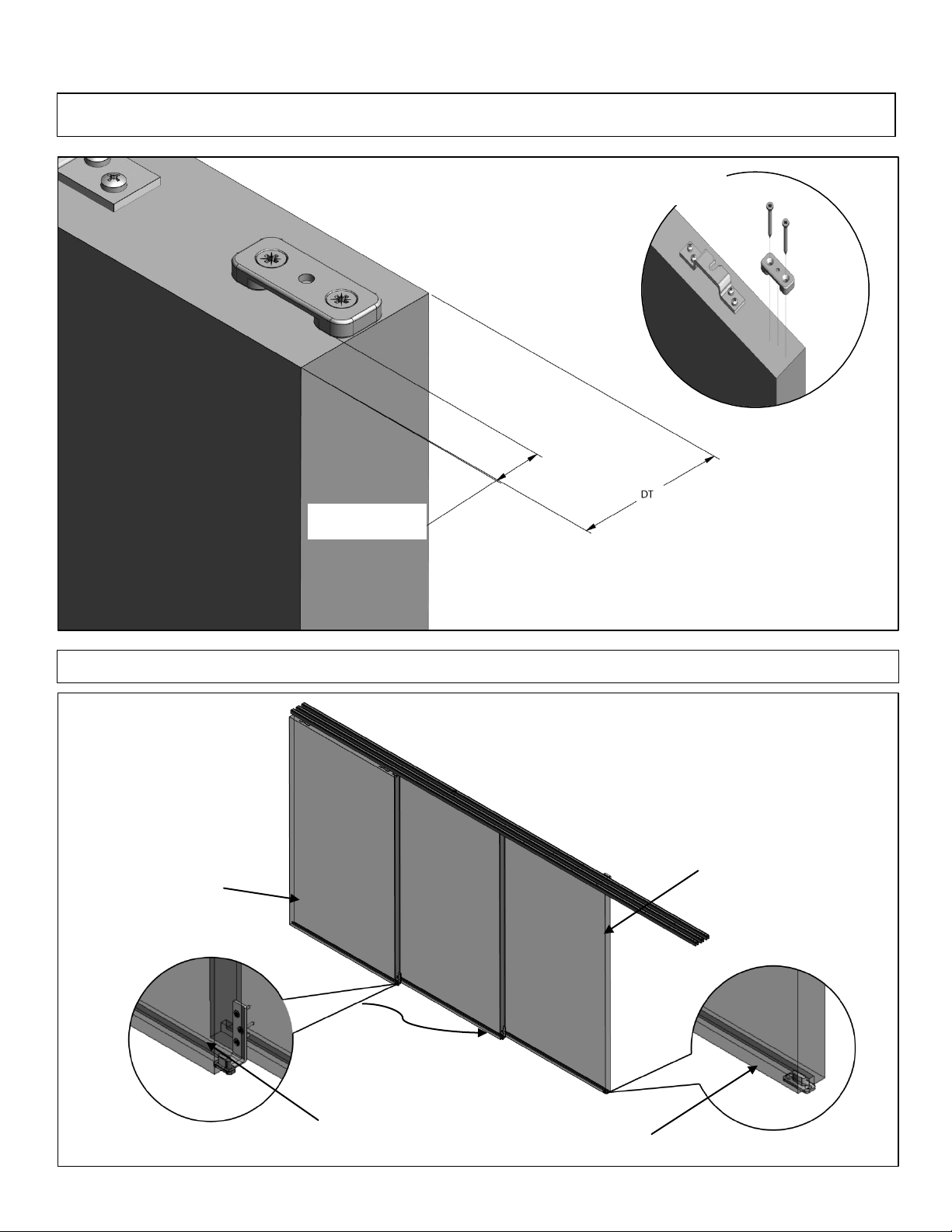

9. Position retain block on Lead door

Lead door

Follower door

Fixed floor guide

Adjustable floor

guide

10. Floor guide overview

4.5 x 30 Wood Screws

(DT –20 ) / 2

12. Position floor guide on follower door

11. Align doors with spirit level to position fixed floor guide

4.5 x 30Wood screws

(DT –10) / 2 + 3

Datum Wall

Spirit level

M4 x 6 Grub screw
