This section provides procedures for the checkout and replace-

ment of the various parts used within the fryer. Before replac-

ing any parts, refer to the Troubleshooting section. It will aid

you in determining the cause of the malfunction.

This section is arranged in groupings of the components that

work together within the fryer. The general groups are listed

below.

Removing the Control Panel

Probe

Electrical Components

Control Board

Pressure System

1. You may want to use a multimeter to check the electric

components.

2. When the manual refers to the circuit being closed, the

multimeter should read zero unless otherwise noted.

3. When the manual refers to the circuit being open, the

multimeter will read infinity.

4. The weights can be removed from the frame to easily

access the rear of cooker.

The following electrical components are described in this

section.

1. High Limit

2. Fuse Holders

3. Power/Pump Switch

4. Contactors

5. Heating Elements

6. Temperature Probe

7. Complete Control Panel Henny Penny

This high temperature control is a manual reset control which

sensesthe temperature of the shortening. If the shortening

temperature exceeds 420°F (215OC),this control switch will

open and shut off the heat to the cookpot. When the

temperature of the shortening drops to a safe operation limit,

the control must be manually reset. The reset button is located

above the filter knob in the front of the cooker. This will allow

heat to be supplied to the cookpot.

Before replacing a high temperature limit control, check to

see that its circuit is closed.

The shortening temperature must be below 380°F

(193°C) to accurately perform this check.

1. Remove electrical power supplied to the fryer.

Remove electrical power supplied to the fryer by

unplugging the unit, or by turning off the wall circuit

breaker or electrical shock could result.

2. Remove the control panel.

3. Remove the two electrical wires from the high

temperature limit control.

4. Manually reset the control, then check for continuity

between the two terminals after resetting the control. If

the circuit is open, replace the control, then continue with

this procedure. (If the circuit is closed, the high limit.is

not defective. Reconnect the two electrical wires.)

Remove electrical power supplied to the fryer by

unplugging the unit, or by turning off the wall circuit

breaker or electrical shock could result.

1. If the tube is broken or cracked, the control will open, shut-

ting off electrical power. The control cannot be reset.

2. Drain shortening from the cookpot and discard. A

substance in the tube could contaminate the shortening.

3. Remove control panel.

4. Loosen small inside screw nut on capillary tube.

5. Remove capillary bulb from bulb holder inside the cookpot.

6. Straighten the capillary tube.

7. Remove larger outside nut that threads into pot wall.

8. Remove the two nuts securing the high limit bracket at

the front of the fryer, and remove bracket.

9. Remove the two screws that secure high limit to the high

limit bracket.

10. Remove defective control from control panel area.

Il. Insert new control and replace screws.

12. Uncoil capillary line, starting at capillary tube, and insert

through cookpot wall.

To avoid electrical shock or other injury, the capillary

line must run under and away from all electrical power

wires and terminals. The tube must NEVER be in such

a position where it could accidentally touch the elec-

trical power terminals.

13. Carefully bend the capillary bulb holder on heating

elements.

14. Slip capillary bulb into bulb holder located on heating

elements. Pull excess capillary line from pot and tighten

nut into cookpot wall.

Be sure capillary bulb of high limit is positioned asnot

to interfere with carrier or when cleaning the cookpot

wall, or damage to capillary tube could result.

15. With excesscapillary line pulled out, tighten smaller nut.

16. Replace front panel.

17. Refill with shortening.

There are two fuse holders on eachmodel of the electric fryers.

There are no fuse holder assemblies for the gas models other

than that at the main power source.

Remove electrical power supplied to the fryer by

unplugging the unit, or turning off the wall circuit

breaker or electrical shock could result.

CONTROL PANEL FUSES 3 Phase Check from #54 to #55

and #68 to #69 on fuse assembly, or the fuse can be removed

to check for a closed circuit. If not, replace the fuse (HP#

EF02-007).

The Power/Pump Switch is a three way rocker switch with

a center “OFF“ position. With the switch in the POWER

position the fryer wiil operate. With the switch in the PUMP

position the filter pump will operate, but the heating unit will

not.

1. Remove Control Panel.

Remove electrical power suppledto the fryer by unplug-

ging the unit, or turning off the wall circuit breaker

or electrical shock could result.

2. “OFF” Position - should be open circuit anywhere on the

switch.

3. “Power” Position

Check from:

-5 to -6 closed circuit

-1 to -2 closed circuit

4. “Pump” Position

Check from:

#4 to #5 closed circuit

#3 to #2 closed circuit

Check across the jumpers on the wires of the

Power/Pump Switch. Thesejumpers have resistors and

capacitors which may be faulty.

1. With control panel removed and wires off of the switch,

push in on tabs on the switch to remove from the panel.

2. Replace with new switch, and reconnect wires to switch

following the wiring diagram.

3. Replace the control panel.

Primary

Heat

The electric fryer requires two switching contactors: aprimary

contactor and a heat contactor. The primary contactor

energizes (contacts close) any time the Power/Pump Switch

is in the “Power” position and the temperature of the pot is

below 420°F (215OC). The hi limit will cut the power at the

primary contactor if temperatures in the cookpot exceed420°F

(215O6). The primary contactor supplies power to one side of

the heat contactors.

The heat contactor is controlled by the computer controller.

en the controller calls for heat, the heat contactor applies

power to one side of the heating elements. When the heat

contactor and the primary contactor are energized (contacts

closed), the electric heating elements heat the shortening.

1. Remove electrical power supplied to the fryer.

Remove electrical power supplied to the fryer by

unplugging the unit, or turning off the wall circuit

breaker or electrical shock could result.

2. Remove the control panel.

3. Perform a check on both contactors as follows:

E?SL Its

L3 - L3 Open Circuit

L2 - L2 Open Circuit

Ll - Ll Open Circuit

4. Check across the coil terminals:

Standard Contactor - 415 ohms

Mercury Contactor - 1500 ohms

The following checks, are performed with the wall

circuit breaker on, and the Power/Pump Switch in the

ower” position. Extreme caution should be taken.

ake connections before applying power, take reading,

and remove power by unplugging the power cord, or

by turning off the wall circuit breaker, before remov-

ing meter leads or electrical shock could result.

5. ith power re-applied and in a heat-up mode, check the

power going to both contactor coils. This is to be sure

power is going to the contactors.

If no voltage is found going into the coils, the

and drain switch for the primary contactor.

Section.) For the heat contactor, check wi

If either contactor is defective it must be replaced as follows:

Remove electrical power supplied to the fryer by

unplugging power cord or turning off the wall circuit

breaker, or electrical shock could result.

emove only those wires directly connected to the

contactor being replaced. Label the wires.

2. Remove the two mounting screws on the base plate and

remove standard contactor (primary). Proceed to step 5.

3. Remove the two nuts securing the mercury contactor

bracket to the base plate and remove bracket.

4. move the two screws securing the mercury contactor

the bracket and remove contactor.

5. Install new contactor in reverse order of previous steps.

nstall control panel.

econnect power to fryer and test the fryer for proper

Each electric fryer uses two heating elements.

Heating elements are available for 208 or 220/240,380

and 415 voltage. Check the data plate on the right side

panel of unit to determine the correct voltage.

If the shortening’s temperature recovery is very slow, or at

a slower rate than required, this may indicate defective heating

element(s). A multimeter will quickly indicate if the elements

are shorted or open.

1. Remove electrical power supplied to the fryer.

Remove electrical power supplied to the fryer by

unplugging the unit, or turning off the wall circuit

breaker or electrical shock could result.

2. Remove the Control Panel.

The following checks are performed with the wall

circuit breaker closed and the Power/Pump switch in

“Power” position. Extreme caution should be taken.

Make connections before applying power, take reading,

and remove power by unplugging the power cord, or

by turning off the wall circuit breaker, before remov-

ing meter leads, or electrical shock could result.

3. Perform an amp check on one heating element at a time

with the wires connected to the contactors. The two

heaters actually have three small heating elements on the

inside of the outer plate. It is important to check between

the correct wires to obtain an accurate amp reading. The

wires are labelled for your convenience.

ower

8500 w 203 v 47.3

L3 - L2 8500 w 208 v 47.9

L2 - Ll 8500 w 208 V 48.0

Ll - L2 8500 w 240 V 39.4

L3 - L2 8500 w 240 V 40.1

L2 - Ll 8500 w 240 V 39.9

1. Drain the shortening.

2. Remove the high limit bulb holder from the heating

element.

3. Remove the Control Panel.

4. Disconnect the heating element wires from the contactors.

5. Loosen the screws on the element spreaders.

6. Slide the element spreaders to the back of the heating

elements.

7. Remove the brass nuts and washers which secure the ends

of the elements through the cookpot.

8. Remove the heating elements from the cookpot asagroup

by lifting the far end and sliding them up and out toward

the rear of the cookpot.

Always install new rings when installing

heater elements, or shortening may leak inside cooker.

9. Install new heating elements with new rubber “0” rings

mounted in the center of the stacked elements.

10. Replace the heating elements, terminal ends first at

approximately 45” angle, slipping the terminal ends

through the front wall of the cookpot.

11. Replacethe brass nuts and washers on the heating element

terminals.

12. ove the element spreaders from the back of the elements

to a position which will spread eachelement apart evenly

on all four sides, and tighten.

13. Replace the high limit bulb holder on the top element, and

position on the bulb above the top element and tighten

screws which hold bulb in place.

14. Reconnect the wires to the appropriate terminals.

15. Replace the front control panel.

16. Connect the power cord to the wall receptacle or turn wall

circuit breaker on.

Heating elements shou nergized without

shortening in the cookpot, or damage to heating

elements could result.

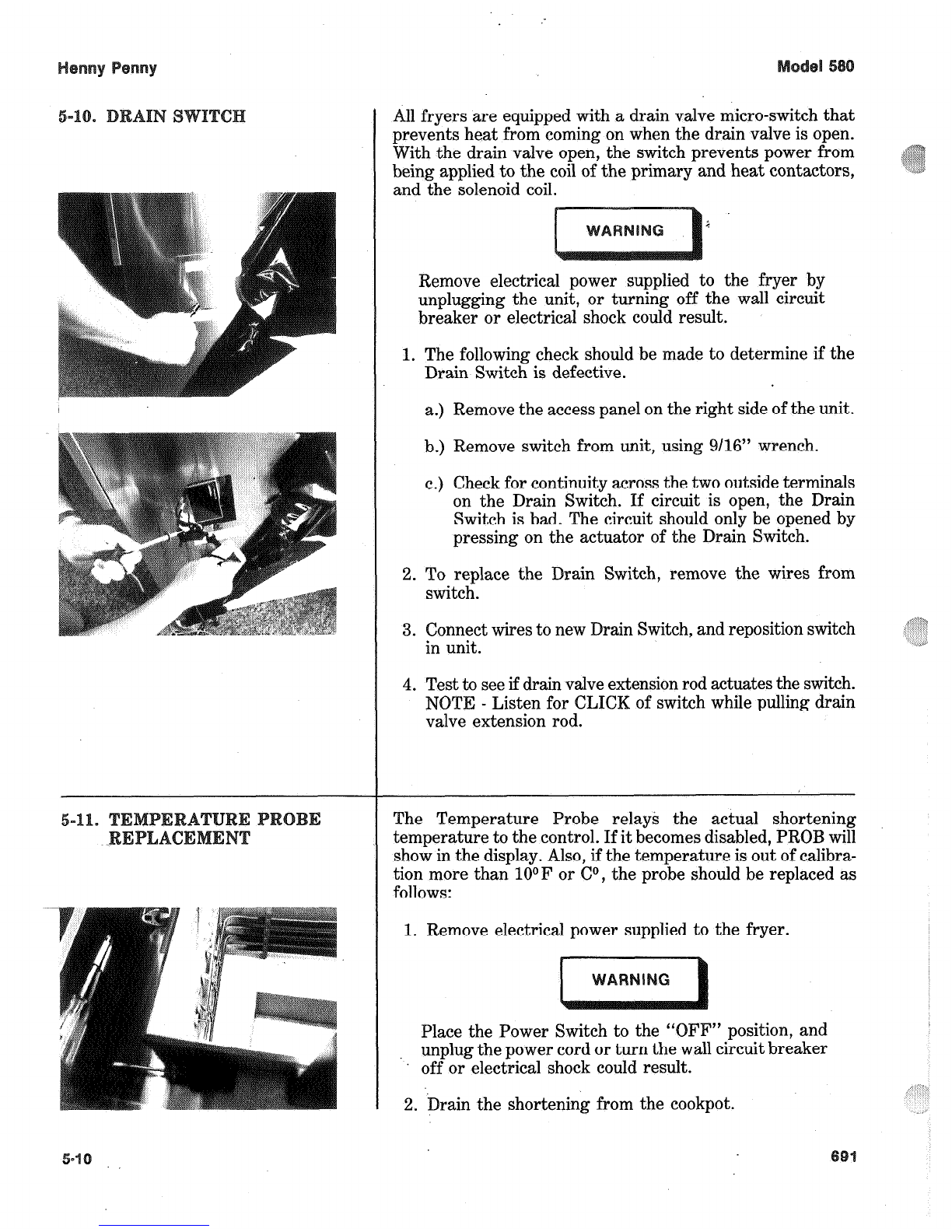

All fryers are equipped with a drain valve micro-switch that

prevents heat from coming on when the drain valve is open.

With the drain valve open, the switch prevents power from

being applied to the coil of the primary and heat contactors,

and the solenoid coil.

Remove electrical power supplied to the fryer by

unplugging the unit, or turning off the wall circuit

breaker or electrical shock could result.

1. The following check should be made to determine if the

Drain Switch is defective.

a.) Remove the accesspanel on the right side of the unit.

b.) Remove switch from unit, using 9116” wrench.

c.) Check for continuity across the two outside terminals

on the Drain Switch. If circuit is open, the Drain

Switch is bad. The circuit should only be opened by

pressing on the actuator of the Drain Switch.

2. To replace the Drain Switch, remove the wires from

switch.

3. Connect wires to new rain Switch, and reposition switch

in unit.

4. Test to seeif drain valve extension rod actuates the switch.

NOTE - Listen for CLICK of switch while pulling drain

valve extension rod.

The Temperature Probe relays the actual shortening

temperature to the control. If it becomes disabled, PROB will

show in the display. Also, if the temperature is out of calibra-

tion more than loo F or Co, the probe should be replaced as

follows:

1. Remove electrical power supplied to the fryer.

Place the Power Switch to the “OFF” position, and

unplug the power cord or turn the wall circuit breaker

off or electrical shock could result.

I 1\.*

2. Drain the shortening from the cookpot.

Inhaltsverzeichnis

Andere Henny Penny Fritteuse Handbücher

Henny Penny

Henny Penny ODE-323 electri Bedienungsanleitung

Henny Penny

Henny Penny CFE-410 Bedienungsanleitung

Henny Penny

Henny Penny CFE-415 Bedienungsanleitung

Henny Penny

Henny Penny COMPUTRON 7000 500 Bedienungsanleitung

Henny Penny

Henny Penny OFE/OFG/OEA/OGA-341 Betriebsanleitung

Henny Penny

Henny Penny LOV LVG-100 Series Bedienungsanleitung

Henny Penny

Henny Penny 691 Betriebsanleitung

Henny Penny

Henny Penny OE-30X Bedienungsanleitung

Henny Penny

Henny Penny 322 Bedienungsanleitung

Henny Penny

Henny Penny 581 Programmierhandbuch

Henny Penny

Henny Penny QSR Solutions FM03-672 Bedienungsanleitung

Henny Penny

Henny Penny Evolution Elite EEE-142 Bedienungsanleitung

Henny Penny

Henny Penny Evolution Elite EEE-154 Bedienungsanleitung

Henny Penny

Henny Penny LVE-102 Bedienungsanleitung

Henny Penny

Henny Penny Evolution Elite Bedienungsanleitung

Henny Penny

Henny Penny OEA-323 Bedienungsanleitung

Henny Penny

Henny Penny KFC Velocity Series Bedienungsanleitung

Henny Penny

Henny Penny OEA-321 Bedienungsanleitung

Henny Penny

Henny Penny OEA/OGA-341 Bedienungsanleitung

Henny Penny

Henny Penny OFE-323 Bedienungsanleitung

Henny Penny

Henny Penny OFE-324 Bedienungsanleitung

Henny Penny

Henny Penny LOV LVG-100 Series Bedienungsanleitung

Henny Penny

Henny Penny PFE-590 Bedienungsanleitung

Henny Penny

Henny Penny LVE-202 Bedienungsanleitung

Beliebte Fritteuse Handbücher anderer Marken

Innsky

Innsky 55SA1US Bedienungsanleitung

Falcon

Falcon G350/11 Benutzerhandbuch

GoWISE USA

GoWISE USA GW22612 Bedienungsanleitung

Wolf

Wolf IF15/S Bedienungsanleitung

Electrolux

Electrolux Thermetic 9CHG583284 Kurzanleitung

Gourmia

Gourmia GAF799 Bedienungsanleitung

DeLonghi

DeLonghi D677UX Bedienungsanleitung

SEVERIN

SEVERIN DEEP FRYER - Benutzerhandbuch

Toastmaster

Toastmaster TMFG18-NAT Bedienungsanleitung

Domo

Domo DO465FR Bedienungsanleitung

Farberware

Farberware FBW FT 43721 B Bedienungsanleitung

GERMANICA

GERMANICA GEAF5L3LD Bedienungsanleitung

Roller Grill

Roller Grill MF 120 R Bedienungsanleitung

Philips

Philips HD9211 Bedienungsanleitung

Linea 2000

Linea 2000 Domo DO536FR Bedienungsanleitung

Lakeland

Lakeland 31796 Bedienungsanleitung

Dash

Dash Tasti-Crisp DFAF755 Bedienungsanleitung

Fagor

Fagor F-200 Bedienungsanleitung
