Model 590/592

This section provides checkout and replacement procedures,

for various parts of the fryer. Before replacing any parts, refer

to the Troubleshooting Section to aid you in ﬁnding the cause

of the malfunction.

1. A multimeter will help you to check electric components.

2. When the manual refers to the circuit being closed, the

multimeter should read zero unless otherwise noted.

3. When the manual refers to circuit being open, multimeter

should read inﬁnity.

Do not move fryer with hot shortening in the frypot or

ﬁlter pan. Severe burns can result from splashing hot

shortening.

4. Remove weights from frame to easily access rear of fryer.

To ensure a long life of fryers and their components, regular

maintenance should be performed. Refer to the chart below.

Procedure Frequency

Filtering of shortening See KFC’s Standards Library

Changing of shortening See KFC’s Standards Library

Changing the ﬁlter envelope See KFC’s Standards Library

Cleaning deadweight assy. Daily-See Deadweight Valve

Section

Cleaning the frypot See KFC’s Standards Library

Reversing lid gasket Each 90 Days-see Reversing

Lid Gasket Section

Lubricate rear lid rollers Annually-See Lubricating Lid

Rollers Section

Cleaning safety relief valve Annually-See Removal/Cleaning

of Safety Relief Valve Section

307 2-1

SECTION 2. MAINTENANCE

2-1. INTRODUCTION

2-2. MAINTENANCE HINTS

2-3. PREVENTIVE

MAINTENANCE

Model 590/592

This high temperature control is a safety, manual reset control,

which senses the temperature of the shortening. If the shorten-

ing temperature exceeds 425°F (218°C), this switch opens

and shuts off the heat to the frypot. When the temperature of

the shortening drops to a safe operation limit, manually reset

by pressing the red reset button. The red reset button is located

under the control panel, in the front of the fryer, to the right of

the drain. Once reset, the frypot starts heating.

Checkout

Before replacing a high temperature limit control, check to see

that its circuit is closed.

The shortening temperature must be below 380°F (193°C)

to accurately perform this check.

1. Remove electrical power supplied to the fryer.

To avoid electrical shock or property damage, move the

power switch to OFF and disconnect main circuit

breaker, or unplug cord at wall receptacle.

2. Remove the control panel.

3. Remove the inner heat shield.

4. Remove two nuts securing the high limit bracket to unit,

and pull the bracket from the unit.

5. Remove two screws securing the high limit to the bracket,

and remove the high limit from the bracket.

6. Remove the two electrical wires from the high temperature

limit control.

7. Manually reset control, then check for continuity between

the two terminals after resetting the control. If circuit is

open, replace control, then continue with this procedure. (If

the circuit is closed, high limit is not defective. Reconnect

the two electrical wires.)

2-2 1103

2-4. HIGH TEMPERATURE

LIMIT CONTROL

Model 590/592

To avoid electrical shock of property damage, move the

power switch to OFF and disconnect main circuit

breaker, or unplug cord at wall receptacle.

Replacement

1. If the tube is broken or cracked, the control will open,

shutting off electrical power. The control cannot be reset.

2. Drain shortening from the frypot and discard. Asubstance

in the tube could contaminate the shortening.

3. Remove control panel.

4. Loosen small inside screw nut on capillary tube.

5. Remove capillary bulb from bulb holder inside the frypot.

6. Straighten the capillary tube.

7. Remove larger outside nut that threads into pot wall, and

remove defective control from control panel area.

8. Insert new control and replace screws.

9. Uncoil capillary line, starting at capillary tube, and insert

through frypot wall.

To avoid electrical shock or other injury, run capillary

line under and away from all electrical power wires and

terminals. The tube must never be in such a position

where it could accidentally touch the electrical power

terminals.

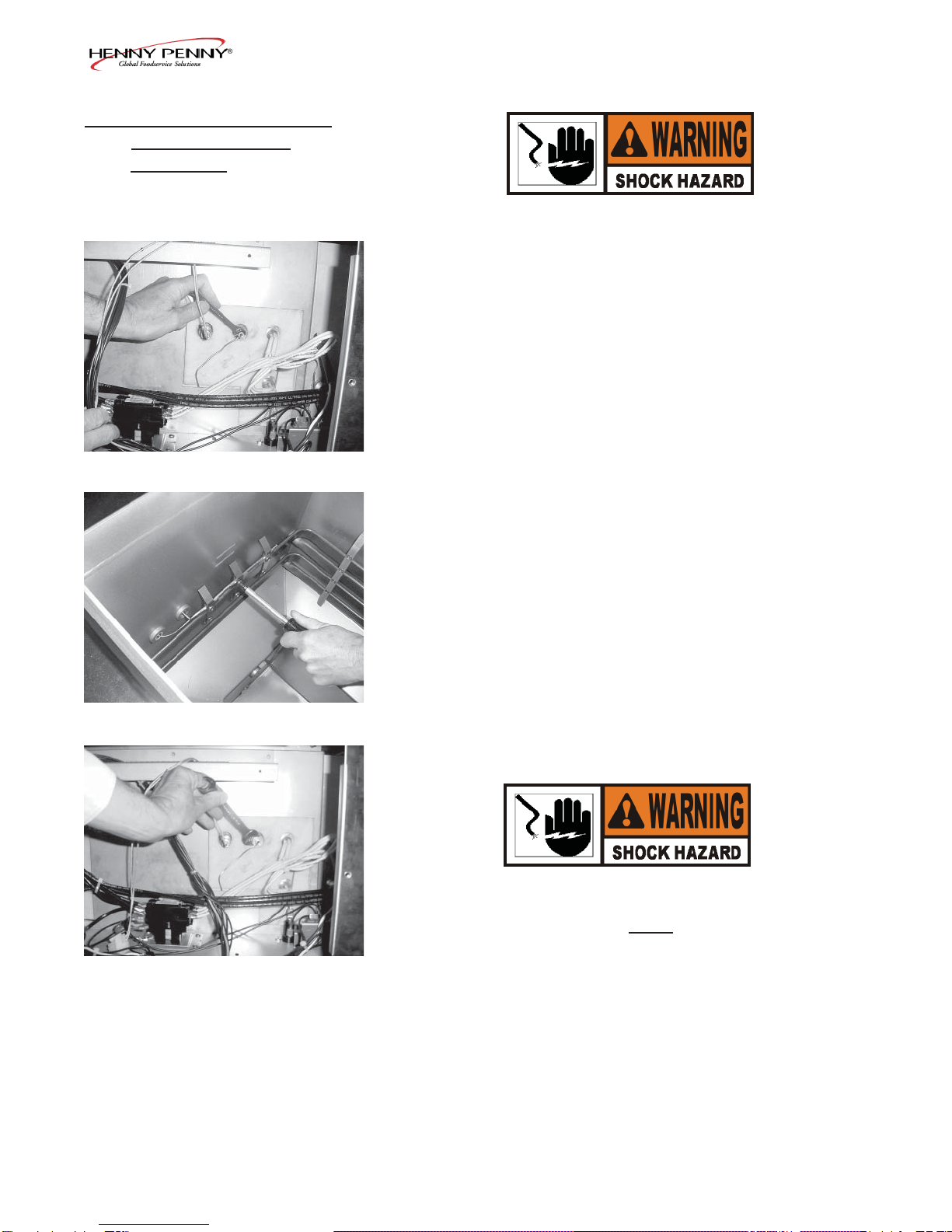

10. Carefully bend the capillary tube as shown in photo and

place into bulb brackets.

1103 2-3

2-4. HIGH TEMPERATURE

LIMIT CONTROL

(Continued)

Model 590/592

11. Pull excess capillary line from pot and tighten nut into

frypot wall.

Be sure capillary bulb of high limit is positioned so it does

not interfere with carrier or get damaged when cleaning

frypot.

12. With excess capillary line pulled out, tighten smaller nut.

13. Replace inner and front panels.

14. Reﬁll with shortening.

There are two fuse holders on each model of the electric fryers.

To check or change fuse, unscrew black fuse holder cap.

To avoid electrical shock or property damage, move the

power switch to OFF and disconnect main circuit

breaker, or unplug cord at wall receptacle.

Checking Procedure for Fuse Holders

CONTROL PANEL FUSES 3 Phase

Remove the control panel and pull the wires from the fuse

holder terminals. Using a multimeter or continuity light, check

across the terminals. The circuit should be closed. If not, re-

place the fuse (HP# EF02-007) or fuse holder (HP# EF02-006).

2-4 1103

2-4. HIGH TEMPERATURE

LIMIT CONTROL

(Continued)

2-5. FUSE HOLDERS

Model 590/592

The POWER/PUMP switch is a three way rocker switch with a

center OFF position. With switch in the POWER position, the

fryer operates. With switch in PUMP position, the ﬁlter pump

operates, but the unit will not heat.

To avoid electrical shock or property damage, move the

power switch to OFF and disconnect main circuit

breaker, or unplug cord at wall receptacle.

Checkout

1. Remove control panel.

2. Label and remove wires from the switch.

3. OFF position-should be open circuit anywhere on switch.

4. Power position. Check from: #5 to #6 closed circuit

#l to #2 closed circuit

5. Pump position. Check from: #4 to #5 closed circuit

#3 to #2 closed circuit

Check across the jumpers on the wires of POWER/PUMP

switch. These jumpers have resistors and capacitors which

may be faulty.

Replacement

1. With control panel removed, and wires off of the switch,

push in on tabs on the switch to remove from the panel.

2. Replace with new switch, and reconnect wires to switch

following the wiring diagram.

3. Replace the control panel.

1103 2-5

2-6. POWER/PUMP SWITCH

Model 590/592

The temperature probe relays actual shortening temperature to

the control. If it becomes disabled, “E06” will show in the dis-

play. Also, if temperature is out of calibration more than 10°F,

or 10°C, the temperature probe should be replaced. An Ohm

check can be performed also. See chart at end of this section.

1. Remove electrical power supplied to the fryer.

To avoid electrical shock or property damage, move the

power switch to OFF and disconnect main circuit

breaker, or unplug cord at wall receptacle.

2. Drain the shortening from the frypot.

3. Remove the control panel.

4. Using a 1/2” wrench, remove the nut on compression ﬁtting.

5. Remove the temperature probe from the frypot.

6. Place nut and new ferrule on new temperature probe and

insert temperature probe into compression ﬁtting until it

extends one-half (1/2) inch (1.3 cm) into frypot. Use temp-

erature probe gauge provided in temperature probe kit, to

ensure proper placement in frypot. See Figures 2-1 & 2-2.

7. Tighten hand tight and then a half turn with wrench.

Excess force will damage temperature probe.

8. Connect new temperature probe to PC board and replace

control panel.

9. Replace shortening.

10. Turn power on and check out fryer.

2-6 407

Figure 2-1

2-7. TEMPERATURE PROBE

REPLACEMENT

Figure 2-2

Model 590/592

Should the control panel become inoperative, follow these

instructions for replacing the board.

1. Remove electrical power supplied to the fryer.

To avoid electrical shock or property damage, move the

power switch to OFF and disconnect main circuit

breaker, or unplug cord at wall receptacle.

2. Remove the two screws securing he control panel and lift

panel up and out

3. Unplug the connectors going to the control board.

4. Install a new control panel.

The Henny Penny Fryer uses pressure as one of the compo-

nents of the cooking process. Once the lid is sealed to the

frypot, and the solenoid valve closes, a deadweight valve main-

tains the correct pressure in the frypot.

The lid has minimal and limited maintenance and repair proce-

dures, which are addressed in the following sections.

The following is a routine maintenance schedule for the Lid:

Every 90 days

• Clean and reverse the lid gasket

Yearly Inspection

• Check Lid Gasket for splits and tears-replace if necessary

• Check Pressure Pads for wear-rotate if necessary

• Check Cam Slide Guides-replace if worn or broken

• Check Lid Rollers-replace if cracked or damaged

1103 2-7

2-8. COMPLETE CONTROL

PANEL-HENNY PENNY

2-9. PRESSURE REGULATION

Model 590/592

The Lid Assembly is easily tilted up for cleaning or servicing.

1. Raise the lid and remove racks and carrier.

2. Grasping the lid handle, lift the front of the lid up until it

stops in an upright position.

Be sure the metal arm on the left side of the lid is in the

vertical position holding lid upright, or severe injuries

could result. (See photo at left).

The gray rubber gasket surrounding the inside of the lid is de-

signed to be reversed.

Because of heat expansion and the pressure used for cooking

process, gasket is constantly under extreme stress. Reversing

the lid gasket will help to assure that the fryer will not lose

pressure through leakage.

1. Put the lid in the upright position, as previously described.

2. Using a thin blade screwdriver, pry out the gasket at the

corners. Remove the gasket.

Check the gasket for any tears or nicks. If the gasket is

damaged it needs to be replaced.

Be sure the metal arm on the left side of the lid is in the

vertical position holding lid upright, or severe injuries

could result. (See photo in Tilting Lid Upright section)

3. Clean the gasket and gasket seat with hot water.

4. Rotate the gasket with the opposite side facing out.

Install the 4 corners of the lid gasket. Smooth gasket into

place, working from the corners towards the middle of each

side.

2-8 1103

2-10. TILTING THE LID

UPRIGHT

2-11. REVERSING THE LID

GASKET

Model 590/592

The Lid Counterweight in the back of the fryer balances the

weight of the lid system to allow easier opening and closing of

the lid. The weight has two cables attached to it, and weighs

about 150 lbs. (67.5 Kg).

1. Using a 3/8” socket, remove the nuts securing rear shroud

of the fryer and remove the shroud.

2. Using Phillips-head screwdriver, remove screws securing

the top cap and remove cap.

3. Raise the lid.

4. Unscrew broken cable from the weight assembly and the

bracket attached to the fryer, and remove broken cable.

5. Screw a 5/16” nut on each end of the new cable.

6. Using a wrench, screw new cable into the weight assembly

until tight.

7. Using a 1/2” wrench, tighten nut (already threaded on the

cable) against weight assembly, securing the cable into the

weight assembly.

8. Pull cable over pulley and down behind weight assembly.

9. Insert cable into the hole in the bracket and screw a 5/16”

nut onto end of cable. Tighten cable, by screwing the cable

through this nut until the weight assembly becomes

level.

The safety cable should now have slack in it with the

weight assembly level.

10. Tighten nut against the top of the bracket, securing the

cable.

11. Replace the top cap and rear shroud. The repair is now

complete.

1103 2-9

2-12. LID COUNTERWEIGHT

CABLES

Model 590/592

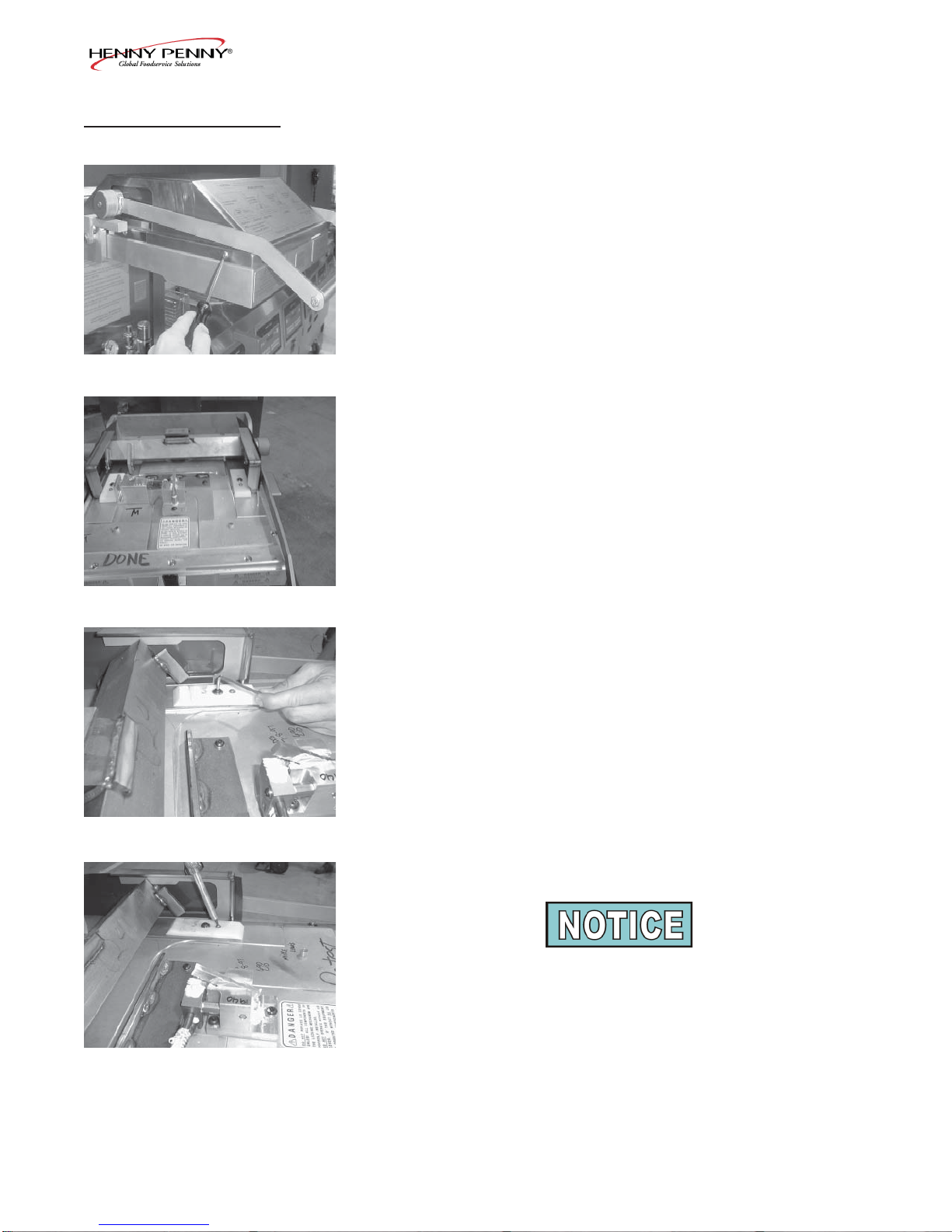

The pressure pads are plastic strips that the lid cam presses

against to seal the lid.

1. Raise the lid.

2. Remove the 4 screws securing the lid cover and remove

cover.

3. Push the lid cam back, off of the pressure pads.

4. Using an Allen wrench, remove the large bolt securing the

pad.

5. Using a Phillips head screw driver, remove the small screw

securing the pad and remove the broken pad.

If the pressure pad is worn, but not broken, it can be

reversed 180 degrees, and the other end of the pad used.

6. Install new pad in reverse order.

2-10 1103

2-13. PRESSURE PAD

Andere Handbücher für 590

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Henny Penny Fritteuse Handbücher

Henny Penny

Henny Penny Frontier UHC 600 Referenzhandbuch

Henny Penny

Henny Penny OE-100 Bedienungsanleitung

Henny Penny

Henny Penny OFE-323 Bedienungsanleitung

Henny Penny

Henny Penny OFE-341 Betriebsanleitung

Henny Penny

Henny Penny 342 Leitfaden

Henny Penny

Henny Penny PFG-691 Bedienungsanleitung

Henny Penny

Henny Penny KFC Velocity Series Bedienungsanleitung

Henny Penny

Henny Penny 322 Bedienungsanleitung

Henny Penny

Henny Penny EVOLUTION ELITE EEG-241 Bedienungsanleitung

Henny Penny

Henny Penny PFG-691 Bedienungsanleitung

Henny Penny

Henny Penny F5 Bedienungsanleitung

Henny Penny

Henny Penny EVOLUTION ELITE EEG-242 Bedienungsanleitung

Henny Penny

Henny Penny LOV LVE-100 Series Bedienungsanleitung

Henny Penny

Henny Penny OFE-322 Bedienungsanleitung

Henny Penny

Henny Penny OFG-390 Bedienungsanleitung

Henny Penny

Henny Penny F5 Bedienungsanleitung

Henny Penny

Henny Penny PFE-561 Bedienungsanleitung

Henny Penny

Henny Penny OFE-324 Bedienungsanleitung

Henny Penny

Henny Penny 500 Bedienungsanleitung

Henny Penny

Henny Penny KFC Velocity PXE-100 Handbuch

Henny Penny

Henny Penny Evolution Elite EEE-153 Bedienungsanleitung

Henny Penny

Henny Penny LOV LVG-100 Series Bedienungsanleitung

Henny Penny

Henny Penny Evolution Elite EEG-163 Bedienungsanleitung

Henny Penny

Henny Penny Evolution Elite EEE-142 Bedienungsanleitung

Beliebte Fritteuse Handbücher anderer Marken

Innsky

Innsky 55SA1US Bedienungsanleitung

Falcon

Falcon G350/11 Benutzerhandbuch

GoWISE USA

GoWISE USA GW22612 Bedienungsanleitung

Wolf

Wolf IF15/S Bedienungsanleitung

Electrolux

Electrolux Thermetic 9CHG583284 Kurzanleitung

Gourmia

Gourmia GAF799 Bedienungsanleitung

DeLonghi

DeLonghi D677UX Bedienungsanleitung

SEVERIN

SEVERIN DEEP FRYER - Benutzerhandbuch

Toastmaster

Toastmaster TMFG18-NAT Bedienungsanleitung

Domo

Domo DO465FR Bedienungsanleitung

Farberware

Farberware FBW FT 43721 B Bedienungsanleitung

GERMANICA

GERMANICA GEAF5L3LD Bedienungsanleitung

Roller Grill

Roller Grill MF 120 R Bedienungsanleitung

Philips

Philips HD9211 Bedienungsanleitung

Linea 2000

Linea 2000 Domo DO536FR Bedienungsanleitung

Lakeland

Lakeland 31796 Bedienungsanleitung

Dash

Dash Tasti-Crisp DFAF755 Bedienungsanleitung

Fagor

Fagor F-200 Bedienungsanleitung
