LINE ARRAY
ARRAY
5
SAFETY
In the interest of continued development, HH reserves the right to amend product specification without prior notification.

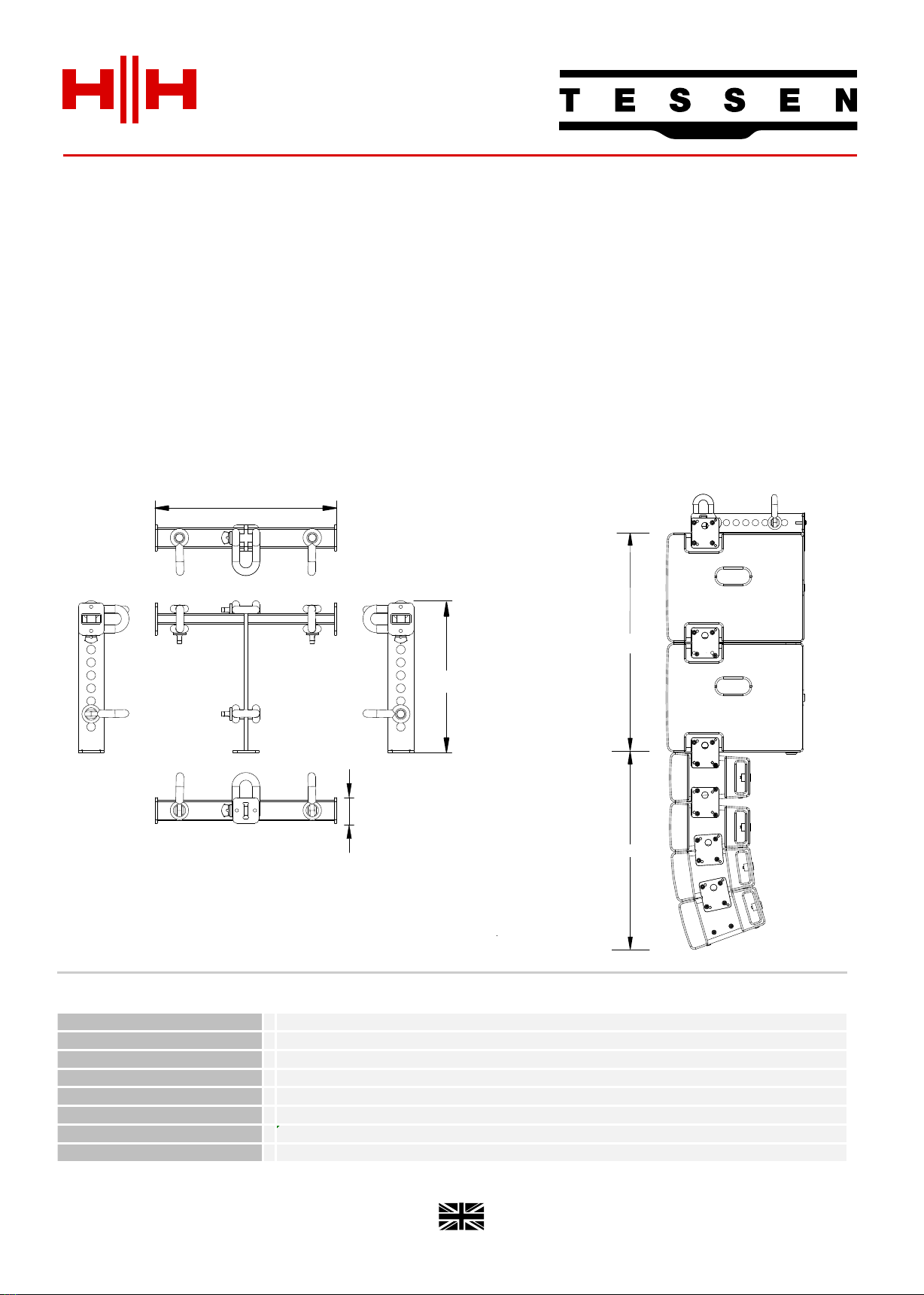

Suspension Type : The bracket allows you to fit upto three D-shackles (included)
Mounting Type : Five M8 mounting points hold the bracket securely to the cabinet
Unit dimensions (HWD) : 64 x 451 x 360mm, 2.5" x 17.8" x 14.2"
Unit weight : 2.8Kg, 6.2 lbs
Carton dimensions (HWD) : 124 x 511 x 420mm, 4.9" x 20.1" x 16.5" , 0.027 M3
Packed weight : 4Kg, 8.8 lbs
W
D

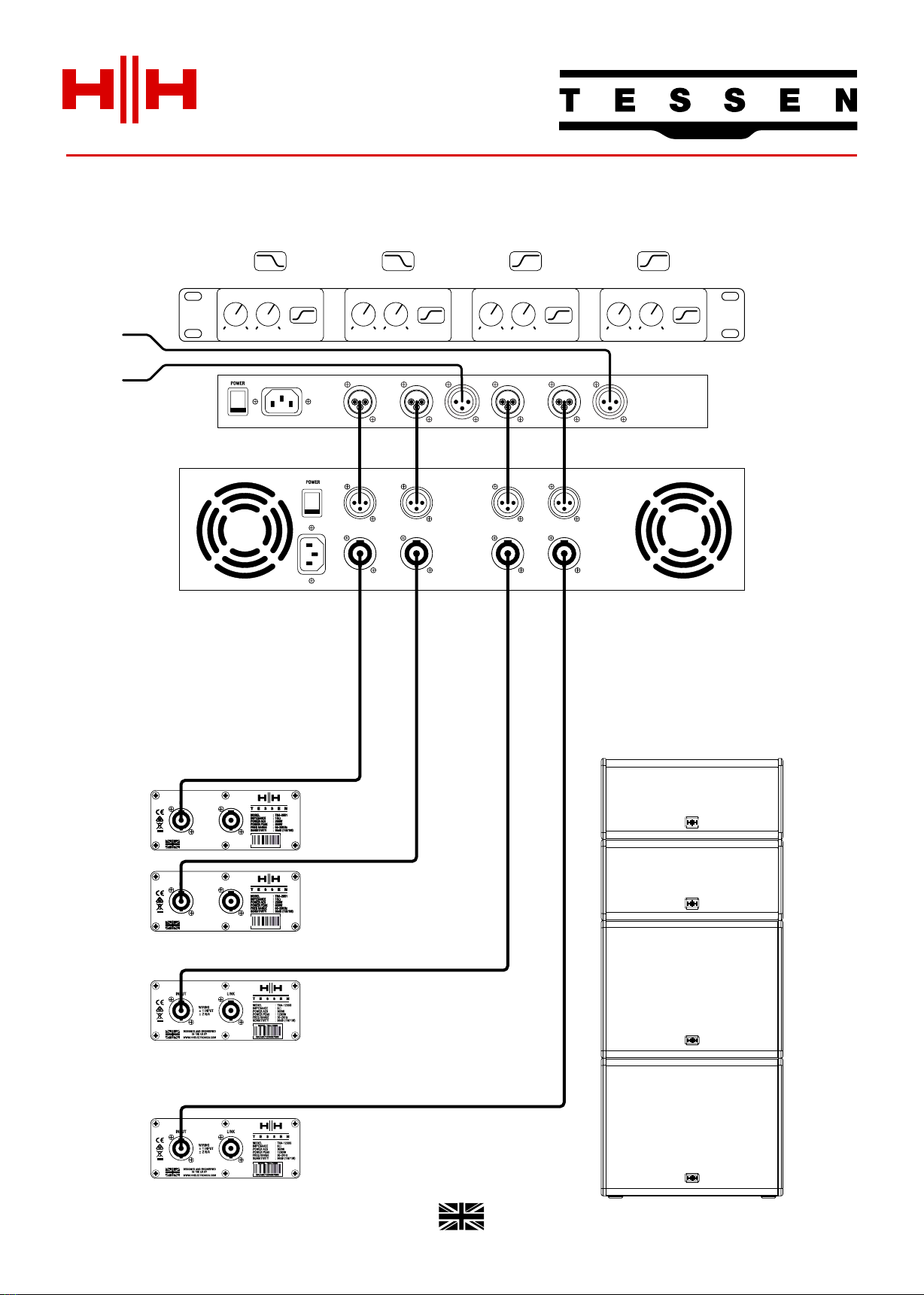

TWO TNA-1200S
FOUR TNA-2501
H
The rigging or suspended mounting of these speakers can expose members of the public to serious health risks or even
death.
It is the installers responsibility to ensure the point of fixing is structurally adequate to support the weight of the
cabinets.
Under no circumstances attempt to rig, suspend or otherwise mount this system unless you are fully qualified and certified
to do so by relevant local, state and national authorities. All relevant safety regulations must be followed. If you are not
properly qualified or do not know of pertinent regulations, consult qualified personnel for advice and assistance.
For added safety, it is strongly recommended that the audio connections, mechanical fixing and mounting bracket are
checked periodically.
The flying of cabinets should be performed only by properly qualified persons, in compliance with all local laws and using
approved hardware.

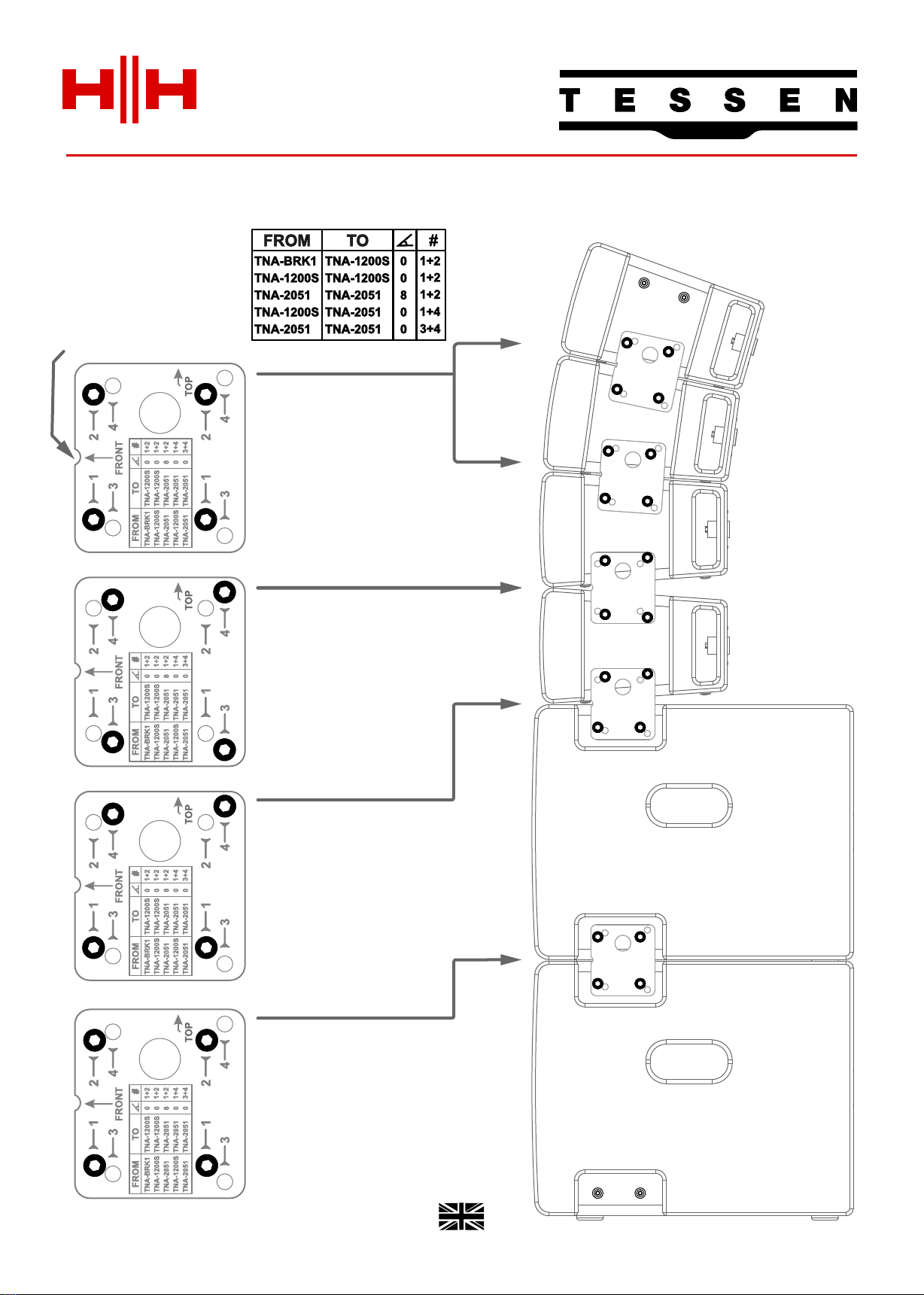

PLEASE SEE THE TNA-1200S / TNA-2051 USER MANUAL FOR
INFORMATION REGARDING CABINET TILT ANGLE AND
SIDE BRACKET HOLE ASSIGNMENT.
SPECIFICATION
TNA-BRK1 MAXIMUM
SUPPORT LIMIT
