HIK VISION DS-MP1301 Bedienungsanleitung

DS-MP1301 LCD Mobile Monitor

User Manual

UD01455N

DS-MP1301 LCD Mobile Monitor

TABLE OF CONTENTS

Chapter 1 Introduction ........................................................................................................................6

1.1 Overview...................................................................................................................................6

1.2 Physical Interface Introduction.................................................................................................6

1.3 Components..............................................................................................................................7

Chapter 2 Pin Definition ......................................................................................................................8

Chapter 3 Connecting Cables..............................................................................................................9

Chapter 4 Basic Configuration..........................................................................................................10

4.1 Displaying and Switching Video on the Screen......................................................................10

4.1.1 Displaying Video on the Screen.....................................................................................10

4.1.2 Switching Video on the Screen ...................................................................................... 10

4.2 Configuring Parameters .......................................................................................................... 11

4.2.3 Configuring Display Channel......................................................................................... 11

4.2.4 Adjusting Screen Brightness .......................................................................................... 11

4.2.5 Configuring Rear-View Mirror ...................................................................................... 12

4.2.6 Configuring the Screen Closing Time............................................................................12

4.2.7 Configuring Language ...................................................................................................12

Chapter 5 Dimension..........................................................................................................................13

5.1 Monitor Dimension.................................................................................................................13

5.2 Base Dimension......................................................................................................................13

5.3 Nested Box Dimension ...........................................................................................................14

Chapter 6 Specifications.....................................................................................................................16

DS-MP1301 LCD Mobile Monitor

User Manual

About this Manual

This Manual is applicable to DS-MP1301 LCD Mobile Monitor.

The Manual includes instructions for using and managing the product. Pictures, charts, images and all otDSher

information hereinafter are for description and explanation only. The information contained in the Manual is

subject to change, without notice, due to firmware updates or other reasons. Please find the latest version in the

company website.

Please use this user manual under the guidance of professionals.

Legal Disclaimer

REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE

WHOLLY AT YOUR OWN RISKS. OUR COMPANY SHALL NOT TAKE ANY RESPONSIBILITES FOR

ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER

ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS;

HOWEVER, OUR COMPANY WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.

SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR

JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS

THE APPLICABLE LAW. OUR COMPANY SHALL NOT BE LIABLE IN THE EVENT THAT THIS

PRODUCT IS USED WITH ILLEGITIMATE PURPOSES.

IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE

LATER PREVAILS.

DS-MP1301 LCD Mobile Monitor

Regulatory Information

FCC Information

Please take attention that changes or modification not expressly approved by the party responsible for compliance

could void the user’s authority to operate the equipment.

FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial environment. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may

cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to

cause harmful interference in which case the user will be required to correct the interference at his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with "CE" and comply

therefore with the applicable harmonized European standards listed under the EMC Directive

2014/30/EU, the RoHS Directive 2011/65/EU.

2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted

municipal waste in the European Union. For proper recycling, return this product to your local

supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection

points. For more information see: www.recyclethis.info

2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted

municipal waste in the European Union. See the product documentation for specific battery

information. The battery is marked with this symbol, which may include lettering to indicate

cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a

designated collection point. For more information see: www.recyclethis.info

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.

DS-MP1301 LCD Mobile Monitor

Safety Instruction

•Read, keep, and follow these instructions.

•Install the device in a proper place where can’t affect drivers sight.

•Do not place the device in a damp environment or expose it to rain.

•When cleaning screen, use soft dry cloth instead of damp cloth and do not use alcohol or any other chemicals.

•If the product does not work properly, please contact your dealer or the nearest service center, and you are not

allowed to disassemble the device by yourself.

Preventive and Cautionary Tips

Before connecting and operating your device, please be advised of the following tips:

•Ensure unit is installed in a well-ventilated, dust-free environment.

•Keep all liquids away from the device.

•Ensure environmental conditions meet factory specifications.

•Ensure unit is properly secured to a rack or shelf. Major shocks or jolts to the unit as a result of dropping it

may cause damage to the sensitive electronics within the unit.

•Power down the unit before connecting and disconnecting accessories and peripherals.

•Improper use or replacement of the battery may result in hazard of explosion. Replace with the same or

equivalent type only. Dispose of used batteries according to the instructions provided by the battery

manufacturer.

DS-MP1301 LCD Mobile Monitor

Thank you for purchasing our product. If there is any question or request, please do not hesitate to contact the

dealer.

This manual is applicable to following models.

Series

Models

LCD Mobile Monitor

DS-MP1301

This manual may contain several technically incorrect places or printing errors, and the content is subject to

change without notice. The updates will be added into the new version of this manual.

We will readily improve or update the products or procedures described in the manual.

The figures shown in this manual are for reference only. The appearance and interface of the device are subject to

the actual model.

DS-MP1301 LCD Mobile Monitor

Chapter 1 Introduction

1.1 Overview

Cooperated with Mobile DVR, DS-MP1301 LCD Mobile Monitor is able to present the real-time live view of the

rear-view camera when the vehicle is backing off and other connected camera. You can view and switch the video

from the mobile DVR, rear-view camera and other camera on the screen of the monitor. Parameters such as

brightness, rear-view mirror, screen closing time, language, etc. can be configured. And you can set parameters of

mobile DVR on it. Featured in anti-vibration and anti-interference, the monitor adapts to various mobile

environments, and can be applied in bus, coach, securicar, taxi, etc..

1.2 Panel Introduction

Refer to Figure 1.1 and Table 1.1 for the description of the front panel.

12 3 4 5 6

Figure 1. 1 Front Panel

Table 1. 1 Front Panel Description

No.

Name

Description

Light sensor

Reserved

Short press to switch and long press for over 3s to pop up the

menu.

▲

Move upwards to select.

▼

Move downwards to select.

DS-MP1301 LCD Mobile Monitor

Press it to confirm the selection.

Power switch

Press it to turn on/off the monitor.

LCD

1.3 Components

The device components are listed in Table 1.2.

Table 1. 2 Components

Physical Interface

Name

Description

7" LCD Mobile

Monitor

7" LCD Mobile Monitor

Base

Used to fix 7" LCD Mobile Monitor for bracket

mounting.

Nested Box

Used to fix 7" LCD Mobile Monitor for embedded

mounting.

Adapter Cable

A provided cable of 30 cm with one aviation female plug

for connecting to Mobile DVR and the other aviation

female plug for connecting to 7" LCD Mobile Monitor.

The base and nested box are not provided together. You can choose one when purchasing.

DS-MP1301 LCD Mobile Monitor

Chapter 2 Pin Definition

DS-MP1301 LCD Mobile Monitor connects to the mobile DVR with one four-pin aviation plug which effectively

prevents the plug from falling out. The pin definitions are the same with Mobile DVR’s AV OUT interface. See

Figure 2.1 and Table 2.1 for the detailed definition.



3 2

AV OUT

Figure 2. 1 Pin Definition of DS-MP1301

Table 2. 1 AV OUT’s Pin Definition

No.

Description

VOUT

+12V

GND

AV OUT

DS-MP1301 LCD Mobile Monitor

Chapter 3 Connecting Cables

DS-MP1301 LCD Mobile Monitor can be connected to the mobile DVR, rear-view camera and the other camera.

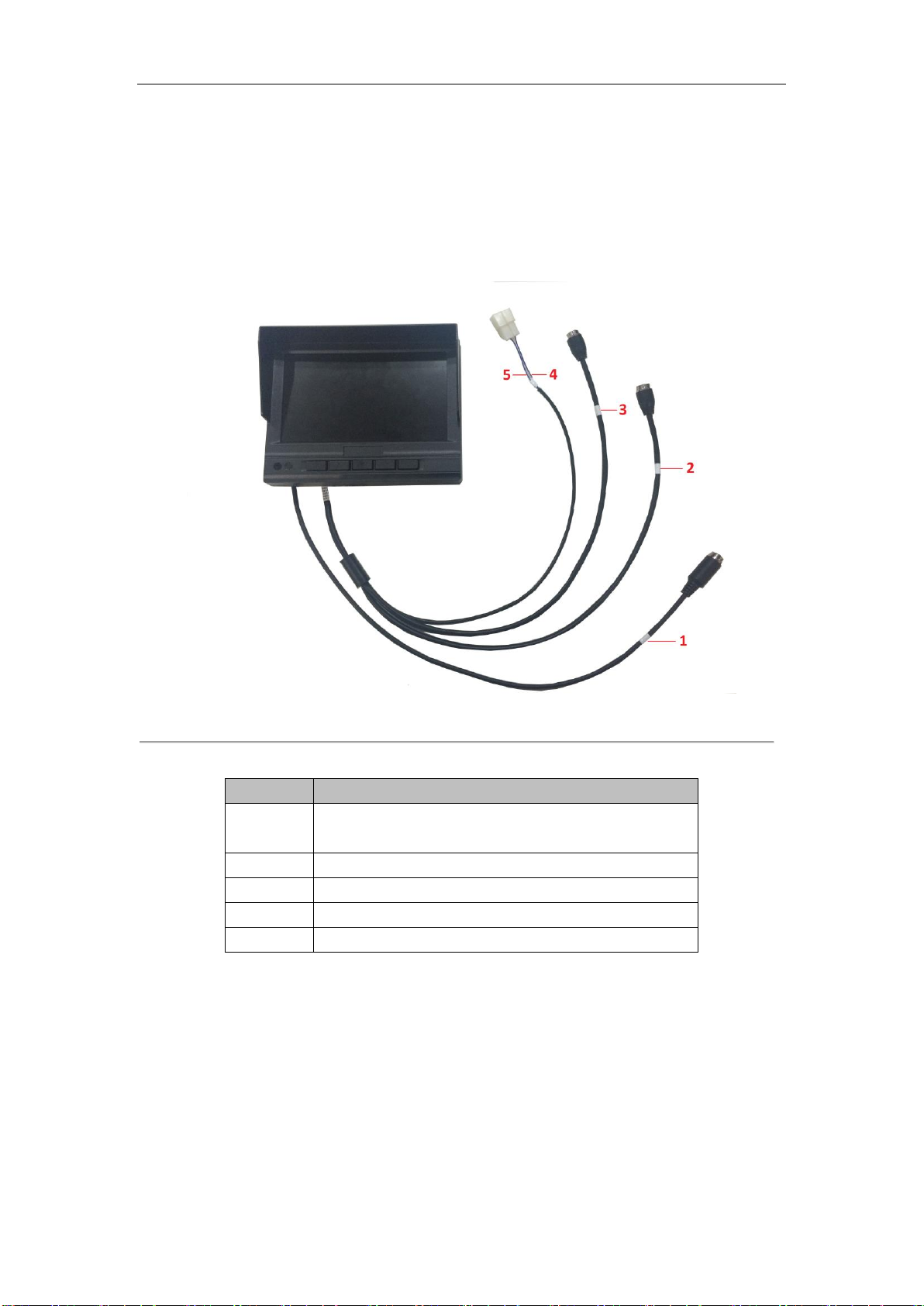

Refer to Figure 3.1 and Table 3.1 for the cable connections.

Figure 3. 1 Cable Connections

Table 3. 1 Cable Connections Description

No.

Description

For connecting to the AV OUT interface of the mobile DVR which is

used to power the monitor.

For connecting to the rear-view camera.

For connecting to the other camera.

For switching to the rear-view camera.

For switching to the other camera.
