User reference guide
V1.0 Main Menu
Speaker
System
Away Arm
System
Disarm
Status Bar
System
Stay Arm
Chime
ON / Off
Help Menu Emergency
Overview.
The Hills Reliance TouchNav is an intuitive
graphical touch screen interface for users of the
Hills Reliance security system. Offering simple
ngertip control, via its clear 3.5” touch screen
with easy to understand graphic icons.

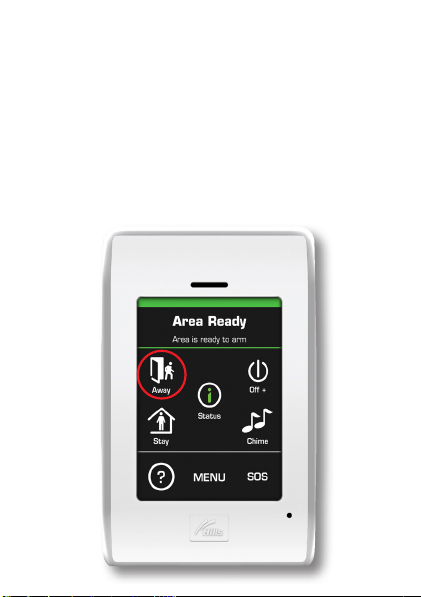

Away Arming the security system.
Whilst the status bar is displaying the message
“Area Ready” tap the “Away Icon”, this will arm
the security system fully. The system will not arm
if the status bar is displaying “Not Ready”, all
sensors must be closed.
Disarming the security system.
To disarm the security system, tap the “Off Icon”,
a pin pad will display, enter a valid pin code.
Chime mode.
Chime allows sensors to sound a “beep” at the
TouchNav whenever they are tripped. Chime is
only available whilst the security system is in the
disarmed state.
Tap the “Chime Icon” to toggle chime mode on/off.
**This feature needs to be enabled by your
security provider**

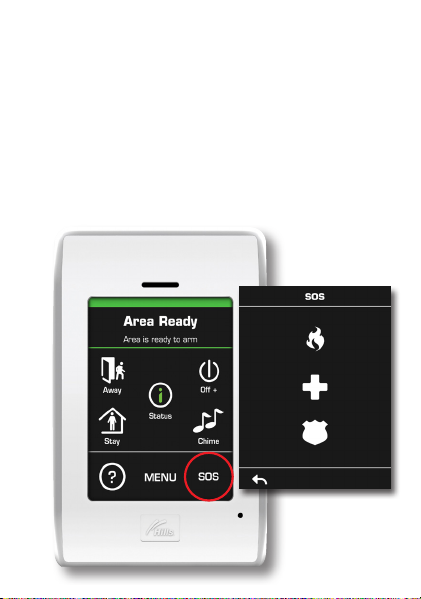

SOS (Emergency keys)
Only press these keys in a situation that requires
a response by emergency personnel. Your system
may not be programmed for these activation
keys, so check with your security provider. If your
system is programmed for these functions, the
following reports can be sent.
**This feature needs to be enabled by your
security provider**
Fire Key – When touched for two seconds,
this key will sound the audible re alarm, with a
steady alarm sound. If your system is connected
to a monitoring centre, a re report could be sent.
Medical Key – When touched for two
seconds, this key will sound the TouchNav
sounder. If your system is connected to a
monitoring centre, a medical report could be sent.
Police (Panic) Key – When touched for two
seconds, this key will sound the audible panic
alarm, with a yelping alarm sound. If your system
is connected to a monitoring centre, a panic
report could be sent.
Some Panic alarms are programmed to be
silent at the protected site while reporting an
alarm to the monitoring centre, check with your
security provider on how your system has been
congured.
To acknowledge / cancel an alarm, tap the Off
Icon and enter a user pin code.

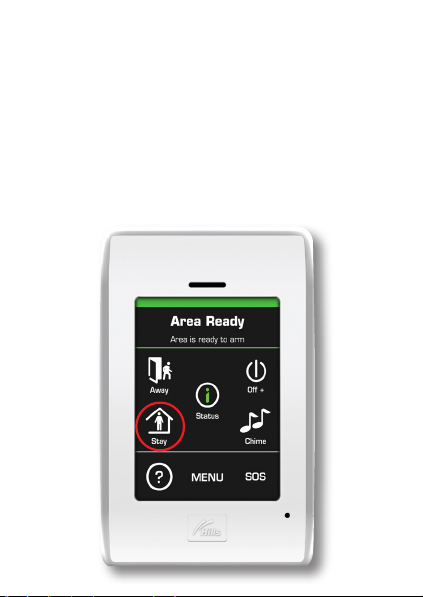

Stay Arming the security system.
Whilst the status bar is displaying the message
“Area Ready” tap the “Stay Icon”, this will
partially arm the security system. Predetermined
sensors will be isolated, and all remaining
sensors will be active.
