HIMS Co SenseView PORTABLE Bedienungsanleitung
SenseView Duo
User Guide
Distributed in the U.S. by:
GW Micro, Inc.
TEL: (260) 489-3671
FAX: (260) 489-2608
http://www.gwmicro.com/cctv
TABLE OF CONTENTS
1. SenseView Duo Package .....1
2. General Instructions.............1
3. Configuration ........................2
4. How to Use Each Function ..8
5. Technical Specification......18
6. Digital Zoom Rate Table.....19
7. Warranty ..............................21
8. FCC Warning.......................22
1
1. SenseView Duo Package
Thank you for choosing SenseView Duo.
The following items are included in the
SenseView Duo Package.
(A) SenseView Duo
(B) AC power adapter
(C) Carrying case
(D) Strap
(E) User guide
2. General Instructions
(A) The battery must be fully charged for
approximately 3 hours prior to initial use.
Please connect the supplied AC power
adapter to the DC-in jack in order to charge
the battery.
(B) To avoid electrical damage, use the
supplied AC power adapter.
(C) To prevent fire or shock hazard, do not
expose this unit to water or moisture.
(D) Do not disassemble the unit. Please
refer all repair, maintenance, and general
2
questions and issues to GW Micro. If the
unit is disassembled by a party other than
GW Micro, the warranty will become void.
(E) Over a long period of time, you will
notice that the battery life will become
shorter than when you first received your
unit. When the battery life becomes
noticeably shorter, it may be time to replace
the battery. Contact GW Micro for details
regarding battery replacement.
3. Configuration
3

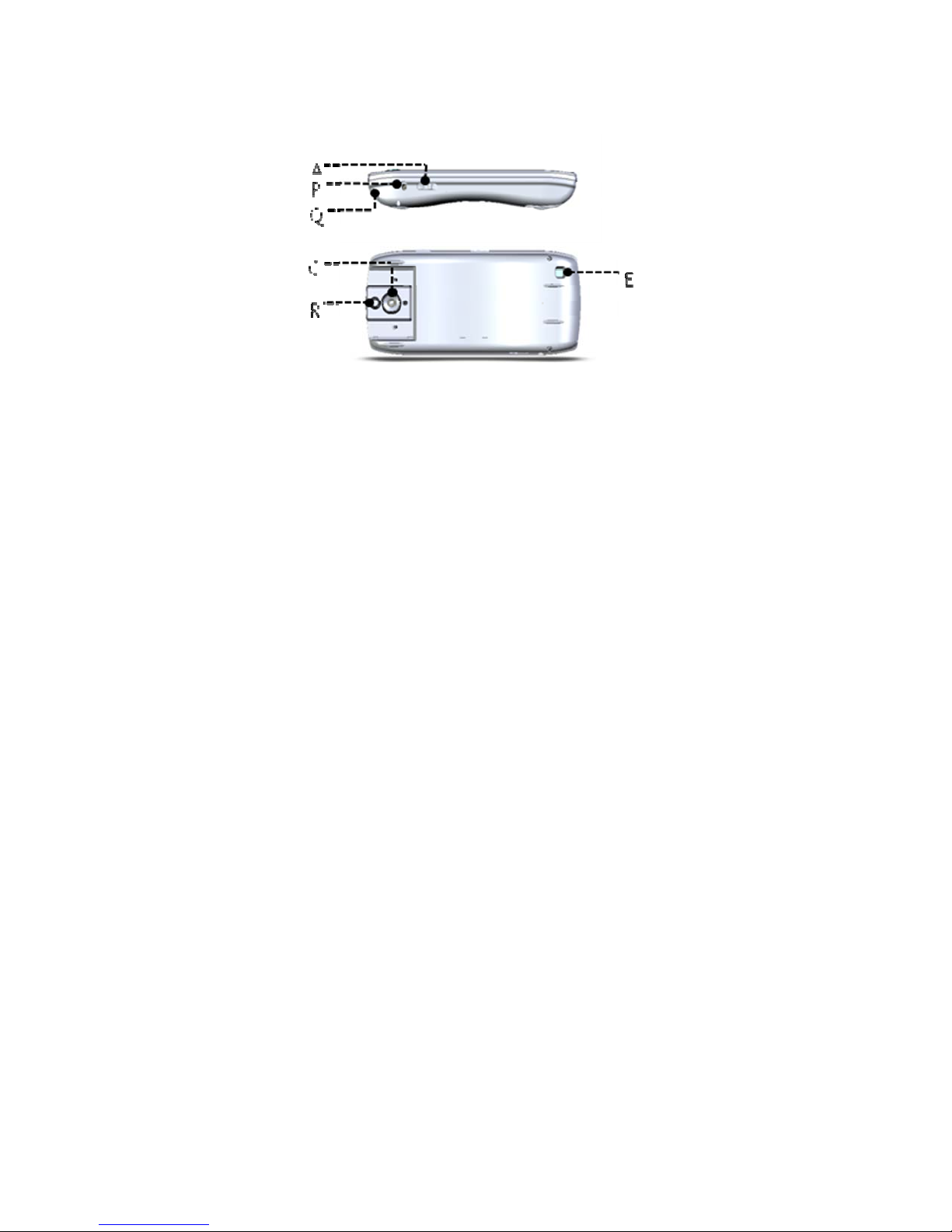

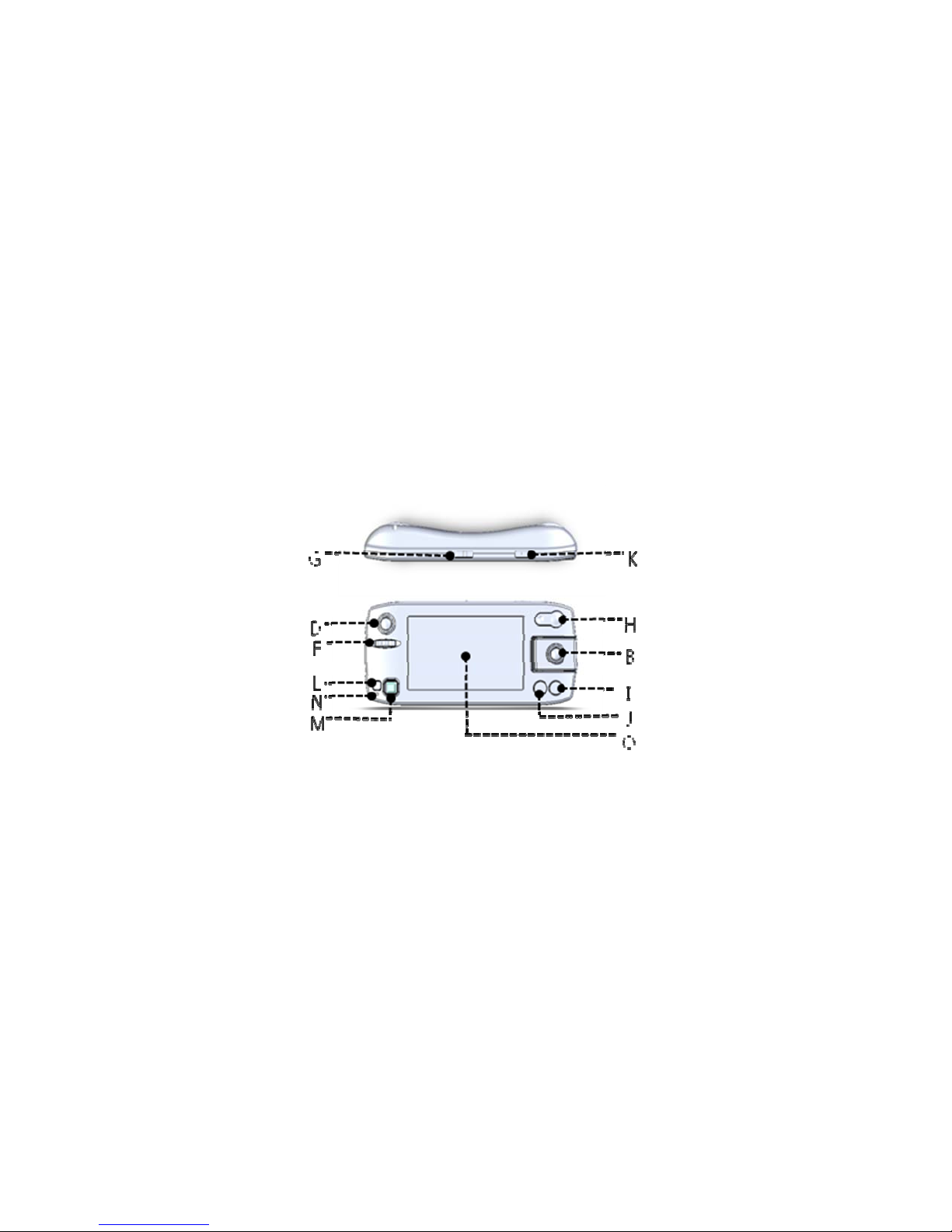

(A) Power on/off switch
You can turn the SenseView on by
sliding and releasing the switch away
from the DC-in jack and you can turn it
off by sliding and releasing the switch
again.
(B) Close-up & handwriting camera indicator
The light turns on when the close-up &
handwriting camera is selected, and it
blinks when the unit is in the power-
saving mode.
(C) Close-up & handwriting camera
(D) Distance camera indicator
4
The light turns on when distance camera
is selected, and blinks in the power-
saving mode.
(E) Distance camera
(F) Focus knob for distance camera
You can focus the distance camera by
rotating the knob back and forth.
(G) Camera selection switch
You can select the close-up &
handwriting camera, or the distance
camera, by moving the switch to the
desired side. Moving the switch toward
the close-up & handwriting camera will
activate it, while moving the switch
toward the distance camera will activate
the distance camera. You can only use
one camera at a time.
(H) Zoom-in/out button
You can change the magnification rate
by 10 different levels. The exact
magnification rate for each level is
explained in the “Digital Zoom Rate
5
Table” section.
(I) Color mode button
You can change colors on the LCD with
7 different combinations in the close-up
camera and 6 different combinations in
the distance camera, respectively. When
you switch to the distance camera from
the close-up camera, the color mode
automatically changes to full color mode,
regardless of the color mode of the
close-up camera. When you return to the
close-up camera from the distance
camera, the color mode is also restored
to the original setting. The full color
mode is to view an object with its original
color and the enhanced color mode is to
view a text with high contrast. In the
enhanced color mode, an object can be
seen as brighter and in a different color.
-1. Full color
-2. Enhanced color (close-up camera
only)
-3. Black on white background
-4. White on black background
6
-5. Yellow on black background
-6. Yellow on blue background
-7. Blue on white background
(J) Brightness button
You can change the brightness of the
LCD with 4 different levels.
(K) Image capture button
You can capture the image which you
are looking at, and store the image, by
pressing the button and holding it for
more than 1.5 seconds.
(L) Menu button
When you press this button, five icons
will appear in a row at the bottom of the
LCD.
(M) Panning/selection key
This key has 5 directions: right, left, up,
down and center.
After you press the Menu button (L), you
can navigate among following functions:
1. Open the stored images one by one
