HIOTH TECHNOLOGY CT-LCWF5001-CP Bedienungsanleitung

HIOTH TECHNOLOGY CO., LTD. USER MANUAL

www.HiotH.com

1-Pole Touch Panel Switch

Introduction

1-Pole Touch switches support remote and local control and instant status present. It is mainly

used for lighting control which can be applied for general lights and directly replaced the ordinary

wall switch.

Feature

Support local and remote control

Sensitive touch sensing with instant action

Achieve timing, linkage, scenarios and other functions

Specification

1. Power supply：neutral and live wire;

2. Applicable voltage：AC 90~250V 50/60HZ;

3. Signal distance：Double/multi-line length≦100m;

4. Wireless protocol：Wi-Fi;

5. Rated power per circuit：resistive load 1000W (e.g. incandescent)

6. Inductive/capacitive load：200W/circuit (LED /energy-saving/halogen lights, etc.)

CT-LCWF5001-CP

HIOTH TECHNOLOGY CO., LTD. USER MANUAL

www.HiotH.com

Installation Instruction

Touch Panel Switch Installation

CAUTION: Cut off power supply at circuit breaker or fuse before installation to avoid fire, shock

or death!

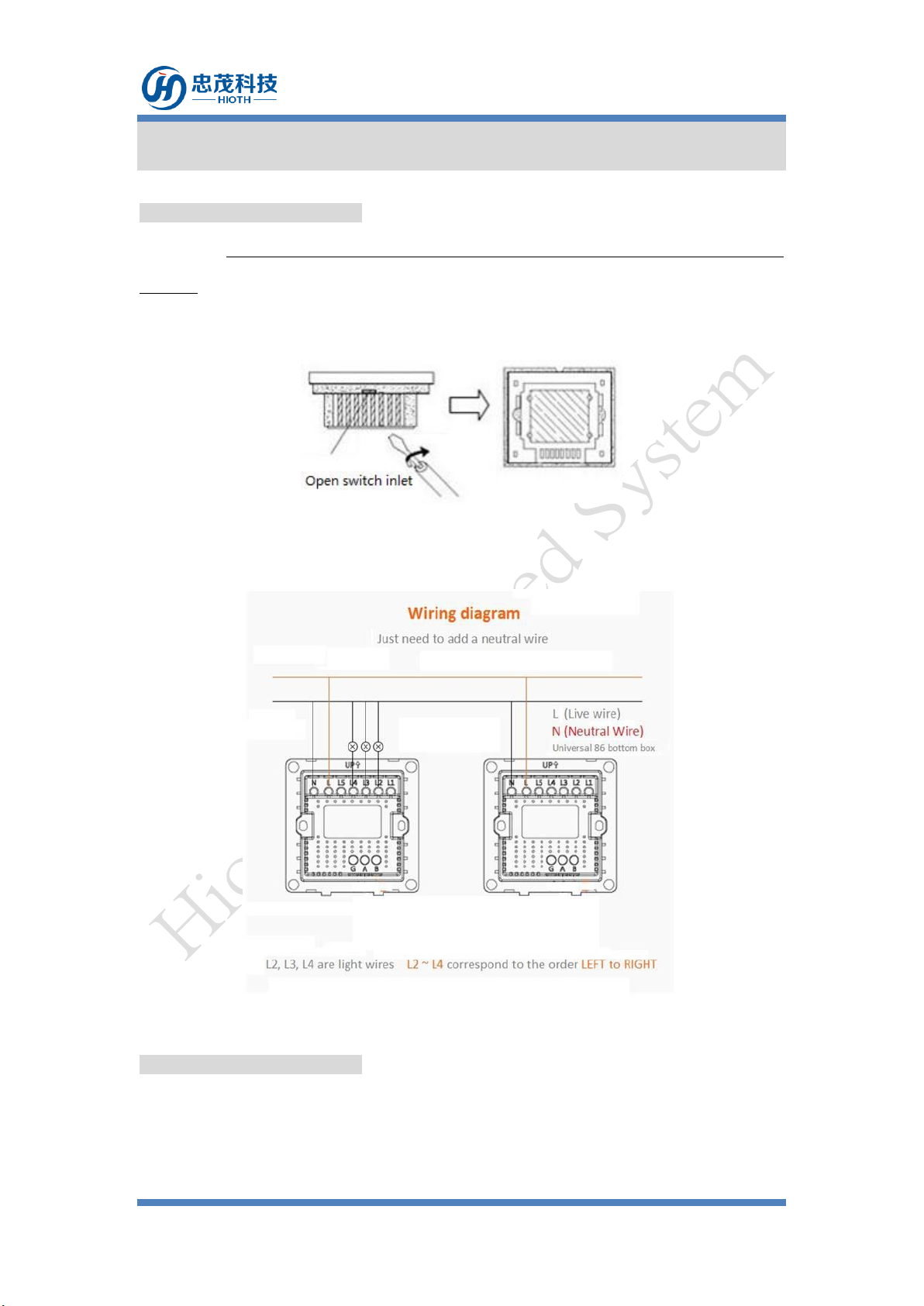

1）As shown in Fig.1, using the screwdriver to pry the gaps on the side of the switch to open the

panel.

Fig.1

2）Using both hands to hold the switch panel and forcibly push up to remove the switch panel.

3）Follow the Fig.2 “Wiring diagram”to insert the switch:

Fig.2

NOTES FOR THE DIAGRAM:

L - Terminal for 220V live lead

N - Terminal for 220V neutral lead

Ln - connect the wire of controlled lights

HIOTH TECHNOLOGY CO., LTD. USER MANUAL

www.HiotH.com

INSTALL THE SWITCH BASE

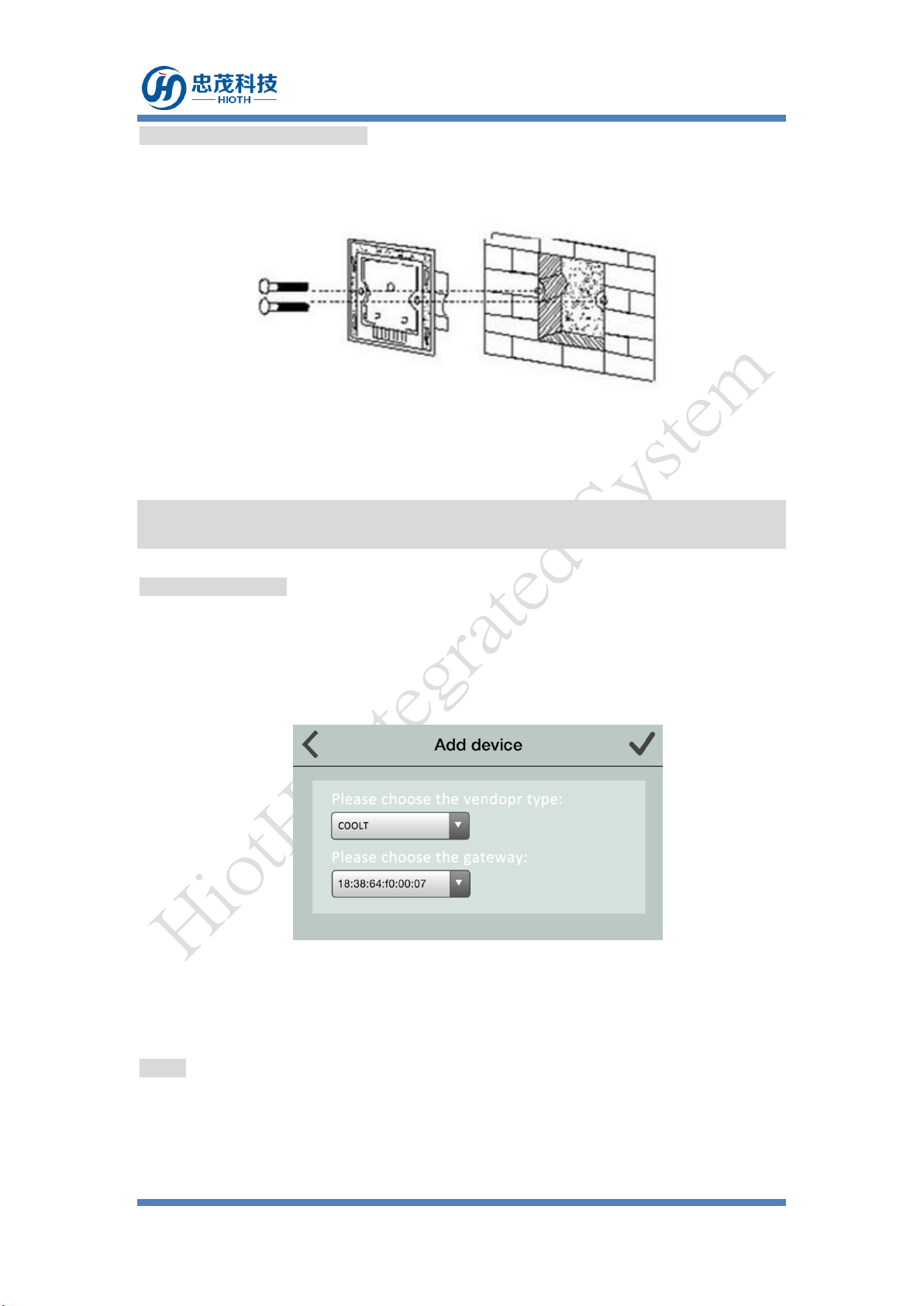

As shown in Fig.3, install the touch switch inside the wall box after wiring, then screw up to make

it fixed on the wall. Put the base to the wall as well as cover and press the touch panel.

Fig.3

Using Instruction

NETWORK ENTRY

1）Connect the power supply.

2）Turn on any button of the switch

3）Long press this button for 5 second until the blue light flashing

4）Choose "COOLT" and the corresponding gateway onAPP, then click "Save"

5）When prompt a message “Request Access Success”, go to the device list interface to refresh

the device list. The device will be displayed.

NOTE

Touch Panel Switch comes with infrared detection function which will send the information when

someone leaves after 8 seconds. For the new connected to the system, it will take 1 minute for the

infrared function to work.

HIOTH TECHNOLOGY CO., LTD. USER MANUAL

www.HiotH.com

Safety Notice

1）Do not install this product when power is applied!

2）Installers need to know a certain electrical wiring diagram and has the sense of security.

3）Before installation, please confirm the real voltage complying with the device’s specification.

Cut off any power supply to secure the safety of people and device.

4）During installation, protect the device from any physical damage by dropping or bumping. If

happened, please contact the supplier for maintenance.

5）Keep the device away from acid-base and other corrosive solids, liquids, gases, to avoid

damage.

6）Avoid overexertion during operation, to protect device from mechanical damage.

7）The device requires the latest software; otherwise the status may not be accurate.
