Packaged Contents
Your package in which you purchased your new TV contains the following items:
2 AAA batteries A left and right leg that forms the TV stand
Quick Start Guide Important Safety Information and Warranty Card
4 screws (M4×25) (43"/65") Remote Control
4 screws (M4×20) (50"/55") Power Cord
IMPORTANT:
To prevent accidentally discarding items that came with your TV, be sure to check ALL of the foam in the carton box.
Required tools and devices
Wireless router (not included) for Internet connectivity
Phillips screwdriver (not included) to secure the TV stand
HDMI and other types of cables (not included) to connect external devices to the TV
Wall mount bracket (not included) if you prefer to mount the TV to the wall
· Please check foam for accessories before discarding.
· Veuillez vérifier la mousse pour qu'il n'y ait pas d'accessoires avant de la jeter.
· Antes de desechar la espuma, asegúrese de retirar todos los accesorios.
3
Buttons and Ports on the TV
Back View of the TV
TV Side View
TV Bottom View
TV Bottom Panel
Power Input
ANT/CABLE
0.5A(MAX)
HDMI 2(4K@60Hz)HDMI 1(4K@60Hz)
ARC
USB
SERVICE
HDMI 3(4K@60Hz)
AV IN
VIDEO LR
4
STEP 1. Attach the TV Stand or Wall Mount Bracket (not included)
Attach the TV Stand (For steps to attach the wall mount see page 5)
CAUTION:
Be sure to disconnect the A/C power cord before installing a stand or Wall-Mount brackets.
The LED display is very fragile and must be protected at all times when installing the legs that form the stand. Be sure to protect the
TV screen from getting scratched or damaged by any hard objects. In addition, DO NOT exert pressure on the front of the TV at any
time because it could crack.
To attach the left and right leg that forms the stand:
1. Carefully place your TV face-down on a soft, flat surface to prevent the TV from being damaged or the screen from getting scratched.
2. Remove the 2 legs from the foam and then insert the legs into the bottom slots of the TV.
3. Use the screws that came inside the carton with your TV to secure each leg tightly.
leg
leg Screws:
M4×25 (43"/65")
M4×20 (50"/55")
Screws:
M4×25 (43"/65")
M4×20 (50"/55")
5

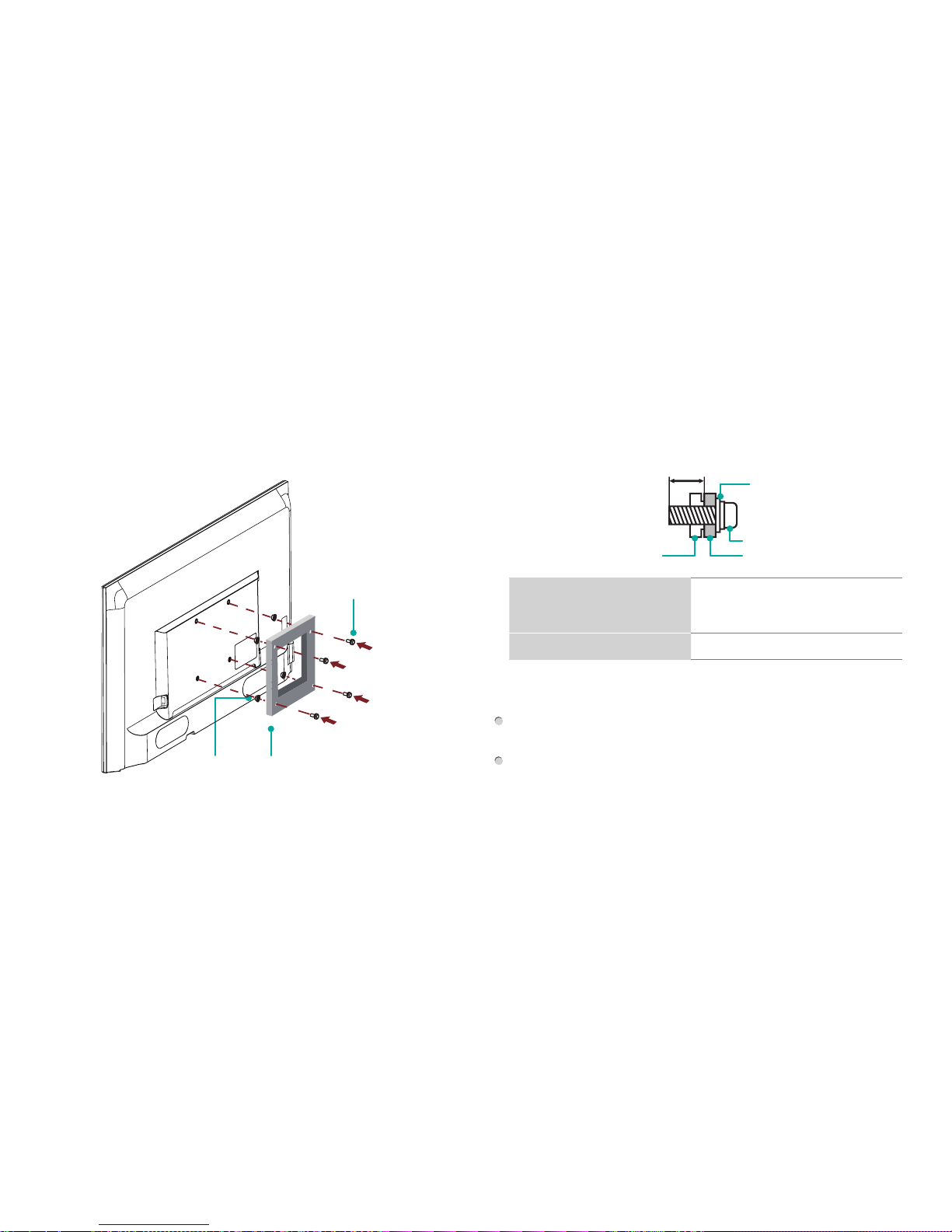

Attach the Wall Mount Bracket (not included)
Before you begin the third-party manufacturer instructions, be
sure to do the following things:
1.Place the TV face down on a clean, safe and cushioned surface.
2.Remove the TV stand if you already attached it.
3.Place the spacers (not included) in the corresponding bracket
holes.
Screw
(not provided)
CAUTION:
• Whenyouattachthemount,besuretousethespacers
(provided by the third-party manufacturer) between the TV
and the bracket.
• TopreventinternaldamagetotheTVandensureitis
mountedsecurely,besuretousefixingscrews(not
provided) that are 8.0-10.0mm(43") / 9.5-11.5mm(50"/55"/65")
in length when measured from the attaching surface of the
mounting hook.
Rear cover of the TV Spacer
Screw
Wall mount bracket
8.0 - 10.0 mm(43")
9.5 - 11.5 mm(50"/55"/65")
Wall mount hole pattern
VESA (mm)
200 × 200 (43"/50")
300 × 200 (55")
400 × 200 (65")
Wall mount screw size (mm) M6
Follow instructions provided with the Wall mount bracket.
To complete the installation, please contact the wall-mount
manufacturer or the retailer from which you purchased the TV.
The selected screws are 8.0-10.0mm(43") / 9.5-
11.5mm(50"/55"/65") in length when measured from the
attaching surface of the rear cover.
NOTE: The diameter and length of the screws differ
depending on the Wall-mount bracket model.
Bracket
(not provided)
Spacer
(not provided)
6
STEP 2. Connect Devices to your TV
Check to ensure that you have selected the right cables for the ports and that they are connected securely. Loose connections can affect
the quality of the picture image and color.
TV label Port Cable External Equipment Brief Description
ANT/CABLE
Antenna
VHF/UHF Antenna
ANT OUT
Connect an outdoor VHF/UHF antenna.
HDMI
DVD Player/Recorder
Set-top Box
Satellite Receiver
Satellite
antenna
cable
VCR
Video
Camera
Connect a High Denition Multimedia Interface
(HDMI) cable from an external device.
AV IN
VIDEO Yellow
Connect a composite video cable and left-right
audio cables from an external AV device.
LWhite
RRed
DIGITAL AUDIO OUT
SpeakerAudio Amplier
Connect an optical cable from an external
digital audio system.
