Hisense HR6VFF255 Bedienungsanleitung

MODEL:HR6VFF255 / HR6VFF255S

Before switching on please rem ove all packaging materials and boxes then set

the refrigerator in a position with the front tilted slightly higher - You can make

adjustm ents via the levelling screws on the bottom Left and Right sides of the

fridge once in position fit on any other parts or accessories required to attach.

Then plug in and switch on. Please do not place food in the fridge for up

to 5 hours allowing adequate time for the cooling process.

Operating Instructions

Dear customer,

To enable you to use your new FREEZER effectively and safely, please read this instruction

book carefully before you use the appliance, which contains important information for

installation, safe use and maintenance of this appliance. Please keep the book for future reference

and remember to pass it on to the new owner. The following symbols will be found in the book to

guide you through the instructions:

Guide to use the instruction book

Warnings Operating instructions

Tips and notes

Warnings are stressed with a warning triangle or with signal words (Warning!, Important!),

which are provided in the interest of your safety. Ensure that you understand them all before

installing and using this appliance.

Tips and notes will inform you with necessary knowledge of how to use the appliance

economically and environmentally.

Operating instructions presented in the section of “Trouble shooting” contain instructions

for correction of possible malfunctions by users.

INDEX

Page No.

Important Safety Instructions .............................................................4

Installation Instructions.......................................................................5

Description of the Appliance................................................................7

Using Your Appliance...........................................................................7

Thermostat Control..............................................................................8

Hints and Tips.....................................................................................10

Trouble Shooting ................................................................................11

Correct Positioning.............................................................................12

disposal centre. Do not expose to flame.

x WARNING üif the supply cord is damaged, it must be replaced by a special cord or

assembly available from the manufacturer or its service agent.

Safety of children

Packaging (e.g. wraps, polystyrene) can be dangerous for children. There is a risk of suffocation!

Keep packaging materials away from children!

Remember to dispose the old appliance that is unusable. Pull out the mains plug, cut off the

mains cable, break or remove spring or bolt catches if fixed. And ensure that children cannot lock

themselves in the appliance when playing (there is risk of suffocation) or involve themselves in

other dangers, for children cannot recognize the hazard present in household appliances

themselves. Therefore, it is very important for parents to have adequate supervision in case

children play with the appliance!

Daily operation

Containers with flammable gases or liquids can leak at low temperatures. There is a risk of

explosion! Do not store any container with flammable materials such as spray cans in the

refrigerator.

Do not operate any electrical appliance in the refrigerator (e.g. electric ice cream makers, mixers

etc.).

Before cleaning the appliance, always switch off the appliance and unplug it, or set the house

fuse or switch off on the circuit breaker.

In case of malfunction

If a malfunction occurs, please look first in the “Trouble Shooting” section for help. If the

information given there does not help, ask your supplier for help. Under no circumstances should

you attempt to repair the appliance yourself, as repairs carried out by inexperienced persons may

cause injuries or serious malfunctions.

Installation Instructions

Installation Requirements

The appliance should be placed in a dry and well-ventilated room. As the performance and energy

consumption of the refrigerator can be affected by the ambient temperature, the following

instructions should be ensured:

-Do not expose the appliance to direct sunlight,

-Do not install the appliance close to radiators, cookers or other sources of heat,

-Place the appliance in a location where the ambient temperature corresponds to the climate

classification for which it is designed. You can find the climate classification on the

circuit-diagram-serial-plate located at the left-upper side of the appliance. The following table

shows this climate classification and its matching ambient temperature:

Climate classification Ambient temperature

SN 10~32ć

N 16~32ć

ST 16~38ć

T 16~43ć

Your appliance will be heavy when loaded with foods and must therefore be placed on a strong

firm floor and ensure the power socket is accessible.

Ventilation Requirements

Ensure that the air can circulate freely around the cabinet. There should be 100mm between the

top of the appliance and any overhanging furniture, and a gap of 25mm on either side of the

appliance.

Ensure that the appliance does not stand on the electrical supply cable. Parts that heat up should

not be exposed. Whenever possible the back of the appliance should be close to a wall but

remember to leave the suitable distance required for ventilation.

Leveling

The appliance should be level in order to eliminate rocking. To make the appliance level, it

should be upright and both adjusters should be firmly contacted with the floor. You can also

adjust the level by screwing out the appropriate level adjuster at the front (use your fingers or a

suitable spanner), but much care should be taken when moving this appliance as it may be heavy.

Usually minus 17 Degrees and lower

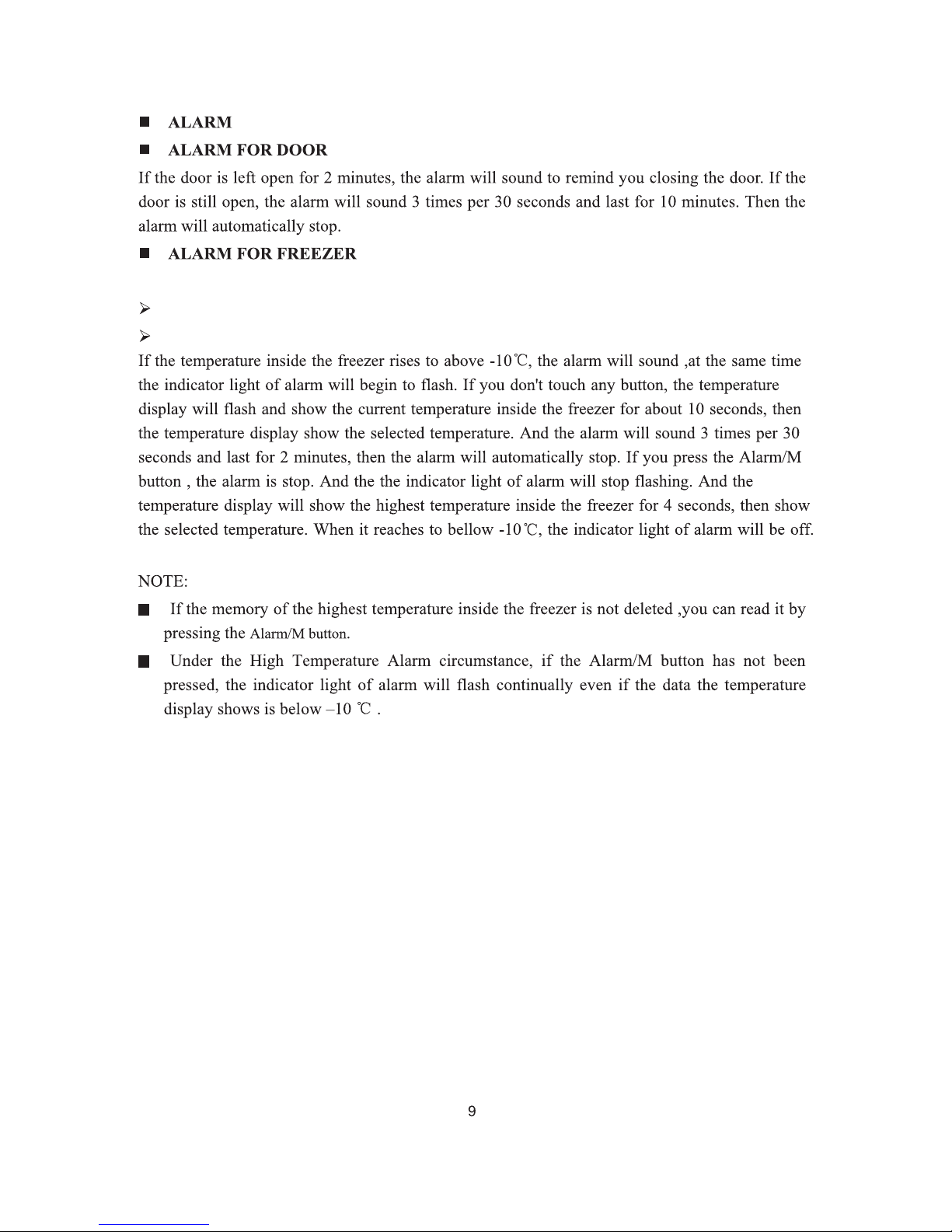

The Alarm will sound if there is an abnormal high temperature inside the freezer.

Power could be cut out for a long period of time.

There may be a fault with the product.
