For questions about features, operation/performance, parts or service, call:

1-877-465-3566

Model:

Refrigerator Use & Care Guide

HRF209N6CSE

HRF209N6CWE

HRF209N6CBE

Table of Contents

Brief introduction

Important safety instructions

Installing your new appliance

Description of the appliance

Display controls

Using your appliance

Cleaning and care

Helpful hints and tips

Trouble shooting

Disposal of the appliance

..................................................................................................................... 2

.................................................................................................. 3

................................................................................................ 5

...............................................................................................11

...................................................................................................................... 12

............................................................................................................ 14

............................................................................................................... 17

............................................................................................................. 19

.......................................................................................................... .......... 20

.................................................................................................... 22

Brief Introduction

Please ensure that everyone using this

appliance is familiar with its operation

and safety features. It is important that

you install the appliance correctly and

pay careful attention to the safety

instructions.

We recommend that you keep this user’s

manual with the appliance for future

reference.

This appliance is intended to be used

in households and similar applications

such as:

Thank you for your choosing Hisense. We

are sure you will find your new refrigerator

a pleasure to use. Before you use the

appliance, we recommend that you

carefully read through these instructions,

which provide details about installing and

using the product.

This appliance is not intended for use by

persons (including children) with reduced

physical, sensory or mental capabilities, or

lack of experience and knowledge, unless

they have supervision or been given

instruction concerning use of the appliance.

Children should be supervised to ensure

that they do not play with the appliance.

Do not store explosive substances such as

aerosol cans with a flammable propellant

in this appliance.

Kitchen areas in shops, offices and other

working environments.

Hotels, motels and other residential

environments.

Bed and breakfast environments.

Catering and similar non-commericial

applications.

WARNING

Connect to potable water supply only.

Do not use mechanical devices or other

means to accelerate the defrosting

process, other than those

recommended by the manufacturer.

Do not damage the refrigerant circuit.

Do not use electrical appliances inside

the food storage compartments of the

appliance, unless they are of the type

recommended by the manufacturer.

When disposing of the appliance do so

only at an authorized waste disposal

center. Do not expose to flame.

If the power cord is damaged, it must be

replaced by the manufacturer, its

service agent or similarly qualified

persons in order to avoid a hazard.

General safety and daily use

It is important to use your appliance

safely. We recommend that you follow the

guidelines below.

Store any food in accordance with the

storage instructions from the manufacturer.

Important Safety Instructions

Safety for children and

other persons

Don't try to repair the appliance yourself.

It is dangerous to alter the

specifications or modify this product in

any way. Any damage to the power

cord may cause a short circuit, fire or

electric shock.

Don’t place too much food directly

against the air outlet on the rear wall

of both the refrigerator and freezer

compartment, as it may affect

important air circulation.

Don’t place hot items near the plastic

components of this appliance.

Frozen food must not be refrozen once it

has been thawed out.

Don’t store bottled or canned drinks

(especially carbonated drinks) in the

freezer compartment. Bottles and cans

may explode.

Use caution consuming popsicles or ice

cubes straight from the freezer as this can

cause freezer burn to the mouth and lips.

Keep all packaging away from children

to avoid risk of suffocation.

Protect children from being scalded by

touching the compressor at the rear

bottom of appliance

Don’t place items on top of the

appliance as this could cause injury

should they fall off.

Never allow children to play with the

appliance by hanging or standing over

or on the doors, racks, shelves and

drawers etc.

Electrical Safety

To avoid the risks that are always present

when using an electric appliance, we

recommend that you pay attention to

the instructions about electricity belo

Unpack and check through the

appliance. Should any damage be

evident, don’t plug in the appliance but

contact the shop immediately from

which you purchased it. Keep all

packing materials in this case.

We recommend that you wait for 4 hours

before connecting the appliance to

allow the refrigerant to flow back into

the compressor.

The appliance must be applied with

single phase alternating current of

110~115V/60Hz. If the voltage fluctuates

exceeding the upper limit, A.C.

automatic voltage regulator of more

than 350W should be applied to the

refrigerator for safety use.

The power plug must be accessible

when the appliance is installed.

This appliance must be grounded.

This appliance is fitted with a plug,

in accordance with local standard.

The plug should be suitable for use in all

houses fitted with sockets in accordance

with current specifications.

Electrical Safety

To avoid the risks that are always present

when using an electric appliance, we

recommend that you pay attention to

the instructions about electricity below.

If the fitted plug is not suitable for your

socket outlets, it should be cut off and

carefully disposed of. To avoid a

possible shock hazard, do not insert the

discarded plug into a socket. If in doubt

contact a qualified, registered

electrician.

Do not use extension cords or multiple

sockets which could cause overloading

of wiring circuits and could cause a fire.

Always plug your appliance into its own

individual electrical socket which has

a voltage rating that matched the

rating plate.

Make sure that the plug is not squashed

or damaged. Otherwise, it may cause

short circuit, electric shock or overheat

and even cause a fire.

Do not insert the power plug if the

socket is loose, there is a risk of electric

shock or fire.

Switch off the appliance and

disconnect it from the main power

before you clean or move it.

Never unplug the appliance by pulling

on the electrical cord. Always grip the

plug firmly and pull straight out from the

socket to prevent damaging the power

cord.

Do not operate the appliance without

the cover of interior lighting.

Any electrical component must be

replaced or repaired by a qualified

electrician or authorized service

engineer. Only genuine replacement

parts should be used.

Do not use electrical appliances such

as ice cream makers inside the food

storage compartments of the

appliance unless they are approved

by the manufacturer.

To avoid eye injury, do not look directly

into the LED light located in the refrigerator

compartment. If it is not functioning

correctly, consult a qualified, registered

electrician or replace it in accordance

with the “Cleaning and Care” chapter.

The refrigerant isobutane (R600a) is

contained within the refrigerant circuit of

the appliance. During transportation and

installation of the appliance, ensure that

none of the components of the refrigerant

circuit become damaged.

The refrigerant (R600a) is flammable.

Don't store products which contain

flammable propellants (e.g. spray cans)

or explosive substances in the appliances.

Avoid open flames (candles, lamps etc. )

and other sources of ignition.

Thoroughly ventilate the room in which

the appliance is situated.

Refrigerant

Caution: Risk of Fire

Should the refrigerant circuit

be damaged:

Installing Your New Appliance

WARNING

Before using the appliance for the first time,

you should be informed of the following tips.

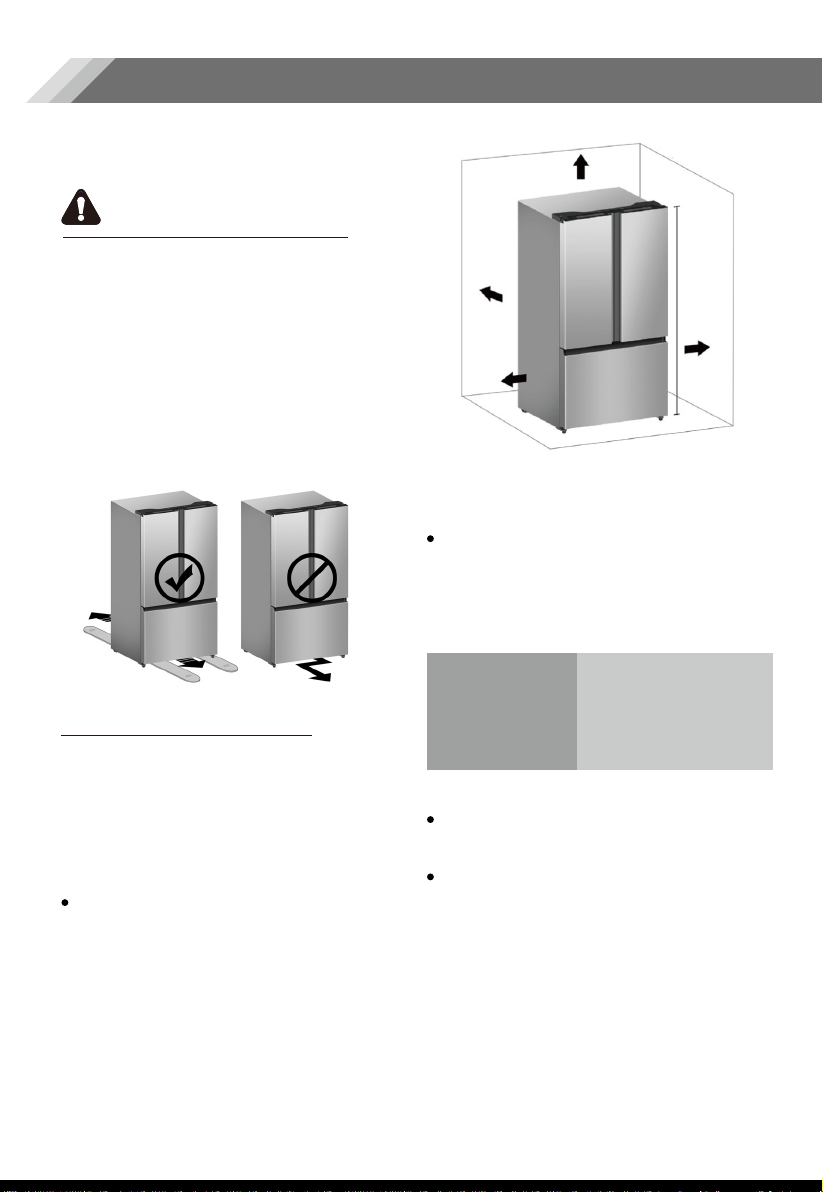

For proper installation, this refrigerator

must be placed on a level surface of

hard material that is the same height

as the rest of the flooring. This surface

should be strong enough to support a

fully loaded refrigerator.

The rollers, which are not casters,

should be only used for forward or

backward movement. Moving the

refrigerator sideways may damage

your floor and the rollers.

Suggestion:

It is advisable for there to be at least

2"(50mm) of clearance from the back of

the fridge to the wall, at least 2"(50mm)

of clearance from its top, at least 1/2"

(12mm ) from its side to the wall and

a clear space in front to allow the doors

to open 125°. As shown in the following

diagrams.

In order to improve efficiency of the

cooling system and save energy, it is

necessary to maintain good ventilation

around the appliance for the dissipation

of heat. For this reason, sufficient clear

space should be available around the

refrigerator.

Ventilation of appliance

This appliance performs well within the

climate class from N to T shown in the table

below. It may not work properly if left at a

temperature above or below the

indicated range for a long period.

Stand your appliance in a dry place to

avoid high moisture.

Keep the appliance out of direct sunlight,

rain or frost. Stand the appliance away

from heat sources such as stoves, fires or

heaters.

Climate class

+50°F to + 90°F

+61°F to + 90°F

+61°F to + 100°F

+61°F to + 109°F

Ambient temperature

Note:

2 "

1/2"

1/2 "

70"

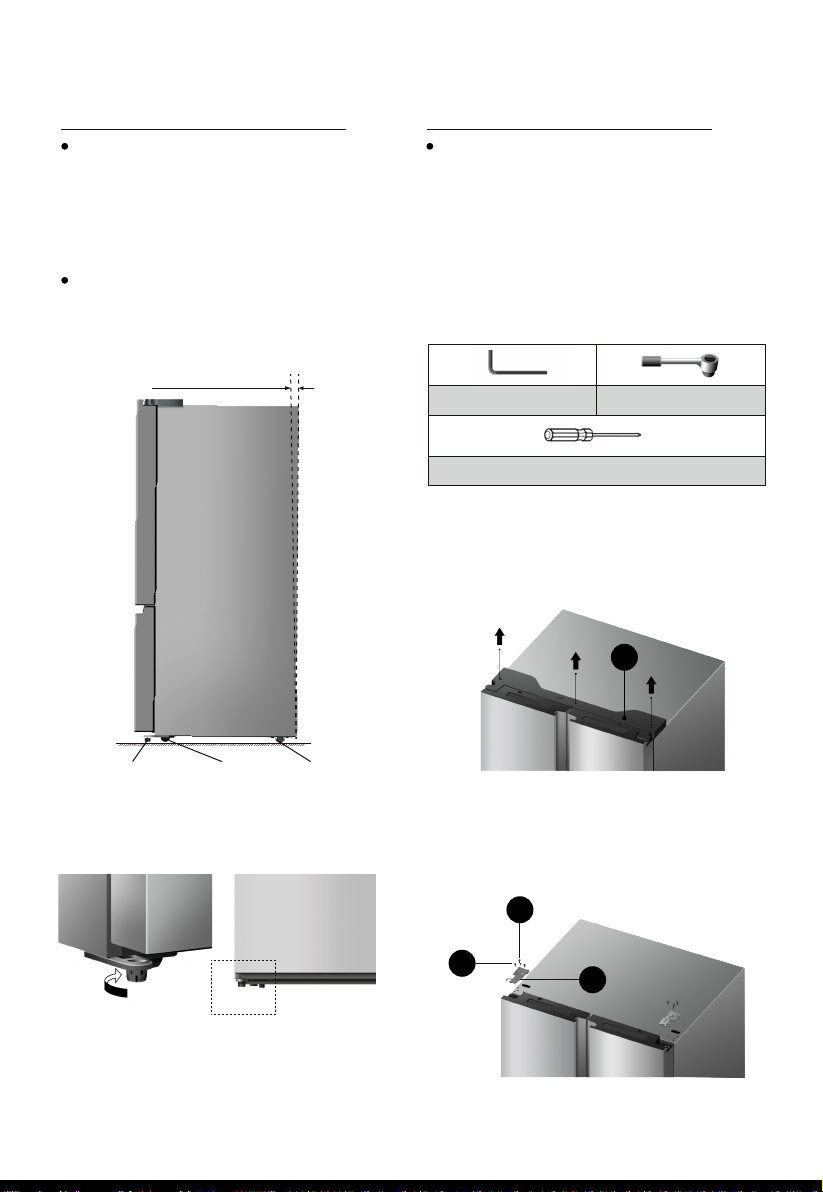

For sufficient leveling and air circulating

in the lower rear section of the

appliance, the bottom feet may need

to be adjusted. You can adjust them

manually by hand or by using a suitable

tool.

To allow the doors to self-close, tilt the

top backwards by 0.4" - 0.6"(10- 15mm)..

Leveling of appliance

In case your home access door is too

narrow for the refrigerator to pass

through, remove the refrigerator doors

and drawers. If you do not need to

remove the appliance doors, proceed

to ‘Installing Water Lines’ on page 8.

If you need to remove the doors,

continue below.

Door Removal

Tools you will need(Not provided)：

Adjustable

bottom feet

Front roller Rear roller

0.4"~0.6"(10-15mm)

Adjustable

bottom feet

Allen Wrench (5/32",4mm)

Philips Screwdriver

Wrench (5/16",8mm)

With the door closed, remove the 3 screws

holding the top cover (A) with Philips (+)

screwdriver, and then remove the top

cover with the entireharness attached.

Remove the screws (B) fixed on the hinges

with a wrench (5/16",8mm) and 1 ground

screw (C) attached to the hinge with

Philips (+) screwdriver. Remove the upper

left and right door hinges (D).

4. Remove the 4 hex head bolts hinges (E)

with an Allen wrench (5/32",4mm).

Remove the lower left and right door

hinges (F).

Pull out the freezer door and the upper

freezer drawer (G) to the final position.

Take out the ice storage box (H) by

lifting it up in the direction of the arrow.

Take out the upper freezer drawer (G)

by lifting it up from the rail system.

Disassembling the freezer door

Use both hands to open the door more

than 90°. Lift it up and take it off.

Remove the lower freezer drawer (C)

by lifting it up.

Remove the 4 screws attached to the

supporting frame (D).

4.You need to purchase several item to

compalet this connection.You may find

these items sold as a kit at local hardware

store.

Re-assembling the freezer door

To reattach the drawer after you moved

the appliance to its final location,

assemble the parts in reverse order.

A water dispenser with a filter is one of the

helpful features on your new appliance.

To help promote better health, the water

filter removes unwanted particles from your

water. However, it does not sterilize or

destroy microorganisms. You may need

to purchase a water purifying system to

do that.

In order for the ice maker to operate

properly, a water line is required.

-the maximum inlet water pressure is 700kPa;

-the minimum inlet water pressure is 207kPa.

Installing the water lines

Pull out the freezer door and lift it upin

the direction of the arrow. 1. Power drill and 1/4’’ drill bit.

2. 1/2’’ or adjustable wrench.

3. Flatblade and Philips head screwdrivers.

1 ferrule

(sleeve)

What you need to have before you star

Saddle-type

Shut offvalve

(1/4” outlet)

one 1/4”

compression

1/4” extension

tubing

1 Coupler 2 Clips

WARNING!

The water connection must be made

by a qualified plumber. Operation

outside the water pressure range

may cause malfunction, severe and

damaging water leaks.

Under normal conditions, a200cc

(5.75 oz.) cup can be filled in about

10 seconds.

If the refrigerator is installed in an area

with low water pressure (below 30psi),

you can install a booster pump to

compensate for the low pressure.

First, shut off the main water supply.

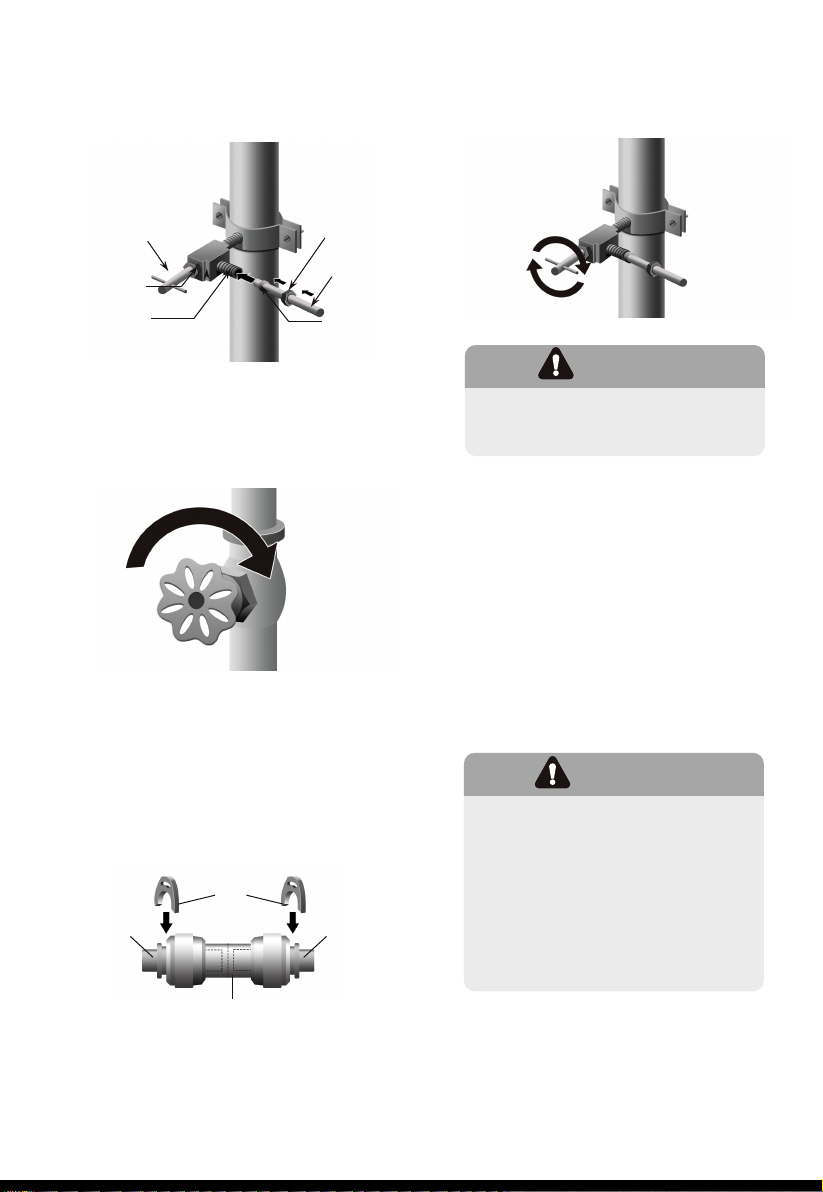

Connecting to the water supply line

Cold water line

Pipe clamp

Shut off Valve

Using a power drill and a 1/4’’ drill bit

drill into the cold-water line and

connect the saddle-type shutoff valve.

3. Connect 1/4’’ extension tubing to shutoff

valve outlet.

Flush the tubing. Turn the main water

supply on and flush out the tubing until

the water is clear. Then, shut the water

off at the water valve after about a quart

of water has flushed through the tubing.

Outllet Valve

Packing Nut

Saddle-Type

Shutoff Valve Compression Nut

1/4” Extension

tubing

Ferrule(sleeve)

Connect the extension tubing line with

the line on the back of the fridge via

the coupler. Fully insert the extension

tubing into the coupler, and then insert

the clip onto the coupler to lockup the

tubing. Do the same with the other

end. After both clips are inserted,

check the line to make sure it is held

firmly by the clip.

Note:

Ensure that the water line does not get

pinched or bent when installing.

This can result in improper water flow

through the line and will affect the

functionality of the fridge.

Clip

Water line Water line

Coupler

Note:

Use only the new tubing supplied with

the refrigerator. Old tubing should not

be used.

After connected to the water supply line,

please open the water valve to flush the

filter for 5 minutes before use. The initial

dark discoloration of water is normal.

When you connect the water line to the

appliance and press the lever of the

dispenser for the first time, it is normal that

there will be a sound of exhaust coming

out from the appliance.

1.The water line must be

connected to the cold water

pipe. If it is connected to the hot

water pipe, it may cause the

purifier to malfunction.

2.Avoid contamination of pipes

during installation.

3.Connect to potable water

supply only.

WARNING!

CAUTION!

Check to see if leaks occur at the

water line connections

6. Turn the water on and check

for leakage.

Thread a 1/4 " compression nut and

ferrule (sleeve) onto the free end and

of 1/4" water line.

Insert the free end and of the 1/4" water

line into the brass fitting attached to the

water inlet on the back of the refrigerator.

c1/4" Water Line

1/4" Compression Nut

Ferrule(Sleeve)

Brass Fitting

Slide the 1/4" compression nut over the

ferrule (sleeve) and screw the 1/4"

compression nut onto the brass ftting.

7. Comfirm 1/4" water line is secure by

gently pulling on it.

8. Turn on water supply and check for leaks,

and correct any leaks.

Note:

1.The water line must be

connected to the cold water

pipe. If it is connected to the hot

water pipe, it may cause the

purifier to malfunction.

2.Avoid contamination of pipes

during installation.

3.Connect to potable water

supply only.

WARNING!

Water Inlet

Connect Water Line to Refrigerator

IMPROTANT:

If you turn the refrigerator

on before the water is connected, turn

off the ice maker.

Unplug refrigerator or disconnect

power.

Close shut off value.

a b c Ferrule (Sleeve) -1 pcs

1/4" Compression Nut - 1 pcs

1/4" Water Line - 1 pcs

1.You may need to purchase below

items to complete this connection.

And you may find these items sold

as a kit at a local hardware store.

After connected to the water supply line,

please open the water valve to flush the

filter for 5 minutes before use. The initial

dark discoloration of water is normal.

When you connect the water line to the

appliance and press the lever of the

dispenser for the first time, it is normal

that there will be a sound of exhaust

coming out from the appliance.

Use only the new tubing supplied with

the refrigerator. Old tubing should not

be used.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Hisense Kühlschrank Handbücher

Hisense

Hisense RS741N4WC11 Montageanleitung

Hisense

Hisense FMN560BSE Montageanleitung

Hisense

Hisense HTFF525AW Montageanleitung

Hisense

Hisense FTN461WCE1 Montageanleitung

Hisense

Hisense RS-77WC1SQD/UPE-001 Bedienungsanleitung

Hisense

Hisense HR6TFF222 Bedienungsanleitung

Hisense

Hisense HWS54029SS Bedienungsanleitung

Hisense

Hisense HR6TFF459S Montageanleitung

Hisense

Hisense RQ560N4WC1 Montageanleitung

Hisense

Hisense FV105D4BC2 Montageanleitung

Hisense

Hisense RT318N4ABN Montageanleitung

Hisense

Hisense H230RTS Montageanleitung

Hisense

Hisense RR197D4AGN Montageanleitung

Hisense

Hisense RB424N4CFC Technisches Handbuch

Hisense

Hisense RS694N4TZE Montageanleitung

Hisense

Hisense RF632N4WFF Montageanleitung

Hisense

Hisense RS669N4WC1 Montageanleitung

Hisense

Hisense RD-65WR4SY1 Bedienungsanleitung

Hisense

Hisense RS-47WL4SBA/CLA2 Montageanleitung

Hisense

Hisense RB403N4EW1 Montageanleitung

Hisense

Hisense H800SB Montageanleitung

Hisense

Hisense LMS044M6RVE Montageanleitung

Hisense

Hisense RT600N4DC2 Bedienungsanleitung

Hisense

Hisense HRTF504 Montageanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
