Refrigerator Use & Care Guide

HRF254N6T*E

Table of Contents

Brief introduction

Important safety instructions

Installing your new appliance

Description of the appliance

Display controls

Using your appliance

Cleaning and care

Helpful hints and tips

Trouble shooting

Disposal of the appliance

..................................................................................................................... 1

.................................................................................................. 2

................................................................................................ 4

.............................................................................................. 10

...................................................................................................................... 11

............................................................................................................ 14

............................................................................................................... 1

............................................................................................................. 20

..................................................................................................................... 22

.................................................................................................... 25

Brief Introduction

Please ensure that everyone using this

appliance is familiar with its operation

and safety features. It is important that

you install the appliance correctly and

pay careful attention to the safety

instructions.

We recommend that you keep this user’s

manual with the appliance for future

reference.

This appliance is intended to be used

in households and similar applications

such as:

Thank you for your choosing Hisense. We

are sure you will find your new refrigerator

a pleasure to use. Before you use the

appliance, we recommend that you

carefully read through these instructions,

which provide details about installing and

using the product.

This appliance is not intended for use by

persons (including children) with reduced

physical, sensory or mental capabilities, or

lack of experience and knowledge, unless

they have supervision or been given

instruction concerning use of the appliance.

Children should be supervised to ensure

that they do not play with the appliance.

Do not store explosive substances such as

aerosol cans with a flammable propellant

in this appliance.

Connect to potable water supply only.

Do not use mechanical devices or other

means to accelerate the defrosting

process, other than those

recommended by the manufacturer.

Do not damage the refrigerant circuit.

Do not use electrical appliances inside

the food storage compartments of the

appliance, unless they are of the type

recommended by the manufacturer.

When disposing of the appliance do so

only at an authorized waste disposal

center. Do not expose to flame.

If the power cord is damaged, it must be

replaced by the manufacturer, its

service agent or similarly qualified

persons in order to avoid a hazard.

WARNING

Kitchen areas in shops, offices and other

working environments.

Hotels, motels and other residential

environments.

Bed and breakfast environments.

Catering and similar non-commericial

applications.

General safety and daily use

It is important to use your appliance

safely. We recommend that you follow the

guidelines below.

Store any food in accordance with the

storage instructions from the manufacturer.

Important Safety Instructions

Safety for children and

other persons

Don't try to repair the appliance yourself.

It is dangerous to alter the

specifications or modify this product in

any way. Any damage to the power

cord may cause a short circuit, fire or

electric shock.

Don’t place too much food directly

against the air outlet on the rear wall

of both the refrigerator and freezer

compartment, as it may affect

important air circulation.

Don’t place hot items near the plastic

components of this appliance.

Frozen food must not be refrozen once it

has been thawed out.

Don’t store bottled or canned drinks

(especially carbonated drinks) in the

freezer compartment. Bottles and cans

may explode.

Use caution consuming popsicles or ice

cubes straight from the freezer as this can

cause freezer burn to the mouth and lips.

Keep all packaging away from children

to avoid risk of suffocation.

Protect children from being scalded by

touching the compressor at the rear

bottom of appliance

Don’t place items on top of the

appliance as this could cause injury

should they fall off.

Never allow children to play with the

appliance by hanging or standing over

or on the doors, racks, shelves and

drawers etc.

Electrical Safety

To avoid the risks that are always present

when using an electric appliance, we

recommend that you pay attention to

the instructions about electricity belo

We recommend that you wait for 4 hours

before connecting the appliance to

allow the refrigerant to flow back into

the compressor.

The power plug must be accessible

when the appliance is installed.

This appliance must be grounded.

This appliance is fitted with a plug,

in accordance with local standard.

The plug should be suitable for use in all

houses fitted with sockets in accordance

with current specifications.

Electrical Safety

To avoid the risks that are always present

when using an electric appliance, we

recommend that you pay attention to

the instructions about electricity below.

Unpack and check through the

appliance. Should any damage be

evident, don’t plug in the appliance

and contact the dealer from which

you purchased it immediately. Keep all

packing materials in this case.

The appliance requires single phase

alternating current of

110~115V/60Hz. If the voltage fluctuates

exceeding the upper limit, an A.C.

automatic voltage regulator of more

than 350W should be applied to the

refrigerator for safe use.

If the fitted plug is not suitable for your

socket outlets, it should be cut off and

carefully disposed of. To avoid a

possible shock hazard, do not insert the

discarded plug into a socket. If in doubt

contact a qualified, registered

electrician.

Make sure that the plug is not squashed

or damaged. Otherwise, it may cause

short circuit, electric shock or overheat

and even cause a fire.

Do not insert the power plug if the

socket is loose, there is a risk of electric

shock or fire.

Switch off the appliance and

disconnect it from the main power

before you clean or move it.

Never unplug the appliance by pulling

on the electrical cord. Always grip the

plug firmly and pull straight out from the

socket to prevent damaging the power

cord.

Any electrical component must be

replaced or repaired by a qualified

electrician or authorized service

engineer. Only genuine replacement

parts should be used.

Do not use electrical appliances such

as ice cream makers inside the food

storage compartments of the

appliance unless they are approved

by the manufacturer.

To avoid eye injury, do not look directly

into the LED light located in the refrigerator

compartment. If it is not functioning

correctly, consult a qualified, registered

electrician or replace it in accordance

with the “Cleaning and Care” chapter.

The refrigerant isobutane (R600a) is

contained within the refrigerant circuit of

the appliance. During transportation and

installation of the appliance, ensure that

none of the components of the refrigerant

circuit become damaged.

The refrigerant (R600a) is flammable.

Don't store products which contain

flammable propellants (e.g. spray cans)

or explosive substances in the appliances.

Avoid open flames (candles, lamps etc. )

and other sources of ignition.

Thoroughly ventilate the room in which

the appliance is situated.

Refrigerant

Caution: Risk of Fire

Should the refrigerant circuit

be damaged:

Do not use extension cords or multiple

sockets which could cause overloading

of wiring circuits and could cause afire.

Always plug your appliance into its own

individual electrical socket with a

voltage rating that matches the

appliance’s rating plate.

Do not operate the appliance without

the cover on the interior lighting.

Installing Your New Appliance

WARNING

Before using the appliance for the first time,

you should be informed of the following tips.

For proper installation, this refrigerator

must be placed on a level surface of

hard material that is the same height

as the rest of the flooring. This surface

should be strong enough to support a

fully loaded refrigerator.

The rollers, which are not casters,

should be only used for forward or

backward movement. Moving the

refrigerator sideways may damage

your floor and the rollers.

Suggestion:

In order to improve efficiency of the

cooling system and save energy, it is

necessary to maintain good ventilation

around the appliance for the dissipation

of heat. For this reason, sufficient clear

space should be available around the

refrigerator.

Ventilation of appliance

This appliance performs well within the

climate class from N to T shown in the table

below. It may not work properly if left at a

temperature above or below the

indicated range for a long period.

Stand your appliance in a dry place to

avoid high moisture.

Keep the appliance out of direct sunlight,

rain or frost. Stand the appliance away

from heat sources such as stoves, fires or

heaters.

Climate class

+50°F to + 90°F

+61°F to + 100°F

+61°F to + 109°F

Ambient temperature

Note:

1/2" 1/2"

It is advisable for there to be at least

2"(50mm) of clearance from the back of

the fridge to the wall, at least 2"(50mm) of

clearance from its top, at least 1/2"(12mm)

from its side to the wall and a clear

space in front to allow the doors to

open 125°, as shown in the following

diagram.

For sufficient leveling and air circulating

in the lower rear section of the

appliance, the bottom feet may need

to be adjusted. You can adjust them

manually by hand or by using a suitable

tool.

To allow the doors to self-close, tilt the

top backwards by 0.4"- 0.6".

Leveling of appliance

In case your home access door is too

narrow for the refrigerator to pass

through, remove the refrigerator doors

and drawers. If you do not need to

remove the appliance doors, proceed

to ‘Installing Water Lines’ on page 8.

If you need to remove the doors,

continue below.

Door Removal

Tools you will need(Not provided)：

Adjustable

bottom feet

Front roller Rear roller

0.4"~0.6"

Adjustable

bottom feet

Allen Wrench (5/32",4mm)

Philips Screwdriver

Wrench (5/16",8mm)

Separate the two connectors on the left

side door. To remove the wire connector,

press the top of the connector (2) and

separate it from the other one. To remove

the water coupler from the hinge, twist and

pull the clips from the coupler. Remove the

water line (3) while pressing the movable

part (4) of the water line coupler.

Clip

1. With the door closed, remove the 3screws

holding the top cover (1) with Philips (+)

screwdriver, and then remove the top

cover with the entire harness attached.

4. Remove the 4 hex head bolts hinges (8 )

with an Allen wrench (5/32",4mm).

Remove the lower left and right door

hinges (9).

Pull out the freezer door and the upper

freezer drawer (10) to the final position.

Take out the upper freezer drawer (11)

by lifting it up from the rail system.

Disassembling the freezer door

Use both hands to open the door more

than 90°. Lift it up and take it off.

＞9 0°

Remove the screws (5) fixed on the hinges

with a wrench (5/16",8mm) and 1 ground

screw (6) attached to the hinge with

Philips (+) screwdriver. Remove the upper

left and right door hinges (7 ).

Re-assembling the freezer door

To reattach the drawer after you moved

the appliance to its final location,

assemble the parts in reverse order.

A water dispenser with a filter is one of the

helpful features on your new appliance.

To help promote better health, the water

filter removes unwanted particles from your

water. However, it does not sterilize or

destroy microorganisms. You may need

to purchase a water purifying system to

do that.

In order for the ice maker to operate

properly, a water line is required.

-the maximum inlet water pressure is 700kPa;

-the minimum inlet water pressure is 207kPa.

Installing the water lines

Remove the lower freezer drawer (12)

by lifting it up.

Remove the 4 screws attached to the

supporting frame (13).

1. Power drill and 1/4’’ drill bit.

2. 1/2’’ or adjustable wrench.

3. Flatblade and Philips head screwdrivers.

1 ferrule

(sleeve)

Saddle-type

Shut offvalve

(1/4” outlet)

one 1/4”

compression

1/4” extension

tubing

1 Coupler 2 Clips

WARNING!

Under normal conditions, a200cc

(5.75 oz.) cup can be filled in about

10 seconds.

If the refrigerator is installed in an area

with low water pressure (below 30psi),

you can install a booster pump to

compensate for the low pressure.

5. Pull out the freezer door and lift it up in

the direction of the arrow.

The water connection must be made

by aqualified plumber. Operation

outside the water pressure range

may cause malfunction, or severe

and damaging water leaks.

What you need to have before you begin

4. You may need to purchase several items to

complete this connection. You may find

these items sold as akit at local hardware

store.

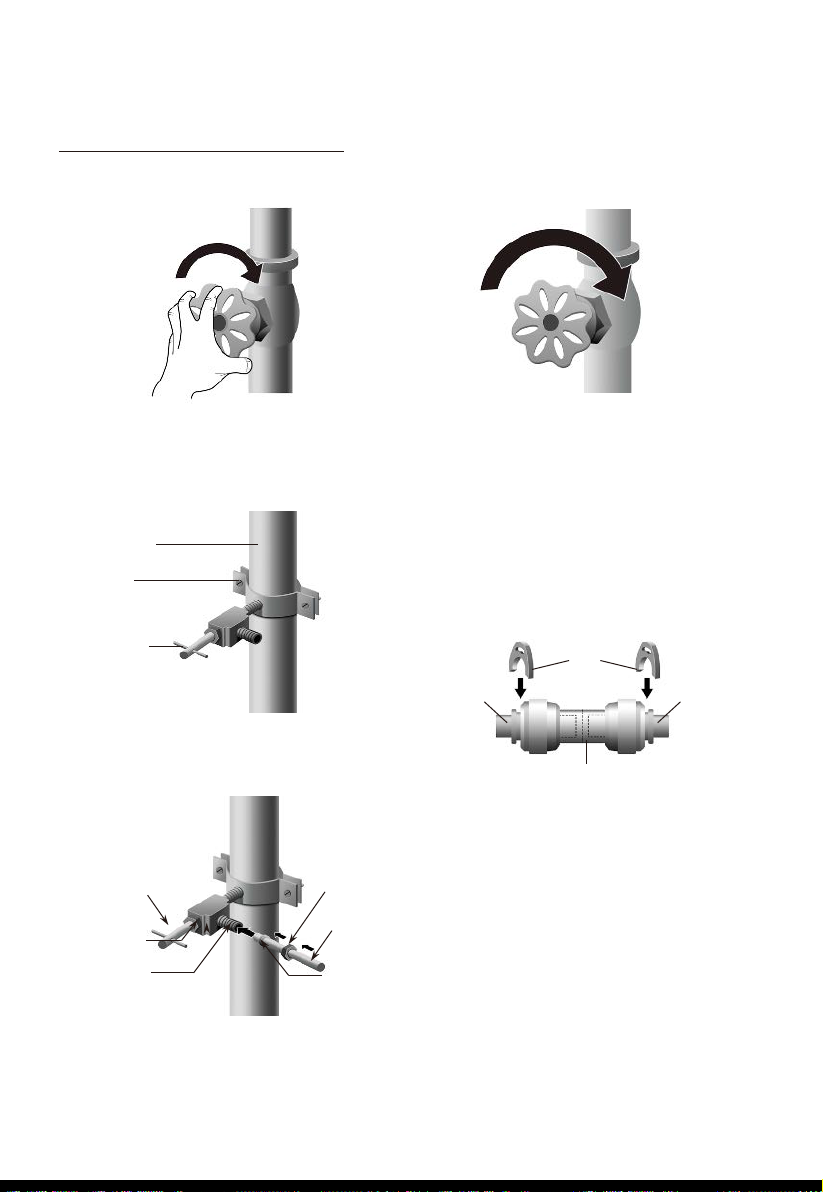

First, shut off the main water supply.

Connecting to the

water supply line

Cold water line

Pipe clamp

Shut off Valve

Using a power drill and a 1/4’’ drill bit

drill into the cold-water line and

connect the saddle-type shutoff valve.

Connect 1/4’’ extension tubing to shutoff

valve outlet.

Flush the tubing. Turn the main water

supply on and flush out the tubing until

the water is clear. Then, shut the water

off at the water valve after about a quart

of water has flushed through the tubing.

Outllet Valve

Packing Nut

Saddle-Type

Shutoff Valve Compression Nut

1/4” Extension

tubing

Ferrule(sleeve)

Note:

Ensure that the water line does not get

pinched or bent when installing.

This can result in improper water flow

through the line and will affect the

functionality of the fridge.

Clip

Water line Water line

Coupler

5. Connect the extension tubing line with

the line on the back of the fridge via

the coupler. Fully insert the extension

tubing into the coupler, and then insert

the clip onto the coupler to lock in the

tubing. Do the same with the other

end. After both clips are inserted,

check the line to make sure it is held

firmly by the clips.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Hisense Kühlschrank Handbücher

Hisense

Hisense HRBM503S Montageanleitung

Hisense

Hisense HRSBS652B Montageanleitung

Hisense

Hisense RD-44WC series Bedienungsanleitung

Hisense

Hisense FMN530WFI Montageanleitung

Hisense

Hisense RS-33DL4SCB/CPA Bedienungsanleitung

Hisense

Hisense RF210N6ASE Bedienungsanleitung

Hisense

Hisense RQ563N4AI1 Montageanleitung

Hisense

Hisense RQ560N4WB1 Montageanleitung

Hisense

Hisense RC-76WS Bedienungsanleitung

Hisense

Hisense RF528N4AC1 Montageanleitung

Hisense

Hisense FV306N4AW1 Montageanleitung

Hisense

Hisense RS-17DR1SS Montageanleitung

Hisense

Hisense RS-77WC1SQD/UPE-001 Bedienungsanleitung

Hisense

Hisense RS694N4TCF Montageanleitung

Hisense

Hisense WMS017M6XVE Montageanleitung

Hisense

Hisense RB372N4CC2 Montageanleitung

Hisense

Hisense RQ-52WC4S Montageanleitung

Hisense

Hisense HBM17 Series Bedienungsanleitung

Hisense

Hisense RT161D4ADE Montageanleitung

Hisense

Hisense RD-35DC4SAB/CV2-002 Montageanleitung

Hisense

Hisense HR6FDFF701SW Montageanleitung

Hisense

Hisense RF21A3FSE Bedienungsanleitung

Hisense

Hisense RS696N4IC1 Montageanleitung

Hisense

Hisense RB385N4EW1 Montageanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
