Model：

English

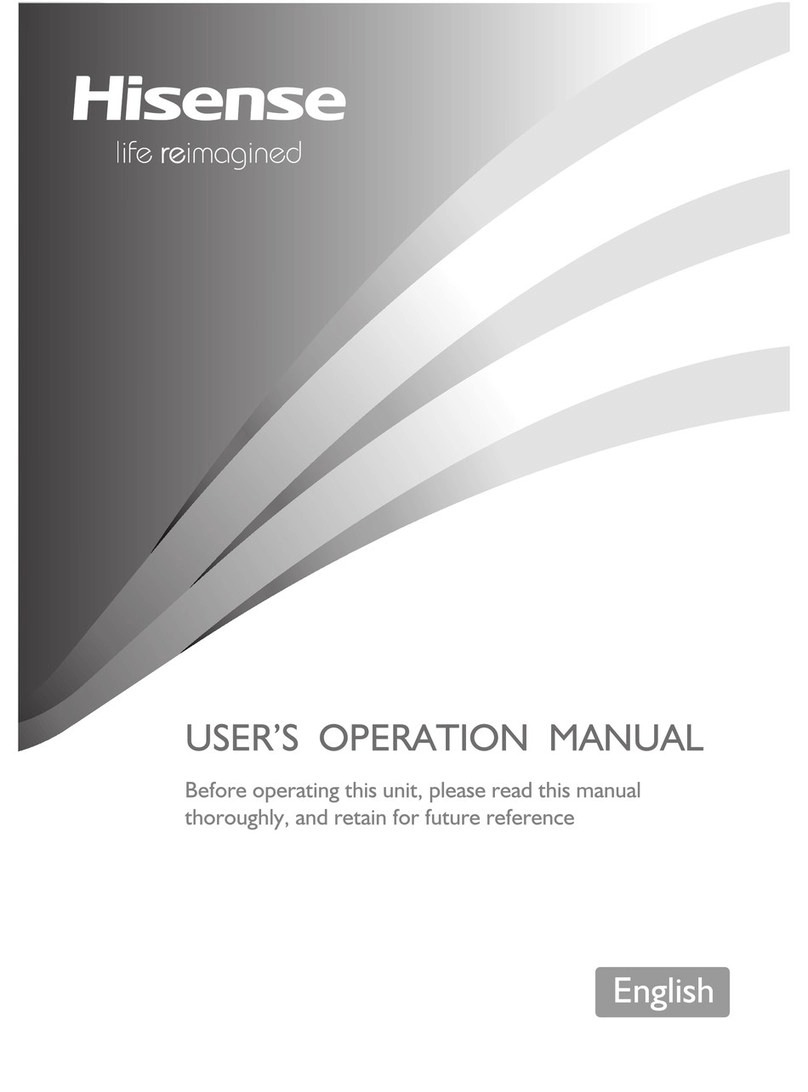

USER’S OPERATION MANUAL

Before operating this unit, please read this manual

thoroughly, and retain for future reference

HRVF240

Contents

Safety and warning information………....2

Installing your new appliance…………7

Description of the appliance……………9

Display controls…………………………10

Using your appliance…………………… 12

Cleaning and care………………………13

Helpful hints and tips……………………15

Troubleshooting………………………….16

Disposal of the appliance………………20

Safety and warning information

For your safety and correct usage, before installing and first using the appliance,

read this user manual carefully, including its hints and warnings. To avoid

unnecessary mistakes and accidents, it is important to make sure that all people

using the appliance are thoroughly familiar with its operation and safety features.

Save these instructions and be sure that they remain with the appliance if it is

moved or sold, so that anyone using it throughout its life, will be properly

informed on its usage and safety notices.

For the safety of life and property, keep the precautions of these user's

instructions as the manufacturer is not responsible for damages caused by

omission.

Safety for children and others who are vulnerable people

●According to EN standard

This appliance can be used by children aged from 8 years and above and

persons with reduced physical, sensory or mental capabilities or lack of

experience and knowledge if they have been given supervision or instruction

concerning use of the appliance in a safe way and understand the hazards

involved. Children shall not play with the appliance. Cleaning and user

maintenance shall not be made by children without supervision.

●According to IEC standard

This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision or instruction concerning

use of the appliance by a person being responsible for their safety.

●Children should be supervised to ensure that they do not play with the

appliance.

Keep all packaging away from children as there is risk of suffocation.

If you are discarding the appliance, pull the plug out of the socket, cut the

connection cable (as close to the appliance as you can) and remove the

door to prevent children playing from suffering an electric shock or from

closing themselves inside it.

If this appliance, featuring a magnetic door seals, is to replace an older

appliance having a spring lock (latch) on the door or lid, be sure to make

the spring lock unusable before you discard the old appliance. This will

prevent it from becoming a death trap for a child.

General safety

WARNING —This appliance is intended to be used in household

and similar applications such as

-staff kitchen areas in shops, offices and other working environments;

-farm houses and hotels, motels and other residential type environments;

-bed and breakfast type environments;

-catering and similar non-retail applications.

WARNING — Do not store explosive substances such as aerosol cans

with a flammable propellant in this appliance.

WARNING — If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualified persons in order to

avoid a hazard.

WARNING — Keep ventilation openings, in the appliance enclosure or in

the built-in structure, clear of obstruction.

WARNING — Do not use mechanical devices or other means to

accelerate the defrosting process, other than those recommended by the

manufacturer.

WARNING — Do not damage the refrigerant circuit.

WARNING — Do not use electrical appliances inside the food storage

compartments of the appliance, unless they are of the type recommended

by the manufacturer.

WARNING — The refrigerant and insulation blowing gas are flammable.

When disposing of the appliance, do so only at an authorized waste

disposal centre. Do not expose to flame.

WARNING —When positioning the appliance, ensure the supply cord is

not trapped or damaged.

WARNING —Do not locate multiple portable socket-outlets or portable

power supplies at the rear of the appliance.

Replacing the illuminating lamps

WARNING—The illuminating lamps must not be replaced by the user! If

the illuminating lamps is damaged, contact the customer helpline for

assistance. This warning is only for refrigerators that contain illuminating

lamps.

Refrigerant

The refrigerant isobutene (R600a) is contained within the refrigerant circuit of

the appliance, a natural gas with a high level of environmental compatibility,

which is nevertheless flammable. During transportation and installation of the

appliance, ensure that none of the components of the refrigerant circuit

becomes damaged.

The refrigerant (R600a) is flammable.

WARNING — Refrigerators contain refrigerant and gases in the insulation.

Refrigerant and gases must be disposed of professionally as they may cause

eye injuries or ignition. Ensure that tubing of the refrigerant circuit is not

damage prior to proper disposal.

It is hazardous for anyone other than an Authorized Service Person to service

this appliance. In Queensland the Authorized Service Person Must hold a Gas

Work Authorized for hydrocarbon refrigerants to carry out servicing or repairs

which involve removal of covers.

WARNING: risk of fire

If the refrigerant circuit should be damaged:

-Avoid opening flames and sources of ignition.

-Thoroughly ventilate the room in which the appliance is situated.

It is dangerous to alter the specifications or modify this product in any way.

Any damage to the cord may cause a short circuit, fire, and/or electric shock.

Electrical safety

1. The power cord must not be lengthened.

2. Make sure that the power plug is not crushed or damaged. A crushed or

damaged power plug may overheat and cause a fire.

3. Make sure that you can access the main plug of the appliance.

4. Do not pull the main cable.

5. If the power plug socket is loose, do not insert the power plug. There is a

risk of electric shock or fire.

6. You must not operate the appliance without the interior lighting lamp cover.

7. The fridge is only applied with power supply of single phase alternating

current of 220~240V/50Hz. If fluctuation of voltage in the district of user is so

large that the voltage exceeds the above scope, for safety sake, be sure to

apply A.C. Automatic voltage regulator of more than 350W to the fridge. The

fridge must employ a special power socket instead of common one with other

electric appliances. Its plug must match the socket with ground wire.

Daily use

Do not store flammable gas or liquids in the appliance, There is a risk of

an explosion.

Do not operate any electrical appliances in the appliance (e.g. electric ice

cream makers, mixers etc.).

When unplugging always pull the plug from the mains socket, do not pull

on the cable.

Do not place hot items near the plastic components of this appliance.

Do not place food products directly against the air outlet on the rear wall.

Store pre-packed frozen food in accordance with the frozen food

manufacturer’s instructions.

The appliances manufactures storage recommendations should be strictly

adhered to. Refer to relevant instructions for storage.

Do not place carbonated or fizzy drinks in the freezer compartment as it

creates pressure on the container, which may cause it to explode,

resulting in damage to the appliance.

Frozen food can cause frost burns if consumed straight from the freezer

compartment.

Do not place the appliance in direct sunlight.

Keep burning candles, lamps and other items with naked flames away

from the appliance so that do not set the appliance on fire.

The appliance is intended for keeping food stuff and/or beverages in

normal household as explained in this instruction booklet. You should take

care when move it as the appliance is heavy.

Do not remove nor touch items from the freezer compartment if your

hands are damp/wet, as this could cause skin abrasions or frost/freezer

burns.

Never use the base, drawers, doors etc. to stand on or as supports.

Frozen food must not be refrozen once it has been thawed out.

Do not consume ice popsicles or ice cubes straight from the freezer as

this can cause freezer burn to the mouth and lips.

To avoid items falling and causing injury or damage to the appliance, do

not overload the door racks or put too much food in the crisper drawers.

caution!

Care and cleaning

Before maintenance, switch off the appliance and disconnect the mains

plug from the mains socket.

Do not clean the appliance with metal objects, steam cleaner, ethereal

oils, organic solvents or abrasive cleansers.

Do use a plastic scraper instead of a sharp objects to remove frost from

the appliance.

Installation Important!

For electrical connection carefully, follow the instructions given in this

manual. Unpack the appliance and check if there are damages on it.

Do not connect the appliance if it is damaged. Report possible damages

immediately to the place you bought it. In this case retain packing.

It is advisable to wait at least four hours before connecting the appliance

to allow the oil to flow back in the compressor.

Adequate air circulation should be around the appliance, lacking this leads

to overheating. To achieve sufficient ventilation, follow the instructions

relevant to installation.

Wherever possible the back of the product should not be too close to a

wall to avoid touching or catching warm parts (compressor) to prevent the

risk of a fire, follow the instructions relevant to installation.

The appliance must not be locate close to radiators or cookers.

Make sure that the mains plug is accessible after the installation of the

appliance.

Service

Any electrical work required to do the servicing of the appliance should be

carried out by qualified electrician or competent person.

This product must be serviced by an authorized Service

Center, and only genuine spare parts must be used.

1) If the appliance is Frost Free.

2) If the appliance contains freezer compartment.

Installing your new appliance

Before using the appliance for the first time,

you should beinformed ofthe following tips.

Warning!

For proper installation, this freezer must be

placed on a level surface of hard material

that is the same height as the rest of the

flooring. This surface should be strong

enough to support a fully loaded freezer.

The rollers, which are not castors, should

be only used for forward or backward

movement. Moving the freezer sideways

may damage your floor and the rollers.

Ventilation of appliance

In order to improve efficiency of

the cooling system and save

energy, it is necessary to

maintain good ventilation around the

appliance for the dissipation of heat. For

this reason, sufficient clear space should

be available around the freezer.

Suggest: It is advisable for there to be

50-75mm of space from the back to the

wall, at least 100mm from its top, at least

50mm from its side to the wall and a clear

space in front to allow the doors to open

130°. As shown in follow diagrams.

Note:

This appliance performs well within the

climate class from SN to T showed in the

table below. It may not work properly if

being left at a temperature above or below

the indicated range for a long period.

Climate class

Ambient temperature

+10°C to +32°C

+16°C to +32°C

+16°C to +38°C

+16°C to +43°C

Stand your appliance in a dry place to

avoid high moisture.

Keep the appliance out of direct sunlight,

rain or frost. Stand the appliance away

from heat sources such as stoves, fires or

heaters.

Leveling of appliance

For sufficient leveling and air circulating in

the lower rear section of the appliance, the

bottom feet may need to be adjusted. You

can adjust them manually by hand or by

using a suitable spanner.

To allow the doors to self-close, tilt the top

backwards by 10-15mm.

Description of the appliance

View of the appliance

1. Cabinet

2. LED light

3. Glass shelf

4. Display

5. Upper drawer part

6. Lower drawer part

7. Adjustable bottom feet

8. Freezer door

9. Freezer gasket

Note！

Due to unceasing modification of our products, your freezer may be slightly different from

this instruction manual, but its functions and using methods remain the same.

To get the best energy efficiency of this product, please place all shelves, drawers and

baskets on their original position as the illustration above.

Display controls

Use your appliance according to the

following control regulations, your

appliance has the corresponding functions

and modes as the control panels showed

in the pictures below. When the appliance

is powered on for the first time, the

backlighting of the icons on display panel

starts working. If no buttons have been

pressed and the doors are closed, the

backlighting will turn off.

Display panel inside

Controlling the temperature

For optimum food preservation,

We recommend that when you start your

freezer for the first time，the

temperature for the freezer is set to

-18°C (0°F)，if you want to change the

temperature，follow the instructions

below.

Caution！

When you set temperature，you set an

average temperature for the whole freezer

cabinet. Temperature inside each

compartment may vary from the

temperature values displayed on the

panel，depending on how much food you

store and where you place them. Ambient

temperature may also affect the actual

temperature inside the appliance.

Note：High temperature setting will

accelerate food waste.

1. °F /°C

Press and hold the " " key

for about 3s to

convert the temperature between

Fahrenheit and Celsius.

2.Temp

Press the " " key briefly to

adjust the temperature to the desired

setting.

In the "Freezer" state, when adjusted

according to Fahrenheit temperature

display, the temperature will be set in the

following sequence

When adjusted according to the Celsius

temperature display of Celsius, the

temperature will be set in the following

sequence.

Inhaltsverzeichnis

Andere Hisense Kühlschrank Handbücher

Hisense

Hisense HR6TFF526 Montageanleitung

Hisense

Hisense RL170D4BC21 Bedienungsanleitung

Hisense

Hisense RB440N4AD1 Bedienungsanleitung

Hisense

Hisense RS-36DR series Bedienungsanleitung

Hisense

Hisense RB14N1ASD Montageanleitung

Hisense

Hisense HR6VFF255 Bedienungsanleitung

Hisense

Hisense HRM260N6TSE Montageanleitung

Hisense

Hisense HRBM503S Montageanleitung

Hisense

Hisense RS-11DC4SAB/CPA Bedienungsanleitung

Hisense

Hisense RQ768N4GBE Montageanleitung

Hisense

Hisense H740FS-WD Bedienungsanleitung

Hisense

Hisense RM-53WC1SHA/UVE-001 Bedienungsanleitung

Hisense

Hisense RS695N4IS2 Bedienungsanleitung

Hisense

Hisense RR130DAGS Montageanleitung

Hisense

Hisense RQ515N4AB1 Montageanleitung

Hisense

Hisense RT156D4AG1 Montageanleitung

Hisense

Hisense HR6TFF600SD Montageanleitung

Hisense

Hisense RS-15DR Bedienungsanleitung

Hisense

Hisense RT641N4WIE Bedienungs- und Wartungshandbuch

Hisense

Hisense HRAF328 Montageanleitung

Hisense

Hisense RS818N4ICE Montageanleitung

Hisense

Hisense Refrigerator Montageanleitung

Hisense

Hisense RD-35DR4SAA/CPA Bedienungsanleitung

Hisense

Hisense BCD-720WP1BF1Z9/HC1(H) Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
