Hisense 58K700UWD Bedienungsanleitung
Bar code
58K700UWD
65K700UWD
English
ES-A151608-1
QUICK SETUP GUIDE
Before using the TV, please read this guide thoroughly
and retain it for future reference. For more detailed
instructions, please see the User Manual.
1
Contents
Contents
Accessories List..............................................................................................................1
Installing the Stand.........................................................................................................2
Wall Brackets Installing Instructions ...............................................................................3
TV Front..........................................................................................................................5
TV Rear ..........................................................................................................................6
Making Connections.......................................................................................................6
Remote Control ............................................................................................................12
Turning the TV on for the First Time.............................................................................14
Specifications ...............................................................................................................15
TV Base Stand User Manual 3D Glasses
Quick Setup Guide AAA Batteries × 2 Remote Control Screw × 4
Support × 4 Screw (M3 × 8)(for mounting support) × 16 Power cord(Actual product
may vary in appearance.)
Accessories List
The following accessories are included with TV:
Quick Setup Guide
Incorrect replacement of the battery may lead to the risk, including the
replacement of another similar or the same type. Do not expose batteries
to heat such as sun or fire or something like that.
The device should not be exposed to dripping and spraying and it cannot
be placed under objects filled with liquids.
Main plug is used as the disconnect device, the disconnect device shall
remain ready for operating.
NOTES
Excessive sound pressure from earphones and headphones can cause hearing loss.
OK
VOLC
BACK EXIT
INPUT
SubtitleT.shift
EPGCH.List
CH
APP
Info
APP
2
Installing the Stand
Installing the Stand
CAUTION
Be sure to disconnect the A/C power cord before installing a stand or Wall-Mount
brackets.
The LED display is very fragile, and must be protected at all times when installing the base
stand. Be sure that no hard or sharp object, or anything that could scratch or damage the
LED display, comes into contact with it. DO NOT exert pressure on the front of the TV at any
time because the screen could crack.
Follow the illustrations and textual instructions below to complete the installa-
tion steps:
Product images are only for reference, actual product may vary in appearance.
NOTE
1. Carefully place your TV face-down on a soft, flat surface to prevent damage to the
TV or scratching to the screen.
2. Secure the stand cover to the TV with the 4 screws provided.
BASE STAND
M4×12 (58")
M5×12 (65")
3
Wall Brackets Installing Instructions
Wall Brackets Installing Instructions
Follow the illustrations and textual instructions below to complete the installa-
tion steps:
1. Carefully place your TV facedown on a soft, flat surface to prevent damage to
the TV or scratching to the screen.
2. Take out the cover sheet on the wall or ceiling mounting position of the TV set.
Fasten the mounting support on the mounting position with the screws in the
accessory bag.
NOTE
Other mounting support and screws with different specifications may may cause
damage on the TV set.
M3 × 8
4
Wall Brackets Installing Instructions
3 Attach the wall-mount bracket (no provided) on the back of your TV.
NOTE
If you are not sure of your ability to do complete the installation, contact a
professional installer or service technician for assistance. The manufacturer is not
responsible for any damages or injuries that occur due to mishandling or incorrect
assembly.
5

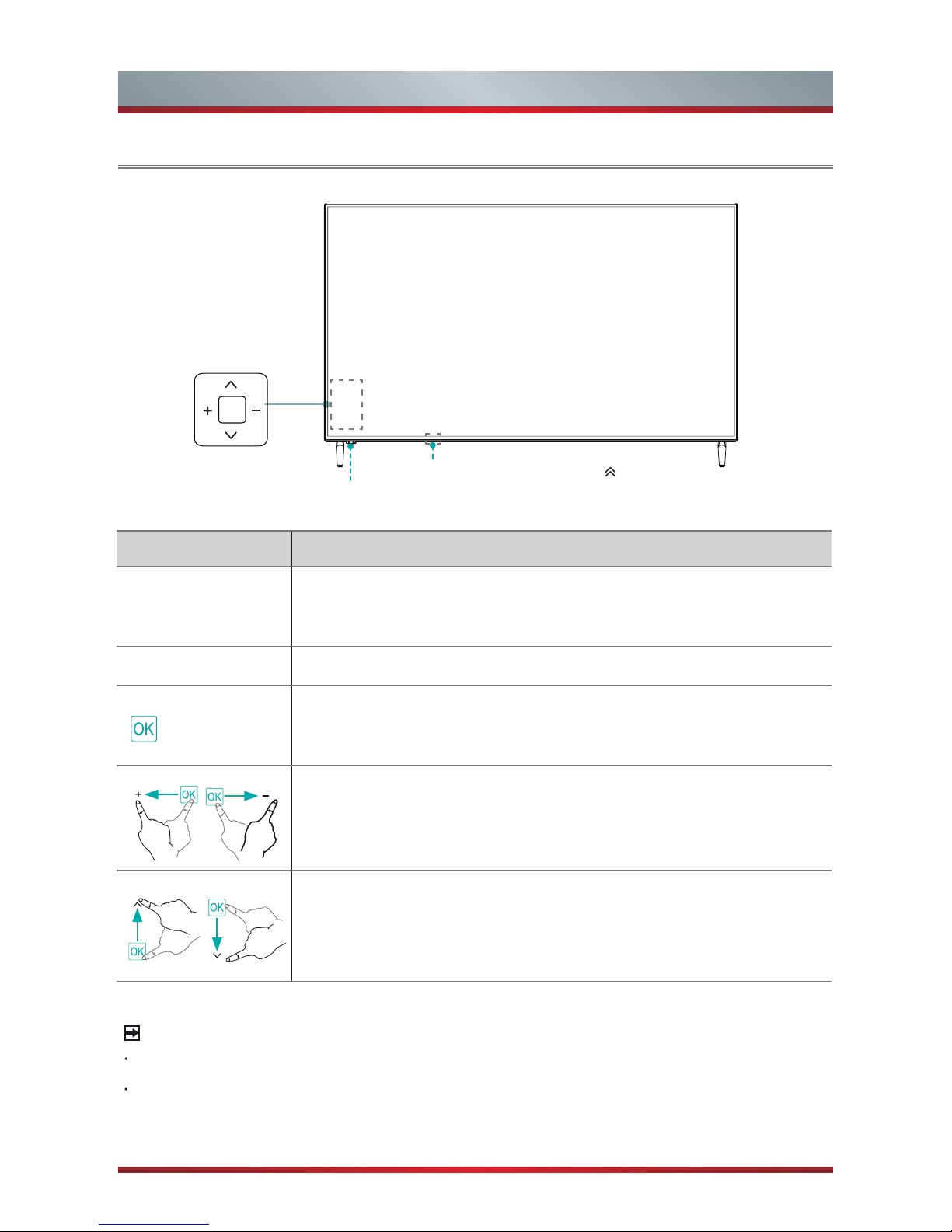

TV Front
TV Front
NOTES
The Picture is Only for Reference.
Powering on the TV requires several seconds to load program. Do not rapidly turn
the TV off as it may cause the TV to work abnormally.
Item Description
Remote sensor
Receives remote signals from the remote control.
Do not put anything near the sensor, as its function may be
affected.
Power indicator The light is red in standby mode.
Select among the different input signal sources or put the TV
in standby mode, or you can turn on the TV when the TV in
standby mode.
Toggle the OK button left and right to adjust the volume.
Toggle the OK button up and down to select the channel.
OK
TV Bottom Panel
TV Back View
Remote sensor /
Power indicator
Bluetooth device pairing
6
TV Rear & Making Connections
TV Rear
ANT
ANT
HEADPHONE
HDMI
HDMI
SERVICE
HDMI 1(MHL)HDMI 2(ARC) SERVICE
HEADPHONE
USB
USB
USB
USB 3(3.0)
DC 5V --- 1A(MAX) DC 5V 0.5A(MAX)
USB 1
USB 2
LAN
HDMI 3(2.0)
HDMI 4(2.0)
OPTICAL
Y
VIDEO
PB
L
PR
R
AV IN
COMPONENT IN
Power input
COMMONINTERFACE PCMCIA
NOTES
Check the jacks for position and type before making any connections. Loose
connections can result in image or color problems. Make sure that all connections
are tight and secure.
The TV may not be compatible with all external devices. To check compatibility,
please refer to the user manual of external device.
Do not connect external equipment while TV's power cord is plugged in. It may
cause electric shock.
7
Making Connections
HDMI/COMP/AV
Connect a HDMI / Comp / AV cable from an external A/V equipment. No sound
connection is needed for HDMI to HDMI connection. If the signal resolution does not
match the specification table, you need to change the setting of device according to
the table. Please consult your device user manual for instruction.
·To select the HDMI / Component / AV
Press [Input] button, when the list of input Source appears, press [< / >] to select the
source [HDMI] / [COMPONENT] / [AV], then press [OK] to connect.

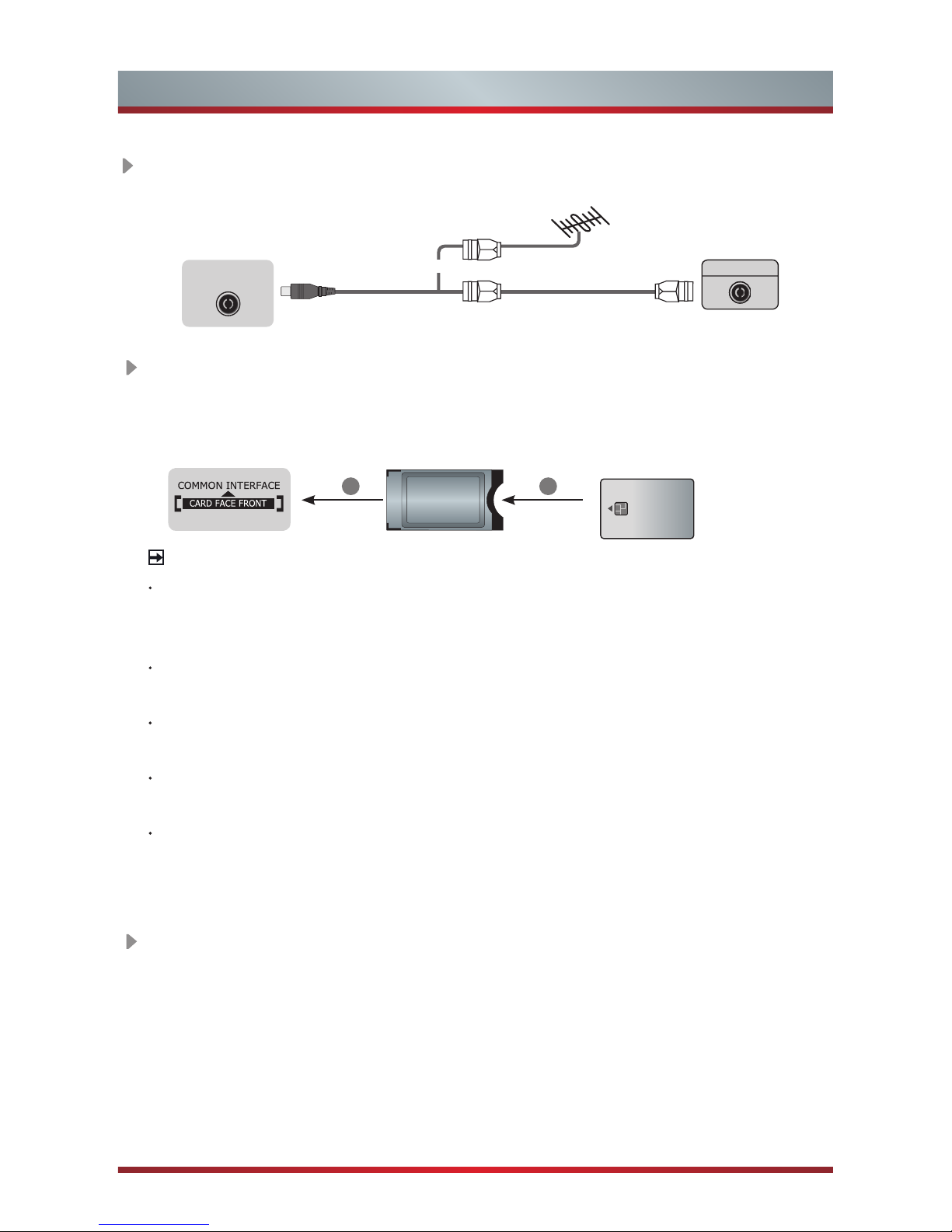

TV JACK Outdoor
Antenna
Antenna Cable (75Ω)
or ANT OUT
Cable
VHF/UHF Antenna
ANT Connect an outdoor VHF/UHF antenna or cable.
ANT
(not included)
COMMON INTERFACE
Insert the CI+ module for watching scrambled services like pay-tv channels or
some HD channels.
SMART CARD
CAM CARD
TV JACK
12
NOTES
Before you insert/remove the CI+ module, ensure that the TV is switched off.
Then insert the CI card into the CI+ module in accordance with the Service
Provider’s instructions.
Do not repeatedly insert or remove the Common Access Module as this may
damage the interface and cause a malfunction.
You must obtain a CI+ module and card from the service provider of the
channels you want to watch.
Insert the CI+ module with the SmartCard in the direction marked on the module
and SmartCard.
CI+ is not supported in some countries and regions; check with your authorized
dealer.
8
Making Connections
ARC Connect an HDMI cable from an external digital audio system.
ARC enables the TV to directly output the digital sound through an HDMI cable.
Please note that it works only when the TV is connected to the audio receiver that
supports the ARC (Audio Return Channel) function.
When this port is used as the ARC function, it can't be used as signal input at the
same time.
TV JACK
TV JACK
HDMI cable (not included)
MHL cable (not included)
HDMI 2(ARC)
HDMI
Audio Amplier/Speaker
HDMI 1(MHL)
MHL-enabled Device
MHL Connect an MHL cable (not provided) from your MHL-enabled device, such
as a cell phone.
BEST(HDMI)
Video Effect:
BETTER
(COMP)
GOOD
(AV)
Video Camera/
Set-top Box/
Satellite Receiver
AV
Y
Pb
Pr
Component
L
R
Video
L
R
VIDEO
L R
PR
PB
Y
COMPONENT IN
HEADPHONE Connect Headphone for audio out of the TV.
The built-in speakers will be disabled once the headphone is connected.
TV JACK
Headphone (not included)
HEADPHONE
NOTE
HDMI 1 is special for MHL device. Some of nonstandard DVD players may not be supported.
