Hisense H5 series Bedienungsanleitung
ES-A180191-1
Quick Start Guide
Help Hisense improve the environment by reducing paper waste.
For detailed instructions and feature descriptions, access the full User Manual online.
Before using the TV, please read this guide thoroughly and retain if for future reference.
H5 Series
32H5E
32H5E1
32H5508
32H5020E
32H5030E
32H5040E
32H5050E
32H5070E
32H5080E
© 2018 Hisense Company Ltd. All Rights Reserved.
All material in this Quick Start Guide is the property of Hisense Company Ltd. and its subsidiaries, and is protected under US, CANADA,
MEXICO and International copyright and/or other intellectual property laws. Reproduction or transmission of the materials, in whole or
in part, in any manner, electronic, print, or otherwise, without the prior written consent of Hisense Company Ltd. is a violation of Hisense
Company Ltd. rights under the aforementioned laws.
No part of this publication may be stored, reproduced, transmitted or distributed, in whole or in part, in any manner, electronic or
otherwise, whether or not for a charge or other or no consideration, without the prior written permission of Hisense Company Ltd.
Requests for permission to store, reproduce, transmit or distribute materials may be made to one of the following addresses:
USA:
Hisense USA Corporation
7310 McGinnis Ferry Road
Suwanee, GA 30024
CANADA: Hisense Canada Co., Ltd
2283 Argentia Road, Unit 16
Mississauga, ON, Canada
L5N 5Z2
MEXICO: Hisense Mexico S. de R.L. de C.V.
Blvd. Miguel de Cervantes Saavedra No 301
Torre Norte Piso 2, Col. Ampliación Granada
Miguel Hidalgo, Ciudad de México, C.P. 11520
Hisense, and any and all other Hisense product names, logo’s, slogans or marks are registered trademarks of Hisense Company Ltd.
and its subsidiaries. All other trademarks are the property of their respective holders.
©2018. All rights reserved. Hisense and the Hisense logo are trademarks of Hisense. Other brand and product names are trademarks of
their respective owners.
1
Table of Contents
Register Your TV! .....................................................................................................................2
Packaged Contents ..................................................................................................................3
Buttons and Ports on the TV ....................................................................................................4
Attach the TV Stand or Wall Mount Bracket .............................................................................5
Connect Devices to your TV.....................................................................................................7
Buttons on your TV Remote .....................................................................................................9
Begin Using your Remote.......................................................................................................10
Power on the TV..................................................................................................................... 11
Complete the First-Time Setup Menu.....................................................................................12
Begin to Enjoy your TV...........................................................................................................13
Product Specications............................................................................................................14
Quick Problem-Solving Tips ...................................................................................................15
Certication and Compliance..................................................................................................17
2
Register Your TV!
Congratulations on the purchase of your new TV! This Quick Start Guide will walk you through a few easy steps
to set up your TV. For detailed instructions, access the User Manual on the support pages listed below.
Because we value your business, we want to keep you in the know of 'all things Hisense'. Using your mobile phone, scan the Registration page QR code
to register your TV. Depending on the make and model of your phone, you may need to download a QR code scanning app.
Country Customer Care Center Hisense Support Page REGISTER YOUR TV
U.S.A • Phone: 1-888-935-8880
• Hours of Operation:
Monday - Friday: 9 AM to 9 PM EST
Saturday - Sunday: 9 AM to 6 PM EST
• Service Email: [email protected]
http://www.hisense-usa.
com/support/
https://www.hisense-
usa.com/support/
register
CANADA • Phone: 1-855-344-7367
• Hours of Operation:
Monday - Friday: 8 AM to 8 PM EST
• Service Email: [email protected]
http://www.hisense-canada.
com/support/
http://www.hisense-
canada.com/support/
productReg.asp
MEXICO
• Phone: 01-800-008 8880
•Hours of Operation: Monday - Friday 9:00-18:00
• Service Email: [email protected]
https://hisense.com.mx/
support/
*Scan to download user manual
https://hisense.com.mx/
product-registration/
Disclaimer: This Quick Start Guide is intended as a general guideline to help you set up your TV. Images
throughout this document are for illustrative purposes only and may differ from the actual product.
3
PACKAGED CONTENTS
Your package in which you purchased your new TV contains the following items:
TV 2 AAA batteries
A left and right leg that forms the TV stand Quick Start Guide (this document)
Important Safety Information and Warranty Card leaflet 4 screws
Remote Control
IMPORTANT:
To prevent accidentally discarding items that came with your TV, be sure to check ALL of the foam in the carton box.
Required tools and devices
Wireless router (not included) for Internet connectivity
Phillips screwdriver (not included) to secure the TV stand
HDMI and other types of cables (not included) to connect external devices to the TV
Wall mount bracket (not included) if you prefer to mount the TV to the wall
· Please check foam for accessories before discarding.
· Veuillez vérifier la mousse pour qu'il n'y ait pas d'accessoires avant de la jeter.
· Antes de desechar la espuma, asegúrese de retirar todos los accesorios.
4
BUTTONS AND PORTS ON THE TV
Back View of the TV TV Side View
TV Bottom View
VIDEO
LR
AV IN
AUDIO
SERVICE
LAN
DIGITAL
AUDIO OUT
AUDIO
OUT
HDMI 3
HDMI 2(ARC)
ANT/CABLE
HDMI 1 USB
DC 5V 0.5A(MAX)
5
STEP 1. Attach the TV stand or wall mount bracket (not included)
Attach the TV Stand
CAUTION:
Be sure to disconnect the A/C power cord before installing a stand or Wall-Mount brackets.
The LED display is very fragile and must be protected at all times when installing the legs that form the stand. Be sure to protect the
TV screen from getting scratched or damaged by any hard objects. In addition, DO NOT exert pressure on the front of the TV at any
time because it could crack.
To attach the left and right leg that forms the stand:
1. Carefully place your TV face down on a soft, flat surface to prevent damage to the TV or scratching to the screen.
2. Remove the 2 legs from the foam and then insert the stands into the bottom slots of the TV.
3. Use the screws that came inside the carton with your TV to secure each leg tightly.
leg
Screws:ST4×12F
Screws: ST4×12F
leg
6
Attach the Wall Mount Bracket (not included)
Before you begin the third-party manufacturer instructions, be
sure to do the following things:
1.Place the TV face down on a clean, safe and cushioned surface.
2.Remove the TV stand if you already attached it.
3.Place the spacers (not included) in the corresponding bracket
holes.
Screw
(not provided)
CAUTION:
• Whenyouattachthemount,besuretousethespacers
(provided by the third-party manufacturer) between the TV
and the bracket.
• TopreventinternaldamagetotheTVandensureitis
mountedsecurely,besuretousefixingscrews(not
provided) that are 8 ~ 10 mm in length when measured from
the attaching surface of the mounting hook.
Rear cover of the TV Spacer
Screw
Wall mount bracket
8 ~ 10 mm
Wall mount hole pattern
VESA (mm) 200 × 200
Wall mount screw size (mm) M6
Follow instructions provided with the Wall mount bracket.
To complete the installation, please contact the wall-mount
manufacturer or the retailer from which you purchased the TV.
The selected screws are 8 ~ 10 mm in length when measured
from the attaching surface of the rear cover. The diameter and
length of the screws differ depending on the Wall mount bracket
model.
NOTE: The diameter and length of the screws differ depending
on the wall mount bracket model.
Bracket
(not provided)
Spacer
(not provided)
7

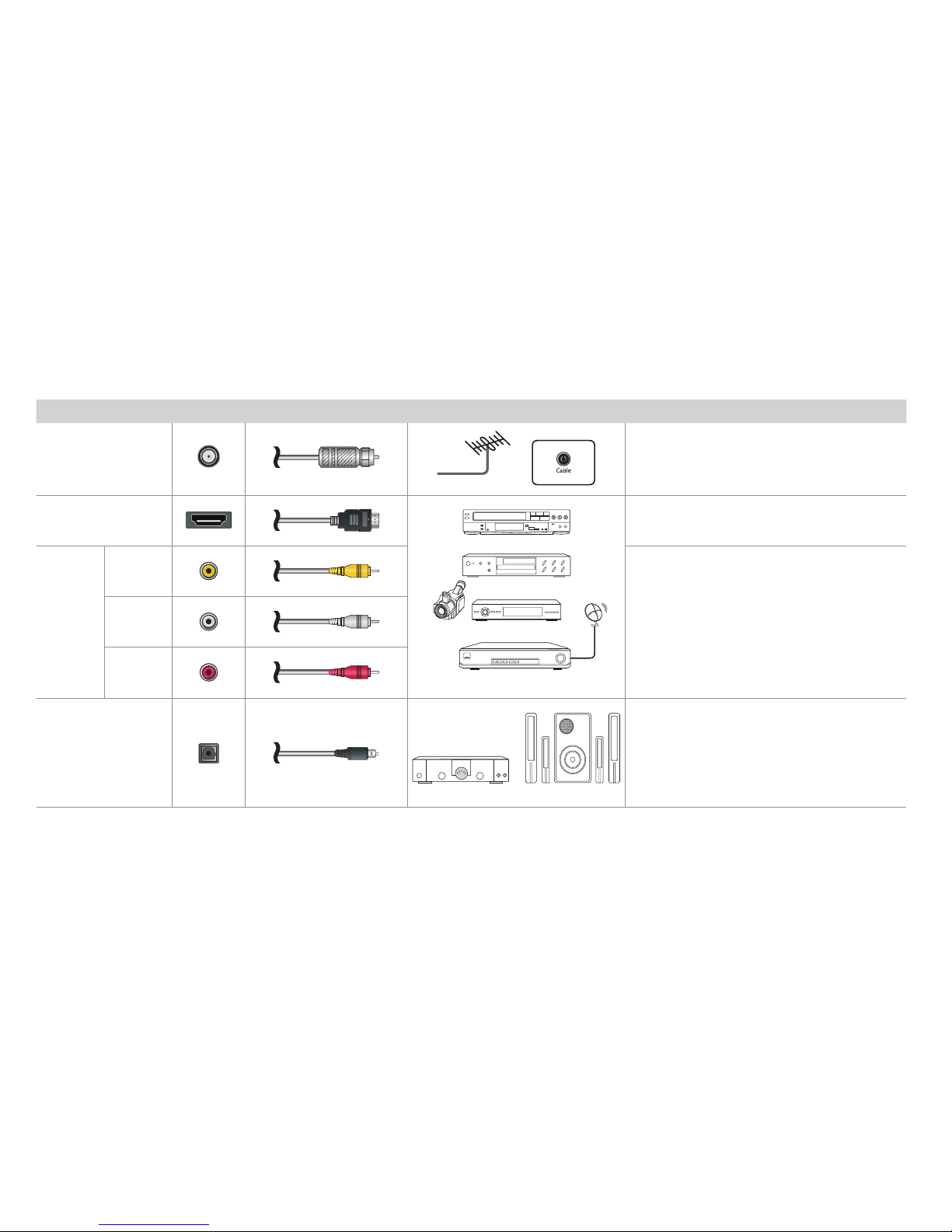

STEP 2. Connect devices to your TV
Check to ensure that you have selected the right cables for the ports and that they are connected securely. Loose connections can affect
the quality of the picture image and color.
TV label Port Cable External Equipment Brief Description
ANT/CABLE
Antenna
VHF/UHF Antenna
ANT OUT
Connect an outdoor VHF/UHF antenna.
HDMI
DVD Player/Recorder
Set-top Box
Satellite Receiver
Satellite
antenna
cable
VCR
Video
Camera
Connect a High Denition Multimedia Interface
(HDMI) cable from an external device.
AV IN
VIDEO Yellow
Connect a composite video cable and left-right
audio cables from an external AV device.
LWhite
RRed
DIGITAL AUDIO OUT
Speaker
Audio Amplier
Connect an optical cable from an external
digital audio system.
