INSTALLATION

OPERATING INSTRUCTIONS

NERIS500 & NERIS750

EHC-NERIS_ENG-Rev.0-23-09-2021

2/19

IMPORTANT WARNINGS

Dear Customer:

Thank you for purchasing our NERIS Towel Rail. As with all our products they

are manufactured to the highest quality using the finest materials that gives us

confidence that you will have many years of good use and comfort from your

product.

NERIS Towel Rails are extremely safe, Virtually Silent easy to install and do

not require any special maintenance. They are made of aluminum, a material

of high durability. Before use for the first time, carefully read these

instructions.

GENERAL SAFETY INSTRUCTIONS

1. Please carefully read these instructions before using the device for the

first time. Please keep these instructions, Your Guarantee, and your

Invoice in the unlikely you have to make a warranty claim on the product.

2. The Guarantee will be invalidated if the heater is not installed as per

the instructions within this manual.

3. Before connecting the appliance, make sure the mains voltage is the 230

Volts, and corresponds to the marked label of the appliance.

4. Check that the power is sufficient to supply the appliance. The total draw

of the Towel Rail currents must not exceed the capacity of the circuit and

the breaker that protects them.

5. This Towel Rail cannot be used in rooms with presence of gases or other

flammable products (glues, etc...).

6. WARNING: To prevent overheating, do not completely cover the heater

and do not use it to dry wet clothes.

7. Make sure the power cable or other objects does not come in contact

with the Towel Rail surface while in operation.

8. If the power cable becomes damaged it must be replaced with a genuine

replacement part supplied from the manufacturer and installed by a fully

qualified electrician. Failure to comply may cause danger to your safety

and will void the product warranty.

9. Check the device and the supply cord regularly. Do not use the device if

the cable has been damaged.

EHC-NERIS_ENG-Rev.0-23-09-2021

3/19

10. PRECAUTION: Some parts of this product can reach high temperatures

and could cause burns. Pay special attention when children or vulnerable

people are around to protect them from the heater.

11. Do not mount the heater directly under a power socket.

12. Children under the age of three should not be allowed to touch or play

with Towel Rail and should always be supervised.

13. This device can be used by children under 8 years of age, as well as by

people with reduced physical, sensory or mental capabilities when

suitably supervised and only when they have been provided the

instructions regarding the use of the device and have understood the

risks that could derive from it. Cleaning must only be carried out by an

appropriate adult using a damp cloth with a non-abrasive cleaner,

abrasive cleaners my damage the product.

14. Children between 3 and 8 years should not turn the heater on or off,

unless this is installed or placed in a normal position and that children are

under proper supervision or have received instructions regarding the use

of the device as security and they have perfectly understood the potential

dangers. Children between 3 and 8 years old should not connect, adjust,

or clean the appliance or perform any maintenance measure.

15. Warning: Do not use this heater near baths, showers, or swimming

pools. It should not be possible to access the device's controls from a

bath, shower or any other surface that is in contact with water.(the use of

this heater in zones 0 or 1 in bathrooms is totally prohibited:!

(Seek advice from a qualified electrician).

16. For greater safety, this appliance is provided with a device that interrupts

its operation in the case of overheating.

17. This Towel Rail has been designed exclusively to be fixed to the wall. For

further information on the fixing systems, Go to Section “INSTALLATION

AND WALL MOUNTING" Within this manual.

18. Do not use accessories that have not been recommended by the

manufacturer, as they could entail a potential risk to the user and damage

the device. Use only original accessories.

19. Keep all the packaging elements (plastic bags, cardboard, and

polyethylene) out of the reach of children, as it can be potentially

dangerous and could cause suffocation.

EHC-NERIS_ENG-Rev.0-23-09-2021

4/19

20. This device has been designed for domestic and light commercial use.

This device has not been designed for industrial use. It must not be

used Outdoors, in Greenhouses or in Animal or Agricultural

environments. Keep the heater away from excessive heat, direct

sunlight and in an environment that has a constant humidity. Under No

Circumstances should the heater be immersed in water or use the device

with wet hands. In the case of humidity or water entering the device, it

should be immediately disconnected from the power supply and left to

fully dry. Do Not touch any Wet parts of the heater before it has been

isolated from the main power supply.

21. Do not attempt to service the device yourself. Contact a qualified

technician for any service or repair work.

22. Respect the "SPECIFIC SAFETY INSTRUCTIONS FOR THIS

APPLIANCE" listed below.

23. WARNING: To avoid danger to very young children or people with

impaired capacity. This appliance should be installed at higher level to

avoid anyone touching the heater.

24. WARNING: This appliance is only intended for drying towels that have

become damp with fresh water and not any other substance as this could

result in damaging the heater and invalidate its warranty.

SPECIFIC SAFETY INSTRUCTIONS FOR THIS DEVICE

•The appliance must remain in a vertical position.

•Make sure the appliance is always secured. Please adhere to the

installation clearances indicated in this manual.

•The Towel Rail is designed to be hard wired in accordance with BS7671

for Bathrooms or Shower Rooms.

Follow the instructions in "INSTALLATION".

•The Guarantee will be invalidated if the heater is not installed as per

the instructions within this manual.

INSTALLATION

•During the first Start Up the heater might create a slight odour and some

slight expansion noise due to some internal part movement. This is

normal and you must provide adequate ventilation when this occurs. The

odours are momentary and will quickly dissipate in a well-ventilated area.

•Fix the Towel Rail onto a firm wall and making sure it is level.

•The Towel Rail must be a minimum distance of 15cm from any

combustible material.

EHC-NERIS_ENG-Rev.0-23-09-2021

5/19

•Allow for a minimum distance of 1m from the front of the unit to any

obstacles that could hinder its operation.

•Keep a minimum distance of 15 cm between the appliance and the side

walls and any other obstacles (walls, for example) that may affect its

function.

•WARNING: When this appliance is installed in a bathroom, it must be

installed within Zone 2 in accordance with BS7671. Requirements for

Electrical Installations, Section 701. The installation of this appliance

within Zones 0 or 1 of a bathroom is totally prohibited. Figure 2 bellow is

only for information purposes, we suggest you contact a professional

electrician for installation of your heater.

Zone 1: Appliances supplied to Safety Extra Low Voltage (SELV).

Zone 2: Electrical Appliances Class II – IP X24

Fig.2

WALL-MOUNTING

The towel radiator is equipped with the following components:

- 4 towel radiator suspension brackets as shown in (Fig 1).

Fig. 1

1. Cut and place the template on the wall at a minimum recommended

height of 600mm. (This is for ease of controller use) The heater can

be mounted lower if this is your preference however care should be

taken where young children are present.

EHC-NERIS_ENG-Rev.0-23-09-2021

6/19

2. Mark the position of the 4 holes on the wall.

3. Drill 4 holes suitable for 8 mm wall plugs.

4. Screw the larger diameter brackets onto the wall (∅26) as shown in Fig

2. Fix using the screws, washers and plugs provided as shown in Fig. 2.

Fig. 2

5. Screw the smaller diameter brackets (∅19) onto the heater with the 4 x

M4 screws and 4 x M4 washers as shown in Fig 3.

Fig. 3

6. Insert the brackets (∅19) fixed to the heater into the brackets (∅26)

fixed to the wall and secure using the fixing screws as shown in Fig 4 & 5.

EHC-NERIS_ENG-Rev.0-23-09-2021

7/19

Fig. 4 Fig. 5

EHC-NERIS_ENG-Rev.0-23-09-2021

8/19

ELECTRIC SUPPLY CONNECTION

This appliance is equipped with a supply cable H05V2V2-F 2x1.0mm² that

should be connected to a fused spur in accordance with BS7671.

Requirements for Electrical Installations, Section 701.

It is recommended that the cable ends are crimped before connecting the

heater to the spur. This is to prevent any lose strands of flex being present

within the connection.

This appliance does not require earthing connection as it is double insulated.

Contact a fully qualified electrician for assistance.

TECHNICAL CHARACTERISTICS

Type

NERIS 500

NERIS 750

Rated Voltage

230 V~

Rated

Frequency

50 Hz 50 Hz

Rated Power

Input

500 W 750 W

Electrical

Protection

Class

II II

IP Protection

Deg.

IP24 IP24

Dimensions

(LxHxD) (mm)

505x780x100 505x1140x100

Weight (kg)

3,8

5,1

HOW TO PLACE TOWELS

Hang the towels on the heater horizontally across the rail from back to front.

It is recommended to use the upper horizontal tube of each tube set.

Do Not Cover completely as this will cause the rail to overheat!

EHC-NERIS_ENG-Rev.0-23-09-2021

9/19

PROGRAMMABLE DIGITAL THERMOSTAT

Introduction

There are 7 operational modes: Comfort, Night, Frost, Pilot Wire, Program,

2hr Boost, Stand-by.

"Comfort" mode: The thermostat keeps the room temperature at the value

set by the user.

"Night" mode: The electronic control keeps the room temperature to a level

below the configured “Comfort” value.

"Frost ' mode: The electronic control keeps the room temperature above 7°C.

"Pilot Wire"mode: The operations of device are controlled through the signal

received from the "Pilot Wire" system.

"2hr Boost" mode: The electronic control powers the heating element for a

period of 2 hours independently of the configured temperature. At the end of

the 2-hour time period, the device returns to previous operational mode. For

safety reasons, during the 2-hour time period the room temperature is

automatically controlled in order not to exceed 32°C.

"" mode: The electronic control operates according to a daily/weekly

program. The program is user defined.

"Stand-by": The electric resistance is not powered, and all lights are turned

off, however the device is still operative.

Further features:

•Large display showing the configured temperature, time, program and current

operational mode.

•The user according to their needs can configure the daily/weekly program.

•The “Open Window Detection” function enables detecting of an open window

by sensing a sudden decrease of the temperature in the room. In such a case,

the device deactivates the heating element for a maximum of 30 minutes or

until an increase of the room temperature reveals that the window has been

closed.

EHC-NERIS_ENG-Rev.0-23-09-2021

10/19

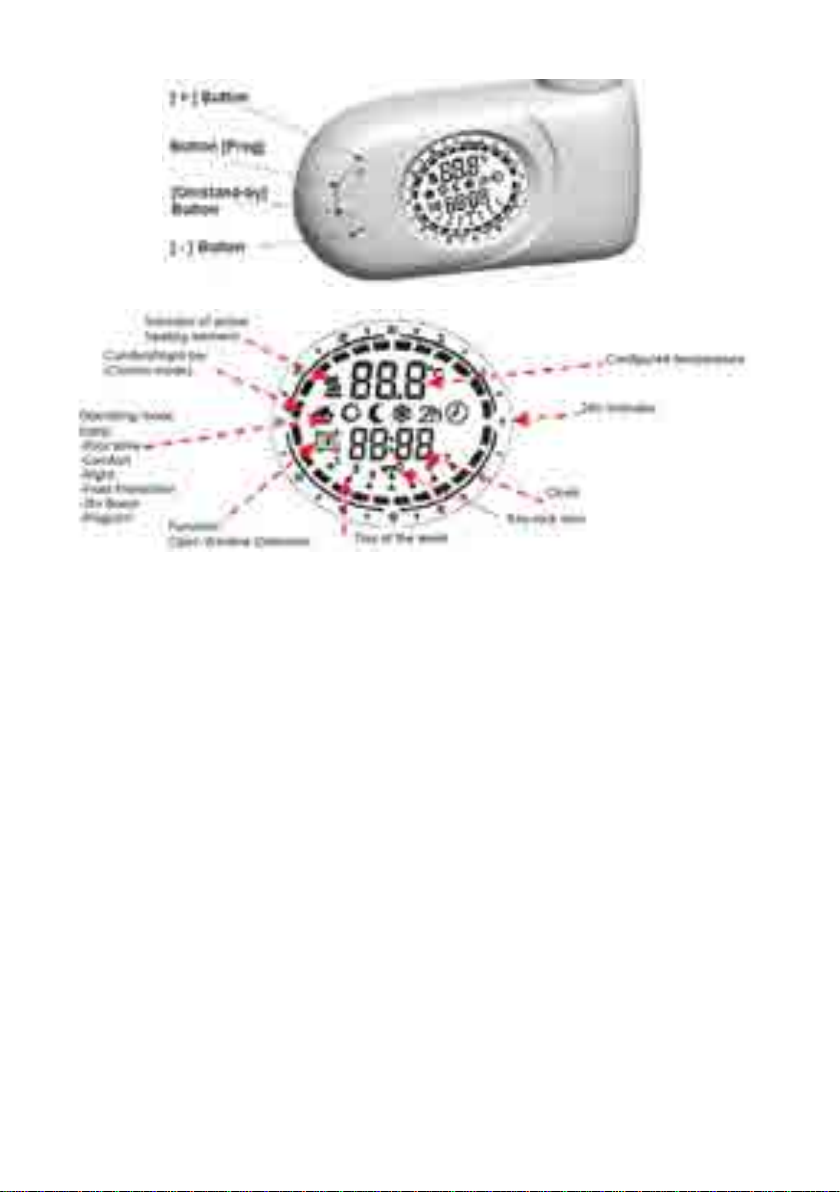

1. POWER ON / STAND-BY

1.POWER ON / STAND-BY

Press the [On/Stand-by] key to turn on the device or to enter the "Stand-by"

mode.

When activated, the bottom part of the display shows the current time, while

the configured operative mode and

the temperature are shown in the upper part. When in "Stand-by" mode

current time, day of the week and the

message: " Stb" are displayed.

NOTE: When the device goes into "Stand-by" mode it beeps twice for 0.5s.

When the device is activated it beeps once for 1s.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere HJM Badezimmerarmatur Handbücher

HJM

HJM NOOR Bedienungsanleitung

Beliebte Badezimmerarmatur Handbücher anderer Marken

DURAVIT

DURAVIT C.1 C15240 0090 Handbuch

Heatstore

Heatstore HSTRL500WTN Bedienungsanleitung

Sunshower

Sunshower PURE SOLO Bedienungsanleitung

Delabie

Delabie Delabie Sporting 714700 Bedienungsanleitung

Kohler

Kohler K-13056 Montageanleitung

ESS

ESS Container TCL-11 Bedienungsanleitung

Mustee

Mustee 22C Bedienungsanleitung

VITRA

VITRA V-Flow Bedienungsanleitung

baliv

baliv DUK-80.30 T Bedienungsanleitung

Malmet

Malmet B105BT Bedienungsanleitung

bathstore

bathstore Transition H1690MM Leitfaden

BELLOSTA

BELLOSTA Edward 0800/M Bedienungsanleitung

baliv

baliv DU-5160 Bedienungsanleitung

Franke

Franke PRTR0006 Bedienungsanleitung

Gessi

Gessi RILIEVO 59011 Bedienungsanleitung

noken

noken VITAE 100188525-N299998810 Bedienungsanleitung

Allen + Roth

Allen + Roth 1142VA-30-201 Bedienungsanleitung

Britex

Britex HBDA Bedienungsanleitung
