CHAPTERS

Dashboard ........................................... 1A

Audio system ....................................... 1B

Locks ......................................................2

Know your vehicle ..................................3

Driving ....................................................4

Fuel .........................................................5

Emergencies ...........................................6

Weekly checks ........................................7

Specications .........................................8

Tow and load ..........................................9

Cleaning ...............................................10

Index

J200 VIVA BOOK.indb 1 1/06/2007 1:14:10 PM

We thank you for choosing Holden and want to assure

you of our continuing interest in your motoring pleasure

and satisfaction and compliment you on your choice.

This handbook applies to all Viva models.

Due to different models and options, you may nd

reference in this handbook to some equipment not

installed in your own vehicle.

Please note that all information, illustrations and

specications in this handbook are based on the latest

production information available at the time of printing.

Holden reserves the right to make changes at any time

without notice and without incurring any obligation.

J200 VIVA BOOK.indb 2 1/06/2007 1:14:10 PM

Chapter 1A – Dashboard

Layout

Gauges

Dimmer and clock

Warning lamps

Wipers and washers

Headlamps

Turn signals and ignition switch

Immobiliser, hazard warning and horn

Heating and air conditioning system

Accessory power outlet and

cigarette lighter

Ashtray and glovebox

Storage compartment and

bonnet release

Chapter 1B – Audio

Audio system

Audio controls

Audio display screen

Security code

Control buttons

Radio operation

How to store the stations

CD player operation

MP3 player operation

Auxiliary mode operation

Steering wheel audio controls

General information

Care of your audio system

Glossary of terms

Chapter 2 – Locks

Keys and keyless entry

Manual operation

Chapter 3 – Know your vehicle

Seat adjustment

Head restraint adjustment

Seatbelts

Airbags

Which type of child restraint

for your child?

Child restraints

Mirrors

Tilt steering and windows

Interior lamps and antenna

Sun visors, vanity mirror

and assist grip

Park brake

Cupholders and storage

Chapter 4 – Driving

Safety

Engine starting

Driving precautions

Manual transmission3

Automatic transmission3

Anti-lock Brake System (ABS)3

Chapter 5 – Fuel

Fuel

Fuel lling

Petrol - emission control

Reducing fuel consumption

CONTENTS

3The asterisk signies equipment options not

in all vehicles; model variants, engine options,

optional equipment and Genuine Holden

Accessories (and Parts).

J200 VIVA BOOK.indb 3 1/06/2007 1:14:11 PM

Chapter 6 – Emergencies

Customer assistance - Australia

Customer assistance - New Zealand

Flat tyre

Towing a disabled vehicle

Engine overheating

Flat battery

Fuse replacement

Bulb replacement

Chapter 7 – Weekly checks

Miscellaneous checks

Check locations

Engine coolant level

Engine oil level

Engine oil consumption

Automatic transmission3 uid level

Brake and clutch uid levels

Power steering and washer uid level

Tyres

Battery

Chapter 8 – Specications

Specications

Identication labels

Chapter 9 – Tow and load

Loading the vehicle

Towing

Chapter 10 – Cleaning

Interior cleaning

Exterior cleaning

Cleaning products

Index

CONTENTS cont.

J200 VIVA BOOK.indb 4 1/06/2007 1:14:11 PM

Dashboard

CHAPTER

Page

Layout..........................................1A-2

Gauges........................................1A-3

Dimmer and clock........................1A-5

Warning lamps.............................1A-6

Wipers and washers....................1A-9

Headlamps ................................ 1A-11

Turn signals and

ignition switch............................1A-12

Immobiliser, hazard

warning and horn.......................1A-13

Heating and air

conditioning system...................1A-14

Accessory power outlet

and cigarette lighter...................1A-18

Ashtray and glovebox................1A-19

Storage compartment

and bonnet release....................1A-20

3The asterisk signies equipment options not

in all vehicles; model variants, engine options,

optional equipment and Genuine Holden

Accessories (and Parts).

J200 VIVA BOOK.indb 1 1/06/2007 1:14:11 PM

Chapter 1A

DASHBOARD

LAYOUT

LAYOUT INDEX Page

Air outlets (side).............................................................................................1A-16

Instrument gauges...........................................................................................1A-3

Air outlets (centre)..........................................................................................1A-16

Hazard warning switch...................................................................................1A-13

Clock................................................................................................................1A-5

Glovebox........................................................................................................1A-19

Audio system ...................................................................................................1B-2

Heater and A/C controls.................................................................................1A-14

Ashtray...........................................................................................................1A-19

Cigarette lighter..............................................................................................1A-18

Steering wheel audio controls........................................................................1B-14

Bonnet release lever......................................................................................1A-20

Storage compartment ....................................................................................1A-20

Wipers and washers lever...............................................................................1A-9

Exterior lamp controls....................................................................................1A-11

1A-2

J06VF0001

1 3 5 3 4 2 1

6 9 1114107 8 12 13 15

J200 VIVA BOOK.indb 2 1/06/2007 1:14:12 PM

1A-3

GAUGES

Chapter 1A

DASHBOARD

Speedometer

The speedometer (5) indicates the vehicle’s speed in kilometres per hour (km/h).

Odometer and tripmeter

A small window under the speedometer is used for the odometer and tripmeter (3).

The odometer records the distance travelled since the vehicle was built, and the

tripmeter records the distance travelled on a particular journey. The tripmeter can

keep a record of two different journeys at the same time. The two trip odometers are

distinguished as TRIP A and TRIP B.

The trip odometer reset button (4) is located at the lower right-hand side of the

speedometer dial.

With the ignition switched on, push the trip odometer reset button (4) to change the

display between the odometer, TRIP A and TRIP B. If the trip odometer reset button is

pressed for more than one second, the tripmeter resets to zero.

J06VF0002

672528

3 14

LAYOUT INDEX Page

High beam lamp indicator................................................................................1A-6

Turn signal indicators.......................................................................................1A-6

Odometer and tripmeter...................................................................................1A-3

Trip odometer reset button...............................................................................1A-3

Speedometer ...................................................................................................1A-3

Temperature gauge..........................................................................................1A-4

Fuel gauge.......................................................................................................1A-4

Tachometer......................................................................................................1A-4

J200 VIVA BOOK.indb 3 1/06/2007 1:14:13 PM

Chapter 1A

DASHBOARD

1A-4 GAUGES cont.

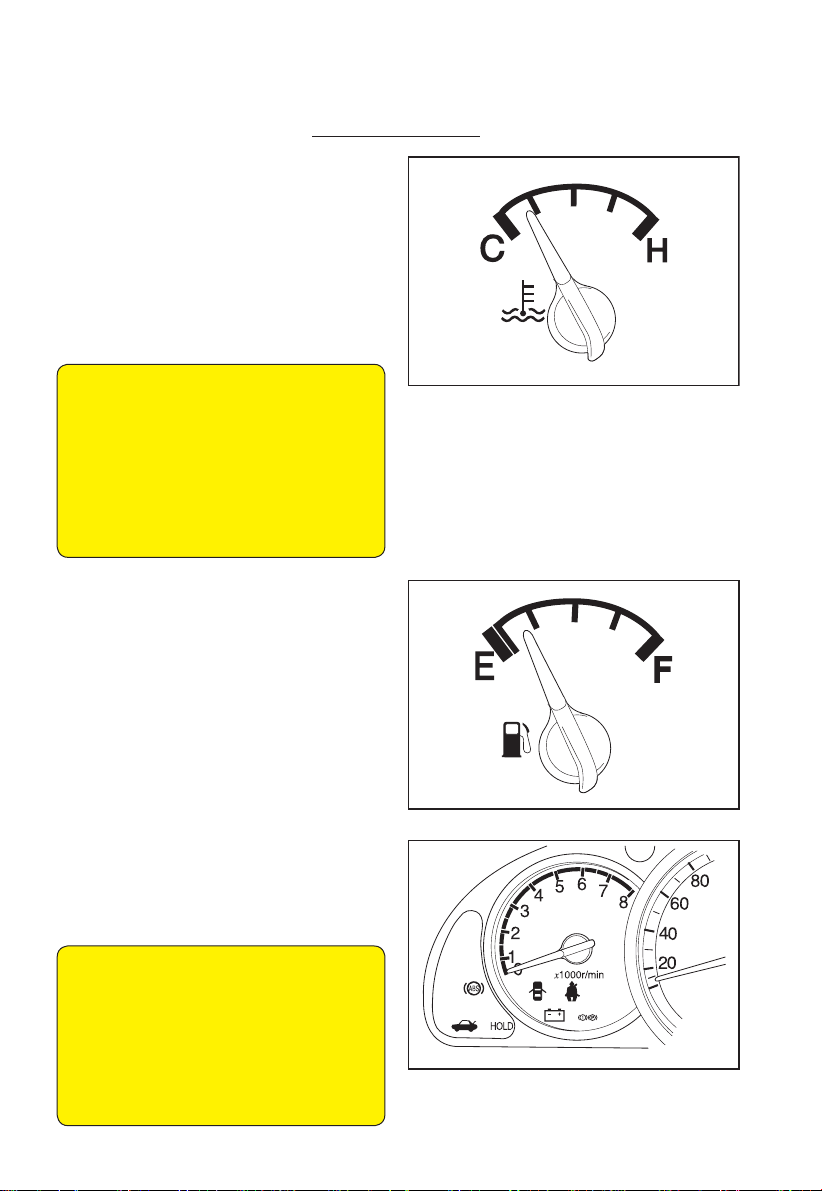

Temperature gauge

The temperature gauge (6) indicates the

temperature of the engine coolant when

the ignition switch is turned to the ON

position.

Stop-start driving in heavy trafc, driving at

high speed in warm weather, hill climbing

or towing may cause the temperature to

increase. This is normal, and is no cause

for concern.

WARNING

Do not continue driving with the

temperature gauge pointer in

the red area, the engine is too

hot. Continued operation of an

overheated engine would result in

severe vehicle damage. Refer to

Engine overheating in chapter 6, for

overheating instructions.

Fuel gauge

The fuel gauge (7) indicates the level of

fuel within the fuel tank when the ignition

switch is turned to the ON position. F

represents full and E represents empty.

The needle in the fuel gauge falls to

E when the ignition switch is turned to

the OFF position. The fuel tank content

displays when the ignition switch is turned

to ON.

Refer to Fuel lling in chapter 5, for

refuelling instructions.

Tachometer

The tachometer (8) indicates the engine

speed in revolutions per minute (rpm).

The red zone of the tachometer indicates

critical engine speed.

WARNING

• Never operate the vehicle with

the tachometer needle in the

red zone.

•Continued operation with the

tachometer needle in the red

zone would lead to serious

engine damage.

J06VF0028

J06VF0027

J06VF0194

J200 VIVA BOOK.indb 4 1/06/2007 1:14:14 PM

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere HOLDEN Automobil Handbücher

HOLDEN

HOLDEN EQ Equinox 2020 Bedienungsanleitung

HOLDEN

HOLDEN JH CRUZE Series ll Benutzerhandbuch

HOLDEN

HOLDEN VY II SEDAN 2003 Series Benutzerhandbuch

HOLDEN

HOLDEN VZ SEDAN 2004 Benutzerhandbuch

HOLDEN

HOLDEN MY18 ZB Commodore Installations- und Betriebshandbuch

HOLDEN

HOLDEN VZ MONARO CV8 2004 Benutzerhandbuch

HOLDEN

HOLDEN Equinox LS Bedienungsanleitung

HOLDEN

HOLDEN ZB Commodore 2018 Bedienungsanleitung

HOLDEN

HOLDEN RG Trailblazer 2019 Bedienungsanleitung

HOLDEN

HOLDEN Malibu EM 2015 Benutzerhandbuch

HOLDEN

HOLDEN WN MY17 Installations- und Betriebshandbuch

HOLDEN

HOLDEN WN Series Benutzerhandbuch

HOLDEN

HOLDEN CG Captiva 2017 Bedienungsanleitung

HOLDEN

HOLDEN Barina SRi 2001 Betriebsanleitung

HOLDEN

HOLDEN EP EPICA 2008 Benutzerhandbuch

HOLDEN

HOLDEN EP EPICA 2010 Benutzerhandbuch

HOLDEN

HOLDEN CG CAPTIVA 5 Benutzerhandbuch

HOLDEN

HOLDEN CG Captiva 2007 Benutzerhandbuch

HOLDEN

HOLDEN VE Sedan 2010 Benutzerhandbuch

HOLDEN

HOLDEN JH CRUZE Benutzerhandbuch

HOLDEN

HOLDEN MY17 BK Astra Bedienungsanleitung

HOLDEN

HOLDEN VE Ute 2010 Benutzerhandbuch

HOLDEN

HOLDEN MP Spark 2020 Bedienungsanleitung

HOLDEN

HOLDEN MY18 TJ Trax Bedienungsanleitung

Beliebte Automobil Handbücher anderer Marken

Toyota

Toyota 2000 Tundra Bedienungsanleitung

CITROËN

CITROËN DS4 DSign Bedienungsanleitung

Lexus

Lexus 2015 CT 200h Bedienungsanleitung

Cadillac

Cadillac CTS 2008 Bedienungsanleitung

Mercedes-Benz

Mercedes-Benz M-class ML 55 AMG Bedienungsanleitung

Porsche

Porsche Boxster S Bedienungsanleitung

GMC

GMC 2010 Savana 1500 Cargo Bedienungsanleitung

KIAM

KIAM SPORTAGE 2014 Stücklistenhandbuch

GMC

GMC 2013 Terrain Montageanleitung

GMC

GMC T-Series 1999 Bedienungsanleitung

Mercury

Mercury 1998 Mystique Bedienungsanleitung

Mercury

Mercury 2007 Mariner Bedienungsanleitung

Mazda

Mazda 2007 Mazdaspeed 3 Leitfaden

Mazda

Mazda 2014 CX-5 Bedienungsanleitung

GMC

GMC Chevrolet Express 2022 Bedienungsanleitung

GMC

GMC 1997 Jimmy Bedienungsanleitung

Chevrolet

Chevrolet 2012 Malibu Bedienungsanleitung

Cadillac

Cadillac 2010 Escalade Bedienungsanleitung
