Home Decorators Collection 22837 Bedienungsanleitung

THANK YOU

We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this lighting fixture. We strive to

continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home

improvement needs. Thank you for choosing Home Decorators Collection!

Item #1001-844-665

#1001-844-657

Model #22837

#22838

USE AND CARE GUIDE

LED BATH VANITY

ROLANDE

Questions, problems, missing parts? Before returning to the store,

call Home Decorators Collection Customer Service

8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday

1-800-986-3460

HOMEDEPOT.COM/HOMEDECORATORS

2 HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

Table of Contents

Table of Contents..........................................................2

Safety Information.........................................................2

Limited Warranty...........................................................3

Pre-installation ..............................................................4

Tools required for assembly & installation (not included)....... 4

Hardware Included.................................................................. 5

Package Contents ................................................................... 6

Installation ..................................................................... 7

Maintenance.................................................................. 9

Care and Cleaning ........................................................ 9

Troubleshooting............................................................ 9

Service Parts ............................................................... 10

Safety Information

□ Before you begin, make sure you carefully read and understand the instructions in this manual. Please follow the instructions in the

order presented in this manual and observe all warnings and cautions.

WARNING: Consult a qualified electrician if you have any

electrical questions.

WARNING: Before beginning installation, turn off electricity at

the circuit breaker box or the main fuse box.

CAUTION: Keep your receipt and these instructions for

proof of purchase.

WARNING: Changes or modifications to this unit not

expressly approved by the party responsible for

compliance could void the user’s authority to operate the

equipment.



NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into

an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician

for help.

3 HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

Limited Warranty

WHAT IS COVERED

The manufacturer warrants this lighting fixture to be free from defects in materials and workmanship for a period of five (5) years from date

of purchase. This warranty applies only to the original consumer purchaser and only to products used in normal use and service. If this

product is found to be defective, the manufacturer’s only obligation, and your exclusive remedy, is the repair or replacement of the product

at the manufacturer’s discretion, provided that the product has not been damaged through misuse, abuse, accident, modifications,

alterations, neglect or mishandling. This warranty shall not apply to any product that is found to have been improperly installed, set-up, or

used in any way not in accordance with the instructions supplied with the product. This warranty shall not apply to a failure of the product

as a result of an accident, misuse, abuse, negligence, alteration, or faulty installation, or any other failure not relating to faulty material or

workmanship. This warranty shall not apply to the finish on any portion of the product, such as surface and/or weathering, as this is

considered normal wear and tear.

WHAT IS NOT COVERED

The manufacturer does not warrant and specially disclaims any warranty, whether express or implied, of fitness for a particular purpose,

other than the warranty contained herein. The manufacturer specifically disclaims any liability and shall not be liable for any consequential

or incidental loss or damage, including but not limited to any labor / expense costs involved in the replacement or repair of said product.

Contact the Customer Service Team at 1-800-986-3460 or visit www. HOMEDEPOT.COM/HOMEDECORATORS.

4 HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

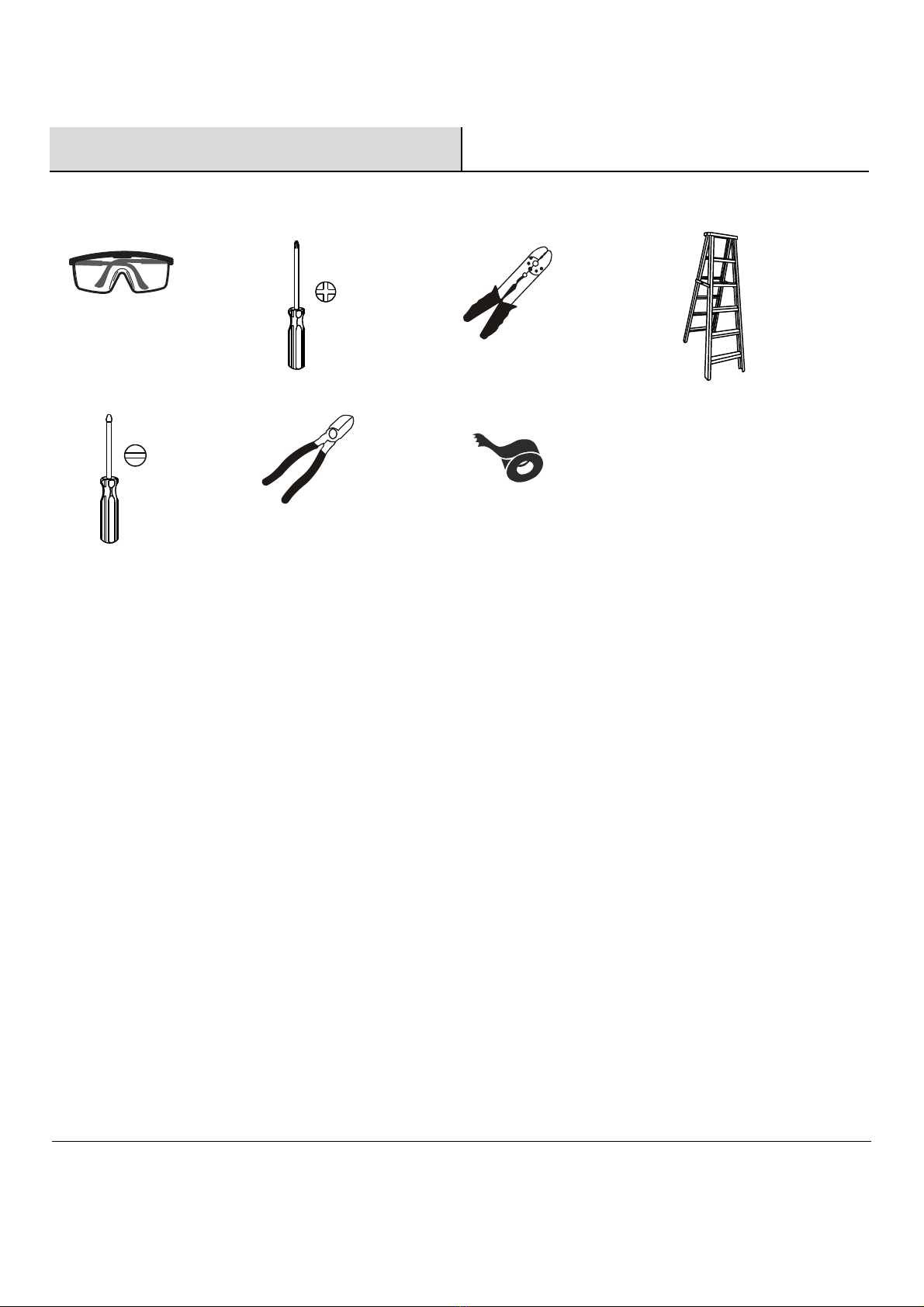

Pre-installation

TOOLS REQUIRED FOR ASSEMBLY & INSTALLATION (NOT INCLUDED)

Safety

goggles

Phillips

screwdriver

Flathead

screwdriver

Wire

stri

ers

Step

ladder

Wire

cutters

Electrical

5 HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

Pre-installation (continued)

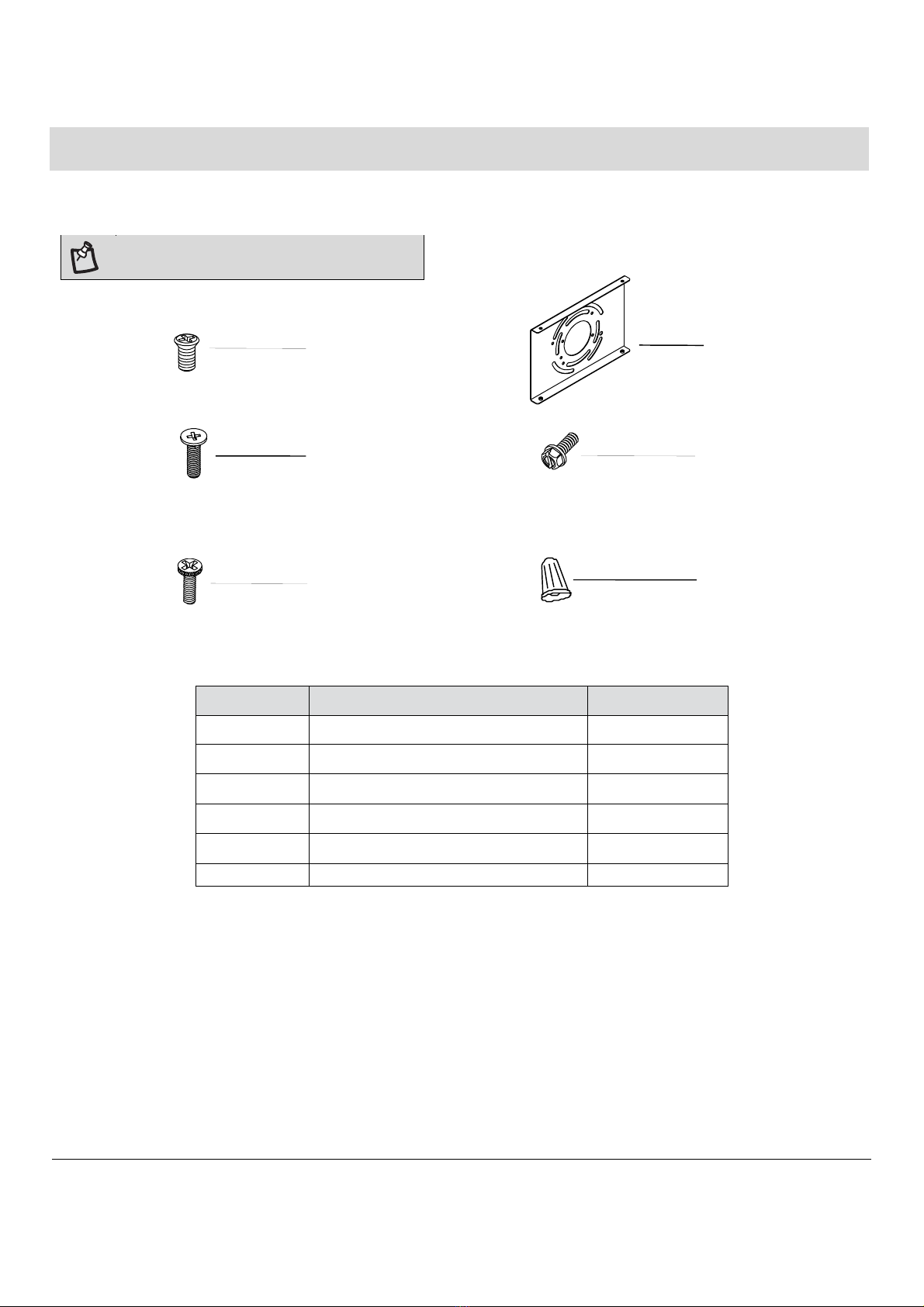

HARDWARE INCLUDED

NOTE: Hardware not shown to actual size.

Part Description Quantity

AA Screws 2

BB Screws 4

CC Outlet box screws 2

DD Mounting plate 1

EE Ground screw 1

FF Wire connectors 3

A DD

6 HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

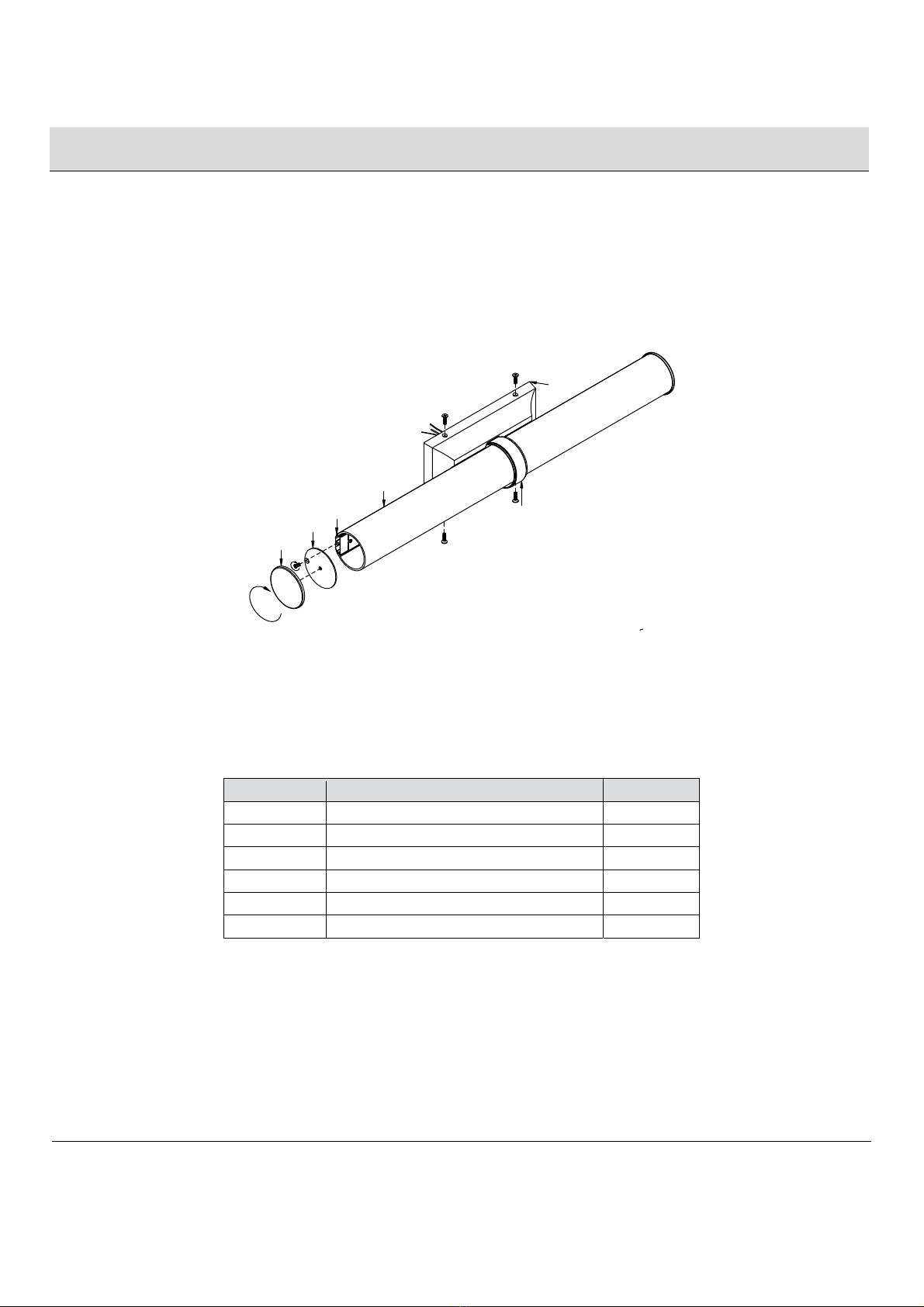

Pre-installation (continued)

PACKAGE CONTENTS

Part Description Quantity

Caps 2

BSidecovers 2

C LED heat-sink groove 1

D Glass shade 1

E Glass holder 1

F Fixture 1

B C

7 HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

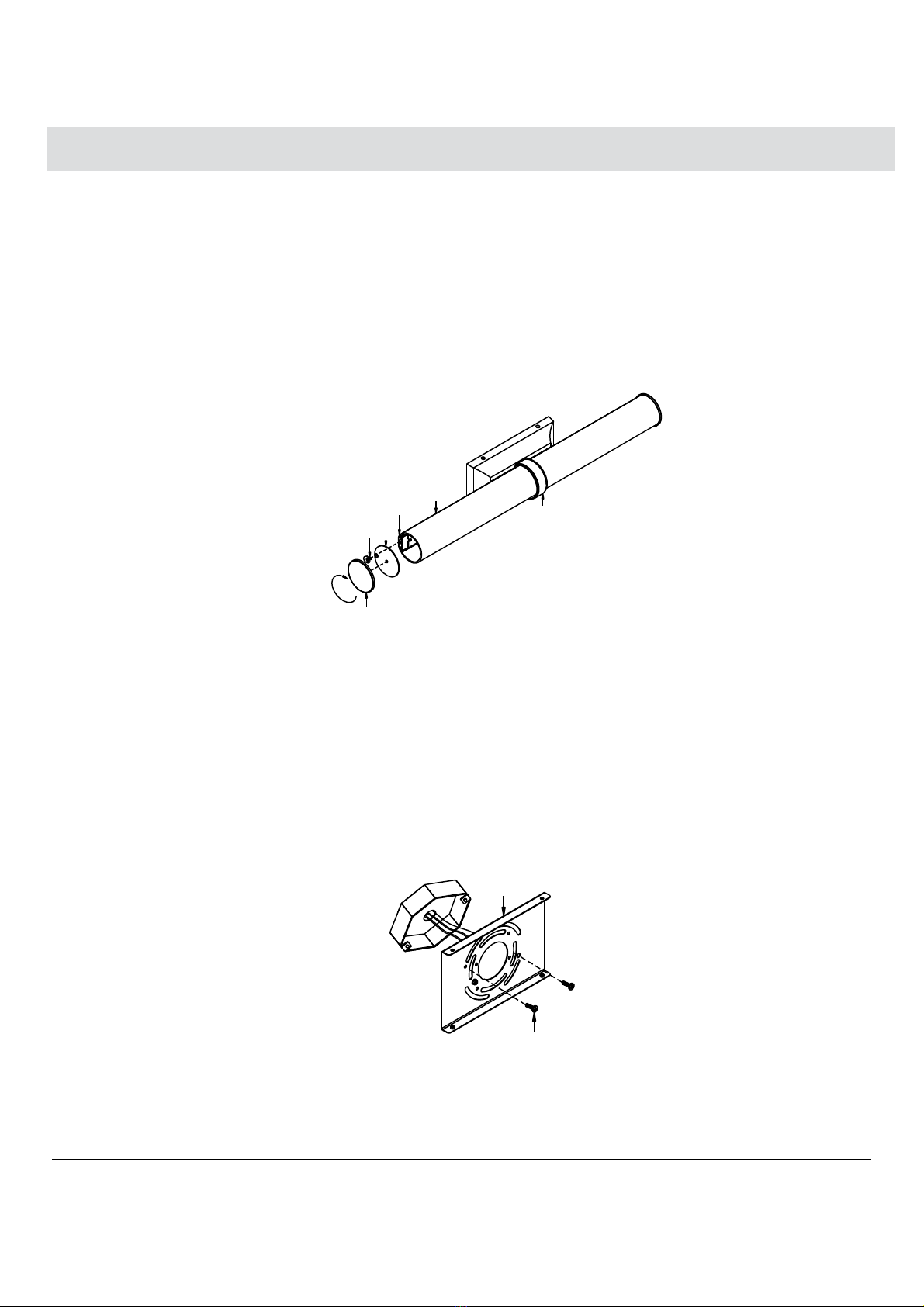

Installation

1 Installing the glass shade

□ Loosen the pre-assembled screws (AA). Secure one side cover (B) with the LED heat-sink groove (C) by screwing one screw

(AA) in the pre-drilled edge hole of the side cover (B) and back to the pre-drilled hole of the LED heat-sink groove (C). Then

screw the cap (A) in the pre-drilled center hole of the side cover (B).

□ Insert the glass shade (D) into the glass holder (E) via the heat-sink groove (C). Then secure the other side cover (B) with the

LED heat-sink groove (C) by screwing one another screw (AA) in the pre-drilled edge of the side cover (B), and then back to the

pre-drilled hole of the LED heat-sink groove (C). Finally screw the other cap (A) in the pre-drilled center hole of the side cover

(B).

2 Installing the mounting plate to the outlet box

□ Mount the mounting plate (DD) to the outlet box using the two provided outlet box screws (CC). The side of the mounting plate

(DD) marked “GND” must be faced out.

BCD

8 HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

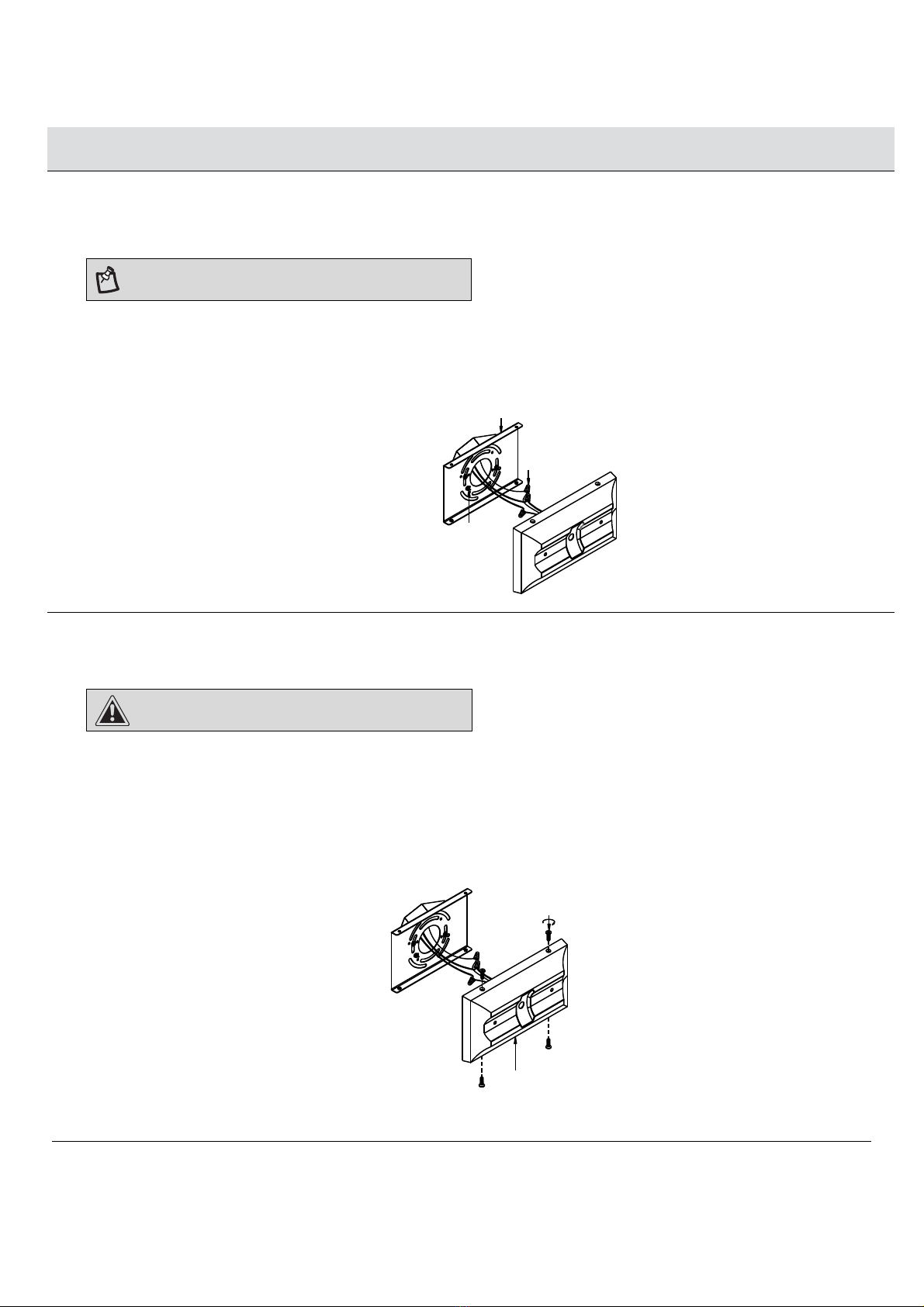

Installation(continued)

3 Connecting the wires

NOTE: If you have electrical questions, consult your local

electrical code for approved grounding method.

□ Connect the white wire from the fixture to the white wire from the outlet box, and the black wire from the fixture to the black

wire from the outlet box. Cover the two wire connections using the two provided wire connectors (FF). Wrap the two wire

connections with electrical tape for a more secure connection. If your outlet box has a ground wire (green or bare copper),

connect fixture’s ground wire to it using the wire connectors (FF). Otherwise connect the copper ground from the fixture to

ground screw (EE) on the mounting plate (DD).

4 Mounting the fixture body on the wall

CAUTION: Be careful not to pinch any of the wires between

the fixture and outlet box.

□ Mount the fixture (F) on the wall by aligning the mounting plate wing holes to side holes of the fixture body (F). Be careful not to

pinch any of the wires between the fixture and the outlet box. Tighten the fixture to the wall by screwing the screws (BB) into

the side holes of the fixture (F).

9 HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

Maintenance

□ Shut off the main power supply before performing any maintenance on the light.

□ Wipe with damp cloth or use window cleaner. Do not use abrasives.

Care and Cleaning

□ To clean the outside of the fixture, use a dry or slightly dampened clean cloth (use clean water, never a solvent) to wipe the glass

and surface of the fixture.

□ To clean the inside of the fixture, first disconnect power to the fixture by turning off the circuit breaker or by removing the fuse at

the fuse box. Next, use a dry or slightly dampened clean cloth (use clean water, never a solvent) to wipe the inside glass and

interior surface of the fixture.

□ Do not use any cleaners with chemicals, solvents or harsh abrasives. Use only a dry soft cloth to dust or wipe carefully

Troubleshooting

Problem Possible Cause Corrective Action

The bulb will not light.

The LED is burned out. Replace the fixture.

The power is off. Make sure power supply is on.

There is a faulty wire connection. Check the wiring.

There is a faulty switch. Test or replace the switch.

The fuse blows or circuit breaker

trips when the light is turned on.

There are crossed wires or the power

wire is grounding out. Check the wire connections.

10 HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

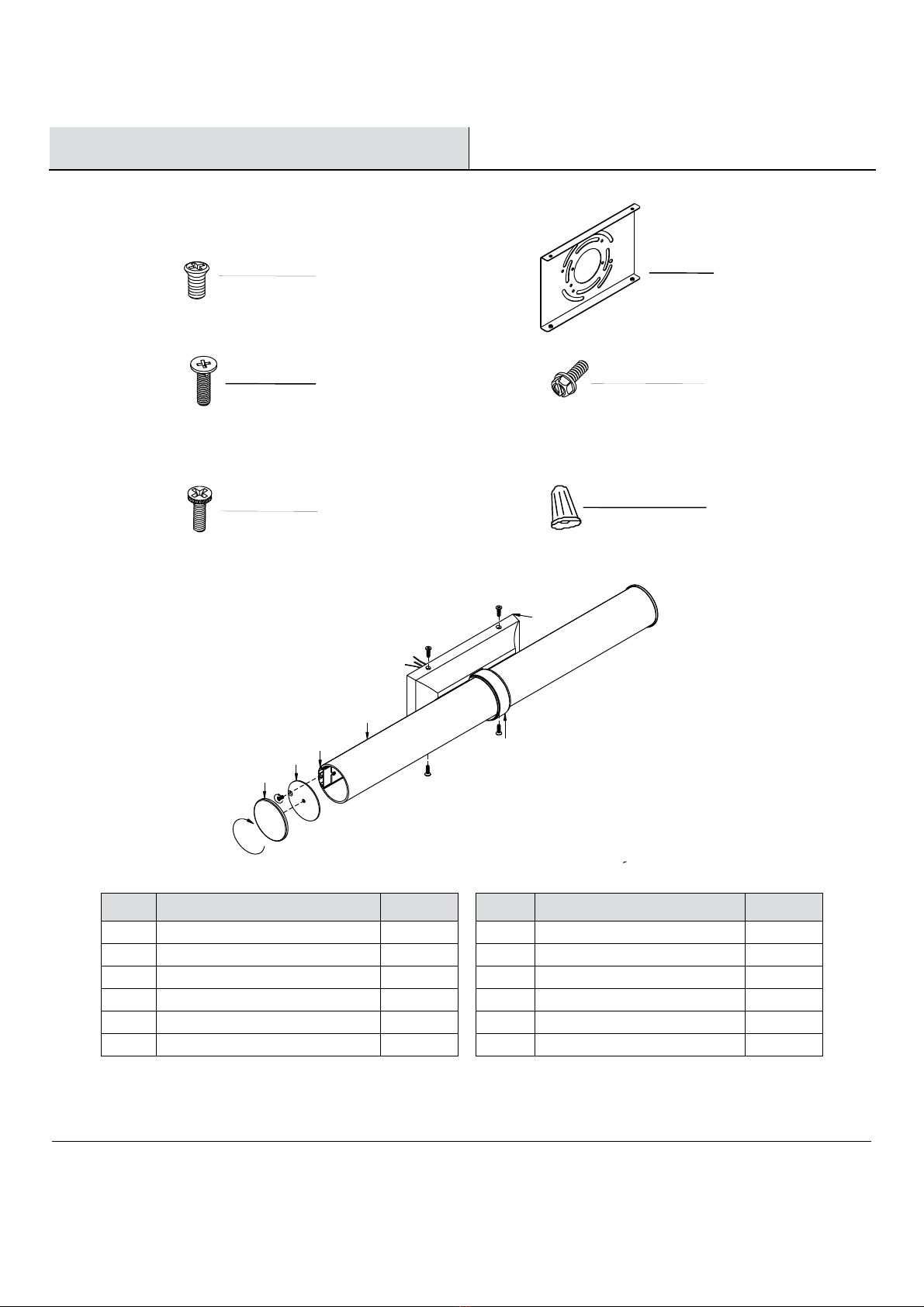

Service Parts

MODEL TYPE

Part Description Quantity Part Description Quantity

AA Screws 2 A Caps 2

BB Screws 4 B Side covers 2

CC Outlet box screws 2 C LED heat-sink groove 1

DD Mounting plate 1 D Glass shade 1

EE Ground screw 1 E Glass holder 1

FF Wire connectors 3 F Fixture 1

A DD

B C
