Home Decorators Charles Mill Bedienungsanleitung
We appreciate the trust and condence you have placed in Home Decorators through the purchase of this electric replace. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Home Decorators Collection!
USE AND CARE GUIDE
CHARLES MILL ELECTRIC FIREPLACE
XXX XXX/85798/23DE9448-NB04
XXX XXX/85521/23DE9448-NC01
XXX XXX/85804/23DE9448-NE01
XXX XXX/85811/23DE9448-PT85
THANK YOU
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 6 p.m., EST, Monday - Friday
1-800-986-3640
HOMEDEPOT.COM/HOMEDECORATORS
2
Maximum Load Warning
MAXIMUM LOAD 65 lb. (29.48 kg)
MAXIMUM LOAD 15 lb. (6.80 kg)
MAXIMUM LOAD 40 lb. (18.14 kg)
MAXIMUM LOAD 10 lb. (4.54 kg)
Table of Contents
CAUTION: This unit is intended for use only with the products and maximum weights indicated. Use with other products or products heavier
than the maximum weights indicated may result in instability causing possible injury.
NOTE: Flat Panel TVs with base support should be placed squarely in the center of the stand with no overhang on any side.
Maximum Load Warning ................................................................ 2
Safety Information ............................................................................ 3
Warranty ............................................................................................... 4
Pre-Assembly ...................................................................................... 5
Hardware Included ................................................... 5
Product Specications............................................................. 5
Tools Required............................................................................ 5
Package Contents ..................................................................... 6
Assembly .............................................................................................. 7
Operation ...........................................................................................15
FCC/IC Information .........................................................................17
Care & Cleaning................................................................................17
Troubleshooting ..............................................................................18
Replacement Parts..........................................................................19
3HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Pleasereadandunderstandthisentiremanualbeforeattemptingto
assemble, operate or install the product. If you have any questions
regarding the product, please call customer service at
1-800-986-3460, 8 a.m.-6 p.m., EST, Monday-Friday.
Whenusingelectricalappliances,alwaysfollowbasicprecautionsto
reducetheriskofre,electricalshock,andinjurytopersons,including
the following:
1. Read all instructions before using this appliance.
2. If possible, always unplug this appliance when not in use.
3. Only a qualied service person should repair this product.
4. Do not use outdoors.
5. Do not cover the cord under carpeting. Do not cover with
throw rugs, runners or the like. Arrange the cord away from
trac areas and where it will not be tripped over.
6. To disconnect this appliance, turn the controls to the“o”
position, and then remove the plug from the outlet.
7. This heater is for use on 120 volts.This product is equipped with
a polarized plug (one blade is wider than the other blade). To
reduce the risk of electrical shock, this plug will t into a
polarized outlet only one way. This is a safety feature. If you are
unable to insert the plug into the electrical outlet, try reversing
the plug. If the plug still does not t, contact a qualied
electrician.
8. This appliance, when installed, must be electrically
grounded in accordance with local codes or, in the absence
of local codes, with the current CSA C22.2 Canadian
Electrical Code. For U.S.A. installations, follow local codes
and the National Electrical Code, ANSI/NFPA NO.70.
9. There is a thermostat limiter inside the heater. When inner
temperature overheating or abnormal heating occurs, the
thermostat protective device will cut o the power supply to
avoid damage to the replace or risk of re.
NOTE:
SAVE THESE
INSTRUCTIONS
Safety Information
WARNING:
Use extreme caution when operating heater
near children and the disabled.
DANGER:
In order to avoid overheating, do not cover the
heater.
CAUTION:
Never leave the heater operating unattended.
Extreme caution is necessary if children or invalids are nearby.
WARNING:
This appliance is hot when in use. To avoid
burns, do not touch hot surfaces with bare skin. If provided,
use handles when moving this appliance. Keep combustible
materials, such as furniture, pillows, bedding, papers, clothes
and curtains at least 3 ft. (0.9 m) from the front of this appliance.
WARNING:
Do not insert or allow foreign objects to enter
any ventilation or exhaust opening as this may cause an electric
shock or re, or damage the appliance.
WARNING: To prevent a possible re, do not block air intakes
or exhaust in any manner. Do not use on soft surfaces, like a bed,
where the opening may become blocked.
NOTE:
To avoid injury from unexpected starting or electrical
shock, do not plug the power cord into a source of power during
unpacking and assembly. The cord must remain unplugged
whenever you are adjusting/assembling the replace.
If any part is missing or damaged, do not attempt to use or
plug in the power cord until the missing or damaged part is
correctly replaced. To avoid electric shock, use only identical
replacement parts when servicing double-insulated tools.
WARNING:
Use this appliance only as described in the manual.
Any other use not recommended by the manufacturer may cause
re, electric shock or injury to persons.
WARNING:
Under no circumstances should this fireplace be
modied. Parts that must be removed for servicing must be
replaced prior to operating this replace again.
WARNING: If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
WARNING: This heater is not intended for use in bathrooms,
laundry areas and similar indoor locations. Never locate this
appliance where it may fall into a bathtub or other water container.
WARNING: This appliance is not a toy. Supervise children
playing near it.
WARNING:
Do not use surge protectors or extension cords
with this product.
Important Safety Instructions
4
Warranty
1YearLimitedWarranty:Themanufacturerwarrantsthisproducttobefreefrommanufacturingandmaterialdefectsforaperiodofone
year from date of purchase, subject to the following conditions and limitations:
1. InstallandoperatethisElectricFireplaceinaccordancewiththeinstallationandoperatinginstructionsfurnishedwiththeproduct
at all times. Any unauthorized repair, alteration, willful abuse, accident, or misuse of the product shall nullify this warranty.
2. This warranty is non-transferable and is made to the original owner, provided that the purchase was made through an authorized
supplier of the product.
3. The warranty is limited to the repair or replacement of part(s) found to be defective in material or workmanship, provided that
such part(s) have been subjected to normal conditions of use and service, after said defect is conrmed by the manufacturer’s
inspection.
4. The manufacturer may, at its discretion, fully discharge all obligations with respect to this warranty by refunding the wholesale
price of the defective part(s).
5. Any installation, labor, construction, transportation, or other related costs/expenses arising from defective part(s), repair,
replacement, or otherwise of same, will not be covered by this warranty, nor shall the manufacturer assume responsibility
for same.
6. The owner/user assumes all other risks, if any, including the risk of any direct, indirect or consequential loss or damage arising out
of the use, or inability to use the product, except as provided by law.
7. All other warranties – expressed or implied – with respect to the product, its components and accessories, or any obligations/
liabilities on the part of the manufacturer are hereby expressly excluded.
8. The manufacturer neither assumes, nor authorizes any third party to assume on its behalf, any other liabilities with respect to
the sale of the product.
9. The warranties as outlined within this document do not apply to non accessories used in conjunction with the installation of
this product.
10. This warranty gives you specic legal rights, and you may also have other rights which vary from state to state.
This warranty is void if:
a. The replace is subjected to prolonged periods of dampness or condensation.
b. There has been unauthorized alteration, willful abuse, accident, or misuse of the product.
c. You do not have the original receipt of purchase.
IF WARRANTY SERVICE IS NEEDED
Contact the manufacturer by calling customer service department at 1-800-986-3460,
8 a.m.-6 p.m., EST, Monday-Friday. Make sure you have your warranty, your sales receipt,
location of purchase and the model/serial number of your product.
5HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
A
Plastic
Connector
Block
19PCS
PH-PCBBLK001
Pre-Assembly
HARDWARE INCLUDED
DD
CC EE FF GG HH
II JJ KK LL
L-1 L-2
MM
Part Description Part Number Quantity
AA 2 Hole Plastic Connector Block PH-PCBBLK001 19
BB 3 Hole Plastic Connector Block PH-PCBBLK002 2
CC Short Flathead Screw N/A 24
DD Bolt PH-BLTBLK002 44
EE Floor Glide (Pre-attached) PH-GLDBRW001 5
FF Knob (with Screw) N/A 2
GG Long Flathead Screw N/A 9
HH Metal Plate (Pre-attached) PH-PLBLK001 2
II Small Plastic Connector Block N/A 6
JJ Long Washerhead Screw PH-SCRBLK001 34
KK Shelf Pin PH-SPNPCSPLB2 8
LL Hinge N/A 4
MM Wood Dowel PH-DWLNTL001 18
NN Short Washerhead Screw N/A 16
ZZ Touch-up Pen N/A 1
PRODUCT SPECIFICATIONS
Voltage 120 V, 60 Hz
Amps (with heater) 11.7 Amps
Amps (without heater) < 0.1 Amps
Watts (with heater) 1400 Watts
Watts (without heater) < 10 Watts
NOTE:
Hardware not shown to actual size.
PLANNING ASSEMBLY
Beforebeginningassemblyofproduct,makesureallpartsarepresent.ComparepartswithHardwareIncludedandPackageContentslists.
If any part is missing or damaged, do not attempt to assemble, install or operate the product. Contact customer service for replacement
parts.
Estimated Assembly Time: 60 Minutes
TOOLS REQUIRED
Phillips Screwdriver
AA BB
16PCS
Ø4*12mm
BOLT
ZZNN
6

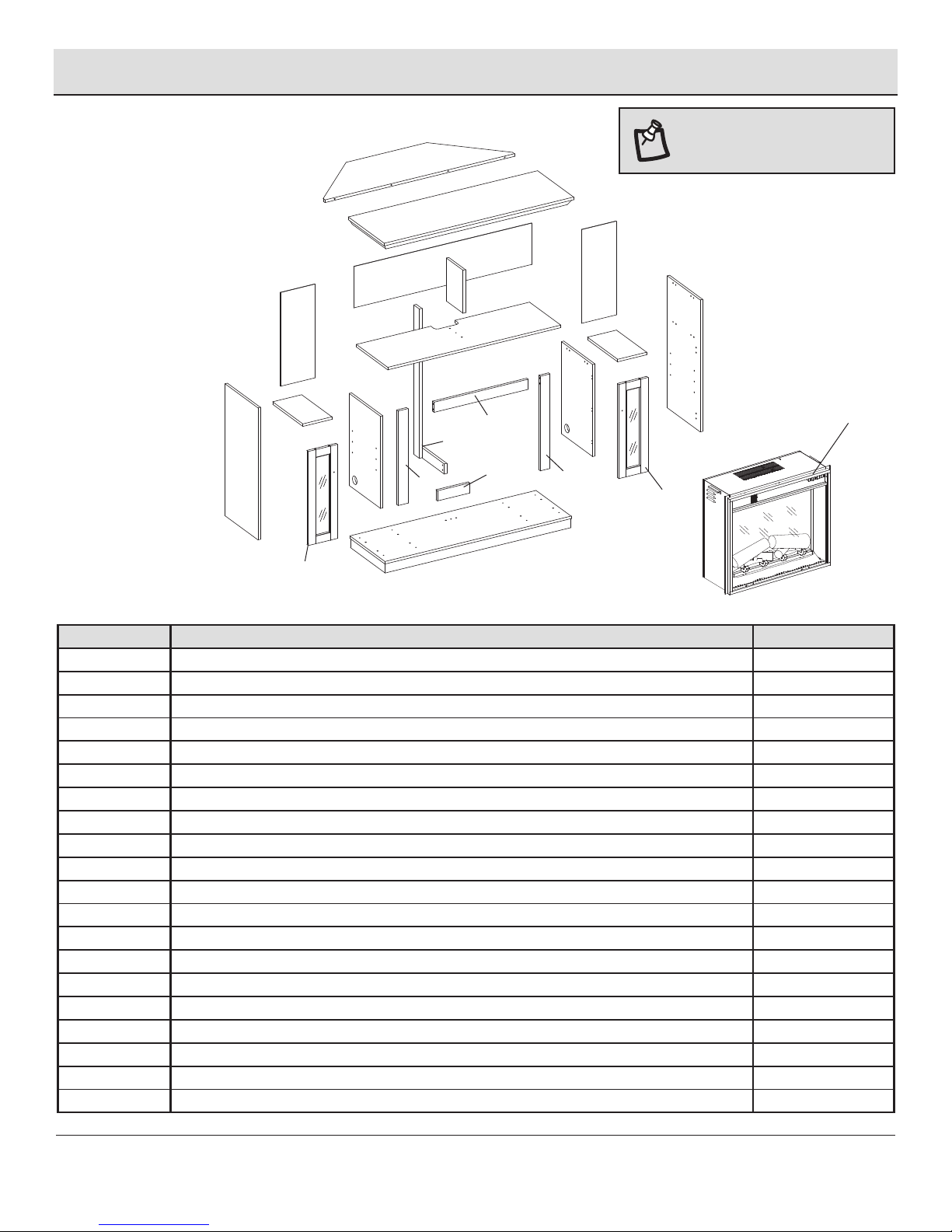

Part Description Quantity
A Base Assembly 1
B Left Front Panel 1
C Left Partition 1
D Right Front Panel 1
E Right Partition 1
F Middle Front Panel 1
G Top Assembly 1
H Left Side Panel 1
I Right Side Panel 1
J Center Shelf 1
K Divider 1
L Upper Back Panel 1
M Side Back Panel 2
N Left Door 1
O Right Door 1
P Adjustable Shelf 2
Q Securing Block 1
R Corner Extension 1
S Corner Brace 1
T Fireplace Insert 1
A
G
H
I
C
E
BD
F
O
Q
N
J
K
LM
M
P
P
R
S
PACKAGECONTENTS
Pre-Assembly (continued)
NOTE: All panels are labeled left
and right as viewed from the front of
unit.
T
7HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

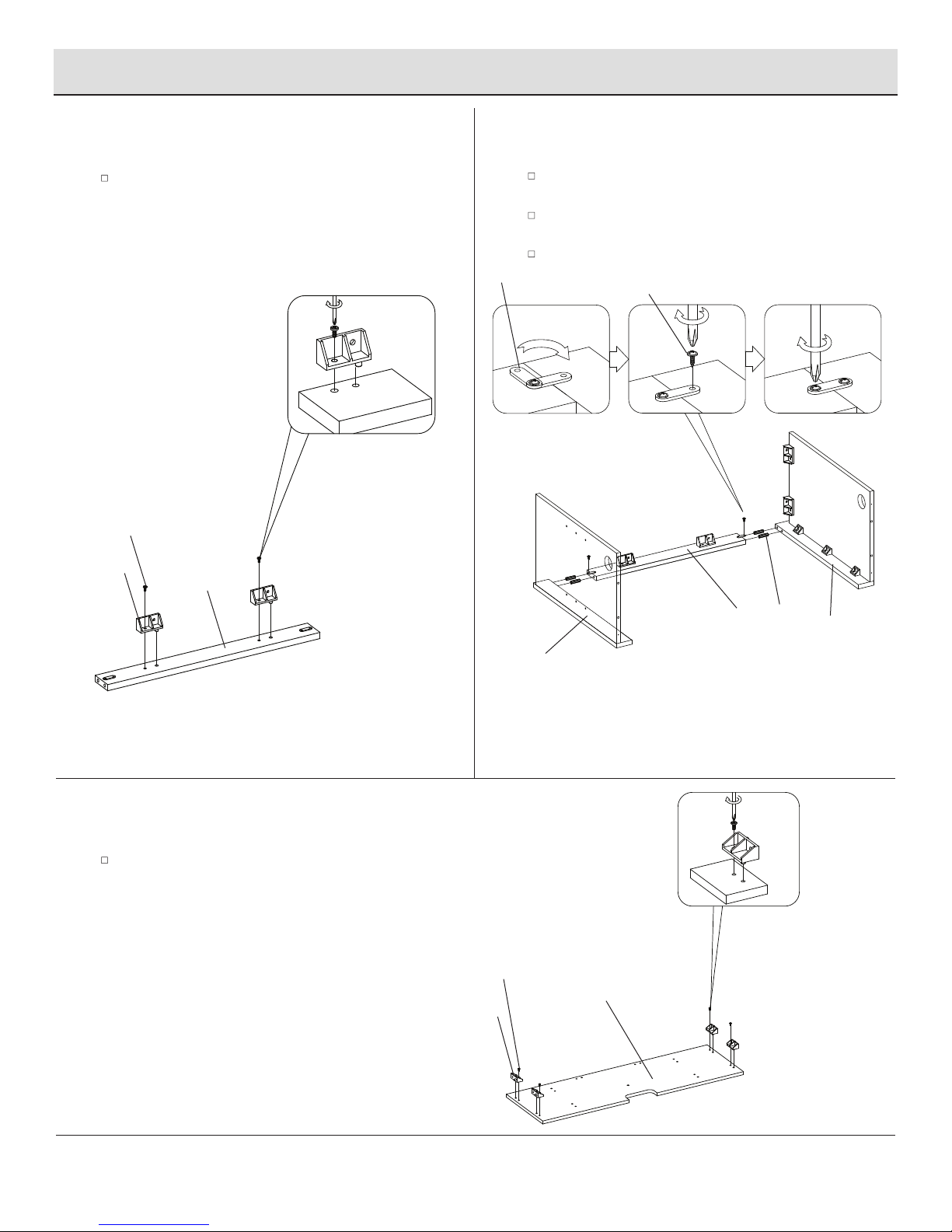

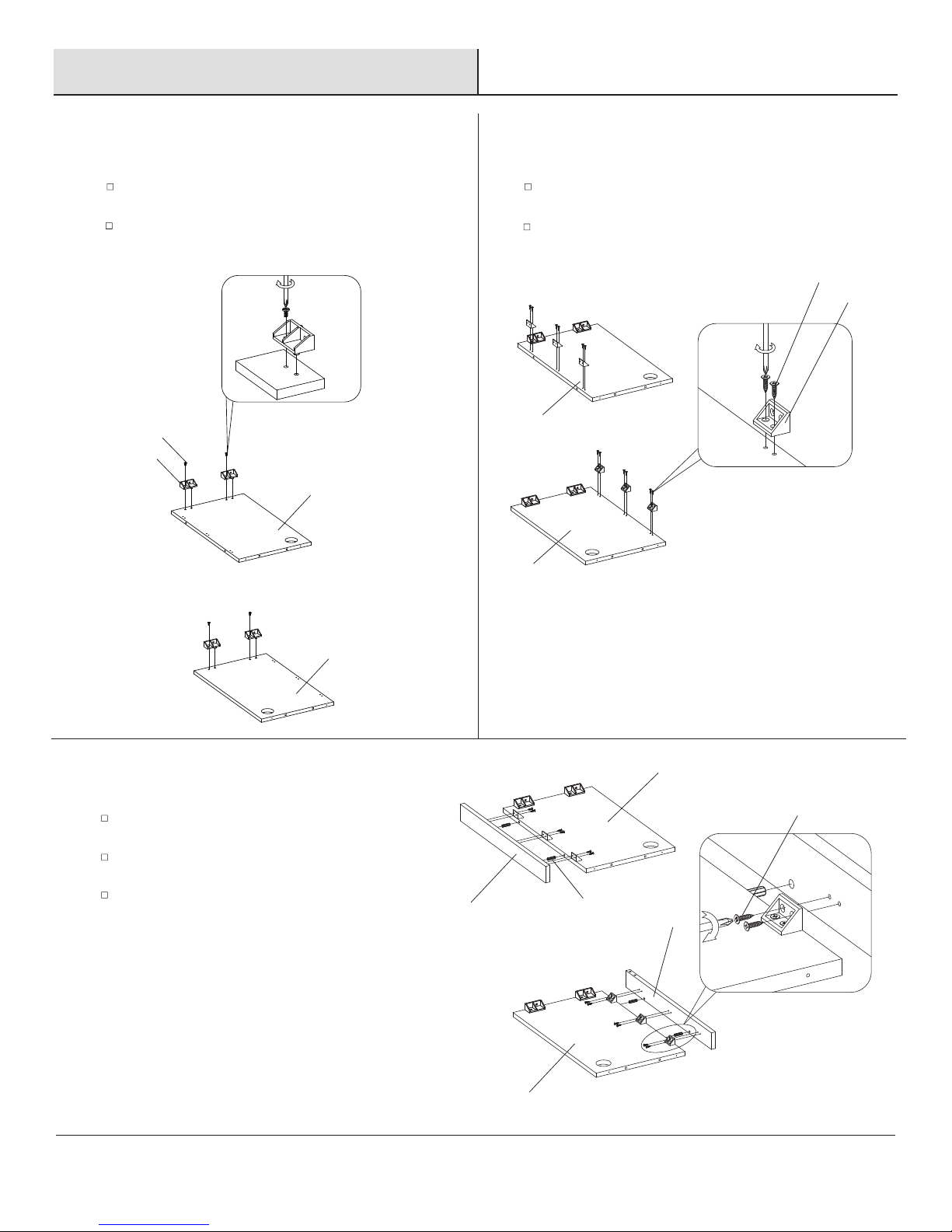

InsertWoodDowels(MM)intopre-drilledholesonthe
Left Partition (C) and the Right Partition (E).
AttachtheLeftFrontPanel(B)totheLeftPartition(C)
using Short Flathead Screws (CC).
Repeat the process for the Right Front Panel (D) and
the Right Partition (E).
3Attaching the Front Panels
Attach 2 Hole Plastic Connector Block (AA) to the Left
Partition (C) using Bolts (DD).
Repeat the process for the Right Partition (E).
AttachtheSmallPlasticConnectorBlock(II)totheRight
Partition (E) using Short Flathead Screws (CC).
Repeat the process for the Left Partition (C).
1Preparing the Partitions 2Preparing the Partitions
E
C
DD
AA
CC
C
E
CC
II
Assembly
E
MM
B
C
D
8

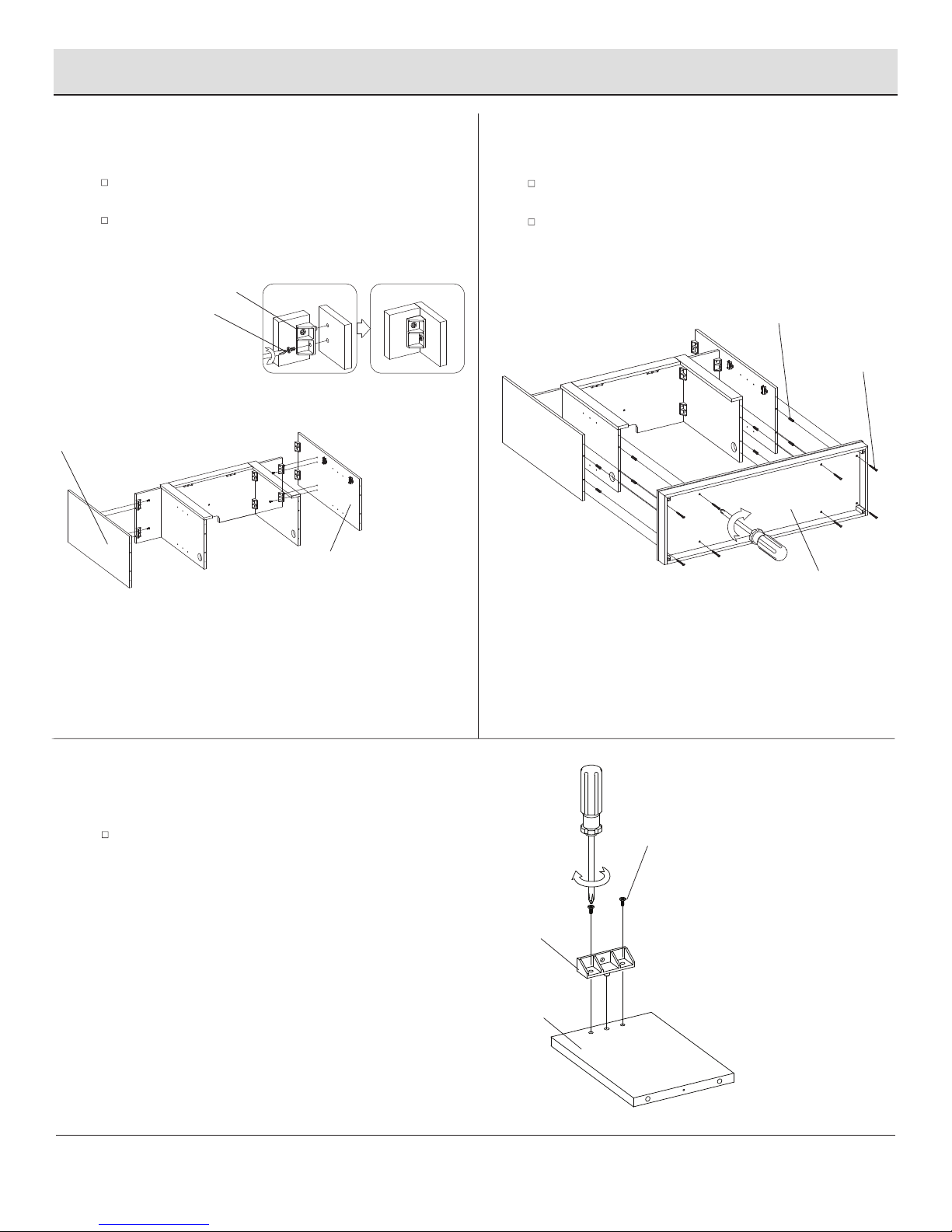

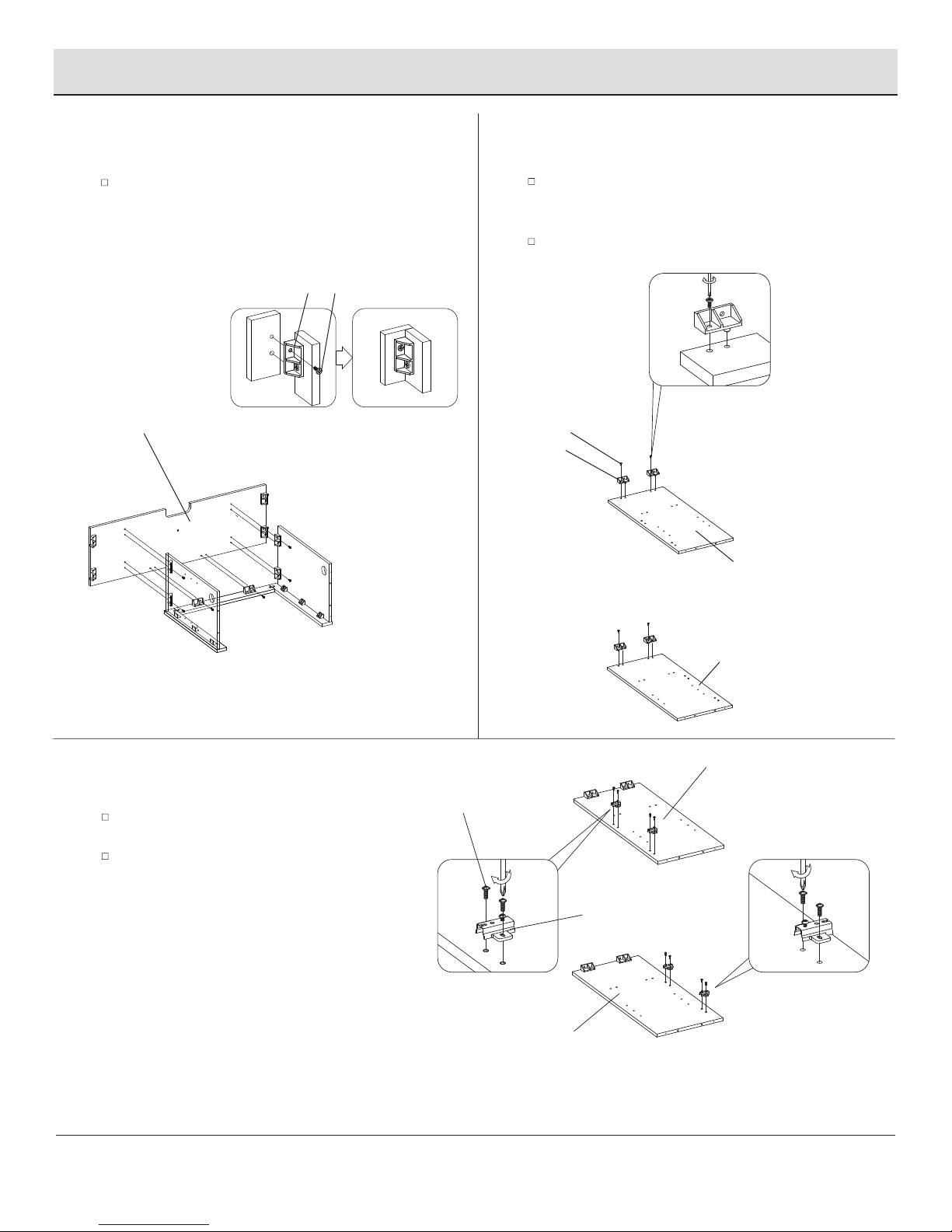

Assembly (continued)
Screw the Bolts (DD) through the 2 Hole Plastic
Connector Blocks (AA) into the Middle Front Panel (F)
and tighten.
Screw Bolts (DD) through the 2 Hole Plastic Connector
Blocks (AA) onto the edges of the Center Shelf (J).
InserttheWoodDowels(MM)intothepre-drilledholes
on the ends of the Middle Front Panel (F).
Connect the Left Front Panel (B) to the Middle Front
Panel (F) with the Long Washerhead Screws (JJ).
Repeat for the Right Front Panel (D).
4
6
5
Preparing the Middle Front Panel
Preparing the Center Shelf
AttachingtheMiddleFrontPanel
F
AA
AA
DD
DD
J
JJ
HH
MM
FB
D
9HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly (continued)
Screw the Bolts (DD) through the 2 Hole Plastic
Connector Blocks (AA) into the Center Shelf (J)
to secure.
Attach the Hinge Mounting Plate (L-1) to the Left Side
Panel (H) using the Short Washerhead Screw (NN).
Repeat for the Right Side Panel (I).
Screw the Bolt (DD) through the 2 Hole Plastic
Connector Block (AA) onto the edge of the Left
Side Panel (H).
Repeat for the Right Side Panel (I).
7
9
8
Attaching the Center Shelf
Attaching the Mounting Plates
Preparing the Side Panels
DD
AA
H
I
DDAA
J
I
NN
L-1
H
10 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Attacha3HolePlasticConnector(BB)totheDivider(K)
using Bolts (DD).
Assembly (continued)
Attach the Left Side Panel (H) and the Right Side Panel
(I) to the assembly from the step 7.
Secure using the Bolts (DD) through the 2 Hole Plastic
Connector Blocks (AA).
InserttheWoodDowels(MM)intothepre-drilledholes
on the completed assembly from Step 10.
Using the Long Flathead Screw (GG) attach the Base
Assembly(A)tothebottomofthecompletedassembly
from Step 10.
10
12
11
Attaching the Side Panels
Preparing the Divider
Attaching the Base Assembly
DD
AA
H
I
A
MM
GG
DD
BB
K
Inhaltsverzeichnis
Andere Home Decorators Kamin im Innenbereich Handbücher
Home Decorators
Home Decorators SF122-26AI Bedienungsanleitung
Home Decorators
Home Decorators 238-15-48MC Bedienungsanleitung
Home Decorators
Home Decorators WSFP46ECHD-5 Bedienungsanleitung
Home Decorators
Home Decorators MATIAS WALL MOUNT Bedienungsanleitung
Home Decorators
Home Decorators GRANVILLE ELECTRIC FIREPLACE Bedienungsanleitung
Home Decorators
Home Decorators WSFP59ECHD-2 Bedienungsanleitung
Home Decorators
Home Decorators CHARLES MILL 659 257 Bedienungsanleitung
Home Decorators
Home Decorators WSFP54HD-31 Bedienungsanleitung
Home Decorators
Home Decorators WSFP46ECHD-8 Bedienungsanleitung
Home Decorators
Home Decorators XXX XXX/XXXXX/25MM9481 Bedienungsanleitung
