Honeywell Home Evohome Bedienungsanleitung

Evohome

Wi-Fi Zone Controller

EN Installation Guide

getconnected.honeywellhome.com

Online Guides

Thanks for choosing evohome

evohome means more comfort, and more control of your heating

system. It’s simple to install and easy to use.

Follow these instructions to set up the evohome system. Devices

that need to be connected to the mains electricity supply should

be installed by a competent person.

Before you start

Make sure you have all the devices you need for your system.

If you used our ‘Design your evohome system’ guide, match

each device to the room or zones in your plan. It’s a good idea

to carry out all the mains electrical and other wiring work first.

In this guide

Step 1: Wire up the heating system 1

Step 2: Set up your evohome Controller 3

Step 3: Power up and bind devices 6

Step 4: System test 13

Configuration and modification 16

Step 1: Wire up the heating system

The evohome Controller communicates with the other wireless devices

in your heating system on a robust 868Mhz signal that is unaffected by

common remote controls or WiFi.

Some of the wireless devices need to be mains powered or connected

to external equipment (such as a boiler) in order to communicate with

the evohome Controller.

It's recommended that these items are installed first to simplify the

binding process later in the setup. The evohome Controller will give on

screen instructions when these devices should be powered up.

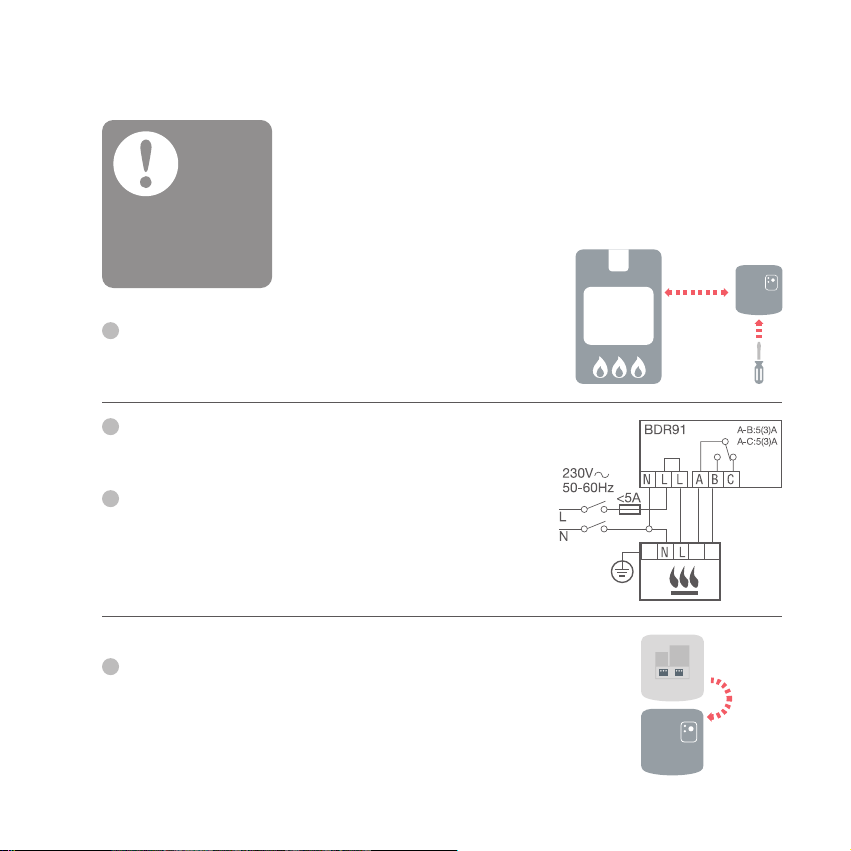

Installing the Wireless Relay Box (BDR91)

Mount the Wireless Relay Box on a nonmetal

surface at least 30cm from your boiler, other

wireless devices or metal objects

Release the clip on the bottom to open the

front cover

Follow the wiring diagram to connect the

Wireless Relay Box to your boiler’s thermostat

terminals, zone valve or sundial valve, and to

the mains electricity supply

Replace the cover

Turn off at mains

and isolate the

supply before

starting. MINIMUM

30CM

BOILER

REPLACE

FRONT

COVER

Refer to boiler instruction to locate

the room thermostat terminals,

determine if the boiler required a

permanent live supply.

Step 2: Set up your evohome Controller

The evohome Controller has a guided configuration process to help

you set up the zones for a single type of system.

If you skipped the "Guided Configuration" option when you first

powered up the evohome Controller you can find if again in the

Installation Menu - press and hold the "Settings" button for 5 seconds.

Powering up your evohome Controller

Remove the cover,

remove the battery

tab and replace

the cover

Place it on the table stand or wall bracket

Once the batteries are fully charged, the evohome

Controller can be easily removed from the table stand

or wall bracket for ease of programming. After 30

minutes the evohome Controller will emit a beep to

indicate that it should be replaced on the stand or

wall bracket

Your evohome

Controller comes

with *rechargeable

batteries which

are pre-charged

allowing you to

set-up the system

while off the table

stand or wall

bracket.

Place the

evohome

Controller on the

table stand or wall

bracket for normal

use.

* Only use the AA

rechargeable

batteries

provided.

PULL TAB

Language selection and WiFi configuration

Select a language for the evohome controller user interface

Follow the on-screen instructions to connect to a WiFi

network. This enables automatic setting of the date and

time for your location, as well as enabling remote

connectivity via an Apple or Android Smartphone.

• To configure WiFi you will need the home WiFi

network password

Instruct the homeowner / user to visit

www.getconnected.honeywellhome.com to create an

account, register the evohome Controller and download

the app

If you don’t

have the WiFi

network details,

or the homeowner

doesn’t require

remote access

you can skip the

WiFi conﬁguration

and proceed with

setting up the

heating system.

WiFi can be

conﬁgured later

in the SETTINGS

> WIFI SETTINGS

menu. To create an account and register the evohome Controller, the

homeowner will need the MAC ID and CRC which can

be found:

On a label behind the front cover of the evohome Controller

On screen during the WiFi set-up

In the SETTINGS > WiFi SETTINGS menu after

set-up has been completed

Select you store

Get the App

Step 3: Power up and bind devices

Using 'Guided Configuration' on the evohome Controller follow the

on screen instructions and use this section to put the devices into

binding mode.

When you bind a device they permanently store the connection

and there should never be a need to rebind them again - even after

a power cut.

If you skipped the initial set-up, you can find 'Guided Configuration'

mode by pressing 'Setting' for 5 seconds.

If you have other devices to bind, you can see the full installation

guide on getconnected.honeywellhome.com - Your evohome

Controller will give you on-screen instructions to bind the other

components -

just follow the bind instruction for each device in this manual.

Make sure the Wireless Relay Box (BDR91)

is wired to the boiler and powered up.

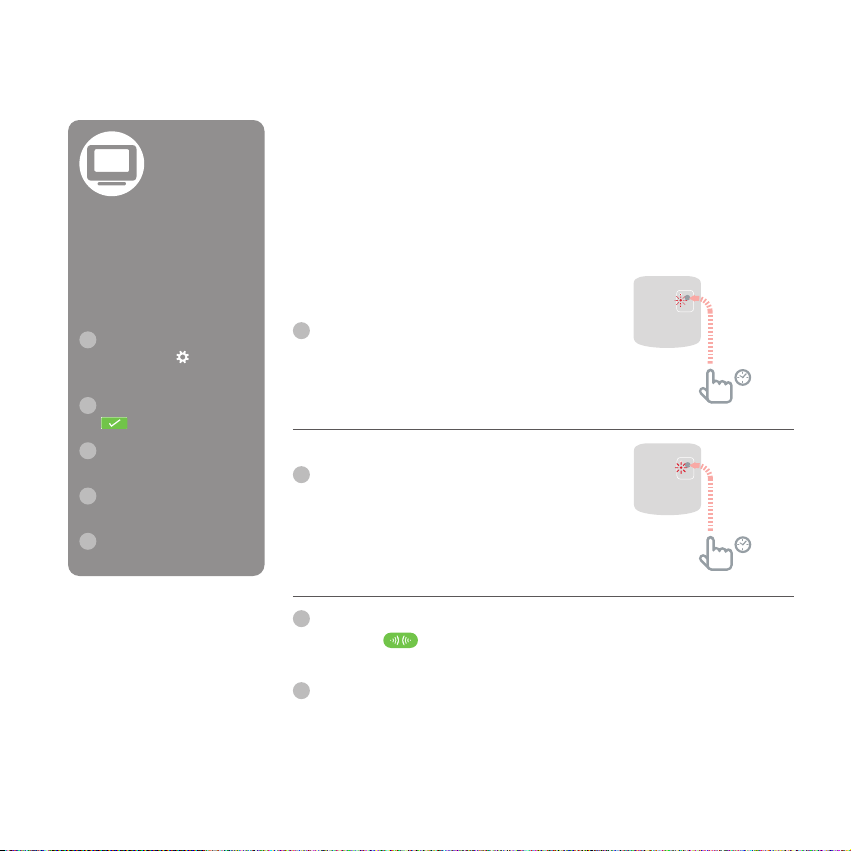

Bind the wireless Relay Box

(BDR91) to control a Boiler

If you do not have any boiler, go to radiator controller binding section.

If you are NOT

following GUIDED

CONFIGURATION

follow these steps

on your evohome

Controller display first:

Press and hold

‘Settings’ for

3 seconds

Press the green tick

Press

SYSTEM DEVICES

Press

BOILER CONTROL

Press

BOILER RELAY.

evohome

Controller

To bind the Relay Box

Press and hold the button for

15 seconds (until the red LED

blinks rapidly) to clear any previous

binding data

Press and hold the button again

for 5 seconds (until the red LED

blinks slowly)

On the evohome Controller press the green bind

button

You should receive a SUCCESS message on the evohome

Controller (if not go back and re-bind)

PRESS

AND HOLD

15 SEC

PRESS

AND HOLD

5 SEC

If you are NOT

following GUIDED

CONFIGURATION

follow these steps

on your evohome

Controller display first:

Press and hold

‘Settings’ for

3 seconds

Press the green tick

Press ADD ZONE

Type a name for the

new zone and press

the green tick

Press RADIATOR

VALVE

If you want to

control the zone

temperature with the

evohome Controller

(which needs to be

located in that zone)

press YES, otherwise

press NO.

You must repeat these

steps for each radiator

controller.

evohome

Controller

Power up and bind Radiator Controllers

(HR91 or HR92)

Power up the Radiator Controllers

Remove the top cover

Open the battery clip and insert the

AA batteries supplied

Close the clip and replace the cover
