Honeywell F50F Bedienungsanleitung

Place bar code here

69-0756—05

OWNER’S GUIDE

F50F and F300E Electronic

Air Cleaners

F50F AND F300E ELECTRONIC AIR CLEANERS

69-0756—05 2

CONTENTS

Operating Your Electronic Air Cleaner .............................. 3

Getting the Most from Your Electronic Air Cleaner ................................ 4

Maintaining Electronic Prefilter(s), Cell(s) and Postfilter(s) .............................. 6

How Electronic Air Cleaning Works ................................ 11

Before You Call for Service .............................. 14

Honeywell 10-Year UltraClean Coil Guarantee™ ................................... 15

Limited Five-year Warranty .............................. 16

Product Registration .............................. 17

F50F AND F300E ELECTRONIC AIR CLEANERS

3 69-0756—05

OPERATING YOUR ELECTRONIC AIR CLEANER

Turn the On-Off switch on the power box to On.

NOTE:Set the switch to 1 for On and set the switch to O for Off.

The air cleaner now operates whenever your furnace/air

conditioning system fan operates. For maximum air cleaning

benefit and cleaner air conditioner coils, leave the air cleaner

switch turned on at all times and the thermostat fan switch set to

On. Of course, continuous fan operation adds to your electric bill

each month. Check your equipment for the amount of electricity

needed to run your System fan.

When the fan and air cleaner come on, the neon indicator lights.

You may hear a snapping (electrical arcing) sound occasionally

as the air cleaner operates. This is usually caused by a larger

dust particle that causes a high voltage discharge.The snapping

sound means that your air cleaner is working as it should.To hear

the snapping sound, momentarily press the test button near the

botton of the door. Use the test button any time you want to

prove air cleaner operation.

The switch remains in the On position to keep the air cleaner

running.

When the fan and air cleaner stops, the neon light goes off. The

air cleaner is off until the heating or air conditioning and fan start

again.

If you do not want the air cleaner to run, set the On-Off switch to

Off to turn off the air cleaner. Your furnace and air conditioner

continue to operate normally, but without the added benefit of air

cleaning. Normally, this switch should be turn to On at all times.

M3584

M3586

M6032

M3583

M3585A

F50F AND F300E ELECTRONIC AIR CLEANERS

69-0756—05 4

GETTING THE MOST FROM YOUR ELECTRONIC AIR

CLEANER

Run the electronic air cleaner as much as possible

For greatest efficiency, the air cleaner should run all the time. To do this, set the Fan

switch on your thermostat to On, and make sure the air cleaner is turned on. The fan

and air cleaner run even when the furnace or air conditioner is off.

NOTE: A manual fan switch may be built into the furnace or furnace fan controller.

The air cleaner uses less power than a 40 watt light bulb (two-cell model—33 watts;

single cell model—22 watts). Many believe that the added cost is more than offset by

the added benefits of full-time air cleaning and full-time air circulation. And you may

feel that the room temperature stays more even when the fan is always on.

Even if your thermostat does not have a Fan On position, you can obtain maximum

available air cleaning benefit by making sure the air cleaner is always turn to On so it

operates whenever the furnace or air conditioner is on.

Keep the cell(s) and prefilter(s) clean

Although the air cleaner is designed to be efficient over a wide range of cell dirt loading

conditions, regular cleaning is your best assurance of consistent performance. Also, a

very dirty prefilter and cell reduces air flow and, in turn, this reduces the efficiency of

the furnace or air conditioner. The cell wash reminder schedule or the optional W8600

Air Cleaner Indicator should be used to maintain a regular wash schedule.

Replace postfilter regularly

A high-efficiency postfilter is sometimes installed in the air cleaner. This filter increases

the efficiency of the air cleaner and should be changed every six months of usage.

F50F AND F300E ELECTRONIC AIR CLEANERS

5 69-0756—05

If you have a humidifier

All Honeywell whole house humidifiers can be used in a system with the Honeywell

Electronic Air Cleaner without any additional filters or system modification.

If your system includes an atomizing humidifier, you may want to install a standard

furnace filter between the humidifier and the air cleaner.This filter would keep the

humidifier spray mineral deposits from collecting on the air cleaner.This filter should be

checked regularly and changed when it shows signs of mineral or dirt buildup. If you do

not install a filter, you will probably need to wash the cell(s) and prefilter(s) more often

to remove the mineral buildup.

If an ultrasonic room humidifier is used often, especially if filled with tap (undistilled)

water, the cell(s) and prefilter(s) require more frequent washing. A white residue

accumulates on the cell(s) from the minerals in the water. This residue may also

contribute to "white dust.” See About lint or “white dust” section for more information.

F50F AND F300E ELECTRONIC AIR CLEANERS

69-0756—05 6

CLEANING PREFILTER(S), CELL(S) AND

POSTFILTER(S)

CAUTION

Sharp edges.

Can cause personal injury.

Carefully handle cell(s) or wear protective gloves to avoid cuts from sharp

metal edges.

Setting a regular cleaning schedule

To ensure optimum performance from the air cleaner, the prefilter(s) and cell(s) must

be cleaned regularly— twice a year with normal use or more frequently with heavy

use. Use the wash reminder schedule below to help establish and maintain a regular

cleaning schedule. Mount the wash reminder schedule in a convenient location.

NOTE: You may let the heating or air conditioning system operate normally while the

cell(s) are being washed. Simply turn off the air cleaner switch.

ELE

M982A

JJA

TIO

F50F AND F300E ELECTRONIC AIR CLEANERS

7 69-0756—05

Cleaning your Prefilter

1. The quickest and easiest way to clean your prefilter is to use the brush attach-

ment of your vacuum cleaner to vacuum the lint off the dirty side of the prefilter.

Greasy dirt may require soaking the prefilter in a tub or rinsing with the garden

hose. Do not wash the prefilter in the dishwasher or car wash

2. The prefilter should be cleaned every 6 months or more frequently with heavy

use. This will keep the prefilter clean of air choking lint that can make your sys-

tem work harder.

Vacuum the prefilter with a brush attachment, rinse it with a hose, or soak it in a tub.

Do not wash the prefilter(s) in the dishwasher or car wash.

Cleaning your Cells

1. A quick cleaning of the cells can be done by simply wiping down the ionizer

wires with a damp cloth. This will help boost the efficiency of the air cleaner

between full cleaning cycles. Ths quick clean can be done every time the prefil-

ters are cleaned.

2. A full cleaning of the cells will return the air cleaner to its peak efficiency. An easy

way to wash the cells is in a tub of hot, soapy water. Just soak the cells until the

water cools, agitate and rinse. For details on cleaning cells, see below for Wash-

ing the cell(s) in a tub or Washing the cell(s) in your automatic dishwasher.

3. Because the efficiency of the air cleaner remains high even as it loads up with

dirt, a full cleaning of the cells can be put off for yearly maintenance and a quick

cleaning can be done more often. Those wishing to renew to peak efficiency or

with heavier use may want to wash more frequently.

Replacing your Postfilter

1. The postfilter is an optional filter that boosts the efficiency of the air cleaner. Do

not wash the postfilter because that will neutralize the factory applied charge.

2. The postfilter should be replaced every six months to ensure peak performance.

F50F AND F300E ELECTRONIC AIR CLEANERS

69-0756—05 8

CAUTION

Burn Hazard.

Can cause personal injury.

Allow cell(s) to cool completely in dishwasher and at tend of wash cycle or

wear protective gloves.

Washing the cell(s) in your automatic dishwasher

Hot water can accumulate in the tubes supporting the collector plates.Tip the cell(s) so

these tubes can drain.

IMPORTANT

• Check your dishwasher Owner’s manual. Some manufacturers do not recom-

mend washing electronic cell(s) in their dishwashers.

• If the dishwasher has upper and lower arms, position the cell(s) carefully to

allow good water circulation.

• Be careful to avoid damaging the cell(s) when placing them in the dish-

washer. Broken ionizer wires or bent collector plates are not covered under

the Warranty.

• Very dirty cell(s), especially from tobacco or cooking smoke, can discolor the

plastic parts and the lining of some dishwashers.This discoloration is not

harmful. To minimize it, wash the cell(s) more frequently or try a different

brand of detergent.

•Do NOT allow the dishwasher to run through the dry cycle. This bakes on

any contaminants not removed during the wash cycle and reduces air cleaner

efficiency.

1. Put the cell(s) on the lower rack of the dishwasher with the airflow arrow pointing

up. It may be necessary to remove the upper rack. Do not block water flow to the

upper arm.

HINT: Lay a few large water glasses between the spikes on the lower rack, and rest

the cell(s) on them so the spikes do not damage the aluminum collector blades.

2. Using your regular dishwashing detergent, allow the dishwasher to run through

the complete wash and rinse cycle. Do not use the dry cycle.To avoid burns,

let the cell(s) cool completely before removing, or wear protective gloves when

removing the cell(s). Remember that water may be trapped inside the cell(s)

plates. Tip the cell(s) so these tubes can drain.

3. Wipe the ionizer wires and contact board on the end of the cell using your thumb

and forefinger with a small, damp cloth.

4. Inspect the dishwasher. You may want to rerun the wash and/or rinse cycle with

the dishwasher empty if you see dirt or residue from washing the cell(s). If dirt or

residue seems excessive, wash the cell(s) more often or try a different deter-

gent.

F50F AND F300E ELECTRONIC AIR CLEANERS

9 69-0756—05

CAUTION

Hazardous Chemical.

Can cause personal injury.

Do not splash detergent solution in eyes.

Washing the cell(s) in a tub

• Wear rubber gloves to avoid prolonged detergent contact with your skin.

• Keep detergent and solution out of reach

of children.

NOTE: Always wash the cell(s) first, then the prefilter(s), to keep heavy prefilter lint

from getting caught in the cell(s).

1. Use a large enough container, such as a laundry tub or trash container, to hold

one or both cell(s).

NOTE: Sharp corners on the cell(s) can scratch the surface of a bathtub.

2. Dissolve about three-fourth cup of automatic dishwasher detergent per cell in

enough hot water to cover the cell(s). If the detergent does not dissolve readily,

or forms a scum on the water, try another brand, or use softened water.

3. After the detergent has completely dissolved, place the cell(s) in the container

and allow to soak for 15 to 20 minutes or until water cools. Agitate them up and

down a few times and remove. Repeat steps 2 and 3, if necessary, for very dirty

cells.

4. Next, wash the prefilter(s) the same way. Empty and rinse the wash container.

5. Rinse the cell(s) with a hard spray of very hot water; rinse the tub clean, then fill

the tub with clean hot water and soak for 5 to 15 minutes. Rinse until the water

draining from the cell(s) and prefilter(s) no longer feels slippery.

6. Soak cell(s) in a final clear water rinse for ten minutes.

7. Wipe the ionizer wires and contact board on the end of the cell using your thumb

and forefinger with a small, damp cloth.

F50F AND F300E ELECTRONIC AIR CLEANERS

69-0756—05 10

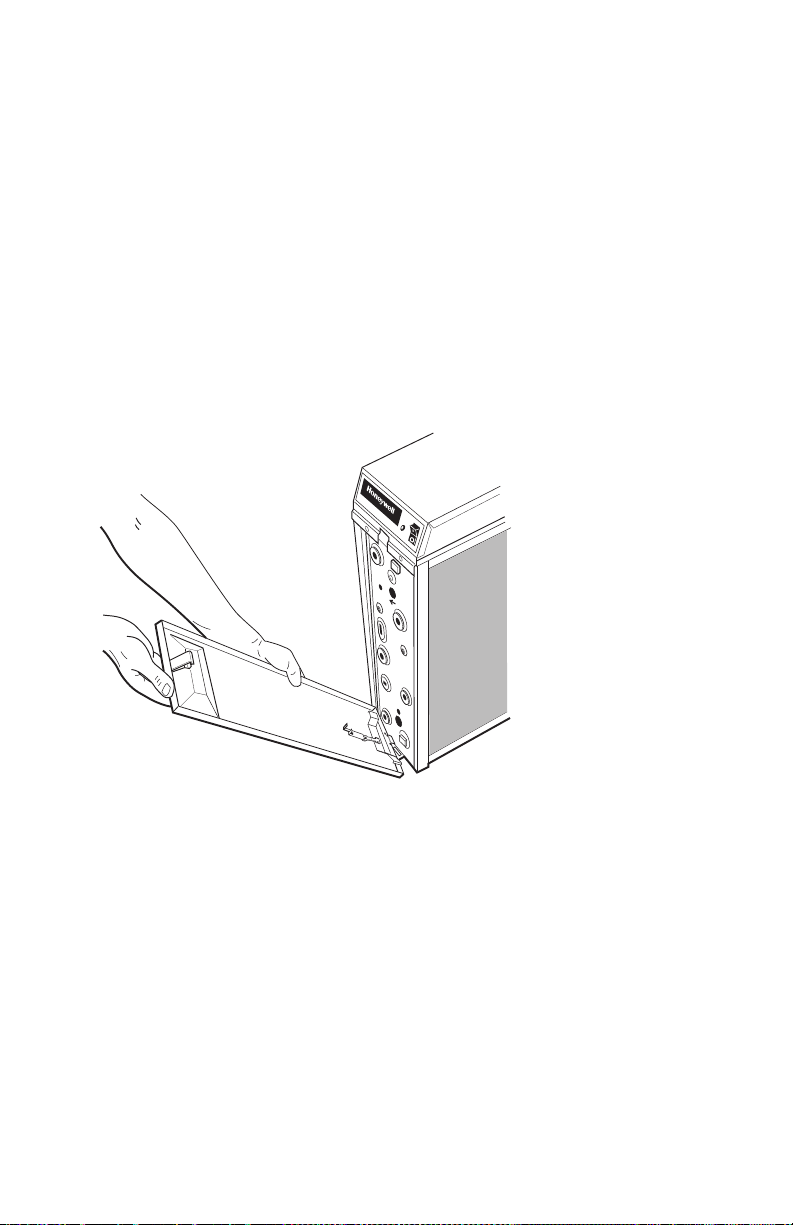

Replacing electronic air cleaner components

1. Inspect the cell(s) for broken ionizer wires and bent collector plates. Repair, as

necessary, or call your contractor for service.

2. Slide the prefilter(s) into the upstream prefilter guides.

3. Slide the air cleaner cell(s) in so the air flow arrow points downstream and the

handle(s) face outward.

4. Firmly close the access door.

5. Turn on the air cleaner. If the cell(s) and prefilter(s) are wet, the neon light may

not come on and you may hear arcing. If the arcing is annoying, simply turn the

air cleaner off for two to three hours or until the cell(s) are dry.

M3582

Andere Handbücher für F50F

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Honeywell Luftreiniger Handbücher

Honeywell

Honeywell F50F Bedienungsanleitung

Honeywell

Honeywell HPA-150 Series Bedienungsanleitung

Honeywell

Honeywell 51500 Bedienungsanleitung

Honeywell

Honeywell F57A Handbuch

Honeywell

Honeywell HPA090 series Bedienungsanleitung

Honeywell

Honeywell HEPAClean Series Bedienungsanleitung

Honeywell

Honeywell HHT-149 Bedienungsanleitung

Honeywell

Honeywell HFD-010 - Room Air Purifier Bedienungsanleitung

Honeywell

Honeywell HA150E Bedienungsanleitung

Honeywell

Honeywell UV100A Bedienungsanleitung

Honeywell

Honeywell HPA250 Series Bedienungsanleitung

Honeywell

Honeywell F58G Bedienungsanleitung

Honeywell

Honeywell F111 Series 1 Bedienungsanleitung

Honeywell

Honeywell HEPACLEAN HHT270 Series Bedienungsanleitung

Honeywell

Honeywell QUIETCLEAN HFD230 Series Bedienungsanleitung

Honeywell

Honeywell HPA020 Series Bedienungsanleitung

Honeywell

Honeywell Quiet Clean TOWER Bedienungsanleitung

Honeywell

Honeywell enviracaire 41000 Series Bedienungsanleitung

Honeywell

Honeywell HPA070 Series Bedienungsanleitung

Honeywell

Honeywell 18155 Bedienungsanleitung

Honeywell

Honeywell HPA-051 Series Bedienungsanleitung

Honeywell

Honeywell F115A1064 Bedienungsanleitung

Honeywell

Honeywell High Performance Air Purifier HFD-135 Bedienungsanleitung

Honeywell

Honeywell F59A Bedienungsanleitung

Beliebte Luftreiniger Handbücher anderer Marken

IKEA

IKEA UPPÅTVIND Bedienungsanleitung

Nash

Nash AP-1 PureSmart Bedienungsanleitung

LG PH-U450 Series Bedienungsanleitung

DeLonghi

DeLonghi DDSX 220WFA Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MA-E85R-E Bedienungsanleitung

Sharp

Sharp FU-40SE Bedienungsanleitung

Philips

Philips AC2721 Bedienungsanleitung

Hitachi

Hitachi EP-A3000 Bedienungsanleitung

TruSens

TruSens Z-2000 Bedienungsanleitung

Motorola

Motorola MBP87SN Bedienungsanleitung

Beko

Beko ATP 7100I Bedienungsanleitung

Carrier

Carrier INFINITY 1620 Bedienungsanleitung

AtmosAir

AtmosAir P2002 Bedienungsanleitung

Winix

Winix NK300 Bedienungsanleitung

Friedrich

Friedrich C-90A Bedienungs- und Montageanleitung

Surgically Clean Air

Surgically Clean Air JADE2.0 Bedienungsanleitung

Base aire

Base aire 555 Pro Bedienungsanleitung

Champion

Champion CP25 Bedienungsanleitung
