Please read and follow these instructions carefully and

operate the machine accordingly. This booklet provides

important guidelines for safe use, installation, maintenance

and some useful advice for best results when using your

machine.

Keep all documentation in a safe place for future reference or

for any future owners.

Delivery information

Please check that the following items are delivered with the

appliance:

●Instruction manual

●Guarantee card

●Vent kit and instructions

●Energy label

Remove the machine from its packaging close to the final

location of the machine.

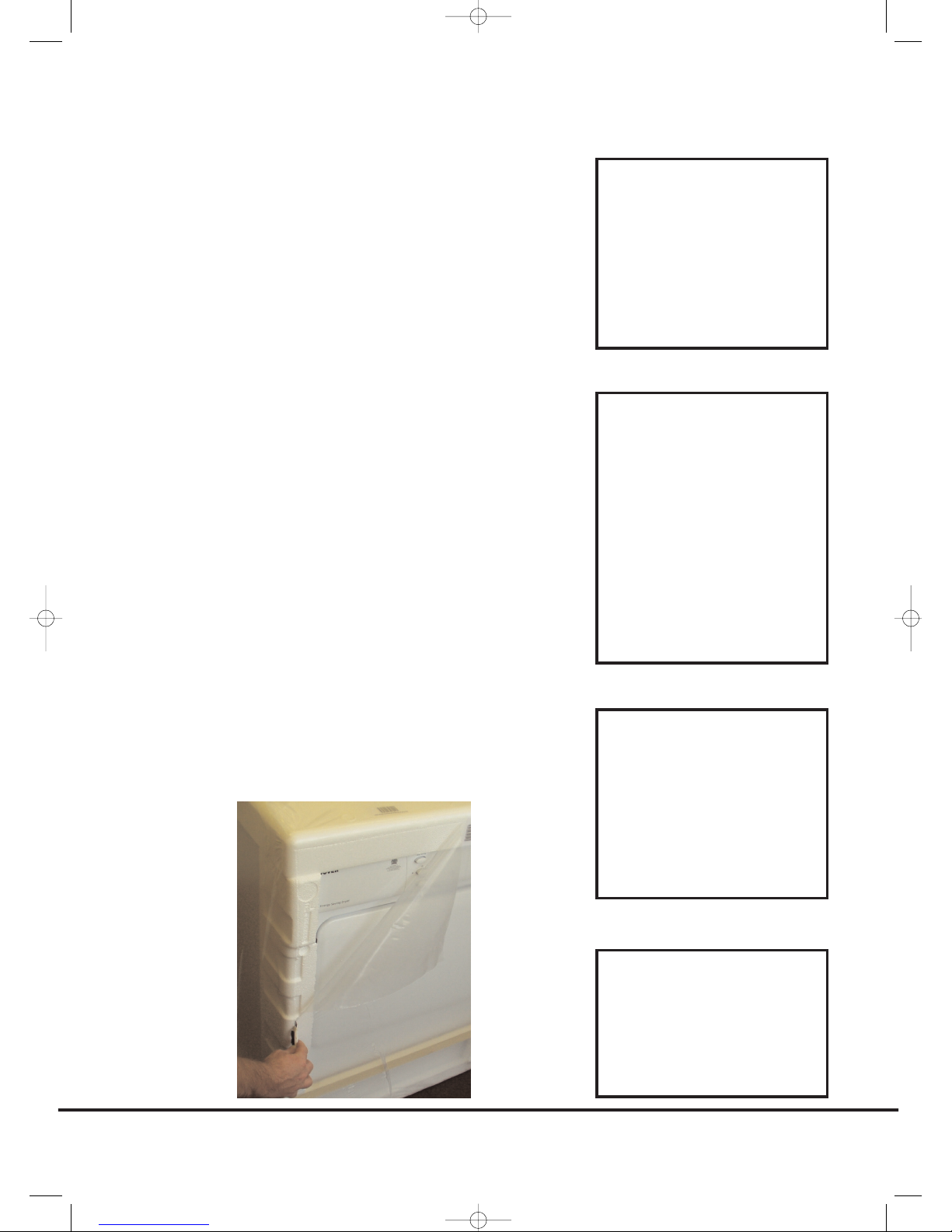

1. Cut carefully around the base of the packaging and up

one corner.

2. Remove the polythene sleeve and lift the dryer off the

polystyrene base.

Check that no damage

has occurred to the

machine during transit.

If it has, call for service

by GIAS.

Call

08705 400 600

If the appliance is not

running properly or

breaks down, switch it

off, disconnect the plug

from the socket and do

not tamper with

the appliance.

Consult GIAS Service

for possible repair.

Call

08705 400 600

Failure to comply with

the above can

compromise the safety

of the appliance. You

may be charged for a

service call if a problem

with your machine is

caused by misuse.

Introduction

Unpacking the product

Dispose of the

packaging safely. Make

sure it is out of the

reach of children, it is a

potential source of

danger.

40004480.qxd 15/05/2006 19:34 Page 3

Installation

●Check that the product has no visible signs of damage

before use. If damaged do not use and please call our

national number: 08705 400 600.

●Do not use adapters, multiple connectors and/or extensions.

●This machine should not be installed in a bathroom or

shower room.

●Never install the dryer against curtains and be sure to

prevent items from falling or collecting behind the dryer.

●The appliance must not be installed behind a lockable door,

a sliding door or a door with a hinge on the opposite side

of the door to that of the tumble dryer.

Use

●WARNING Misuse of a tumble dryer may create a fire

hazard.

●This machine is solely for domestic use, i.e. to dry

household textiles and garments.

●This machine should only be used for its intended purpose

as described in this manual. Ensure that the instructions for

installation and use are fully understood before operating

the appliance.

●Do not touch the appliance when hands or feet are damp

or wet.

●Do not lean on the door when loading the machine or use

the door to lift or move the machine.

●Do not allow children to play with the machine or its

controls.

●WARNING Do not use the product if the fluff filter is not in

position or is damaged; fluff could be ignited.

●WARNING Where the hot surface symbol is located

the temperature rise during operation of the tumble dryer

may be in excess of 60 degrees C.

●Remove the plug from the electricity supply. Always remove

the plug before cleaning the appliance.

●Do not continue to use this machine if it appears to be

faulty.

●Lint and fluff must not be allowed to collect on the floor

around the outside of the machine.

●The drum inside may be very hot. Always allow the dryer to

complete the cool down period before removing the

laundry.

The Laundry

●WARNING Do not tumble dry fabrics treated with dry

cleaning fluids.

●WARNING Foam rubber materials can, under certain

circumstances, when heated become ignited by

Safety reminders

40004480.qxd 15/05/2006 19:34 Page 4

spontaneous combustion. Foam plastic, foam rubber and

rubber-like material are not suitable for tumble drying.

Articles made from these materials MUST NOT be placed in

the dryer.

●Always refer to the laundry care labels for directions on

suitability for drying.

●Clothes should be spin dried or thoroughly wrung before

they are put into the tumble dryer. Clothes that are

dripping wet should NOT be put into the dryer.

●Lighters and matches must not be left in pockets and

NEVER use flammable liquids near the machine.

●Glass fibre curtains should NEVER be put in this machine.

Skin irritation may occur if other garments are

contaminated with the glass fibres.

●Garments treated or contaminated with flammable

cleaning sprays or liquids such as petrol, cooking oil or

aerosol sprays MUST NOT be put in this machine.

Enviromental Issues

●All packaging materials used are environmentally-friendly

and recyclable. Please help dispose of the packaging via

environmentally-friendly means. Your local council will be

able to give you details of current means of disposal.

●To ensure safety when disposing of an old tumble dryer

disconnect the mains plug from the socket, cut the mains

power cable and destroy this together with the plug. To

prevent children shutting themselves in the machine break

the door hinges or the door lock.

GIAS Service

●To ensure the continued safe and efficient operation of this

appliance we recommend that any servicing or repairs are

only carried out by an authorised GIAS service engineer.

European Directive 2002/96/EC

This appliance is marked according to the European Directive

2002/96/EC on Waste Electrical and Electronic Equipment

(WEEE).

By ensuring this product is disposed of correctly, you will help

prevent potential negative consequences for the environment

and human health, which could otherwise be caused by

inappropriate waste handling of this product.

The symbol on the product indicates that this product may not

be treated as household waste. Instead it shall be handed over

to the applicable collection point for the recycling of electrical

and electronic equipment

Disposal must be carried out in accordance with local

environmental regulations for waste disposal.

For more detailed information about treatment, recovery and

recycling of this product, please contact your local city office,

your household waste disposal service or the shop where you

purchased the product.

40004480.qxd 15/05/2006 19:35 Page 5

Electrical requirements

Tumble dryers are supplied to operate at a voltage of

230-240V, 50 Hz single phase. Check that the supply circuit is

rated to at least 13A.

This appliance is fitted with a moulded-on non-rewireable plug

which is already equipped with a BS 1362 ASTA approved 13A

fuse. Any replacement must be the same rating and

specification. If the fuse cover is lost, do not use the plug until

it is replaced.

Electricity can be extremely dangerous.

This appliance must be earthed.

The socket outlet and the plug on the appliance must be of

the same type.

Do not use multiple adapters and/or extension leads.

The plug should be accessible for disconnection after the

appliance has been installed.

The wires in the mains lead are coloured in accordance with

the following codes:

Blue NEUTRAL

Brown LIVE

Green and Yellow EARTH

CE Appliance complies with European Directive 89/336/EEC,

73/23/EEC and subsequent amendments.

Adjusting the feet

Once the machine is in place the feet should be adjusted to

ensure that the machine is level.

Adjust the four feet to ensure the machine is firm and level.

Installation

Do not plug the

machine in and switch

it on at the mains until

the installation is

completed.

You may be charged for

a service call if a

problem with your

machine is caused by

incorrect installation.

If the mains cord on

this appliance is

damaged, it must be

replaced by a special

cord which is ONLY

obtainable from the

Hoover spares service.

It must be installed by a

competent person.

Call

01204 556111

40004480.qxd 15/05/2006 19:35 Page 6

Adequate ventilation must be provided in the room where the

tumble dryer is located to prevent gases from appliances

burning other fuels, including open fires, being drawn into the

room during operation of the tumble dryer.

●Exhaust air must not be discharged into a flue which is

used for exhausting fumes from appliances burning gas or

other fuels.

●Check regularly that the air flowing through the dryer is

not restricted.

●Check the fluff filter after use, and clean, if necessary.

●The inlet and outlets should be kept free from

obstructions. To ensure adequate ventilation the space

between the bottom of the machine and the floor must

not be obstructed. There should be a gap of at least

12mm between the machine and any obstructions.

●Prevent items from falling or collecting behind the dryer

as these may obstruct the air inlet and outlet.

●NEVER install the dryer up against curtains.

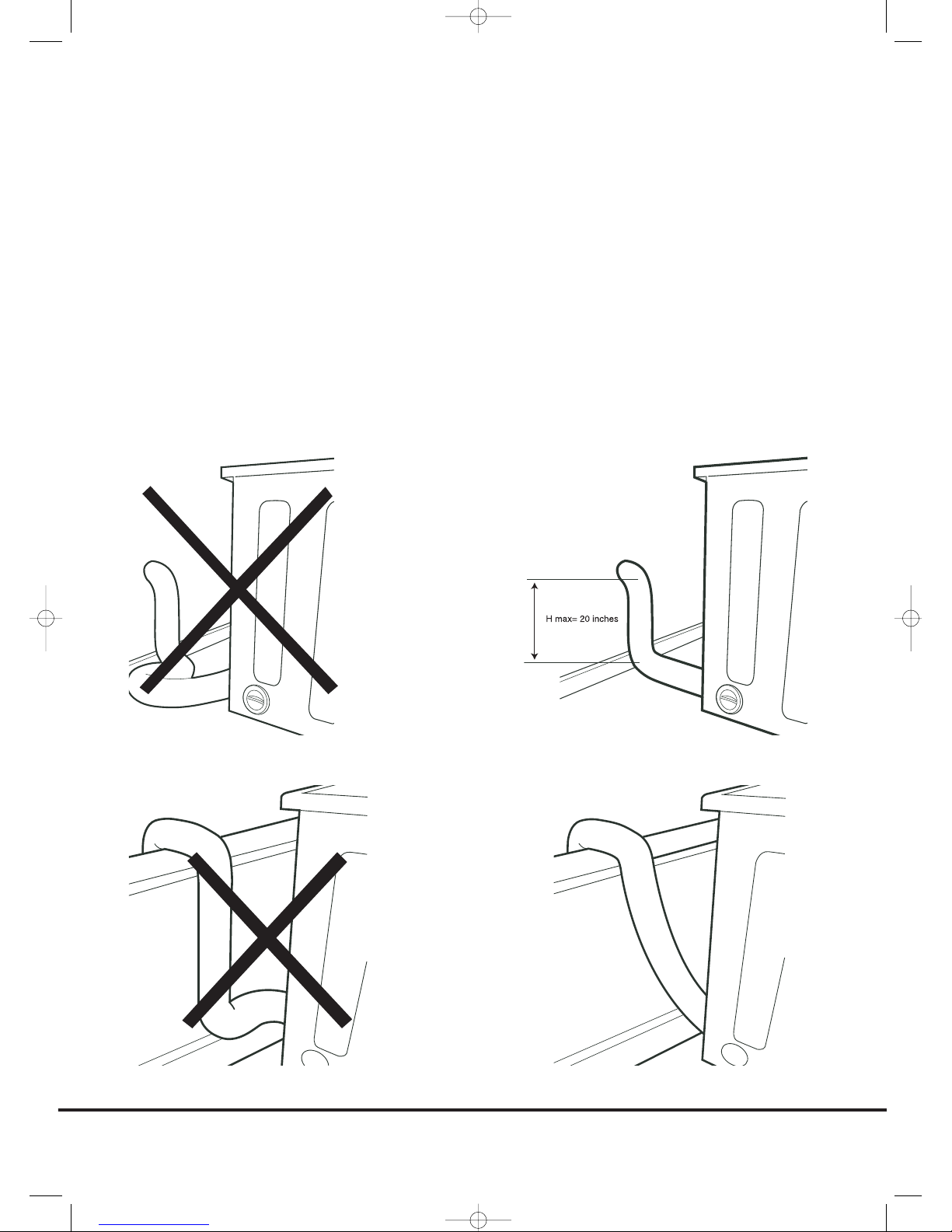

Installation of the

Discharge Hose

It is essential to use a venting hose to carry the hot moist air

away from the dryer unless the dryer is situated in a open

space with a good air flow around it. Re-recirculation of the

moist air will prevent the efficient operation of the dryer.

The hose is assembled to the machine as shown opposite.

The hose may be fitted through a wall or through an open

door or window. The hose is 110mm in diameter and will

extend 1.8 meters.

The following guidelines should be followed when installing

the discharge hose.

●Do not use two hoses joined together as the drying

performance will be reduced.

Ventilation

For your safety, this dryer must be correctly installed.

If there is any doubt about installation, call the national GIAS Service

number for advice.

08705 400 600

(Eire 018301 666)

40004480.qxd 15/05/2006 19:35 Page 7

●Do not restrict the flow of air through the hose e.g. by kinking it or fitting a smaller diameter

connector to mount to a wall opening.

●Avoid the hose making U shaped curves as this will restrict the flow of air and increase the chance

that water will collect in the hose.

●Check the hose regularly to remove any build-up of fluff or water that may have collected in it.

The following diagrams give examples of good and bad installations.

40004480.qxd 15/05/2006 19:35 Page 8

Before using the tumble dryer for the first time:

●Please read this instruction book thoroughly.

●Remove all items packed inside drum.

●Wipe the inside of the drum and door with a damp cloth

to remove any dust which may have settled in transit.

Clothes preparation

Make sure that the laundry you are going to dry is suitable for

drying in a tumble dryer, as shown by the care symbols on each

item.

Check that all fastenings are closed and that pockets are

empty. Turn the articles inside out. Place clothes loosely in the

drum to make sure that they don’t get tangled.

Maximum drying weight

●Cottons Max. 7 kg

●Synthetics Max. 3.5 kg

Sort the load as follows:

●By care symbols

These can be found on the collar or inside seam:

Suitable for tumble drying.

Tumble drying at high temperature.

Tumble drying at low temperature only.

Do not tumble dry.

If the item does not have a care label it must be

assumed that it is not suitable for tumble drying.

●By amount and thickness

Whenever the load is bigger than the dryer capacity,

separate clothes according to thickness (e.g. towels from

thin underwear).

●By type of fabric

Cottons/linen: Towels, cotton jersey, bed and table linen.

Synthetics: Blouses, shirts, overalls, etc. made of polyester

or polyamid, as well as for cotton/synthetic mixes.

●By drying level

Sort into: iron dry, cupboard dry, etc. For delicate articles

press the ‘ACRYLIC/SYNTHETIC’ button to select low

drying temperature.

Preparing the load

Do not overload the

drum, large items when

wet can exceed the

maximum admissible

clothes load

(for example: sleeping

bags, duvets).

40004480.qxd 15/05/2006 19:36 Page 9

Do not tumble dry:

Woollens, silk, delicate fabrics, nylon stockings, delicate

embroidery, fabrics with metallic decorations, garments with

PVC or leather trimmings, training shoes, bulky items such as

sleeping bags, etc.

Energy saving

Only put into the tumble dryer laundry which has been

thoroughly wrung or spin-dried. The drier the laundry the

shorter the drying time thus saving electricity.

ALWAYS

●Try to dry the maximum weight of laundry, this will save

time and electricity.

●Check that the filter is clean before every drying cycle.

NEVER

●Exceed the maximum weight, this will waste time and

electricity.

●Put dripping wet items into the tumble dryer, this may

damage the appliance.

Drying advice

During the last 15 minutes the load

is always tumbled in cool air.

IMPORTANT: Do not dry

articles which have

been treated with a dry

cleaning fluid or rubber

clothes (danger of fire

or explosion).

40004480.qxd 15/05/2006 19:36 Page 10

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Hoover Trockner Handbücher

Hoover

Hoover VHV 68C Bedienungsanleitung

Hoover

Hoover HV-LHP8 Bedienungsanleitung

Hoover

Hoover Nextra HNV771X Bedienungsanleitung

Hoover

Hoover H8A2TCEXS-S Bedienungsanleitung

Hoover

Hoover Nextra HNC771XT Bedienungsanleitung

Hoover

Hoover HSC170 Bedienungsanleitung

Hoover

Hoover Vision HD VHV 680F Bedienungsanleitung

Hoover

Hoover TVX33 Bedienungsanleitung

Hoover

Hoover Vision HD Bedienungsanleitung

Hoover

Hoover DYC 8813BX Bedienungsanleitung

Hoover

Hoover VHC392T-80 Bedienungsanleitung

Hoover

Hoover H7A2TCBEX-S Bedienungsanleitung

Hoover

Hoover DYC 88132BXC Bedienungsanleitung

Hoover

Hoover VisionHF Bedienungsanleitung

Hoover

Hoover Nextra OHNC272X Bedienungsanleitung

Hoover

Hoover HNC180-80 Bedienungsanleitung

Hoover

Hoover HDC 60E Bedienungsanleitung

Hoover

Hoover Nextra Mega Load Bedienungsanleitung

Hoover

Hoover Otsein OHDV6 Bedienungsanleitung

Hoover

Hoover H-DRY 300 Bedienungsanleitung

Hoover

Hoover Nextra HNC260 Bedienungsanleitung

Hoover

Hoover HDV 60 Bedienungsanleitung

Hoover

Hoover VHC 680F Bedienungsanleitung

Hoover

Hoover Nextra HNV170 Bedienungsanleitung

Beliebte Trockner Handbücher anderer Marken

Bosch

Bosch WTA79200GB Bedienungsanleitung

Amana

Amana W10233410A Bedienungsanleitung

Miele

Miele TWH 780 WP Bedienungsanleitung

Asko

Asko T760 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Bedienungsanleitung

Bosch

Bosch Logixx 10 WTB76556GB Technisches Datenblatt

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Bedienungsanleitung

Electrolux

Electrolux EW2H328R2 Bedienungsanleitung

Beko

Beko DS8433RX1M Bedienungsanleitung

Dawlance

Dawlance Spinner DS 6000 C Bedienungsanleitung

Electrolux

Electrolux TP5080TW Bedienungsanleitung

AEG

AEG TR838P4OB Bedienungsanleitung

Indesit

Indesit IDV 75 Bedienungsanleitung

Infiniton

Infiniton SD-DG85C Bedienungsanleitung

BOMANN

BOMANN WT 5019 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Bedienungsanleitung

Asko

Asko T793C Bedienungsanleitung

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Bedienungsanleitung
