EN 1

Summary

PRODUCT DESCRIPTION .............................................................................. 2

Space requirements ................................................................................ 2

USE ....................................................................................................................... 3

Use ......................................................................................................... 3

Customized temperature ........................................................................ 4

Super Cool function ............................................................................... 4

Super Freeze function ............................................................................ 5

Eco mode ............................................................................................... 5

Holiday function .................................................................................... 5

Defrosting .............................................................................................. 5

Demo mode ............................................................................................ 6

Error Codes ............................................................................................ 6

WI-FI USE ............................................................................................. 7

Step 1 ..................................................................................................... 7

Step 2 ..................................................................................................... 7

Step 3 ..................................................................................................... 7

Wi-Fi Use ............................................................................................... 8

DOOR REVERSIBILITY.......................................................................9

EN 2

PRODUCT DESCRIPTION

1. Control Panel

2. Shelves

3. Crispers

4. Freezer Boxes

5. Door rack

* The most energy-saving configuration requires drawers, food box and shelves to be

positioned in the product, please refer to the above pictures.

** The pictures above are only for reference. The actual configuration will depend on the

physical product or statement by the distributor.

Space requirements

The unit’s door must be able to fully open as shown.

Spare enough space for convenient opening of the

doors and drawers.

Keep a distance of at least 50 mm between the side

walls of the product and adjacent parts.

Width: min. 920 mm

Depth: min. 1137 mm

EN 3

USE

Use

Plug on the appliance, it automatically turns on. The temperature will

automatically set at 4 °C in the fridge and -18 °C in the freezer.

To change the temperature, press the TEMP key for 5 seconds, an acoustic signal is

made and the icon of the selected compartment (fridge or freezer) as well as all the

temperature LEDs of the corresponding compartment turn on for 2s, after 2s the

selection of the compartment is confirmed. With the selected compartment icon on,

quick press the TEMP key to change the temperature. When the setting increases,

the corresponding LED light will turn on. An acoustic signal is made every time the

TEMP key is pressed and the temperature is changed, after 5 seconds the selection

is confirmed. After 30s without operation the fridge/freezer icon area turns off, while

the LEDs of the selected temperatures stay on. When the TEMP key is touched

again, the icon of the last are selected (Fridge or freezer) turns on.

In case of power loss, the last cooling level set will be restored

A. ON/OFF key, used to switch on/off the appliance

B. Wi-Fi key, used to switch on/off the Wi-Fi

C. Mode key, used to selected the desired function

D. TEMP key, used to selected the fridge and freezer

temperature

a. Fridge /freezer area icon, shows which compartment of

the appliance is selected

b. Freezer temperature levels, show which is the selected

temperature in the freezer

c. Fridge temperature levels, show which is the selected

temperature

d. Customized temperature icon, show if the temperature has

been selected by app

e. Eco mode icon, shows whether the eco mode is activated

f. Holiday function icon, show whether the holiday function

is activated

g. Wi-Fi Icon, shows whether the Wi-Fi is working and the

appliance is connected

WiFi

icon

Holiday

icon

Temp-by-app

icon

Freezer

Temp

TEMP

key

WiFi

key

EcoMode

icon

Fridge

Temp

FR/FZ

icon

MODE

key

ON/OFF

key

EN 4

To restore the default setting, long press the Temp key button and click the

ON/OFF key button 5 times (in 5 seconds)

Under the normal operating condition (in spring and autumn), it is recommended

to set the temperature at 4 °C. In summer when the ambient temperature is high,

it is recommended to set temperature at 6~8 °C, so as to guarantee the fridge and

freezer temperatures and reduce the refrigerator continuous running time; and in

winter when the ambient temperature is low, it is recommended to set temperature

at 3~4 °C to avoid frequent start/stop of the refrigerator.

Customized temperature

From the app it is possible to customize the temperature for both fridge and freezer. The

temperature can be set with 1 °C sensitivity. It is possible to select a temperature from 2 °C

to 8 °C in the fridge, and from -16 °C to -24 °C in the freezer.

When the temperature is selected by the app, the customized temperature icon turns on,

while all the temperature LED lights of the affected compartment are turned off (i.e. if the

refrigerator temperature is selected from the app, LEDs from 2 °C to 8 °C are turned off. If

the freezer temperature is selected from the app, LEDs from -16 °C to -24 °C are turned off)

If only a single area (freezer or fridge) has the customized temperature, the temperature

selection of the other area is not changed and the LED light of the selected temperature of

that area remains on. An acoustic signal is made every time the temperature is changed.

Super Cool function

It is suggested to switch on the Super Cool function if a large quantity of food should be

stored (for example after the purchase). The Super-Cool function accelerates the cooling of

fresh food and protects the goods already stored from undesirable warming. When the

function is activated, the temperature of the fridge is automatically set at 2 °C.

How to use the Super Cool function:

The function can be activated by long pressing TEMP key to select the fridge

compartment, and then quick pressing the TEMP key until the Super Cool icon

led is turned on, or it can be turned on from the app. When the function is

activated, the Super Cool LED is always ON.

To exit the Super Cool function, press the TEMP key or turn it off from the app.

The Super Cool function automatically ends when the function has lasted for more

than 30 hours.

When the Super Cool ends, the icon of the control panel is switched off and the

previously set cooling level is restored.

Note: Super Cool and Super Freeze function cannot be activated simultaneously

EN 5

Super Freeze function

The super freezing function accelerates the freezing of fresh food and protects the goods

already stored from undesirable warming. If a large amount of food has to be freeze, it is

recommended to set the Super-Freeze function on 24h before the usage. When the function is

activated, the temperature is automatically set at -24 °C.

How to use the Super Freeze function:

The function can be launched by long pressing TEMP key to select the freezer

compartment, and then quick pressing TEMP key until the Super Freeze icon led

is turned on, or it can be turned on from the app. When the function is activated,

the Super Freeze LED is always ON.

To exit the Super Freeze function, press the TEMP key or turn it off from the app.

The Super Freeze function automatically ends when the function has lasted for

more than 50 hours.

When the Super Freeze ends, the icon of the control panel is switched off and the

previously set freezing level is restored.

Note: Super Cool and Super Freeze function cannot be activated simultaneously

Eco mode

The Eco mode can be activated to optimize the performance of the appliance, whereas

obtaining the best food storage. The Eco mode will automatically set the temperature at 5 °C

in fridge and at -18 °C in the freezer

How to use the Eco mode:

The function can be activated from control panel by pressing the “mode” key until

the Eco mode icon turns on (an acoustic signal confirms the selection), or by

selecting the function from the app. When the function is activated, the Eco mode

icon is always ON.

To exit the Eco turn it off from the app or chose another function from the control

panel.

When the Eco Mode ends, the icon of the control panel is switched off and the

previously set cooling levels are restored.

Holiday function

The Holiday function can be used to reduce the energy consumption of the appliance, when

it is not used regularly. When the function is on, the LED lights are off (even if the door is

open) and the fridge is turned off, whereas the freezer will keep working normally.

How to use the Holiday function:

The function can be activated from control panel by pressing the “mode” key until

the Holiday icon turns on (an acoustic signal confirms the selection), or by

selecting the function from the app. When the function is activated, the Holiday

icon is always ON.

To exit the Holiday function, turn it off from the app or chose another function

from the control panel.

When the Holiday function ends, the icon of the control panel is switched off and

the previously set cooling levels are restored.

Defrosting

The defrosting of the refrigerator and freezer compartment are done automatically: no

manual operation is needed.

EN 6

Communication error

[-16°C;-18°C;-20°C;-22°C;-24°C] lights in the freezer turn on sequentially, it means there

has been a communication error between the main control board and the display board.

Please, contact the technical assistance to help solve the problem

Fan

[-16°C;-20°C;-22°C;-24°C] lights in the freezer flashing simultaneously if the fan is not

working properly. Please, contact the technical assistance to help solve the problem

HCS

When a certain moisture level is reached, the HCS filter fibers open causing moisture to

decrease and then close again.

Demo mode

To enter the demo mode, with the display unlocked, keep pressed the SET key and press

the WiFi key 5 times within 5 seconds. To exit the demo mode, perform the same

operation or power off the refrigerator.

Error Codes

EN 7

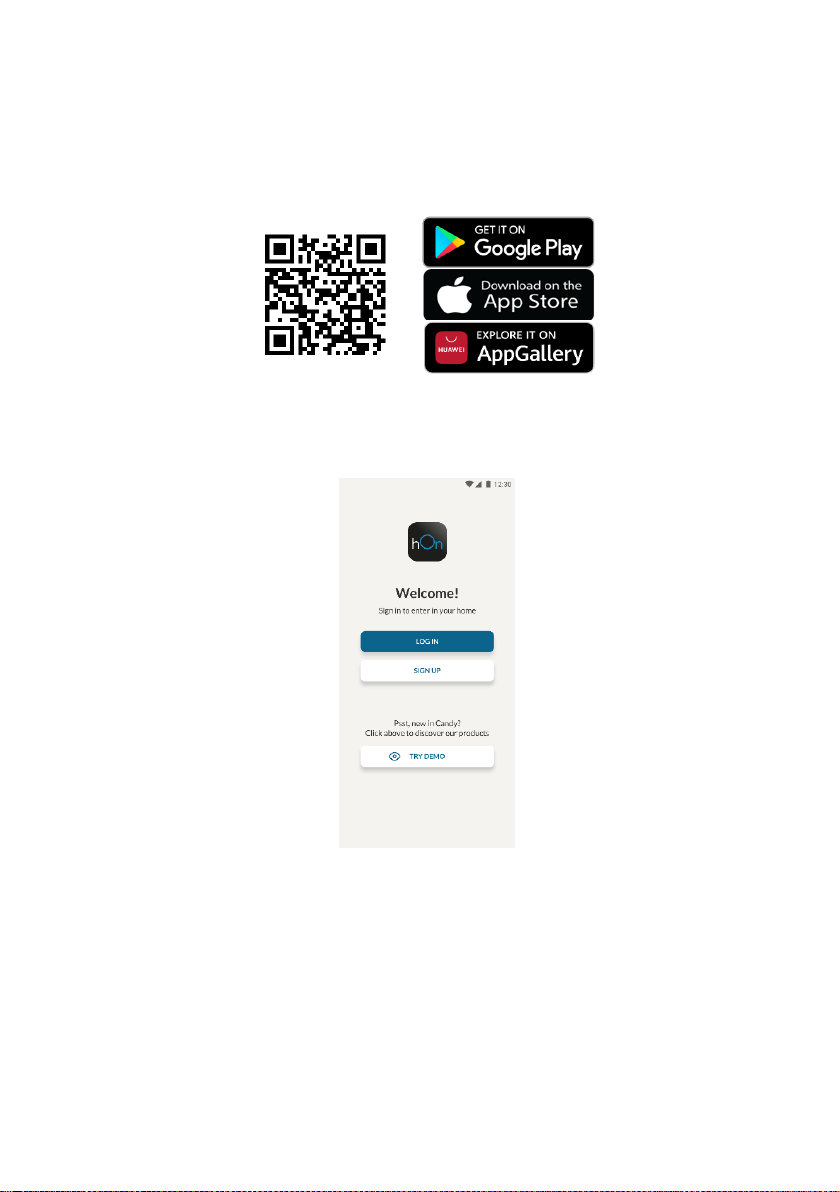

WI-FI USE

Step 1

Download the hOn app on the stores

Step 2

Create your account on the hOn App or log in if you already have an account

Step 3

Follow pairing instructions in the hOn App

EN 8

Wi-Fi Use

If the Wi-Fi has not been configured yet, when the refrigerator turns on, it will automatically

enter the configuration mode and keep this status for 30 minutes. The Wi-Fi icon blinks and

product enrollment can start.

Follow in app instructions to configure the Wi-Fi (see above)

Once the Wi-Fi is configured and the connection established, the Wi-Fi icon is on

and fixed.

After 30 minutes without performing any operation, the Wi-Fi will automatically

exit the configuration mode

If the Wi-Fi has already been configured, it will automatically reconnect

according to the configuration information.

To reset the Wi-Fi, press Wi-Fi key and SET key for 2s.

To turn off the Wi-Fi, press Wi-Fi key for 3s.

Radio-module - Technical data

Radio equipment type is in compliance with Directive 2014/53/EU.

Frequency rate (OFR) 2400 MHz-2843.5 MHz

100 mW

2412...2472 MHz(step size 5 MHz)

Channel frequencies

Maximum power(EIRP)

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Hoover Kühlschrank Handbücher

Hoover

Hoover 60 COMBI Bedienungsanleitung

Hoover

Hoover HMDNB 5182WK Bedienungsanleitung

Hoover

Hoover HTL552W Montageanleitung

Hoover

Hoover BHBF 172 UKT Bedienungsanleitung

Hoover

Hoover HBCA 230 FF Stücklistenhandbuch

Hoover

Hoover VCN6185/1A Bedienungsanleitung

Hoover

Hoover HFDN 180BK Bedienungsanleitung

Hoover

Hoover HTO552W Bedienungsanleitung

Hoover

Hoover HBOD 174 Bedienungsanleitung

Hoover

Hoover H-FRIDGE 500 MAXI HHSBSO 6174XWDK Bedienungsanleitung

Hoover

Hoover HBRU164AK Bedienungsanleitung

Hoover

Hoover HF18XK WiFi Bedienungsanleitung

Hoover

Hoover HVS 1745SWDK Bedienungsanleitung

Hoover

Hoover H-FRIDGE 700 HOCE7620DX Bedienungsanleitung

Hoover

Hoover HVTLU542WHK Bedienungsanleitung

Hoover

Hoover H-FRIDGE 700 MAXI Bedienungsanleitung

Hoover

Hoover HCN 3986 Bedienungsanleitung

Hoover

Hoover VCN6185/1X Bedienungsanleitung

Hoover

Hoover BHBF 172 UKT/N Bedienungsanleitung

Hoover

Hoover HLS6163A Bedienungsanleitung

Hoover

Hoover BI SD 177 Bedienungsanleitung

Hoover

Hoover HOBT5719EW Bedienungsanleitung

Hoover

Hoover HV-RTM-248 Bedienungsanleitung

Hoover

Hoover HFOE54WN Montageanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
