Hoss R1 Bedienungsanleitung
Instruction manual
hoss R1
Personal assistance robot
English Version v1.3
August 22; v1.3 www.hoss-mobility.com Page 1 | 81
© 2020 Hoss Mobility GmbH
All rights reserved.
The information provided may not be reproduced or distributed in any form or by
any means ( electronically or mechanically) without the prior express written
permission of Hoss Mobility GmbH.
The information provided is generally based on data relating to designs known at
the time of publication. As Hoss Mobility GmbH pursues a policy of continuous
product improvement, the right to make changes is reserved.
The information provided applies to the standard version of the product. Hoss
Mobility GmbH cannot be held liable for any damage you may suffer because the
specifications of the product delivered to you differ from those of the standard
version.
The information provided has been compiled with all possible care. However, Hoss
Mobility GmbH shall not be liable for any errors in the information or any
consequences resulting therefrom. Hoss Mobility GmbH shall not be liable for any
damage caused by work carried out by third parties.
The names of use, trade names, trademarks, etc. used by Hoss Mobility GmbH may
not be regarded as free in accordance with the legal provisions for the protection of
trademarks.
This manual is valid for the models:
Hoss R1 Standard Range
Hoss R1 Long Range
The original document was written in german. The translation was done in all
conscience but errors can not be ruled out.
Table of Contents
August 22; v1.3 www.hoss-mobility.com Page 2 | 81
TABLE OF CONTENTS 3
FOREWORD 8
GENERAL SAFETY INSTRUCTIONS 9
CAUTIONARY /WARNING SIGNS 9
STICKERS AND NOTICES AFFIXED TO THE ROBOT 9
SPEED 11
MINIMUM DISTANCE 11
CORRECT SITTING POSITION 12
BRAKING DISTANCE 13
TEMPERATUR 15
EMERGENCY PARKING BRAKE RELEASE /EMERGENCY MODE 16
DANGER IN CROWDS OR HIGH WINDS 18
TRANSPORTING OBJECTS,ANIMALS OR PEOPLE 18
DISINFECTION 19
TIRES 19
GROUND CLEARANCE 19
CHECK BEFORE EACH TRIP 20
PINCHING FINGERS 21
FEET ON FOOTREST 21
NARROW POINTS 21
ROAD SURFACE / FOUNDATION 21
USER ENVIRONMENT 22
EMERGENCY STABILIZER SYSTEM 23
SEATBELT 24
CLOTHING / FOOTWEAR 24
ELECTROMAGNETIC RADIATION 25
THUNDERSTORM /STRONG WIND 25
ADJUSTING THE HOSS 26
CORRECT SEAT ADJUSTMENT 27
ADJUSTING THE SEAT POSITION 28
ADJUSTING SEAT WIDTH 29
ADJUSTING SEAT HEIGHT 30
ATTACH /DETACH CONTROL PANEL 34
ATTACHING /REMOVING ARMREST 35
ADJUST ARMREST IN VERTICAL DIRECTION 35
ADJUSTING BACKREST 36
OPERATING THE HOSS 37
MAIN COMPONENTS OF THE HOSS 37
BLACK BOX 37
CONTROL PANEL 38
GETTING ON /GETTING OFF 40
SWITCH ON /SWITCH OFF 41
ACTIVATE/DEACTIVATE DRIVING MODE 42
ERROR REACTION: STABILIZERS CAN NO LONGER BE EXTENDED 43
RUN-AWAY PROTECTION 44
August 22; v1.3 www.hoss-mobility.com Page 3 | 81
PUSH MODE 44
PUSHING THE HOSS 45
FUNCTION BUTTON 46
HEADLIGHT ON/OFF 46
TURTLE MODE 46
RIDING THE HOSS 47
DRIVING ON LEVEL ROAD 48
MINIMUM DISTANCES: 48
REVERSE DRIVING 49
DRIVING ON SLOPES 49
ASCENT/DESCENT 50
HOW TO PROPERLY PARK ON SLOPES 52
VIBRATION ALERT 53
DRIVING ONTO EDGES (CURBS) 54
DRIVING OFF EDGES (CURB) 55
DRIVING AGAINST OBSTACLES 56
DRIVING TO TABLE 57
USE OF PUBLIC TRANSPORT 57
EMERGENCY STOP 58
RESTART AFTER AN EMERGENCY STOP 59
LOADING 60
MANUAL LIFTING 61
LOADING BY RAMP 62
HARNESSING THE HOSS 64
CHARGING 65
BATTERY 65
POWER 66
RANGE 67
MAINTENANCE OF THE HOSS 68
BEFORE EVERY RIDE: 68
EVERY 2MONTHS: 68
DRIVE WHEEL MAINTENANCE 69
MAINTENANCE ARMRESTS 69
SERVICE INTERVAL 70
CLEANING THE HOSS 70
END OF LIFE 71
RECYCLING 71
STORAGE 71
CONTACT 71
DEALERS - SERVICE PARTNERS 72
ACCESSORIES 72
ERROR DETECTION/TROUBLESHOOTING 72
HOSS CANNOT BE SWITCHED ON /OFF 72
DRIVING MODE CANNOT BE ACTIVATED: 72
SUPPORTS/BRAKES SHOOT DOWN WHEN DRIVING MODE IS ACTIVATED 73
THE HOSS PULLS TOWARDS ONE DIRECTION 73
VIBRATION SIGNAL GOES OFF DURING THE RIDE 73
August 22; v1.3 www.hoss-mobility.com Page 4 | 81
STABILIZERS DO NOT WORK 74
THE HOSS REDUCES SPEED 74
BRAKING DISTANCE IS TOO LONG 74
ACCELERATION IS TOO SLOW 75
THE RED ERROR SYMBOL LIGHTS UP 75
THE RED WARNING TRIANGLE LIGHTS UP 75
TECHNICAL DATA 76
CE DECLARATION 78
EXTINGUISHING AGENT 78
FLAMMABLE PARTS 78
WARRANTY POLICY 80
August 22; v1.3 www.hoss-mobility.com Page 5 | 81
Package contents
For special orders such as special back pieces, special seat cushions or
armrests/footboards in special colors, the package contents may differ from the
illustration shown.
August 22; v1.3 www.hoss-mobility.com Page 6 | 81
Foreword
Read this entire manual carefully before operating the product. The information
contained in this manual is essential for the safe use and proper maintenance of the
hoss R1. For ease of reading, the hoss R1 is referred to only as hoss in this manual.
Hoss R1 is the product name! Hoss Mobility GmbH is the inventor, developer and
manufacturer of the hoss R1.
In addition to this manual, you will also receive a manual for the "Jay" backrest. If
the manual for the "Jay" backrest is not included in the delivery, please contact your
dealer.
Intended use
The hoss (personal care robot) is intended exclusively for people for personal use
indoors and outdoors on paved surfaces. Sufficient cognitive, physical and visual
skills are required to drive a hoss. The user must be able to assess and correct the
effects of actions when operating the hoss. The hoss cannot transport more than 1
person at a time. The maximum weight (the user's body weight and the weight of
the accessories installed on the wheelchair) must not exceed 120kg. The user must
read and understand the contents of this manual before riding the hoss. Therefore,
all users of the hoss must be thoroughly instructed by qualified professionals before
participating in road traffic. After instruction and handover, the user must practice
his/her first rides on open and free surfaces until the driving characteristics of the
hoss are understood and internalized.
The user of the hoss is at all times fully responsible for compliance with locally
applicable safety regulations.
Anyone who has taken medication or been treated with medication that could
impair their ability to drive the hoss must not operate the hoss.
Good eyesight is essential to safely operate a hoss.
Never allow more than one person to sit on the hoss at a time.
Children must never ride the hoss without adult supervision.
August 22; v1.3 www.hoss-mobility.com Page 7 | 81
General safety instructions
The safety instructions help you understand the features of the hoss. For safe use, it
is essential that you read and understand the safety instructions before taking your
first ride. Failure to do so may result in personal injury or property damage. The
order of the instructions does not indicate their importance.
Cautionary / warning signs
• The instructions marked with such a warning/cautionary sign must be carefully
observed! Failure to follow these instructions carefully may result in personal
injury or damage to the hoss or the surrounding area.
•Regardless of the special marking of the warning notes, the entire contents of
this operating manual must be applied to ensure safe operation!

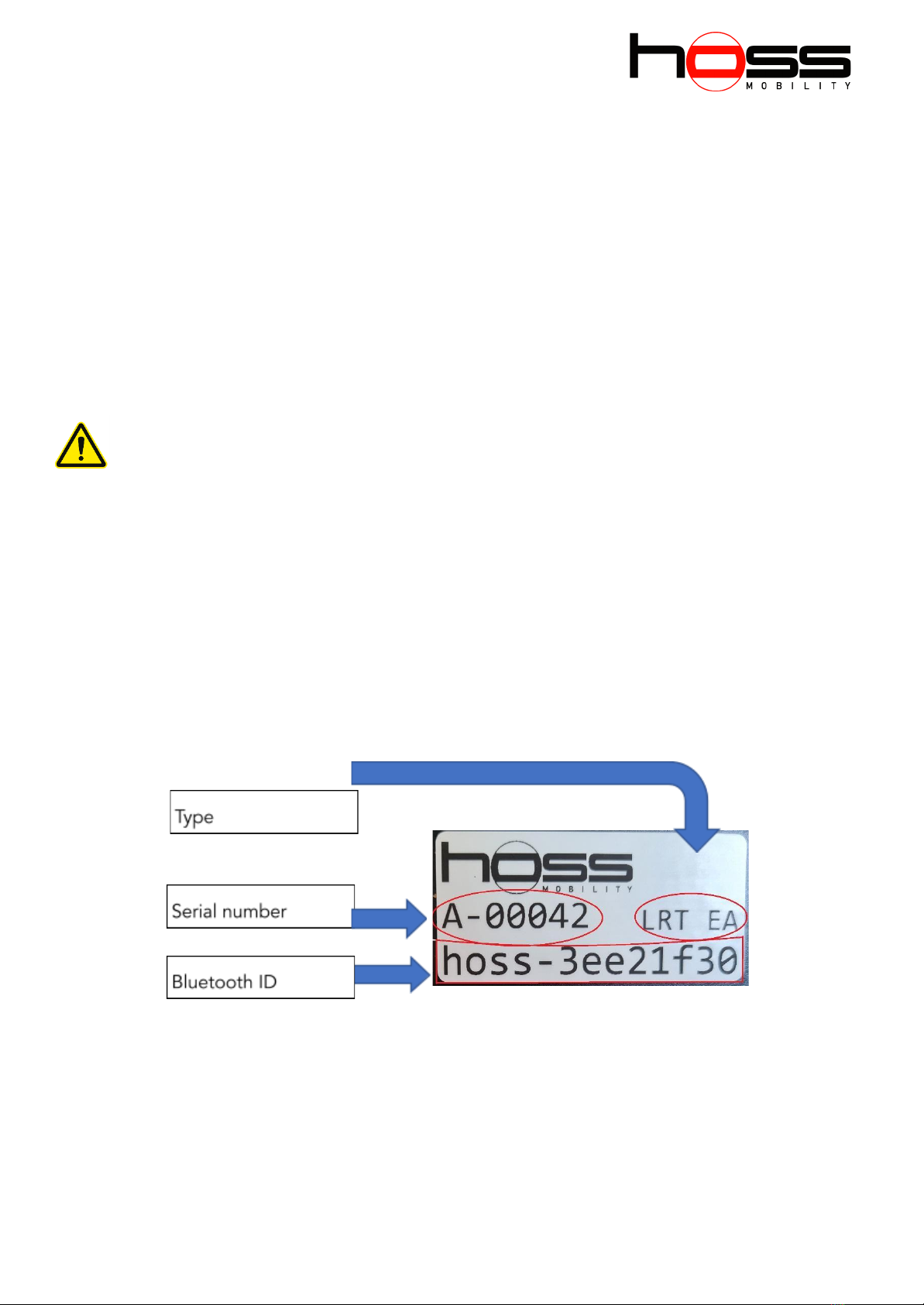

Stickers and notices affixed to the robot
The signs, symbols and notices attached to the hoss are part of the protective
devices. These must therefore never be covered or removed. They must be present
and clearly readable / recognizable during the entire service life of the hoss. Replace
or repair all illegible or damaged signs, symbols and notices immediately.
August 22; v1.3 www.hoss-mobility.com Page 8 | 81
August 22; v1.3 www.hoss-mobility.com Page 9 | 81
Speed
The hoss has a maximum speed of 15 km/h. As with all vehicles, you must adjust the
speed according to the situation. Especially in narrow places and also when driving
on slopes or curves it is necessary to reduce the speed. Always remember that you
have a longer braking distance when going downhill.
●Reduce speed to walking speed on steep inclines/declines or ramps!
●Use turtle mode if necessary!
●Drive no faster than walking speed in pedestrian zones.
●Drive with foresight: Always observe the necessary braking distance.
●Reduce speed on curves
Minimum distance
The special feature of the hoss is that it dynamically stabilizes itself. That is, it always
strives to keep the center of gravity on its axis. This is achieved by the hoss
constantly adjusting the angle (vertical axis). If you move forward, the hoss has to
take up some forward travel to counteract your center of gravity change. To do this,
the hoss must be able to move a bit at any time. Therefore, it is extremely important
that you always maintain the minimum distances to obstacles/people. When the
hoss is in balance mode, it can move within the safety distance at any time.
If it is not possible to maintain the
minimum distances, e.g.: when
driving through a doorway or in the
checkout area of a supermarket, steer
with special care and drive at
minimum speed.
August 22; v1.3 www.hoss-mobility.com Page 10 | 81
