For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

geappliances.com or call GE Answer Center®

service, 800.626.2000.

360430

Specification Revised 11/11

Listed by

Underwriters

Laboratories

DSKP333EC

GE Spacemaker® Portable Dryer

Dimensions and Installation Information (in inches)

Dryer Note:

Dryer wall outlet must be locted within 36" of service cord entry and accessible

when dryer is mounted in position.

100

120

140

OFF

EXTRA

DRY

OPTIMUM

REGULAR HEAT

cool down

cool

down

AU TO M AT I C CYCLE

NO HEAT

FL U F F C YCLE

PU SH TO STAR T

HIGH HEAT

PREFERRED SETTING

TI M E D C YCLE

DSKP333ECWW

33-1/4

24-1/2

23-7/8

Special Installation Requirements

Alcove or Closet Installation:

• If your dryer is approved for installation in an alcove or closet, it will be stated on

a label on the dryer back.

• The dryer MUST be exhausted to the outside.

• Minimum clearances between dryer cabinet and adjacent walls or other

surfaces are:

0" either side

3" front and rear

• Minimum vertical space from floor to overhead cabinets, ceilings, etc. is 52”.

• Closet doors must be louvered or otherwise ventilated and must contain a

minimum of 60 sq. in. of open area equally distributed. If this closet contains

both a washer and a dryer, doors must contain a minimum of 120 sq. in. of open

area equally distributed.

• No other fuel-burning appliance shall be installed in the same closet with

a gas dryer.

Bathroom or Bedroom Installation:

• The dryer MUST be exhausted to the outdoors.

• The installation must conform with the local codes, or in the absence of local

codes, with the National Electric Code and National Fuel Gas Code, ANSI Z223

for gas dryers.

Minimum Clearances other than Alcove or Closet Installation:

• Minimum clearances to combustible surfaces

0" both sides

3" rear

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

geappliances.com or call GE Answer Center®

service, 800.626.2000.

360430

Specification Revised 11/11

Listed by

Underwriters

Laboratories

DSKP333EC

GE Spacemaker® Portable Dryer

Dimensions and Installation Information (in inches)

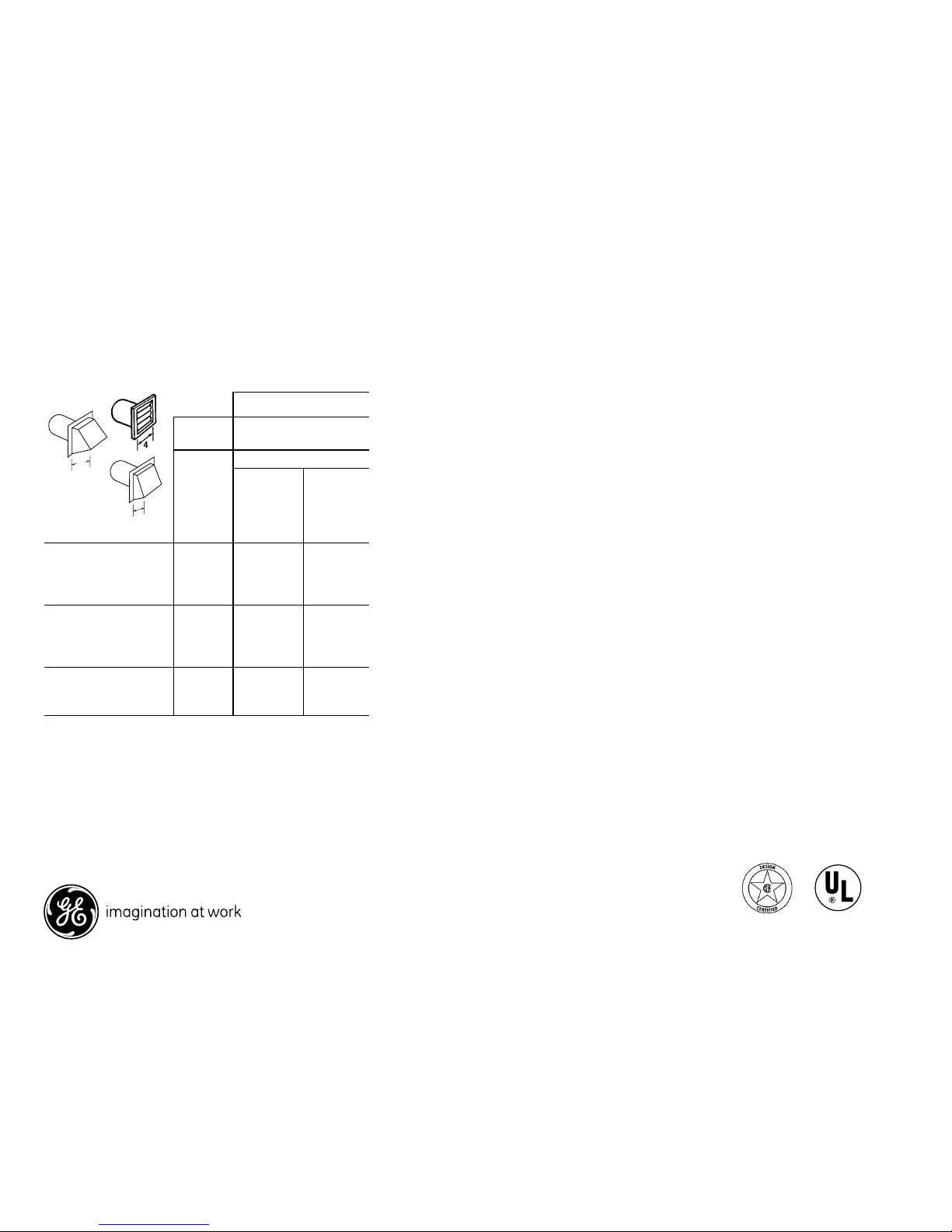

Best performance

Domestic

dryer models

Maximum length of 4"

dia. rigid metal duct

Number

90°

turns

Exhaust hood type

opening

2-1/2"

opening

DSKS433EB

DSKS333EC

DSKP333EC

WSM2780H

46 ft.

38 ft.

31 ft.

24 ft.

37 ft.

30 ft.

22 ft.

15 ft.

WSM2700H

56 ft.

46 ft.

34 ft.

32 ft.

42 ft.

36 ft.

28 ft.

18 ft.

WSM2420D*

WSM2480D*

43 ft.

33 ft.

23 ft.

36 ft.

26 ft.

16 ft.

2-1/2

*Foil ducting not allowed

For complete information, see installation instructions packed with your dryer.

Ducting Materials:

For best performance, this dryer should be vented with 4" diameter all rigid metal

exhaust duct. If rigid metal duct cannot be used, then UL-listed flexible metal

(semi-rigid) ducting can be used (Kit WX08X10077). In special installations, it may be

necessary to connect the dryer to the house vent using a flexible metal (foil-type)

duct. A UL-listed flexible metal (foil-type) duct may be used ONLY in installations

where rigid metal or flexible metal (semi-rigid) ducting cannot be used AND where a

4” diameter can be maintained throughout the entire length of the transition duct.

Please see installation instruction packed with your dryer for complete instructions

when using flexible metal (foil type) ducting.

Exhaust Length Calculation:

1. Determine the number of 90° turns needed for your installation. If you exhaust to

the side or bottom of dryer, add one turn.

2. The maximum length of 4' rigid (aluminum or galvanized) duct which can be

tolerated is shown in the table.

A turn of 45° or less may be ignored. Two 45° turns within the duct length should

be treated as a 90° elbow. A turn over 45° should be treated as a 90° elbow.

Dryers must be exhausted to the outside.

Caution: For personal safety do not terminate exhaust into a chimney, under any

enclosed house floor (crawl space), or into an attic, since the accumulated lint could

create a fire hazard or moisture could cause damage. Never terminate the exhaust

into a common duct or plenum with a kitchen exhaust, since the combination of lint

and grease could create a fire hazard.

Exhaust ducts should be terminated in a dampered wall cap to prevent back drafts,

bird nesting, etc. The wall cap must also be located at least 12" above the ground or

any other obstruction with the opening pointed down.

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

geappliances.com or call GE Answer Center®

service, 800.626.2000.

360430

Specification Revised 11/11

Listed by

Underwriters

Laboratories

DSKP333EC

GE Spacemaker® Portable Dryer

Features and Benefits

• 3.6 Cu. Ft. Capacity

• 3 Dry Cycles: Cottons – Automatic regular, timed dry

(150 mins.) and quick fluff (no heat) - 30 mins.

• 3 Heat Selections (Timer)

• DuraDrum™ Interior

• Quiet-By-Design™

• Portable Model

• ADA Compliant - Designed for easy operation and access

• Model DSKP333ECWW – White on white

100

120

140

OFF

EXTRA

DRY

OPTIMUM

REGULAR HEAT

cool down

cool

down

AU TO M AT I C C YCLE

NO HEAT

FL U F F C YCLE

PUS H TO STAR T

HIGH HEAT

PREFERRED SETTING

TI M E D C YCLE

DSKP333ECWW
