FREEZER - MODEL FZA30

INSTRUCTIONS FOR INSTALLATION & USE

GETTING STARTED:

To ensure that your freezer runs reliably and efficiently follow these steps.

Choose a location for your

freezer, away from any

heat sources and allow

adequate ventilation -

30mm (11/4inches)

gap above.

Level the freezer by

adjusting the front feet.

This will stop rocking or

vibration and keep the

door aligned.

Plug in and switch on.

Allow the freezer to cool

before placing food

inside.

The high temperature

light will stay on until the

freezer has cooled down.

All food in the freezer

should be covered.

Move the freezer into

position, using the sides

of the cabinet. Take care

to avoid damaging the

refrigerant circuit pipe

work on the rear.

Before plugging in and

switching on, leave the

freezer in its final

location for at least 15

minutes to allow it to

settle.

If you are freezing fresh

food, turn on fast freeze by

pressing the switch 24

hours before placing the

food inside.

Place the fresh food

inside.

Read the rest of these instructions to get the best from your appliance

and remember to fill in your guarantee registration.

Keep this Book in a safe place for quick reference.

STEP 1 STEP 2

STEP 3 STEP 4

STEP 5 STEP 6

SAFETY &

INSTALLATION CONTROLS USEFUL ADVICE

CLEANING &

MAINTENANCE

TROUBLESHOOTING

SERVICE &

GUARANTEE

Your freezer is now

working.

If after 24 hours your

freezer is not operating as

you want, refer to the

TROUBLESHOOTING

section.

STEP 7

NB.The spanner is for illustration

only and is not supplied with the

freezer.

Remember to turn fast freeze off

after 24 hours, however if you

forget to do so it will automatically

cancel after 48 hours.

For Your Safety

For your safety, read the following advice:

The freezer cooling system contains a small amount of gas which is environmentally

friendly but flammable. To avoid any risk :-

●Install the freezer following the installation instructions and ensure

that ventilation openings are kept clear of obstruction.

●Take care when installing or moving the freezer to avoid damaging

the pipes on the rear.

●If you suspect a leak, do not switch on the freezer, but open the

windows and doors to ventilate the room.

●Do not use any electrical devices inside the freezer, for instance for

defrosting.

●Do not use any mechanical devices for defrosting other than any which may

have been supplied with the freezer, as they may cause damage.

●Only use this freezer for storing domestic foodstuffs.

When installing your freezer :-

●Ensure that the mains cable is not trapped underneath or behind the freezer

when you install or move it.

●Do not stack any other appliance on top of this freezer as they may

damage the freezer or become unstable.

When using your freezer :-

●Do not sit or stand on top of your freezer.

●Do not store poisonous, flammable or dangerous substances in your freezer.

●Do not use aerosol sprays for defrosting or cleaning your freezer.

If you sell the freezer, pass on this booklet to the new owner.

SAFETY &

INSTALLATION

Installation

Location & Air Circulation

Locate your freezer away from sources of heat e.g.

cookers, radiators, direct sunlight as extreme temperature

will affect its performance.

Allow a minimum 30mm (11/4inches) between the top of

the freezer and the underside of the worktop.

Providing you follow the recommended ventilation requirements you will :-

●Prolong the life of the freezer.

●Minimise the risk of condensation on the outside of the freezer.

●Minimise the running costs.

●Minimise operating sounds caused by vibration.

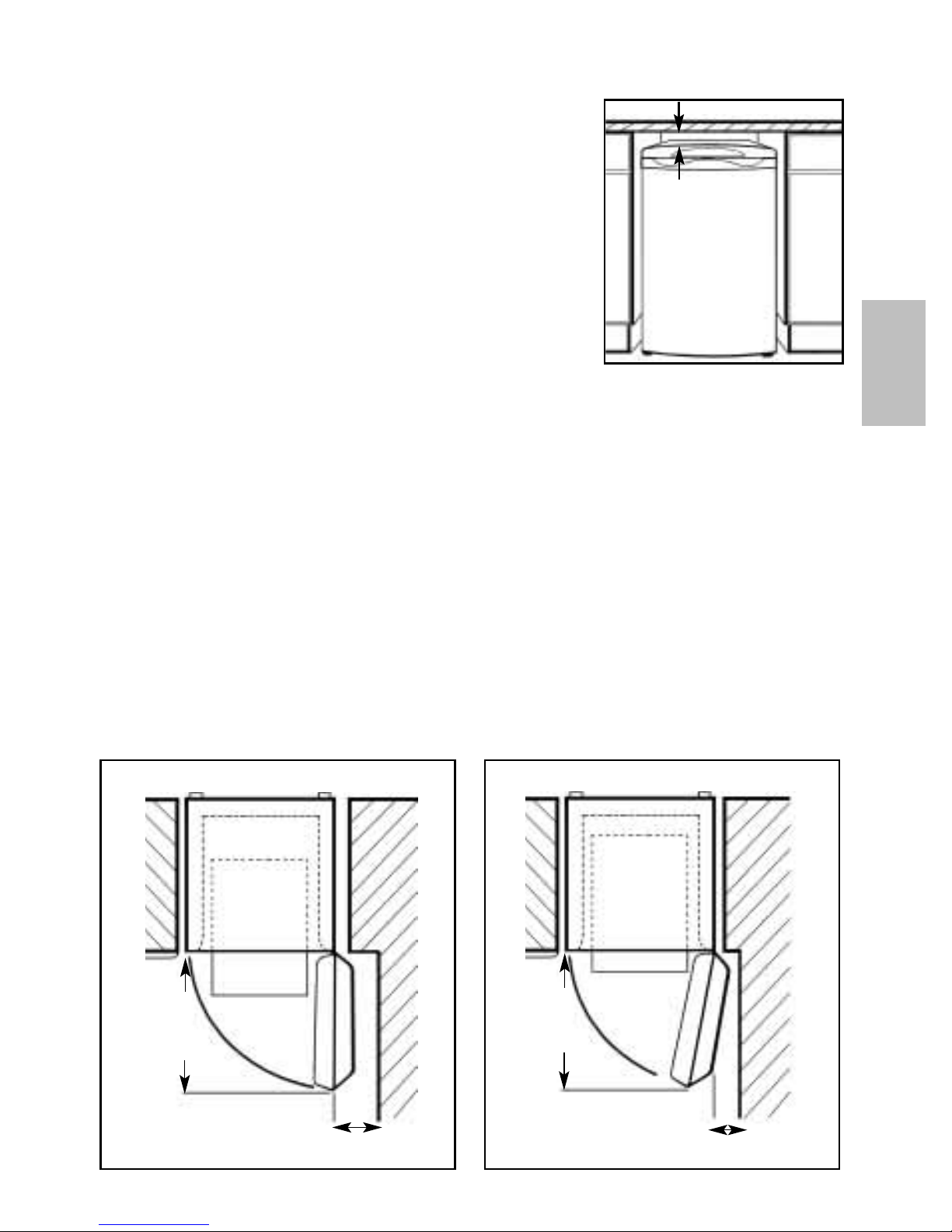

Minimum space required to open door

The freezer needs a space of 600mm (24 inches) in front to allow the door to

open.

When positioning the freezer next to a unit, a gap of 30mm (11/4inch) can be left

at the hinge side of the door to allow the easy removal of furniture. If preferred

the freezer can be positioned so that a gap is not left.This will restrict how far the

door can be opened but the furniture can still be removed (see diagrams below).

The door hinge side can be changed to make it easier to open (see ‘Door Reversal’

in the CLEANING & MAINTENANCE section).

SAFETY &

INSTALLATION

TOP VIEW TOP VIEW

less than 30mm

30mm or more

600mm

30mm (11/4inches)

Installation

Levelling:

Level the freezer when it is in its final location by adjusting the front feet, until firm

contact is made with the floor. This will stop rocking or vibration and keep the door

aligned which helps the freezer run reliably and efficiently.

Note: Before plugging in and switching on, leave the freezer standing in its

final location for at least 15 minutes to allow it to settle.

Fitting a Freezer under a Work Top

To minimise running costs Hotpoint recommend fitting a vent to the rear of your

worktop, which is available from Hotpoint Genuine Parts & Accessories Mail Order

Hotline (see KEY CONTACTS, back page).

WARNING: If there is less than 30mm (11/4inches) clearance above the freezer, a

Vent must be fitted to provide adequate ventilation above your freezer.

SAFETY &

INSTALLATION

Installation

Electrical Supply

WARNING: This appliance must be earthed.

The appliance must be positioned so that the plug is accessible after

installation.

Fuses

Your appliance comes fitted with a plug and a 13A fuse. If you need to replace the

fuse, only use those rated at 13A and ASTA approved to BS1362.

Changing the Plug

Cut off and dispose of the supplied plug if it does not fit your socket.

WARNING: To avoid a shock hazard do not insert the discarded plug into a socket

anywhere else.

IMPORTANT WIRES IN THE MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE

FOLLOWING CODE :

Green/Yellow - Earth

Blue - Neutral Brown - Live

If you change the plug, the colour of wires in the mains lead may not correspond with

the colour of the markings identifying terminals in the plug. You should therefore wire

it as shown above.

Changing the Mains Lead

This appliance is fitted with a special mains lead. If you need to replace the mains lead

due to damage or require a longer lead, one can be bought from Hotpoint Service (see

KEY CONTACTS, back page). It is strongly advised that this work is carried out by a

qualified electrician.

CE Marking certifies that this appliance conforms to the following EEC

directives : Low Voltage Equipment - 72/23/EEC & 93/68 EEC

Electromagnetic Compatibility 89/336/EEC, 92/31/EEC & 93/68/EEC

SAFETY &

INSTALLATION

Controls

Controlling the Temperature of the Freezer Compartment

The control wheel on the front panel adjusts the internal freezer temperature.

The internal freezer temperature should be -18˚C or colder.

The setting of the control wheel will depend on the location of the freezer, the room

temperature and how often the door is opened. The normal set point (marked by a 3

on the dial) is usually suitable. If you need to adjust the temperature turn the control

wheel using a coin to avoid damage:

Clockwise (higher number) - Colder

Anti-clockwise (lower number) - Warmer

You can check the temperature of the freezer compartment by using a Fridge Freezer

Thermometer available from Hotpoint Genuine Parts and Accessories Mail Order

Hotline (see KEY CONTACTS back page).

WARNING: Do not use a mercury filled thermometer, as breakage would cause a

health hazard.

Your freezer must NOT be placed in a room where the temperature goes below 6˚C or

above 32˚C for prolonged periods, as the internal freezer temperature will not be

maintained.

CONTROLS

Controls

Indicator Lights

Green Mains Light

The green mains light will stay on as long as the electricity supply is not interrupted.

Amber Fast Freeze Light

The amber fast freeze light indicates that the fast freeze button has been pressed on.

By pressing this button ON, the freezer motor will run continuously for extra cooling.

Red High Temperature Warning Light

The red temperature warning light will come on when the freezer is first switched on

or when the temperature inside the compartment rises above the correct storage

temperature. Check the TROUBLESHOOTING section before calling for advice. The

red light may come on for a short period when opening the freezer door to load or

unload food, in this case storage times will not be affected.

CONTROLS

Controls

CONTROLS

Fast Freeze Button - Freezing Fresh Food

The bottom compartment drawer should be used to freeze fresh food.

Transfer already frozen food to one of the upper drawers.

- Before loading 2kg or more of fresh food select fast freeze for the required

pre-freeze time (see chart below).

- If freezing up to 2kg of fresh food just select fast freeze when loading.

Once the fresh food is loaded leave fast freeze on for 24 hours to freeze the food as

quickly as possible.

Maximum freezing capacity in 24 hours: 8kg

Note : Don’t forget to turn fast freeze off after 24 hours from the introduction of

fresh food to be frozen.

However fast freeze will turn off automatically after 48 hours if you do forget.

Pre-Freeze chart when selecting Fast Freeze:

Load for freezing Pre-freeze time Load position

5 to 8kg 24 hours in the bottom drawer.

2 to 5kg 12 hours as above.

up to 2kg not required as above.

Useful Advice

Note:

The Rating Plate, which lists the appliance Model Number and Serial

Number can be found near the bottom of the interior wall.

Frozen Food Storage Capacity 25kg

Maximum Freezing Capacity in

24 hours 8kg

Maximum Conservation Time

from Failure 16 hours

USEFUL ADVICE

FAST FREEZE

Useful Advice

Making the best use of your Freezer

To ensure that your freezer operates as efficiently as possible :

●Follow food packaging “best before/use by” instructions or your suppliers

advice on a suitable maximum storage time.

●Keep foods tightly covered to retain moisture and prevent flavour/odour

transference. Plastic bags, aluminium foil, plastic stretch wrap and containers

with lids are ideal.

●Select chilled and frozen food last when shopping, transport in a ‘cool bag’

and place in freezer as soon as possible after arriving home.

●Avoid opening the door unnecessarily or for longer than needed.

●Allow hot or warm food to cool down in covered containers before placing in

the freezer, as placing hot food inside reduces efficiency.

●Prepare fresh foods for freezing in small quantities to ensure that the food

freezes quickly and so that its quality does not deteriorate.

●Ensure that packets/containers of food are dry before freezing otherwise

they may freeze together.

USEFUL ADVICE

How Frost Free works

The frost free system completely eliminates the need for defrosting.

A fan circulates air around the freezer. This helps to remove moisture from the

compartment, therefore preventing the build up of ice.

It is normal to hear the fan when the freezer is cooling.

Additional benefits of the frost free system include:

●More even temperatures throughout the freezer.

●Faster cooling times.

Inhaltsverzeichnis

Andere Hotpoint Gefrierschrank Handbücher

Hotpoint

Hotpoint HZ1422.1 Bedienungsanleitung

Hotpoint

Hotpoint 8792 Bedienungsanleitung

Hotpoint

Hotpoint HUZ121 Bedienungsanleitung

Hotpoint

Hotpoint RC17 Betriebsanleitung

Hotpoint

Hotpoint FF175B Bedienungsanleitung

Hotpoint

Hotpoint FZ 90 Bedienungsanleitung

Hotpoint

Hotpoint HUZ3022NFI Bedienungsanleitung

Hotpoint

Hotpoint RC10 Bedienungsanleitung

Hotpoint

Hotpoint RCAA 53 P and use Betriebsanleitung

Hotpoint

Hotpoint FZ150P Bedienungsanleitung

Hotpoint

Hotpoint RC15P Bedienungsanleitung

Hotpoint

Hotpoint FF200TP Bedienungsanleitung

Hotpoint

Hotpoint SMP8D2ZXH Installations- und Betriebshandbuch

Hotpoint

Hotpoint MSZ900DFUK Bedienungs- und Montageanleitung

Hotpoint

Hotpoint HCM4SMWW Betriebsanleitung

Hotpoint

Hotpoint RZA34 Bedienungsanleitung

Hotpoint

Hotpoint FZA34 Bedienungsanleitung

Hotpoint

Hotpoint UPAH 1832 F Bedienungsanleitung

Hotpoint

Hotpoint FZS175X Bedienungsanleitung

Hotpoint

Hotpoint SXBD922FWDUK Bedienungsanleitung

Hotpoint

Hotpoint RZA 21 Bedienungsanleitung

Hotpoint

Hotpoint RC51 Bedienungsanleitung

Hotpoint

Hotpoint HHM5SRWW Betriebsanleitung

Hotpoint

Hotpoint 8795 Bedienungsanleitung

Beliebte Gefrierschrank Handbücher anderer Marken

Siemens

Siemens GU..D SERIES Bedienungsanleitung

Omcan

Omcan FR-CN-0155 Bedienungsanleitung

Beko

Beko FNE290E24W Bedienungsanleitung

Electrolux

Electrolux ARCTIS G 8 60 50-6I Bedienungsanleitung

Electrolux

Electrolux EUF2042AOX Bedienungsanleitung

Dometic

Dometic CoolFreeze CFX95DZ Bedienungsanleitung

Electrolux

Electrolux EUF7000W1 Bedienungsanleitung

Polar Electro

Polar Electro CT330 Bedienungsanleitung

MPM

MPM MPM-145-SK Series Bedienungsanleitung

SAF

SAF PRESTOTIG 200AC/DC Kurzanleitung

Zanussi

Zanussi ZFT11407WA Bedienungsanleitung

AEG

AEG A63190GT Bedienungsanleitung

AEG

AEG A81000TNW0 Bedienungsanleitung

Matsui

Matsui MUC50S15E Bedienungsanleitung

NEFF

NEFF G4344X8 Bedienungsanleitung

Frigidaire

Frigidaire FV 1246 H Bedienungsanleitung

Frigidaire

Frigidaire FFC13K1AW Bedienungsanleitung

Electrolux

Electrolux EU 2400C Bedienungsanleitung
