Hotpoint RB530WCWW Service-Handbuch

Specification Revised 6/00

RB530WCWW—Hotpoint 5.0 Cu. Ft. Free-Standing Electric Range

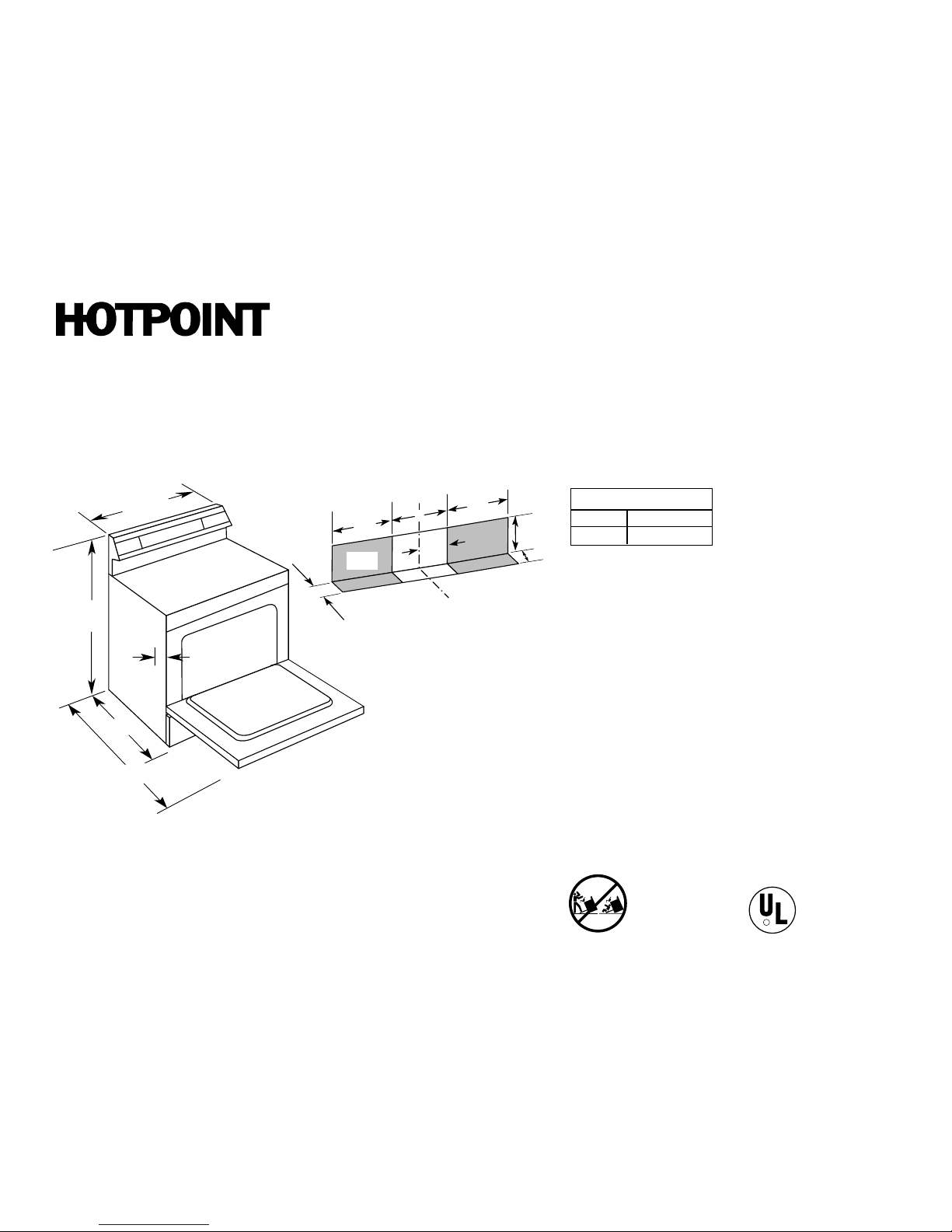

Dimensions (in inches)

Listed by

Underwriters

Laboratories

All GE ranges are equipped with

an Anti-Tip device. The installation

of this device is an important,

required step in the installation

of the range.

26-3/8*

46-3/8

29-7/8

46-1/2

1/4†

Receptacle Locations: For 30" Free-Standing Ranges locally approved

flexible service cord or conduit must be used because terminals are

not accessible after range installation. See shaded area in drawing for

location of electrical outlet box. Recommended outlet locations allow

range to be installed directly against rear wall.

Note: 30" Ranges conform to U.L. requirements for 0" spacing from

adjacent walls above countertops. However, some kitchen cabinet

finishes can be damaged by heat from the range heating elements. It

is recommended that a clearance of at least 1-1/2" be maintained to

walls. Where varnished wood or plastic film finishes are used, a minimum

clearance of 6" should be maintained.

Installation Information: Before installing, consult installation

instructions packed with product for current dimensional data.

CENTER LINE

2-1/4

7-1/2

2-1/4

3-1/2

REAR

WALL

*Dimensions from wall to front of closed oven door.

Dimensions from wall to front of closed oven door handle

is 28-1/2”.

†The range may be placed with a 0” clearance (flush) at the

back walls if the range side trims extend beyond the cabinet

fronts at least 1/4”.

Self-Clean models only.

KW Rating

240V 12.6

208V 9.9

Specification Revised 6/00

RB530WCWW—Hotpoint 5.0 Cu. Ft. Free-Standing Electric Range

FRONT

REAR

FRONT

OVEN

CYCLE

SURFACE

UNITS

OFF

MED

OFF

MED

OFF

MED

OFF

MED

TIMER

ON/OFF

CLOCK

OVENTEMP

Features and Benefits

• Super Large 5.0 cu. ft. Oven Capacity

• Upswept Porcelain-Enameled Cooktop

• Two 8" and Two 6" Plug-In Calrod®Heating Elements

• Electronic Clock and Kitchen Timer

• Standard Clean Oven

• Chrome Removable One-Piece Drip Bowls

• 2 Oven Shelves

• Interior Oven Light

• Surface Element “On” Light

• Oven “On” Light

• Frameless Glass Oven Door With Window

• Designer Style Handle

• Storage Drawer

• Model RB530WCWW - White on white
