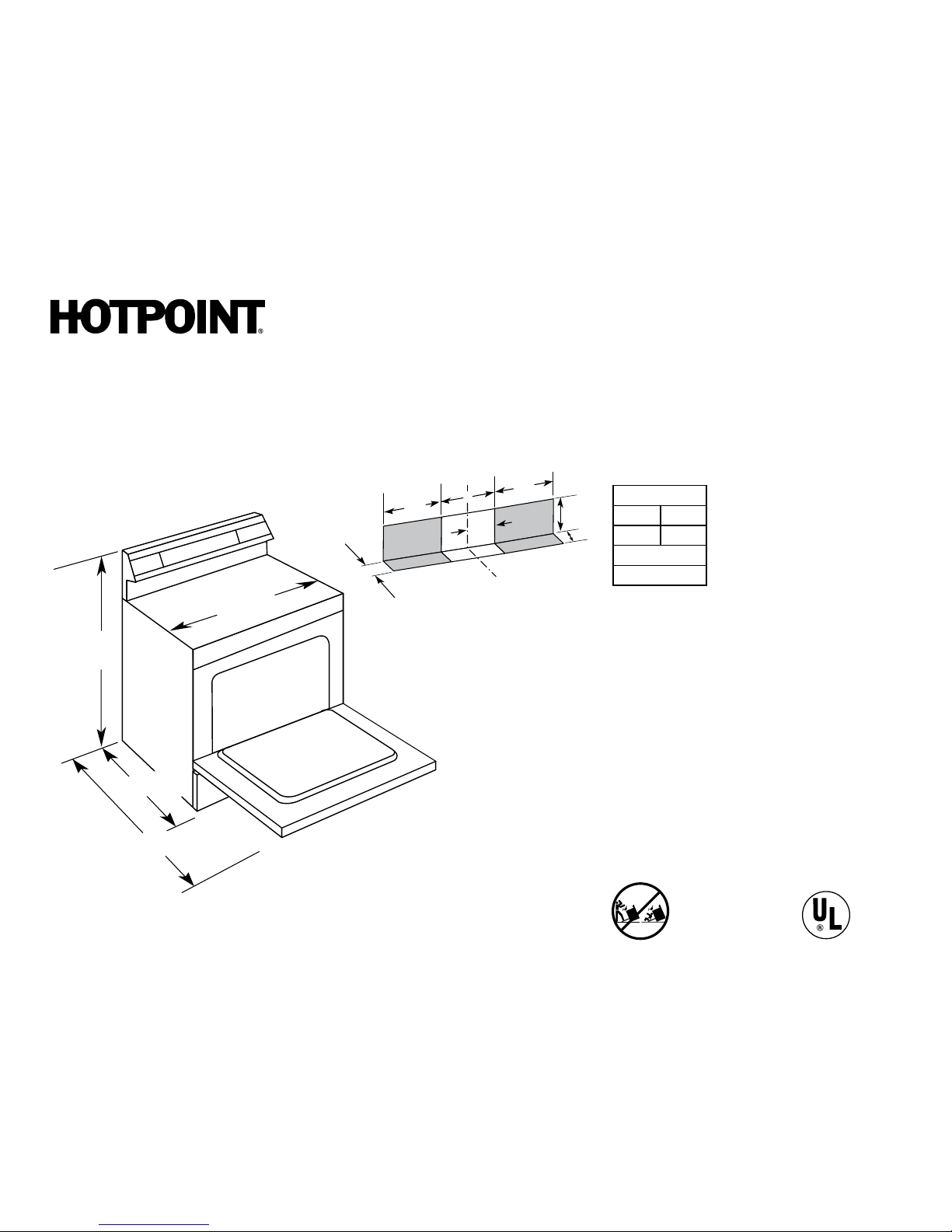

Hotpoint RB790SRSA Gebrauchsanweisung

26-3/8*

46-3/8

29-7/8

46-7/8

CENTER LINE

2-1/4

7-1/2

2-1/4

3-1/2

REAR

WALL

*Depth from wall

to front of closed

oven door.

Dimensions (in inches)

Listed by

Underwriters

Laboratories

†Note: Check local codes for required breaker size.

Effective January 1, 1996, the National Electrical Code requires

that new construction (not existing) utilize a 4-conductor

connection to an electric range.

Note: 30" Electric Ranges conform to U.L. requirements for

0" spacing from walls below countertops. Allow 1-1/2" spacing

from the side of the range to adjacent vertical walls above the

cooktop surface.

Receptacle Locations: Locally approved flexible service cord

or conduit must be used because terminals are not accessible

after range installation. See shaded area in drawing for location

of electrical outlet box. Recommended outlet locations allow

range to be installed directly against rear wall.

Installation Information: Before installing, consult installation

instructions packed with product for current dimensional data.

*Dimension from wall to front of closed oven door.

Dimension from wall to the front of closed oven

door handle is 28-1/2".

†The range may be placed with

0" clearance (flush) at the back

wall and side walls if the range

side trims extend beyond the

cabinet fronts at least 1/4".

Self-Clean models only

Amp Rating

240V 11.8

208V 8.7

Breaker Size

40 Amps†

All Hotpoint ranges are equipped

with an Anti-Tip device. The

installation of this device is an

important, required step in the

installation of the range.

26-3/8*

46-3/8

1/4†

29-7/8

46-1/2

CENTER LINE

2-1/4

7-1/2

2-1/4

3-1/2

REAR

WALL

RB790SR– Hotpoint 30" Free-Standing Electric Range

Specification Created 9/10

420415

Features and Benefits

• Self-Clean Oven - Conveniently cleans the oven cavity without the need for scrubbing

• Ceramic Glass Cooktop - A smooth cooktop surface makes cleaning quick and easy

• 6”/9” Dual Element - Choose a 6” or 9” heating element to accommodate the size of your pan

• Super-Large Oven Capacity - Provides an impressively large oven interior for cooking

more dishes and large meals at one time

• Electronic Oven Controls - One-touch electronic pads are easy-to-use and allow

for simple oven operation

• Hidden Bake Oven Interior - Conceals the lower oven bake element to eliminate hard-to-reach

areas that collect food and spills for easy cleaning

• Hot Surface Indicator Lights - Cooktop lights let you know when the surface is hot

• Model RB790SRSA – Silver metallic

RB790SR– Hotpoint 30" Free-Standing Electric Range

Specification Created 9/10

420415

RB790SRSA
