COOKER HOOD

USER HANDBOOK FOR

INSTALLATION AND OPERATION

MODEL HTN40

Using your new Cooker Hood is very simple. Nevertheless, to get the best results it is

important that you read this handbook thoroughly before installing and using your

appliance for the first time.

Electrical Requirements

Any permanent electrical installation must comply with the latest I.E.E. Regulations and

local electricity company regulations. For your own safety, this should be undertaken by a

qualified electrician eg. your local electricity company or a contractor who is on the roll of

the National Inspection Council for Electrical Installation Contracting (NICEIC).

Please ensure that when the appliance is installed it is easily accessible for the engineer

in the event of a breakdown.

INCORRECT INSTALLATION COULD AFFECT THE SAFETY OF THE APPLIANCE

If the Cooker Hood is permanently wired in, it must be via a suitable double pole isolating

switch placed in a readily accessible position adjacent to the unit.

Electrical Connection

Before connecting to the mains supply ensure that the mains voltage corresponds to the

voltage on the rating plate, inside the Cooker Hood.

WARNING:THIS APPLIANCE MUST NOTBE EARTHED!

It is fitted with a 2 core mains supply cable and must be permanently connected to the

electricity supply via a double pole switch having 3mm minimum contact gap on each

pole. A Switched Fuse Connection Unit to BS 1363 Part 4, is a recommended mains supply

connection accessory to ensure compliance with the Safety Requirements applicable to

fixed wiring instructions.

DISCONNECT THE COOKER HOOD FROM THE MAINS SUPPLY BEFORE CARRYING OUT ANY

KIND OF MAINTENANCE OR CLEANING.

WARNING:

CHILDREN SHOULD NOT BE ALLOWED TO PLAY WITH THE APPLIANCE OR TAMPER WITH

THE CONTROLS.

CE marking certifies that this appliance conforms to the following EEC directives:-

Low Voltage Equipment - 72/23/EEC

Electromagnetic Compatibility - 89/336/EEC

Your new Cooker Hood

Contents Page

Electrical Requirements 2

Get to know your Cooker Hood 4

Installing your Cooker Hood 5-9

Installation for Recirculation

Installation for Extraction

Mounting Height

Mounting between Cabinets

Fitting the Decor Panel

Operating your Cooker Hood 10

The Controls

Do’s and Don’ts

Caring for your Cooker Hood 11-12

Filters and their Replacement

Cleaning

How to Replace the Light

Troubleshooting 13

Key Contacts Back Cover

Appliance manufactured in EU.

Retention of the Instruction Book

This Instruction Book must be kept handy for reference as it contains important details on the

safe and proper use of the appliance.

If you sell or pass the appliance to someone else,or move house and leave it behind,make sure

this Book is also provided so the new owner can become familiar with the appliance and safety

warnings.

If the book is lost or damaged a copy may be obtained from:

GDA Ltd.,Morley Way, Peterborough,PE2 9JB

Get to know your Cooker Hood.

Unpacking

Before installation, ensure that you have removed all packing pieces.

Dimensions

Height 400mm (153/4in)

Width 600mm (235/8in)

Depth adjustable from: 270mm (105/8in) up to 460mm (18in),

excluding the decor panel thickness.

Filter Grille

All measurements are in millimetres.

Light

Controls

Door support

Fitted Door

(not supplied

Grille release

Installing your Cooker Hood

Your new Cooker Hood can be installed either

for recirculation or extraction through an

outside wall. (All fitting supplied)

Installation for Recirculation:

If it is not possible to exhaust to the outside,

the hood can be used to filter and recirculate

the air (Fig.1).

Your hood can be fitted with a carbon filter

(optional extra) to remove odours (for fitting,

see page 11).

The carbon (charcoal) filter can then be fitted.

NOTE: The hood is more efficient in the

exhaust mode, therefore this position

should be selected during the warmer

months of the year when no heating is

being used. When the room is being

heated, if the recirculation position is

selected heat will not be wasted.

To obtain the best performance it is

advisable to switch on the hood a few

minutes before you start cooking and leave

it running approximately 15 minutes after

finishing.

Installation for Extraction:

This method is recommended if at all possible.

Fumes and grease laden air are drawn into the

underside of the hood and expelled outside

the kitchen. The air can be expelled either

upwards through a ventilating shaft (Fig.2) or

directly through a wall to the outside (Fig.3).

Ducting will be required if the Cooker Hood is

mounted away from the outside vent.

IMPORTANT: The exhaust air must not be

expelled through a smoke or waste-gas

chimney which is in use or through a shaft

used for ventilating rooms or into the

cavity of a cavity wall.

If the room contains a flued fuel burning

appliance, such as a gas or oil fired central

heating boiler, which is not of the ‘Balanced

Flue’ type, you should make sure that there

is adequate air inlet into the room at all

times so that fumes from the boiler are not

drawn back into the room by the Cooker

Hood.

NOTE: All installations must comply with

local authorities and building regulation

requirements for the discharge of exhaust

air into the atmosphere.

Fig.1

Fig.2 Fig.3

Installing your Cooker Hood

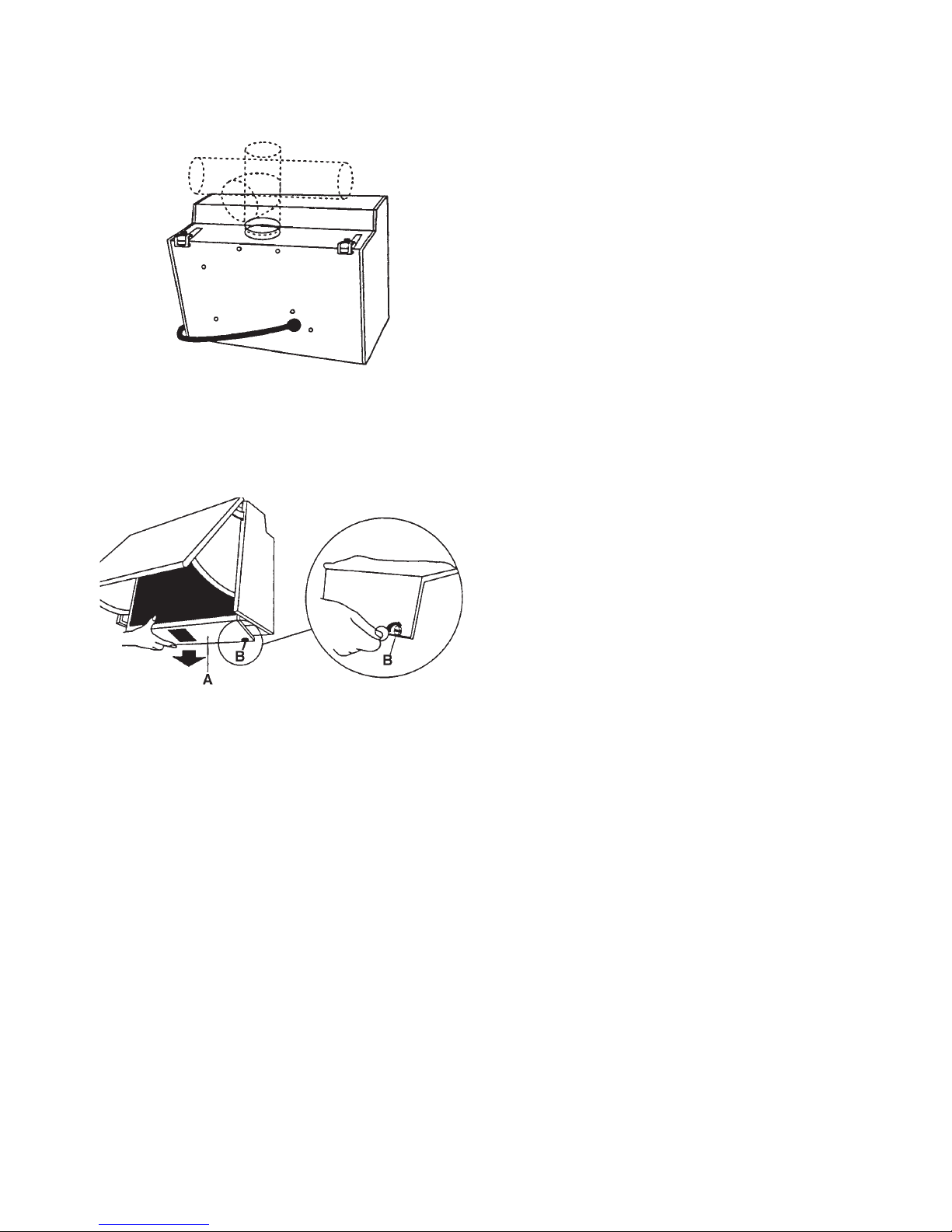

Top or Rear Extraction

Connect the ducting material onto the flange:

blank off the aperture which is not required.

The charcoal filter is not required when the

hood is installed in the ducting cycle.

To remove the grille turn the locks (Fig.5 B)

and pull the grille out and downwards.

Ducting:

In order to obtain satisfactory air extraction,

long ducts should not be used. Exhaust pipes

with as smooth an inner wall as possible are

recommended. The ducting MUST be

manufactured from a fire retardant material.

Wall Vent Kit:

For connecting the Hood either directly

through a wall or in conjunction with a

ducting pipe, we recommend the use of a

Wall Vent Kit. A 3m extension pipe is also

available. These may be obtained from your

nearest retailer or the Genuine Parts and

Accessories Mail Order Hotline (see back

cover) and must be used where there is a

cavity wall. Specific installation instructions

are included with the Wall Vent Kit.

NOTE:The Wall Vent Kit has a diameter of

100mm.

Fig.4

Fig.5

Installing your Cooker Hood

MOUNTING

Your Cooker Hood is designed to fit between

two wall cupboards 600mm apart and to take

a door panel measuring 400mm (min) to

600mm (max) in height, to match the adjacent

cupboards,

Mounting Height:

The bottom of the hood should be no less

than 650mm above an electric hob,

750mm above a gas hob or mixed fuel cooker,

400-450mm above a high level grill/top oven.

For the best results, the hood should be

mounted as near as possible to the minimum

recommended height.

WARNING: The fan motor of this appliance

incorporates a thermal cut-out device

which will operate if the hood is installed

below the minimum recommended heights

listed above, or if the motor becomes over-

heated. If the cut-out device is activated,

switch off the fan motor and allow the

hood to cool.

The cut-out device will reset itself when the

fan motor has cooled significantly.

NOTE: This hood has been designed and

approved for installation over an electric

hob with a maximum input of 7kW or a gas

hob with a maximum input of 10kW when

fitted in accordance with the heights

recommended above.

Mounting between cabinets on the Wall:

The hood may be fixed to any rigid vertical

surface. If the hood can only be fixed to a

hollow construction plaster or partition board

structure, then the wall must be sufficiently

reinforced to enable the hood to be fixed

securely in position.

Ensure that the cupboard is securely fixed to

the wall, then proceed as follows:

Place the template provided on the wall

between the cupboards and drill the holes

indicated.

Place the wall plugs provided into the drilled

holes (Fig.6).

In cases where the wall plugs provided are

not suitable for the type of wall ie.plaster

board or cavity, appropriate fittings should be

obtained.

Adjust the position of the upper brackets

(Fig.7 B). Fit the hood to the hooks by means

of the two brackets B. Ensure that the hood is

at the right height, the height of the hood can

be adjusted with the help of the screws

(Fig.7 S).

The hood can be fitted to the cupboards as

detailed under the heading ‘Fitting the Hood

to the Cupboards’.

in the event that the side cupboards are

considered to be inadequate to support the

weight of the hood, the hood should be fixed

to the wall as well as to the side of the

cupboards.

Fig.6

Fig.7

Installing your Cooker Hood

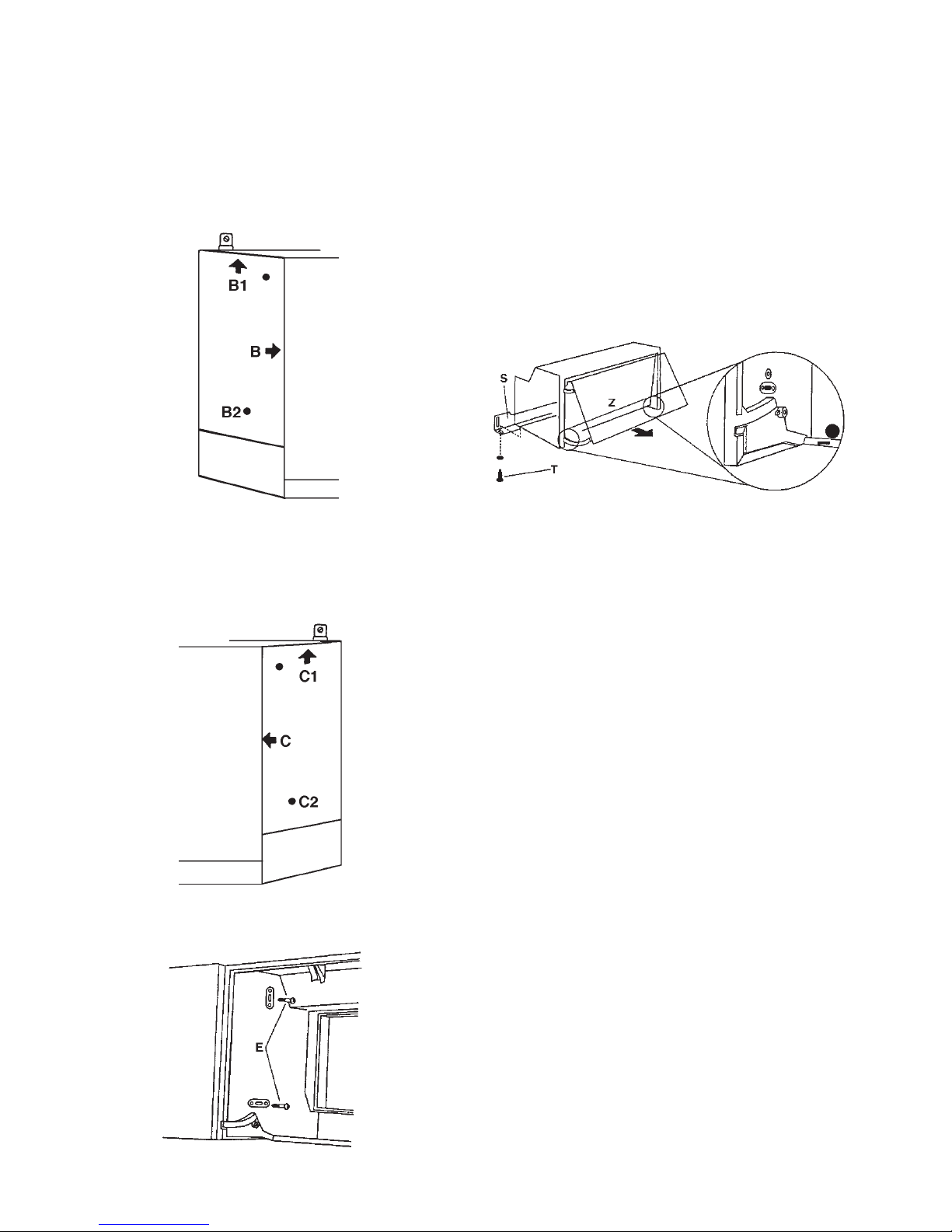

Fixing the Hood to the Cupboards:

Place the template on the side of the right

cupboard, so that the letter B aligns with the

front part of the cupboard (disregard the

thickness of the door) and drill two holes

2.5mm diameter at points B1 and B2 (Fig. 8).

Place the same template on the side of the

left cupboard ensuring that side C aligns with

the front part of the cupboard (disregard the

thickness of the door) and drill two holes

2.5mm diameter at the point C1 and C2

(Fig.9).

Fit the hood to the cupboard by means of the

screws (Fig.10 E).

Replace the visor with decor panel, inserting it

first in the upper slides and then in the lower

slides. Turn the rear locking knobs anti-clock-

wise until it stops and then mount the grille

by lifting it up - pushing inwards and turn the

locks to secure.

Once the Hood has been fixed, if the cup-

boards are deeper than the hood, mount

spacer (Fig.11 S) and secure it with the two

screws Fig.11 T) 3.5 x 13 and washers on

the back of the hood.

The spacer is reversible to cover a gap from 1

to 4cm.

Fig.8

Fig.11

Fig.10

Fig.9

Installing your Cooker Hood

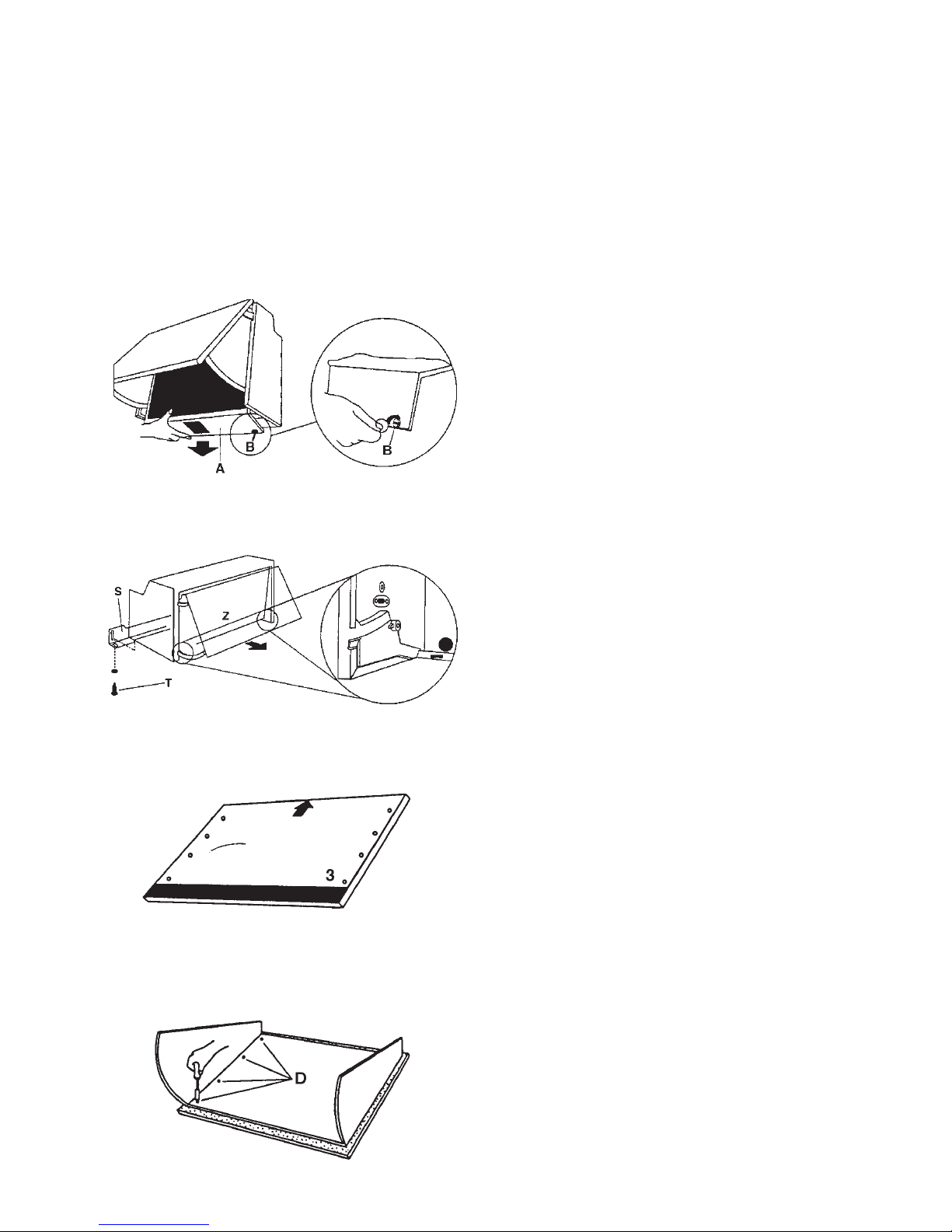

Fitting the Decor Panel:

The hood is designed to be fully integrated

into the kitchen by fitting a decor panel onto

the visor to match the adjoining kitchen

cabinets.

To fit the decor panel remove the complete

visor assembly from the hood.

First open grille (Fig.12 A) turning the locks

(Fig.12 B).

Remove the visor by first turning the two

locking knobs (Fig.13) in clockwise direction.

Place the template supplied on the rear side

of the decor panel, ensuring that the arrow

aligns the upper edge of the panel (Fig.14).

Drill the holes where indicated on the tem-

plate and fit the door to the decor panel by

means of screws (Fig.15 D).

Fig.12

Fig.13

Fig.14

Fig.15

Operating your Cooker Hood

Do’s and Don’ts

The Controls

Do take extra care when frying.

Do keep the heating areas on your hob

covered over with pots and pans etc.

when using the hob or Cooker Hood

switch (especially if you are using a gas

hob).

Do make sure that there is an adequate air

inlet into the room if you are using the

hood to vent externally and have a boiler

or fire in the room, so that fumes are not

drawn back from the flue.

DON’T

Don’t use the hood without the grease

filter.

Don’t leave a naked flame under the hood.

Don’t leave cooker/hob hotplates ‘On’

when not covered, as the fan motor

of this cooker hood incorporates a

thermal cut-out device which will

operate if the hood overheats. The

fan motor will take approximately 20

minutes to automatically reset at

which point the hood will resume

normal functions.

NEVER do flambé cooking beneath this

cooker hood.

NEVER leave frying pans or deep fat fryers

unattended during use, overheated

fat/oil may catch fire.

Make sure that the Cooker Hood is wired in

and the power supply is switched on.

The Cooker Hood functions are controlled by

two slide switches located on the right hand

side behind the visor.

Fan Speed

The top slider enables you to select the fan

speed.

Position 1, should be selected when

simmering or using only one pan.

Position 2 for normal cooking,up to four pans.

Position 3 when frying or cooking foods with

strong odours.

Work Top Illumination

The lower slider (ON/OFF) enables you to

switch on the work top illumination.

The concealed microswitch acts as an override

and will switch the Hood‘OFF’ when the visor

panel is closed. When the visor panel is

opened the hood will resume working at its

previous setting.

To obtain the best performance, it is advisable

to switch on the hood a few minutes before

you start cooking and leave it running for

approximately 15 minutes after finishing.

Inhaltsverzeichnis

Andere Hotpoint Dunstabzugshaube Handbücher

Hotpoint

Hotpoint LI2JDA Bedienungsanleitung

Hotpoint

Hotpoint PHBS 9.8C LTD K Bedienungsanleitung

Hotpoint

Hotpoint HXT4X Bedienungsanleitung

Hotpoint

Hotpoint HHBS 6.5F AM X Bedienungsanleitung

Hotpoint

Hotpoint RN328HSA Handbuch

Hotpoint

Hotpoint kitchen think HTC92X Bedienungsanleitung

Hotpoint

Hotpoint HHC6.7AB Bedienungsanleitung

Hotpoint

Hotpoint HSFX.1 Bedienungs- und Montageanleitung

Hotpoint

Hotpoint HDI 93 X Bedienungsanleitung

Hotpoint

Hotpoint BHCA66741BBHS Bedienungsanleitung

Hotpoint

Hotpoint PSLCSE 65F AS X Bedienungsanleitung

Hotpoint

Hotpoint Creda LI2I3A Bedienungsanleitung

Hotpoint

Hotpoint HXQB 9.8LTI Bedienungsanleitung

Hotpoint

Hotpoint PHBG 9.8 LTSI X Bedienungsanleitung

Hotpoint

Hotpoint HPTF 62HS X Bedienungsanleitung

Hotpoint

Hotpoint PHBS9.8CLTDK Bedienungsanleitung

Hotpoint

Hotpoint HD90X Bedienungsanleitung

Hotpoint

Hotpoint kitchen think HDF92X Instructions for and... Bedienungsanleitung

Hotpoint

Hotpoint HXB6X Bedienungsanleitung

Hotpoint

Hotpoint kitchen think HSD92 I Instructions for and... Bedienungsanleitung

Hotpoint

Hotpoint PHBS6.7FLLIX Bedienungsanleitung

Hotpoint

Hotpoint HLB 9.5S AT(ICE)/HA Bedienungsanleitung

Hotpoint

Hotpoint HTN41 Bedienungsanleitung

Hotpoint

Hotpoint HHB6.7AD Bedienungsanleitung

Beliebte Dunstabzugshaube Handbücher anderer Marken

emmeti

emmeti RECUPA MED A-140 Leitfaden

Nibe

Nibe F135 Bedienungsanleitung

Kuppersberg

Kuppersberg INTRO 60 Montage- und Wartungsanleitung

Zephyr

Zephyr Spruce AK9834BS Installationsanleitung

Hisense

Hisense MH6INBG Bedienungsanleitung

Miele

Miele DA 1255 Bedienungsanleitung

Broan

Broan 46000 Bedienungsanleitung

GE Profile PV977 Originalbetriebsanleitung

FALMEC

FALMEC FFRIA24W5FS Bedienungsanleitung

Whirlpool

Whirlpool RH2600XL-1 SERIES Bedienungsanleitung

Küppersbusch

Küppersbusch DX ISLA Bedienungsanleitung

ETNA

ETNA AV360RVS Bedienungsanleitung

JUNO

JUNO JDF603E6 Bedienungsanleitung

Miele

Miele DA 6708 D Bedienungsanleitung

Tricity Bendix

Tricity Bendix LE 150 Handbuch

AEG

AEG X68163BV1 Bedienungsanleitung

AEG

AEG 125 D Bedienungsanleitung

Smeg

Smeg KSEV97X Bedienungsanleitung
