Quick Installation Guide

Hybrid Inverter

HYS-3.6LV-EUG1/AUG1

HYS-4.6LV-EUG1/AUG1

HYS-5.0LV-EUG1/AUG1

HYS-6.0LV-EUG1/AUG1

hoymiles.comRegion: Global REV1.3

HYS-3.0LV-EUG1/AUG1

1 General Declaration

• The information in this quick installation guide is subject to change due to product updates or other reasons.

• This guide cannot replace the product labels or the safety precautions in the user manual unless otherwise

specified. All descriptions here are for guidance only.

• Before installations, read through the quick installation guide and the user manual to learn about the product

and the precautions.

• All installations should be performed by trained and knowledgeable technicians who are familiar with local

standards and safety regulations.

• Check the deliverables for correct model, complete contents, and intact appearance. Contact the manufacturer

if any damage is found or any component is missing.

• Use insulating tools and wear personal protective equipment when operating the equipment to ensure

personal safety. Wear anti-static gloves, clothes, and wrist strip when touching electron devices to protect the

inverter from damage. The manufacturer shall not be liable for any damage caused by static electricity.

• Strictly follow the installation, operation, and configuration instructions in this guide and user manual. The

manufacturer shall not be liable for equipment damage or personal injury if you do not follow the instructions.

Hybrid Inverter Quick Installation Guide

2 Packing List

Inverter*1

Bracket*1 Communication Box*1

Double Row Plug*1 Document*1

EPS Connector*1

Grid Connector*1

Generator Connector*1

M6 Expansion Screw*4

Sleeve*4 Ground Terminal*1

M4 Setscrew*1

DTS*1

Accessories packing list

M3 Setscrew*6 Communication

Terminal*12 AC Terminal*9

Smart Meter*1 CT*1 Battery Temperature Sensor*1

PV Connector(+)*2

PV Connector(-)*2

Battery Connector(+)*1

Battery Connector(-)*1

Optional (Wi-Fi, Ethernet, 4G)

• All cables in this article are copper cables.

Hybrid Inverter Quick Installation Guide

3 Mounting the Inverter

4 5

Hybrid Inverter Quick Installation Guide

≥300 mm

≥200 mm

≥300 mm

≥200 mm

≥500 mm ≥15°

175 mm 75 mm

65 mm

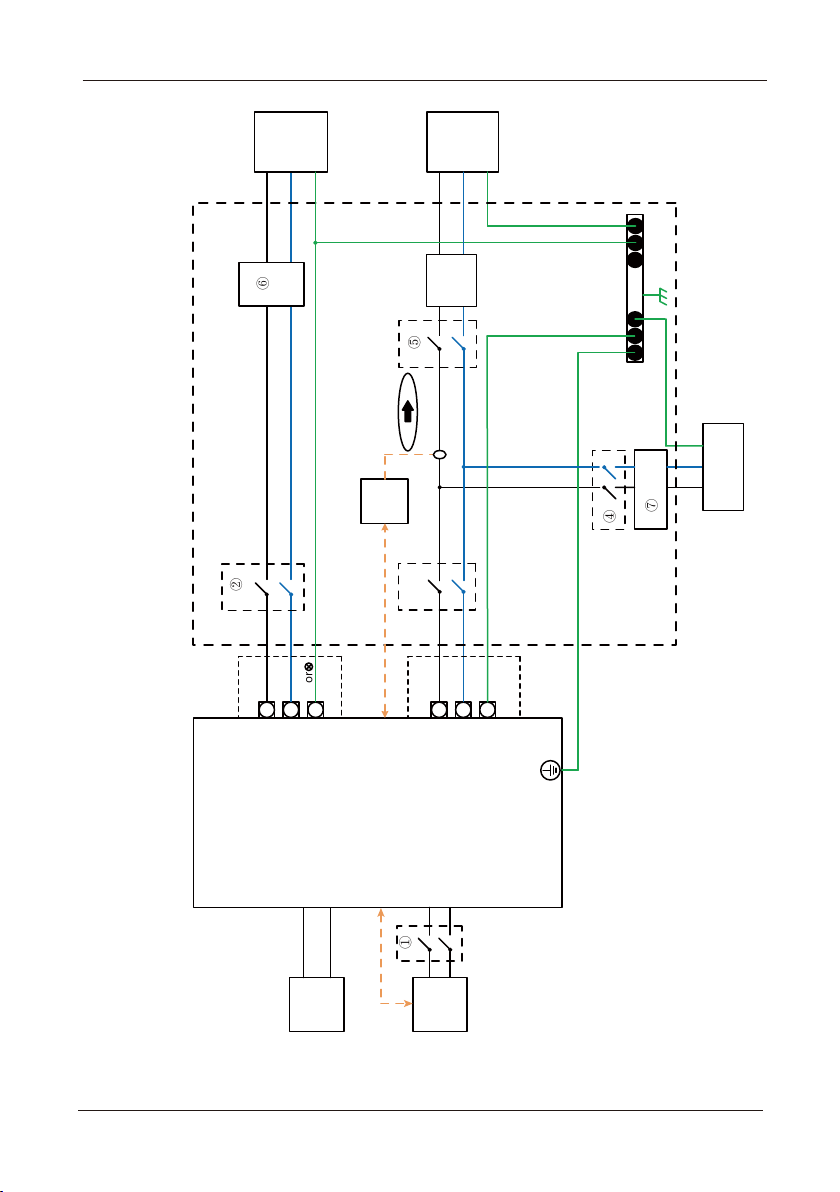

4 Wiring Diagram

Wiring diagram for countries such as Australia, New Zealand, South Africa, etc.

Please follow local wiring regulations.

Hybrid Inverter Quick Installation Guide

HYS-LV Series

E-BAR

L N

①

③

④

⑤

Do not connect this terminal

when the neutral wire and PE

wire are connected together.

E-N

Link

N-BAR

⑦

LOAD

GRID

②

⑥

EPS

GRID

Battery

Grid

Backup

Loads

Normal Loads

RCD

Utility

Meter

Smart

Meter

Distribution Box

Meter

BMS

Model

HYS-3.0LV-G1

HYS-3.6LV-G1

HYS-4.6LV-G1

HYS-5.0LV-G1

HYS-6.0LV-G1

Hybrid Inverter Quick Installation Guide

100 A/60 V

DC Breaker

125 A/60 V

DC Breaker

125 A/60 V

DC Breaker

125 A/60 V

DC Breaker

125 A/60 V

DC Breaker

40 A/230 V

AC Breaker

40 A/230 V

AC Breaker

40 A/230 V

AC Breaker

40 A/230 V

AC Breaker

40 A/230 V

AC Breaker

Depends on

Loads

Main

Breaker

30 mA

RCD

20 A/230 V

AC Breaker

20 A/230 V

AC Breaker

25 A/230 V

AC Breaker

32 A/230 V

AC Breaker

40 A/230 V

AC Breaker

Note:

If the battery has integrated a readily accessible internal DC breaker, then no additional ①DC breaker is required.

① ② ④ ⑤ ⑥⑦③

The use of ⑥⑦ 30 mA RCD is recommended but not mandatory; please comply with local regulations for the system installation.

Wiring diagram for other countries, please follow local wiring regulations.

Hybrid Inverter Quick Installation Guide

HYS-LV Series

BMS

RCD

Grid

E-BAR

Normal Loads

Distribution Box

EPS

GRID

Meter

L N PE

①

③

④

⑤

RCD

⑦

LOAD GRID

②

⑥

Battery

Backup

Loads

Smart

Meter

Utility

Meter

Model

HYS-3.0LV-G1

HYS-3.6LV-G1

HYS-4.6LV-G1

HYS-5.0LV-G1

HYS-6.0LV-G1

Note:

The use of ⑥⑦

100 A/60 V

DC Breaker

125 A/60 V

DC Breaker

125 A/60 V

DC Breaker

125 A/60 V

DC Breaker

125 A/60 V

DC Breaker

40 A/230 V

AC Breaker

40 A/230 V

AC Breaker

40 A/230 V

AC Breaker

40 A/230 V

AC Breaker

40 A/230 V

AC Breaker

Depends on

Loads

Main

Breaker

30 mA

RCD

① ② ④ ⑤ ⑥⑦③

20 A/230 V

AC Breaker

20 A/230 V

AC Breaker

25 A/230 V

AC Breaker

32 A/230 V

AC Breaker

40 A/230 V

AC Breaker

If the battery has integrated a readily accessible internal DC breaker, then no additional ①DC breaker is required.

30 mA RCD is recommended but not mandatory; please comply with local regulations for the system installation.

Hybrid Inverter Quick Installation Guide

5 Electrical Connection

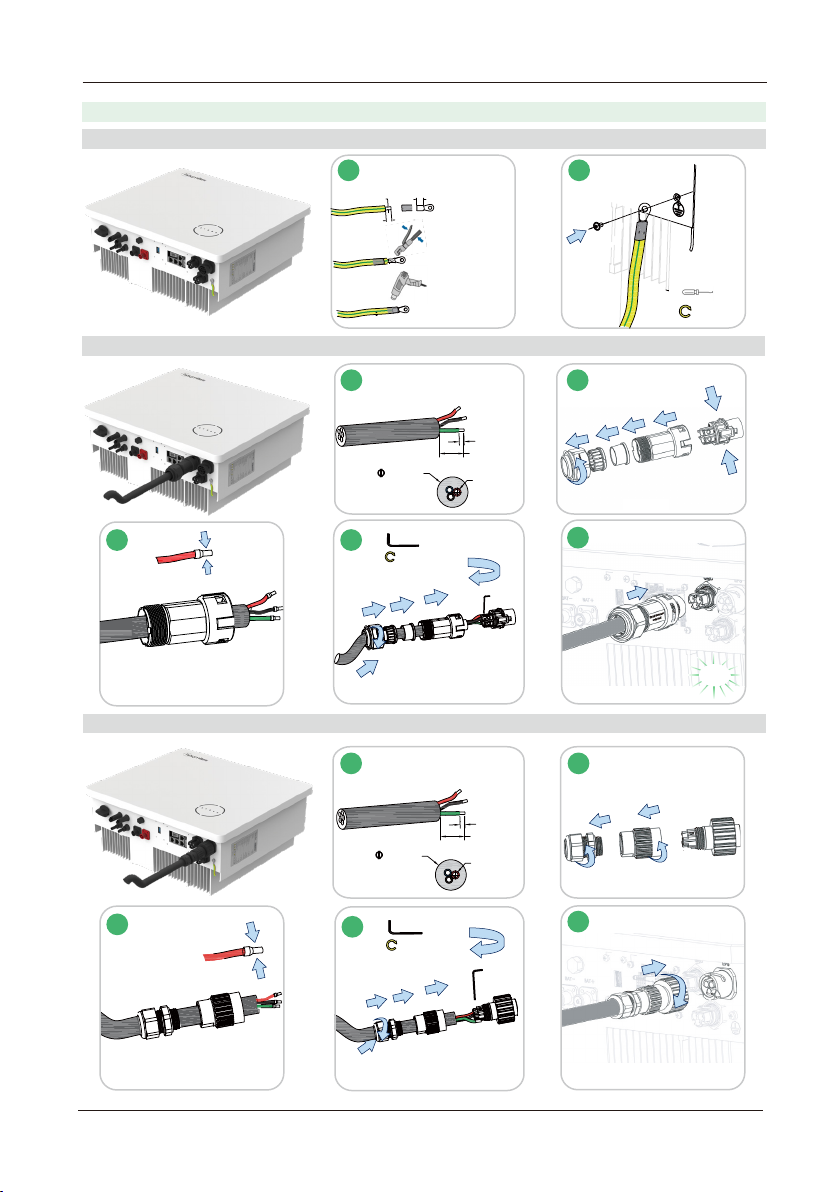

Step 1 Grounding Protection Wire

Step 2 Grid (Same wirings for GEN if needed)

2346

Click

2 N·m

13 mm≤≤18 mm S=6 mm²

7-8 mm

20-25 mm

Step 3 EPS

1.2 N·m

13 mm≤≤18 mm S≥6 mm²

7-8 mm

20-25 mm

1.2 N·m

L=H+(2-3) mm

S≥6 mm²

S H

Hybrid Inverter Quick Installation Guide

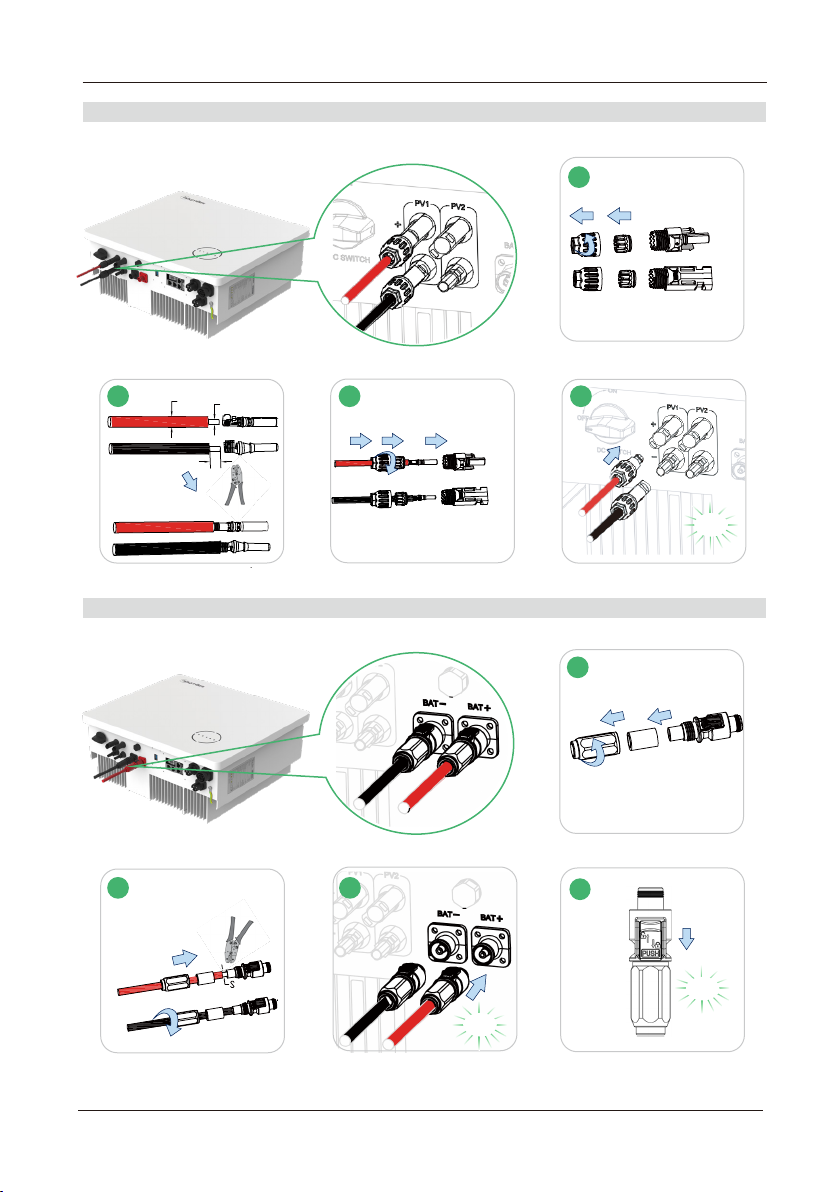

Step 4 PV

Step 5 Battery

Click

S: 20-25 mm²

Hybrid Inverter Quick Installation Guide

2 3

PV+

PV-

321

PV+

PV-

Φ: 4-5 mm

2.5 mm²≤S≤4 mm²

7-8 mm

Lock

Click

Label

Meter (485A, 485B)

BMS (NTC+, NTC-, CANH, CANL, 485A, 485B)

DRM (D1/5, D2/6, D3/7, D4/8, REF, COM)

DI (IN-, IN+)

Parallel (DI IN+, DI IN-,CANH, CANL, 485A_1,

485B_1, 485A_2, 485B_2)

120 Ohm (ON, OFF)

DO1 (NO1, COM1)

DO2 (NO2, COM2)

Description

For the Smart Meter.

For Li-ion battery communication via CAN or RS485.

For lead-acid battery temperature is monitored via

sensor through NTC+ and NTC-.

For external Demand Response Enabling Device.

Dry-contact input of external bypass contactor.

For parallel operation.

120 Ohm termination resistor for parallel operation.

Dry-contact output. The DO1 can be set to one of the

functions as follows: Earth Fault Alarm, Load Control

Dry-contact output. The DO2 will control the bypass

contactor under certain logic.

and Generator Control.

Hybrid Inverter Quick Installation Guide

Step 6 Signal Communication (Connection of communication box is mandatory)

8-485A_2

7-485B_2

6-485A_1

5-485B_1

4-CANL

3-CANH

2-DI IN-

1-DI IN+

8-NC

8-485B

8-485A_2

7-NC

7-485A

7-485B_2

6-NC

6-485A_1

5-485B

5-CANL

5-485B_1

4-485A

4-CANH

4-CANL

3-NC

3-NTC-

3-CANH

2-NC

2-DI IN-

1-NC

1-NTC+

1-DI IN+

MRDID

Para1

120 Ohm

ON OFF

4 6 8

IN- D2/6 D4/8 REF

1OD753

21MOC7/3D5/1D+NI

NO1 COM1

2araPSMBreteM

DO2

1 2

NO2 COM2
