QuickSpecs

HP EliteBook Revolve 810 G3

Overview

Americas –HP EliteBook Revolve 810 G3 –July 2015 - c04553273

Page 1

HP EliteBook Revolve 810 G3

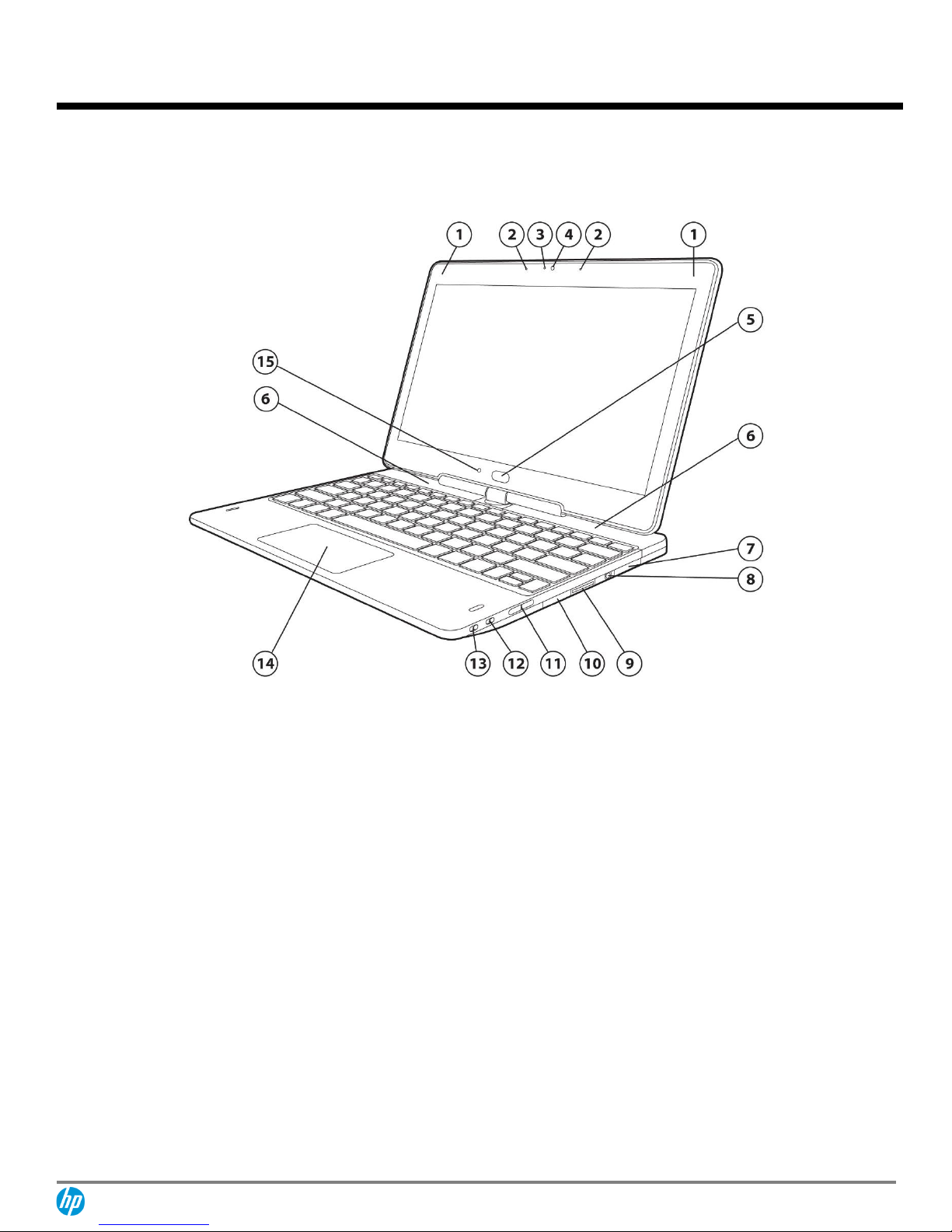

Front, Right

WLAN antennas

MicroSD slot

Dual-microphone array

10.

Speaker

Webcam LED

11.

Volume up/down button

720p HD Webcam

12.

Rotation lock button

Home button

13.

Power button

WWAN antennas*

14.

Clickpad image sensor

Side docking connector

15.

Ambient light sensor

Audio jack

*. WWAN is an optional feature and requires separately purchased service contract. Check with service provider for coverage and

availability in your area. Connection speeds will vary due to location, environment, network conditions, and other factors. 4G LTE is

not available in models, in all regions.

QuickSpecs

HP EliteBook Revolve 810 G3

Overview

Americas –HP EliteBook Revolve 810 G3 –July 2015 - c04553273

Page 2

Rear

RJ-45 (Ethernet) jack

DisplayPort 1.2

USB 3.0 port

USB 3.0 charging port

Security lock slot

Power connector

Left

Vent

Speaker

QuickSpecs

HP EliteBook Revolve 810 G3

Overview

Americas –HP EliteBook Revolve 810 G3 –July 2015 - c04553273

Page 3

Bottom

Service cover

Battery bay cover release latch

Vents

Battery bay

Near Field Communication (NFC) antenna

QuickSpecs

HP EliteBook Revolve 810 G3

Overview

Americas –HP EliteBook Revolve 810 G3 –July 2015 - c04553273

Page 4

At A Glance

Choose from versions of Windows 10, Windows 8.1, Windows 7 Professional, or FreeDOS 2.0

11.6-inch diagonal LED-backlit, ultra-slim, HD UWVA display (1366 x 768) with capacitive multi-touch screen

Industrial, business rugged HP DuraCase construction features a full magnesium alloy chassis, wear-resistant HP

DuraFinish, and stainless steel hinges

Full-sized backlit , spill-resistant keyboard with bottom-case drain

Clickpad image sensor

Choice of Future 5th Gen Intel® Core™processors with Turbo Boost Technology

Intel® vPro™technology enables you to remotely monitor, diagnose, and repair PCs over the network, even if a system's

OS is inoperable or it is powered off (vPro not available with Core i3-5010, Core i5-5200 or i7-5600)

Choice of up to 512 GB Solid State Drive or 256 GB SED Solid State Drive

Supports a broad range of wireless LAN and wireless WAN options, including 4G LTE, for connectivity on the go.

6-cell polymer long life battery (44 WHr)

Integrated Intel® HD 5500 Graphics

Integrated 720p HD Webcam

DTS Studio Sound™with integrated stereo speakers and dual microphone array

Security features including HP Client Security, Common Criteria Certified Discrete TPM 1.2 Embedded Security Chip, and

security lock slot

Separate launch buttons for easy access to the following features: Windows, power, rotation lock, volume up and down

DisplayPort v1.2 for high resolution support

Optional HP UltraSlim docking station

Sensors include Gyroscope, Accelerometer, Compass, Ambient Light Sensor, Near Field Communication (NFC)

microSD slot

NOTE: See important legal disclosures for all listed specs in their respective features sections.

QuickSpecs

HP EliteBook Revolve 810 G3

Features

Americas –HP EliteBook Revolve 810 G3 –July 2015 - c04553273

Page 5

PRODUCT NAME

HP EliteBook Revolve 810 G3 Tablet PC

OPERATING SYSTEM

Preinstalled

Windows 10 Pro641

Windows 10 Home 641

Windows 8.1 Pro 641

Windows 8.1 641

Windows 7 Professional 64 (available through downgrade rights from Windows 10 Pro) 3

Windows 7 Professional 64 (available through downgrade rights form Windows 8.1 Pro) 2

Windows 7 Professional 641

FreeDOS 2.0

Web only support

Windows 10 Pro 641

Windows 10 Home 641

Windows 8.1 Pro 641

Windows 8.1 641

Windows 7 Professional 64 (available through downgrade rights from Windows 10 Pro) 3

Windows 7 Professional 64 (available through downgrade rights form Windows 8.1 Pro) 2

Windows 7 Professional 641

Windows 7 Professional 321

Windows 10 Enterprise 641

Windows 8.1 Enterprise 641

Windows 8 Professional 641

Windows 8 641

Windows 7 Enterprise 641

Windows 7 Enterprise 321

1. Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or

separately purchased hardware, drivers, software or BIOS update to take full advantage of Windows

functionality. Windows 10 is automatically updated, which is always enabled. ISP fees may apply and

additional requirements may apply over time for updates. See http://www.microsoft.com

2. This system is preinstalled with Windows 7 Professional software and also comes with a license and media

for Windows 8 Pro software. You may only use one version of the Windows software at a time. Switching

between versions will require you to uninstall one version and install the other version. You must back up

all data (files, photos, etc.) before uninstalling and installing operating systems to avoid loss of your data

3. This system is preinstalled with Windows 7 Professional software and also comes with a license and media

for Windows 10 Pro software. You may only use one version of the Windows software at a time. Switching

between versions will require you to uninstall one version and install the other version. You must back up

all data (files, photos, etc.) before uninstalling and installing operating systems to avoid loss of your data.

PROCESSOR*

Intel® Core™ i7-5600U with Intel HD Graphics 5500 (2.4 GHz, up to 3 GHz with Intel Turbo Boost Technology, 4 MB cache, 2

cores);

Intel® Core™ i5-5300U with Intel HD Graphics 5500 (2.3 GHz, up to 2.9 GHz with Intel Turbo Boost Technology, 3 MB cache, 2

cores);

QuickSpecs

HP EliteBook Revolve 810 G3

Features

Americas –HP EliteBook Revolve 810 G3 –July 2015 - c04553273

Page 6

Intel® Core™ i5-5200U with Intel HD Graphics 5500 (2.2 GHz, up to 2.7 GHz with Intel Turbo Boost Technology, 3 MB cache, 2

cores);

Intel® Core™ i3-5010U with Intel HD Graphics 5500 (2.1 GHz, 3 MB cache, 2 cores)

* Multi-Core is designed to improve performance of certain software products. Not all customers or software applications will

necessarily benefit from use of this technology. 64-bit computing on Intel® architecture requires a computer system with a

processor, chipset, BIOS, operating system, device drivers, and applications enabled for Intel® 64 architecture. Processors

will not operate (including 32-bit operation) without an Intel® 64 architecture-enabled BIOS. Performance will vary

depending on your hardware and software configurations. Intel's numbering is not a measurement of higher performance.

** Intel® Turbo Boost technology requires a PC with a processor with Intel Turbo Boost capability. Intel Turbo Boost

performance varies depending on hardware, software and overall system configuration. See

www.intel.com/technology/turboboost for more information.

NOTE: Processor speed denotes maximum performance mode; processors will run at lower speeds in battery optimization

mode.

CHIPSET

Chipset is integrated with processor

INTEL CORE I5 WITH VPRO/CORE I7 WITH VPRO TECHNOLOGY CAPABLE

Intel Core i5 with vPro and Core i7 with vPro technology is a selectable feature that is available on units configured with

select processors, an Intel Centrino® Advanced-N or Ultimate-N WLAN module and a preinstalled Windows operating system.

It provides advances in remote manageability, security, energy efficient performance, and wireless connectivity. Intel Active

Management Technology 9.0 (iAMT) offers built-in manageability and proactive security for networked notebook PCs, even

when they are powered off* or when the operating system is inoperable. It can help identify threats before they reach the

network, isolate infected systems, and update PCs regardless of their power state.

*Requires a Windows operating system, network hardware and software, connection with a power source, and a direct (non-

VPN) corporate network connection which is either cable or wireless LAN.

NOTE: Some functionality of this technology, such as Intel® Active management technology and Intel Virtualization

technology, requires additional 3rd party software in order to run. Availability of future "virtual appliances" applications for

Intel vPro technology is dependent on 3rd party software providers. Microsoft Windows required.

GRAPHICS

Intel® HD Graphics 5500

DISPLAY

Internal

11.6-inch diagonal LED-backlit HD* UWVA Touch (1366 x 768)

Ultra- Wide-viewing angle

LVDS –low voltage differential signaling

Capacitive multitouch screen with digitizer

Tough, durable Corning® Gorilla® Glass 3

* HD content required to view HD images.

QuickSpecs

HP EliteBook Revolve 810 G3

Features

Americas –HP EliteBook Revolve 810 G3 –July 2015 - c04553273

Page 7

External

Up to 32-bit per pixel color depth

DisplayPort v1.2

Supports resolutions up to 3840 x 2160, 30-bit color depth at 60 Hz, and full HD (1920 x 1080) monitors, 24-bit color depth

at 120 Hz

Number of Supported Displays

Number of Displays with UltraSlim Docking Station

UMA

Discrete

EliteBook Revolve 810 G3

n/a

NOTE: Resolutions are dependent upon monitor capability, and resolution and color depth settings.

STORAGE AND DRIVES

Solid State Drive

128 GB SATA-3 Solid State Drive

180 GB SATA-3 Solid State Drive

180 GB SATA-3 Self-Encrypting Drive

256 GB SATA-3 Solid State Drive

256 GB SATA-3 Self-Encrypting Drive

512 GB SATA-3 Solid State Drive

NOTE: For hard drives and solid state drives, GB = 1 billion bytes. Actual formatted capacity is less. Up to 16 GB (for Windows

7) and up to 30 GB (for Windows 8 and 10) of system disk is reserved for the system recovery software.

MEMORY

Standard

DDR3L PC3-12800 SDRAM (1600 MHz)

One SODIMM slot supporting up to 8 GB dual-channel memory plus 4 GB soldered down

Supports

4 GB Total System Memory (4 GB on motherboard)

8 GB Total System Memory (4 GB on motherboard + 4 GB DIMM)

12 GB Total System Memory (4 GB on motherboard + 8 GB DIMM)

Maximum

Upgradeable to 12 GB

NOTE: Maximum memory capacities assume Windows 64-bit operating systems. With Windows 32-bit operating systems,

memory above 3 GB may not all be available due to system resource requirements.

Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to

ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed.

QuickSpecs

HP EliteBook Revolve 810 G3

Features

Americas –HP EliteBook Revolve 810 G3 –July 2015 - c04553273

Page 8

NETWORKING/COMMUNICATIONS

LOCAL AREA NETWORK (LAN)

Integrated Intel® 1218LMGigabit* Network Connection (vPro configurations)

WIRELESS

Support for a broad range of secure, integrated wireless LAN and wireless WAN options featuring support for the latest

industry standards.Integrated Bluetooth® is also available as both a factory configurable and after-market option and can be

combined with any of the supported wireless LAN and wireless WAN options.

WWAN** (Mobile Broadband) options

HP lt4211 LTE/EV-DO/HSPA Qualcomm® Gobi™ 4G Mobile Broadband Module

Wireless LAN (WLAN)***

Intel® 7265 AC 802.11 ac (2x2) Bluetooth® 4.0 Combo****

Intel®7265N 802.11 a/b/g/n (2x2) Bluetooth® 4.0 Combo

COMMUNICATIONS

Intel® Wireless Display (WiDi)*****

Intel® WiDi technology enables users to stream content wirelessly from a compatible computer to a projector, TV or monitor.

Near Field Communication (NFC)

* The term "10/100/1000" or "Gigabit" Ethernet indicates compatibility with IEEE standard 802.3ab for Gigabit Ethernet, and

does not connote actual operating speed of 1 Gb/s. For high-speed transmission, connection to a Gigabit Ethernet server and

network infrastructure is required.

** WWAN is an optional feature and requires wireless data service contract, network support, and is not available in all areas.

Contact your service provider to determine the coverage area and availability. Connection speeds will vary based on location,

environment, network conditions and other factors. 4G LTE is not available in all models, all regions.

***Wireless access point and Internet service is required and is not included. Availability of public wireless access points

limited.

****The specifications for the 802.11ac WLAN are draft specifications and are not final. If the final specifications differ from

the draft specifications, it may affect the ability of the notebook to communicate with other 802.11ac WLAN devices.

***** Integrated Intel® Wi-Di Display is available on select configurations only and requires a separate projector, TV or

monitor with an integrated or external Wi-Di receiver. For more information on Intel® Wi-Di Display visit

www.intel.com/go/wirelessdisplay.

AUDIO/MULTIMEDIA

Audio

DTS Studio Sound™

Integrated stereo speakers

Integrated microphone (dual-microphone array)

Buttons for volume up and down

Headphone/microphone combo jack

Webcam

Integrated 720p HD* webcam

HD format (widescreen)

Supports videoconferencing and still image capture

High quality fixed focus lens

QuickSpecs

HP EliteBook Revolve 810 G3

Features

Americas –HP EliteBook Revolve 810 G3 –July 2015 - c04553273

Page 9

Video capture at various resolutions up to 1280x720 resolution (720p) and up to 30fps

M-JPEG compression supports higher frame rates for video capture and videoconferencing

Improved low light sensitivity

Improved dynamic range

* HD content required to view HD images.

KEYBOARDS/POINTING DEVICES/BUTTONS & FUNCTION KEYS

Keyboard

The HP backlit, spill-resistant keyboard is designed using a thin layer of Mylar film under the keyboard and a drain system

that funnels fluid through a hole in the bottom of the notebook. This minimizes the risk of damage to sensitive components

underneath. The 101/102-key compatible keyboard features an industry standard, full-pitch key layout with desktop

keyboard features, such as the isolated inverted-T cursor control keys, editing keys, both left and right control and alt keys,

and 12 function keys. U.S. and International key layouts are available. Other features include an integrated numeric keypad,

hotkeys for instant access to power conservation, brightness, and other features, 19 mm x 19 mm key pitch (center-to-

center spacing), 2.0 mm stroke, and comfort-dished keycaps.

Pointing Devices

Clickpad image sensor

Multitouch gestures enabled

Taps enabled as default

Buttons and Function Keys

F1 - Ambient Light Sensor

F2 - Battery Gauge

F3 –Sleep

F4 - Display Switching

F5 - Speaker Mute

F6 - Volume Down

F7 - Volume Up

F8 - mic mute

F9 - Brightness Down

F10 - Brightness Up

F11 –Backlit

F12 - WiFi toggle

SENSORS

Gyro

Accelerometer

ALS

Proximity (SAR)

Compass

SOFTWARE AND SECURITY

Preinstalled Software with Windows Operating System

BIOS

Absolute Data Protect (Windows 8.1 only)2

HP BIOSphere1

HP Sure Start2

HP DriveLock | HP Automatic DriveLock

HP BIOS Protection3

HP Disk Sanitizer4

QuickSpecs

HP EliteBook Revolve 810 G3

Features

Americas –HP EliteBook Revolve 810 G3 –July 2015 - c04553273

Page 10

HP SpareKey5

BIOS Update via Network

Master Boot Record Security

Power On Authentication

Pre-Boot Security

Secure Erase6

Hybrid Boot (Windows 8.1 only)

Measure Boot (Windows 8.1 only)

Secure Boot (Windows 8.1 only)

Absolute Persistence Module7

MultiMedia

Cyberlink Power DVD, BD

Cyberlink Power2Go (Secure Burn)

Cyberlink YouCam BE (Windows 7 only)

Communication

HP GPS and Location (Windows 7 only)8

HP Connection Manager with support for HP Mobile Connect (Windows 7 only)9

HP Mobile Connect (Windows 8.1 only)

HP Wireless Hotspot (Windows 8.1 only)10

Intel® Wireless Display (WiDi) Software for Windows11

HP Roaming Alert (Windows 8.1 only)

Native Miracast Support12

HP Value Add Software

HP 3D DriveGuard

HP ePrint Driver13

HP Hotkey

HP PageLift

HP Recovery Manager (Windows 7 only)

HP Recovery Disc Creator (Windows 7 only)

HP Registration App (Windows 8.1 only)

HP Support Assistant

3rd Party

Foxit PhantomPDF Express for HP

Netflix Application (Window 8.1only)

Microsoft Products

Buy Office

Bing Search

Skype14

Manageability

HP Driver Packs15

HP SoftPaq Download Manager (SDM)

HP System Software Manager (SSM)15

HP BIOS Config Utility (BCU)15

HP Client Catalog15

HP CIK for Microsoft SCCM15

LANDESK Management16

For more information on HP Client Management Solutions refer to: http://www.hp.com/go/clientmanagement.

Andere Handbücher für EliteBook Revolve 810 G3

Inhaltsverzeichnis

Andere HP Laptop Handbücher

HP nc6140 - Notebook PC Bedienungsanleitung

HP ZBook SERIES Abmessungen

HP Compaq 6710b Gebrauchsanweisung

HP Compaq nc6000 Installationsanleitung

HP 6535b - Compaq Business Notebook Bedienungsanleitung

HP Compaq Presario Bedienungsanleitung

HP Pavilion dv9200 - Entertainment Notebook PC Bedienungsanleitung

HP 2510p - Notebook PC Bedienungsanleitung

HP Net PC 20 Bedienungsanleitung

HP 15-cb000 Handbuch

HP Pavilion m6 Handbuch

HP AF018CA Bedienungsanleitung

HP ProBook 4330s Bedienungsanleitung

HP OmniBook XT1000 Bedienungsanleitung

HP Armada 6500 Bedienungsanleitung

HP HP OmniBook 900 Gebrauchsanweisung

HP ProBook 4525s - Notebook PC Bedienungsanleitung

HP Chromebook 14 Montageanleitung

HP OmniBook 5000 Bedienungsanleitung

HP Pavilion zt1100 - Notebook PC Bedienungsanleitung

HP PAVILION DV2500 Handbuch

HP ProBook 455 G3 Handbuch

HP Pavilion ze4200 - Notebook PC Bedienungsanleitung

HP Pavilion zd7000 - Notebook PC Bedienungsanleitung

Beliebte Laptop Handbücher anderer Marken

Velocity

Velocity NoteMagix M10 Bedienungsanleitung

Dell

Dell Alienware 17 R2 Bedienungsanleitung

Toshiba

Toshiba A105-S2236 Bedienungsanleitung

Winbook

Winbook LM Bedienungsanleitung

Dell

Dell Inspiron 1464 Bedienungsanleitung

Dell

Dell Inspiron 15R 5537 Bedienungsanleitung

Dell

Dell Latitude ATG D620 Bedienungsanleitung

Sony

Sony VAIO PCG-FX270 Bedienungsanleitung

Dell

Dell Latitude 7310 Bedienungsanleitung

Dell

Dell Precision GU806 Bedienungsanleitung

Sony

Sony VAIO PCG-R505JLK Bedienungsanleitung

Lenovo

Lenovo THINKPAD X32 Bedienungsanleitung

Toshiba

Toshiba mini NB300 Bedienungsanleitung

Lenovo

Lenovo ThinkPad X201 Tablet Handbuch

Lenovo

Lenovo THINKPAD X31 Handbuch

Sony

Sony VGN-T240P VAIO Bedienungsanleitung

Compaq

Compaq Armada E700 Series Bedienungsanleitung

Fujitsu

Fujitsu Lifebook A6230 Bedienungsanleitung
