Huawei CMR-W19 Bedienungsanleitung
Quick Start Guide
xxxxxx_01
Your device at a glance
Before you start, let's take a look at your new device.
lTo power on your device, press and hold the power button until the
screen turns on.
lTo power off your device, press and hold the power button, and then
touch .
2
343
5
6
7
8
9
3
11
3
1
12
10
Ambient light sensor Rear camera
Speaker Keyboard port pin
USB-C port Card tray
Fingerprint scanner Power button
Volume button Front camera
Status indicator Microphone
1
lPress and hold the power button to force your device to restart.
2
Getting Started

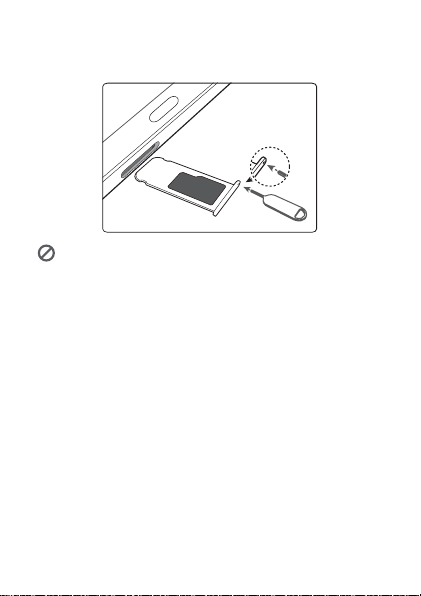

Follow the instructions in the following gures to set up your device.
NJDSP4%
Be careful not to scratch your device or hurt yourself when using
the eject pin. Store the eject pin out of the reach of children to
prevent accidental swallowing or injury.
3
4
Safety Information
Please read all of the safety information carefully before using your device
to ensure its safe and proper operation and to learn how to dispose of
your device properly.
Operation and safety
l To prevent possible hearing damage, do not listen at high
volume levels for long periods.
lUsing an unapproved or incompatible power adapter, charger, or
battery may damage your device, shorten its lifespan, or cause a re,
explosion, or other hazards.
lIdeal operating temperatures are 0 °C to 35 °C. Ideal storage
temperatures are -20 °C to +45 °C.
lPacemaker manufacturers recommend that a minimum distance of 15
cm be maintained between a device and a pacemaker to prevent
potential interference with the pacemaker. If using a pacemaker, hold
the device on the side opposite the pacemaker and do not carry the
device in your front pocket.
lKeep the device and the battery away from excessive heat and direct
sunlight. Do not place them on or in heating devices, such as
microwave ovens, stoves, or radiators.
lObserve local laws and regulations while using the device. To reduce
the risk of accidents, do not use your wireless device while driving.
lWhile ying in an aircraft or immediately before boarding, only use
your device according to instructions provided. Use of a wireless
device in an aircraft may disrupt wireless networks, present a hazard to
aircraft operation, or be illegal.
lTo prevent damage to your device's parts or internal circuits, do not
use it in dusty, smoky, damp, or dirty environments or near magnetic
elds.
lWhen charging the device, make sure the power adapter is plugged
into a socket near the devices and is easily accessible.
5
lUnplug the charger from electrical outlets and the device when not in
use.
lDo not use, store or transport the device where ammables or
explosives are stored (in a gas station, oil depot, or chemical plant, for
example). Using your device in these environments increases the risk of
explosion or re.
lDispose of this device, the battery, and accessories according to local
regulations. They should not be disposed of in normal household
waste. Improper battery use may lead to re, explosion, or other
hazards.
Disposal and recycling information
The crossed-out wheeled-bin symbol on your product, battery, literature
or packaging reminds you that all electronic products and batteries must
be taken to separate waste collection points at the end of their working
lives; they must not be disposed of in the normal waste stream with
household garbage. It is the responsibility of the user to dispose of the
equipment using a designated collection point or service for separate
recycling of waste electrical and electronic equipment (WEEE) and
batteries according to local laws.
Proper collection and recycling of your equipment helps ensure electrical
and electronic equipment (EEE) waste is recycled in a manner that
conserves valuable materials and protects human health and the
environment, improper handling, accidental breakage, damage, and/or
improper recycling at the end of its life may be harmful for health and
environment. For more information about where and how to drop off
your EEE waste, please contact your local authorities, retailer or
household waste disposal service or visit the website http://
consumer.huawei.com/en/.
Reduction of hazardous substances
This device and its electrical accessories are compliant with local
applicable rules on the restriction of the use of certain hazardous
6
substances in electrical and electronic equipment, such as EU REACH,
RoHS and Batteries (where included) regulations. For declarations of
conformity about REACH and RoHS, please visit our web site http://
consumer.huawei.com/certication.
EU regulatory conformance
Body worn operation
The device complies with RF specications when used at a distance of
0.50 cm from your body. Ensure that the device accessories, such as a
device case and device holster, are not composed of metal components.
Keep the device away from your body to meet the distance requirement.
The highest SAR value reported for this device type when tested in
portable exposure conditions is
CMR-W190.86 W/kg
Statement
Hereby, Huawei Technologies Co., Ltd. declares that this device is in
compliance with the essential requirements and other relevant provisions
of Directive 2014/53/EU.
The most recent and valid version of the DoC (Declaration of Conformity)
can be viewed at http://consumer.huawei.com/certication.
This device may be operated in all member states of the EU.
Observe national and local regulations where the device is used.
This device may be restricted for use, depending on the local network.
Restrictions in the 2.4 GHz band:
Norway: This subsection does not apply for the geographical area within
a radius of 20 km from the centre of Ny-Ålesund.
Restrictions in the 5 GHz band:
According to Article 10 (10) of Directive 2014/53/EU, the packaging
shows that this radio equipment will be subject to some restrictions when
placed on the market in Belgium (BE), Bulgaria (BG), the Czech Republic
(CZ), Denmark (DK), Germany (DE), Estonia (EE), Ireland (IE), Greece (EL),
Spain (ES), France (FR), Croatia (HR), Italy (IT), Cyprus (CY), Latvia (LV),
Lithuania (LT), Luxembourg (LU), Hungary (HU), Malta (MT), Netherlands
(NL), Austria (AT), Poland (PL), Portugal (PT), Romania (RO), Slovenia (SI),
Slovakia (SK), Finland (FI), Sweden (SE), the United Kingdom (UK), Turkey
(TR), Norway (NO), Switzerland (CH), Iceland (IS), and Liechtenstein (LI).
7
The WLAN function for this device is restricted to indoor use only when
operating in the 5150 to 5350 MHz frequency range.
Frequency Bands and Power
(a) Frequency bands in which the radio equipment operates: Some bands
may not be available in all countries or all areas. Please contact the local
carrier for more details.
(b) Maximum radio-frequency power transmitted in the frequency bands
in which the radio equipment operates: The maximum power for all
bands is less than the highest limit value specied in the related
Harmonized Standard.
The frequency bands and transmitting power (radiated and/or conducted)
nominal limits applicable to this radio equipment are as follows:
CMR-W19 Bluetooth: 20 dBm, Wi-Fi 2.4G: 20 dBm, Wi-Fi 5G:
5150-5350 MHz: 23 dBm, 5470-5725 MHz: 30 dBm
Accessories and Software Information
Some accessories are optional in certain countries or regions. Optional
accessories can be purchased from a licensed vendor as required. The
following accessories are recommended:
Adapters: HW-059200XHQ (X represents the different plug types used,
which can be either C, U, J, E, B, A, I, R, Z or K, depending on your
region)
Batteries: HB2994I8ECW
The product software version is CMR-W19: CMR-W19 8.0.1.1(SP1C432).
Software updates will be released by the manufacturer to x bugs or enhance
functions after the product has been released. All software versions
released by the manufacturer have been veried and are still compliant
with the related rules.
All RF parameters (for example, frequency range and output power) are
not accessible to the user, and cannot be changed by the user.
For the most recent information about accessories and software, please
see the DoC (Declaration of Conformity) at http://consumer.huawei.com/
certication.
ErP Product Information
Huawei Technologies Co., Ltd. hereby declares that its products conform
to the Energy-related Products Directive (ErP) 2009/125/EC. For detailed
8
ErP information and the user manuals required by Commission Regulation
(EU) No 801/2013, please visit: http://consumer.huawei.com/en/
certication.
FCC Regulatory Compliance
Certication information (SAR)
This device is also designed to meet the requirements for exposure to
radio waves established by the Federal Communications Commission
(USA).
The SAR limit adopted by the USA is 1.6 W/kg averaged over one gram of
tissue. The highest SAR value reported to the FCC for this device type
complies with this limit.
The highest SAR value reported to the FCC for this device type when
using it in portable exposure conditions is
CMR-W190.40 W/kg
FCC statement
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
9
Inhaltsverzeichnis
Andere Huawei Handy Handbücher
Huawei
Huawei Mate 8 Bedienungsanleitung
Huawei
Huawei Mate 20 X Bedienungsanleitung
Huawei
Huawei P8 lite Bedienungsanleitung
Huawei
Huawei Honor 3C LTE Bedienungsanleitung
Huawei
Huawei U8651T Bedienungsanleitung
Huawei
Huawei U8185 Bedienungsanleitung
Huawei
Huawei Ascend Y220 Bedienungsanleitung
Huawei
Huawei C2828 Bedienungsanleitung
Huawei
Huawei ascend y350 Bedienungsanleitung
Huawei
Huawei PRA-LA1 Bedienungsanleitung
Huawei
Huawei P8 GRA-UL00 Abmessungen
Huawei
Huawei CTR-LX2 Bedienungsanleitung
Huawei
Huawei P SMART Bedienungsanleitung
Huawei
Huawei Ascend Y330-U17 Bedienungsanleitung
Huawei
Huawei P8 lite Bedienungsanleitung
Huawei
Huawei IDEOS Bedienungsanleitung
Huawei
Huawei U8800 Pro Bedienungsanleitung
Huawei
Huawei P60 Pro Bedienungsanleitung
Huawei
Huawei Ascend G610 Bedienungsanleitung
Huawei
Huawei P smart + 2019 Bedienungsanleitung
Beliebte Handy Handbücher anderer Marken
Point Mobile
Point Mobile PM60 Bedienungsanleitung
Blackbe;rry
Blackbe;rry Q10 Bedienungsanleitung
Blackbe;rry
Blackbe;rry Bold 9900 Bedienungsanleitung
Blackbe;rry
Blackbe;rry STORM 9500 - VERSION 5.0 Bedienungsanleitung
LG
LG LM-K420EMW Bedienungsanleitung
ISAFE MOBILE
ISAFE MOBILE IS655.2 Bedienungsanleitung
