Huawei EC1260 Bedienungsanleitung

Huawei EC1260

Table of Contents

Product Features..................................................................................................................................... 3

System Requirements............................................................................................................................ 3

Functional Features ............................................................................................................................... 4

Know Your Device ................................................................................................................................... 5

Installation Procedure ........................................................................................................................... 6

Software Upgrade Procedure ................................................................................................................... 12

Expanding Memory With Micro-SD Card...................................................................................... 13

Compatibility List With OS And Laptops ...................................................................................... 14

1. Plug and Play

No installer CD required

Device Self-installs its software

Assuring compatibility with Any system, Anywhere and Anytime

2. Expandable Memory

Device comes with a Micro SD Card Slot, enabling the user to customize it even

as a thumb drive.

User can carry his data, music and files and be connected to the internet, all with

one device

3. Form Factor

Small enough to fit in Palm, Sleek, Stylish and Trendy

4. Broadband in Hand

Customer carries only the device and has a Truly Mobile Broadband Access to

internet. (Unlike Wireline Broadband, limited to reach of the cable)

Also, Agent can Demo the product on prospect’s computer without having to

install a dialer, saving valuable time and effort.

Works across India in Roaming at the same rates as at home.

To use EC1260, the PC must meet the following requirements:

Standard USB interface.

Supporting OS

oWindows 2000 SP4, Windows XP SP2, Windows Vista, Windows 7

oMac OS X 10.4 and 10.5 with latest upgrades

The hardware of your PC must meet or exceed the recommended system

requirements for the installed version of OS.

Display resolution: 800 × 600 or above.

Supporting 800 MHz frequency band

Supporting the CDMA2000 1x standard

Supporting the CDMA2000 1xEV-DO Rev. A standard

Supporting auto installing

Supporting high-rate packet data services

Supporting easy installation and uninstall of the driver on Windows 2000(SP4),

Windows XP, Windows Vista, Mac (10.6), Windows 7

Functions

Specifications

CDMA Standard

CDMA2000 EV-DO REV A: DL 3.1Mbps/ UL 1.8Mbps ;

(800/1900MHz)

LEDs

1 LED (Data Call / Network Status Indicator)

SMS

Save the received 200 items (except PC saving) PC is default

saving place.

Phone book

Save 200 items (except PC saving) PC is default saving place.

RUIM Card

Non RUIM Based

Antenna

Internal type

Interface Type

USB Connector

Battery

N/A (PC Power)

Installation

Connect PC or laptop via USB (Plug and Play)

Case Material

ABS Plastic

Operating System

Support

WINDOWS : XP SP2, 2000 SP4 , Vista

MAC : OS X 10.4 & 10.5 with latest upgrades

Special Function

Supports External Micro SD Card

PC Dialer

Phone book, Internet Connection

Others

Supports multi account log-in

Supports multi network profile saving

Supports accumulated internet log exporting

1. Cap

2. USB Port - It connects EC1260 to a USB port on a Desktop / Laptop)

3. LED Indicator –Indicates the status of the device

On: EC1260 is powered on.

Blinking once every 2s: EC1260 is searching for network or the network is not

found.

Blinking twice every 2s: The network as been found.

Blinking once every 0.2s: EC1260 is engaged in a call or data service.

4. Micro SD card slot -Holds the Micro SD card for expandable memory

5. Strap Hole

6. Back Cover

7. USB connecting cable

8. Headset port - Disabled as Voice functionality is not supported

Connecting Photon Plus Device to your PC:

1. Power on your PC before connecting Photon Plus with the PC.

2. Plug Photon Plus to the USB interface of the PC. (as shown below for Laptops and

Desktops)

Installing the Program:

1. Before you start the installation process, ensure that your PC/ laptop is working on

a supported operating system (as mentioned on the packaging of the Device).

Common operating systems are Windows, and Linux.

2. Plug in the Photon Plus device in the USB slot of your PC/ laptop; the installation

process of the device drivers and dialer will automatically get initiated

3. Follow the Prompts of the Installation Wizard. This will complete the installation

process.

4. After the Program is installed an Access Manager (AM) short-cut icon will appear on

your desktop.

5. ”AM” is the application for using your device as an Internet device

6. Before starting the activation process, ensure that your desktop/laptop is connected

to speakers or headphones for listening to Activation Instruction IVR

7. As soon as installation is done, the default dialer window will open instantly. Press

OK to continue with the activation.

8. Please input OTA password as (0000) and press Verify

9. Listen and follow the instructions.

10. Choose the language of your choice. Dial 1 for English, 2 for Hindi, 3 for Telegu, 4 for

Marathi, 5 for Tamil, 6 for Kannada, 7 for Gujarati.

11. For Prepaid dial ‘1’ and for Postpaid dial ‘2’.

12. Gently scratch the silver strip on the “Activation Card” you have received with the

kit, to reveal your 14-digit PIN. Enter your 14-digit PIN mentioned on the Activation

Card when requested.

Prepaid Activation

1. To use the HSIA pre-paid connection, the correct username and password need to

be configured on the dialer.

2. On the AM menu-bar, click on “Tools” menu, and select “Options”. The Options page

will come up.

3. Click on the “Network Settings” option from the left hand panel. The Network

Settings page opens up

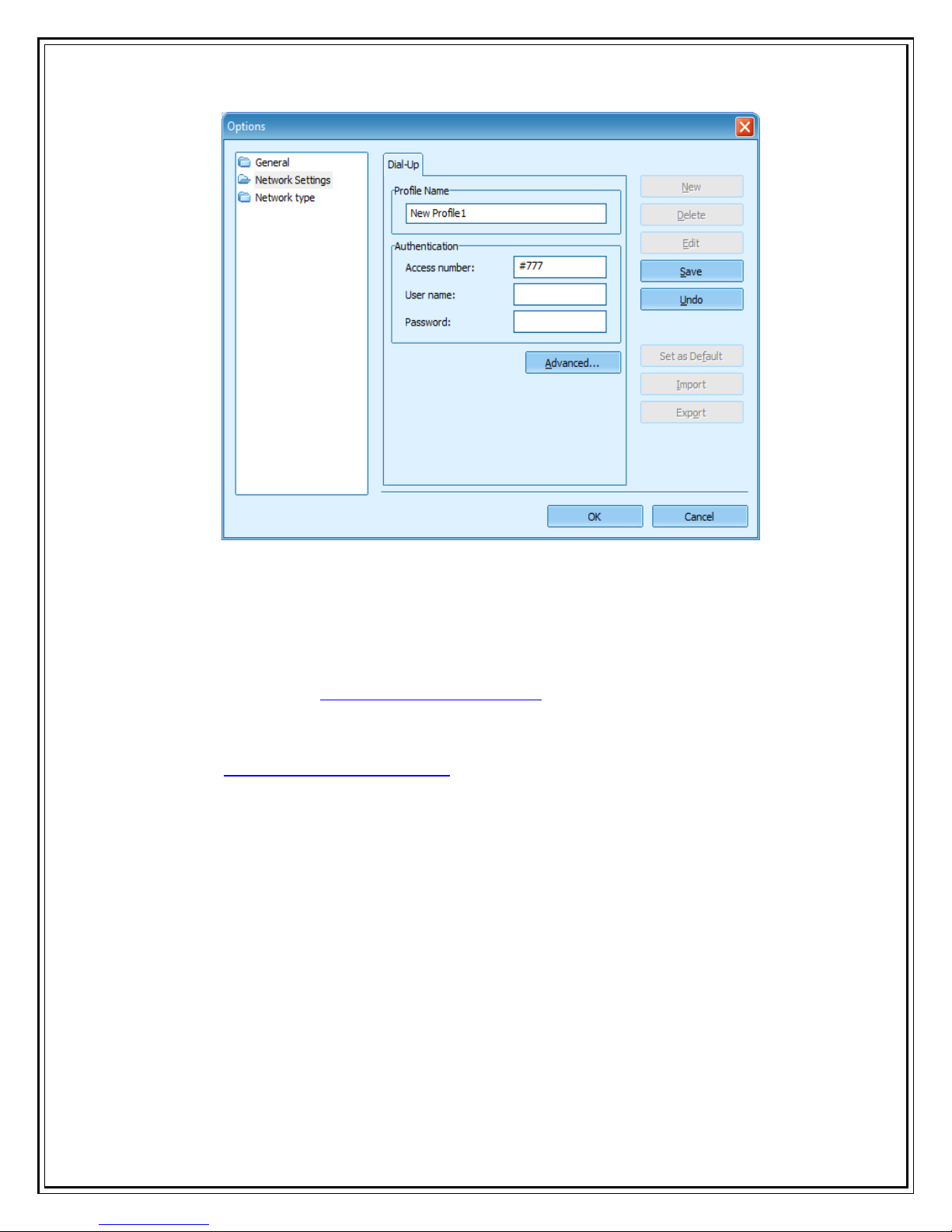

4. Click on the “New” button to create a new profile. The New Profile page opens up.

5. Enter the following values:

•Profile Name: Photon+ Pre-Paid

•Access Number: #777 (Already filled in)

•User Name: Photon+ [email protected] (Your Photon Number is the 10 digit

number starting with the digits 92 printed on your starter kit. For instance, if

your Photon Plus No. is 9212345678, then your username would be

[email protected])

•Password: internet

6. Click on Save. The saved page with the entered details is shown
