Introduction to OceanStor V5 Series

Before You Start

OceanStor 5110 V5，5300 V5, and

5500 V5

V500R007

Quick Installation Guide

Issue: 08

Date: 2019-06-30

Huawei OceanStor V5 series storage systems are innovative offerings that are ready to meet your current and

future storage requirements. They are designed to provide medium- and large-scale enterprises with improved

storage performance, efficiency, security, scalability, and manageability.

This guide describes how to quickly install OceanStor 5110 V5, 5300 V5, and 5500 V5. For more information,

see the OceanStor 5000, 5000F, 6000, and 6000F V5 Series V500R007 Installation Guide.

Note: For OceanStor 5110 V5, this document is only applicable to the V500R007C30 version.

You can obtain the product documentation from https://enterprise.huawei.com. You can also register for a

Huawei support account at this website to browse and download valuable information and sign up for product

updates.

Your feedback is important to us. If you have any comments about this document, go to

https://support.huawei.com/enterprise (Huawei enterprise technical support website) to submit your

feedback and suggestions.

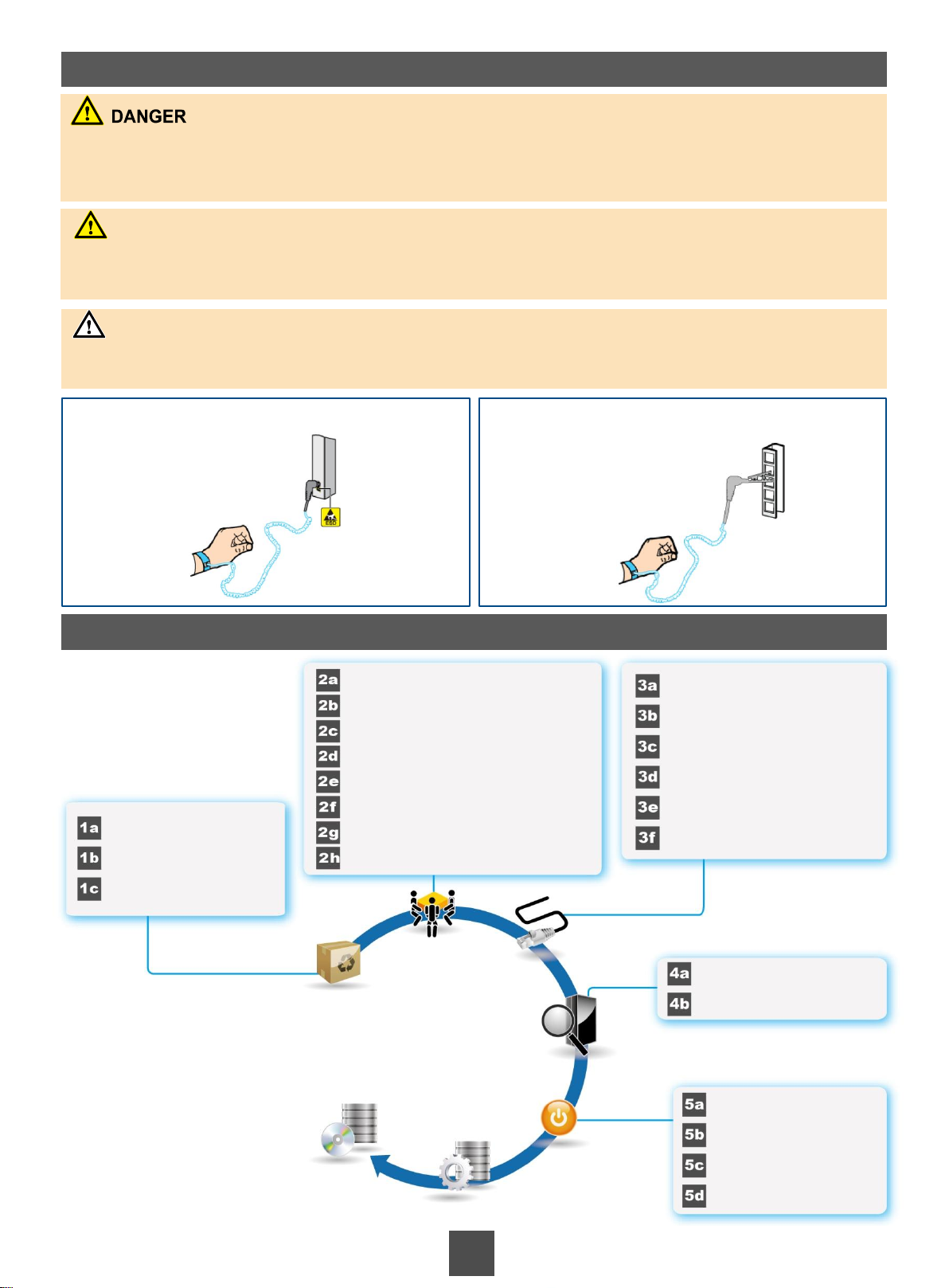

Arrange for at least three persons to carry and install an enclosure to avoid personal injury or device damage.

Before you handle devices, wear ESD clothes, wear a pair of ESD gloves or an ESD wrist strap, and remove

conductive objects such as ornaments and watches.

Do not operate devices or handle cables on a stormy day.

To avoid eye injuries, do not look into the optical outlets without eye protection.

To avoid electric shock, do not wear an ESD wrist strap during the power-on process.

Scenario 1 Wearing an ESD wrist strap whose

ground terminal is a plug Scenario 2 Wearing an ESD wrist strap whose

ground terminal is a metal clip

Installation Process

Safety Information

Initializing the Storage System

A generic view

of cable connections

(Optional) Connecting ground

cables

Connecting disk enclosures

Connecting the storage system

to the network

Connecting to the maintenance

terminal

Connecting power cables

Checking device installation

Checking cable connections

Switching on external

power supplies

Pressing the power button

on the controller enclosure

Checking status indicators

Installing front panels

Installation Preparations

Installing

Devices

Connecting Cables

Powering On the

Storage System

Checking

Hardware Installation

(Optional) Installing Host Software

Checking installation tools

Checking circuit breakers

Checking components

Planning device installation positions

Removing filler panels from device

installation positions

Determining device installation

positions using installation templates

Installing guide rails

Installing storage devices

into the cabinet

Installing a cable tray

(Optional) Installing disk modules

(Optional) Installing filler panels

CAUTION

Do not remove or insert controllers, disks, expansion modules, or cables during the power-on process to prevent

data loss.

NOTICE

1c Checking components

The following installation tools are required:

Phillips screwdriver (M3 to M6)

Flat-head screwdriver (M3 to M6)

Diagonal pliers

Floating nut mounting bar

A storage system power failure may cause devices connected to the

same circuit breaker to power off unexpectedly. Therefore, ensure

that the storage system power supplies have functioning circuit

breakers with the following amps:

AC power: not smaller than 10 A

DC power (not applicable to 5110 V5): not smaller than 30 A for

controller enclosures, not smaller than 18.5 A for disk enclosures

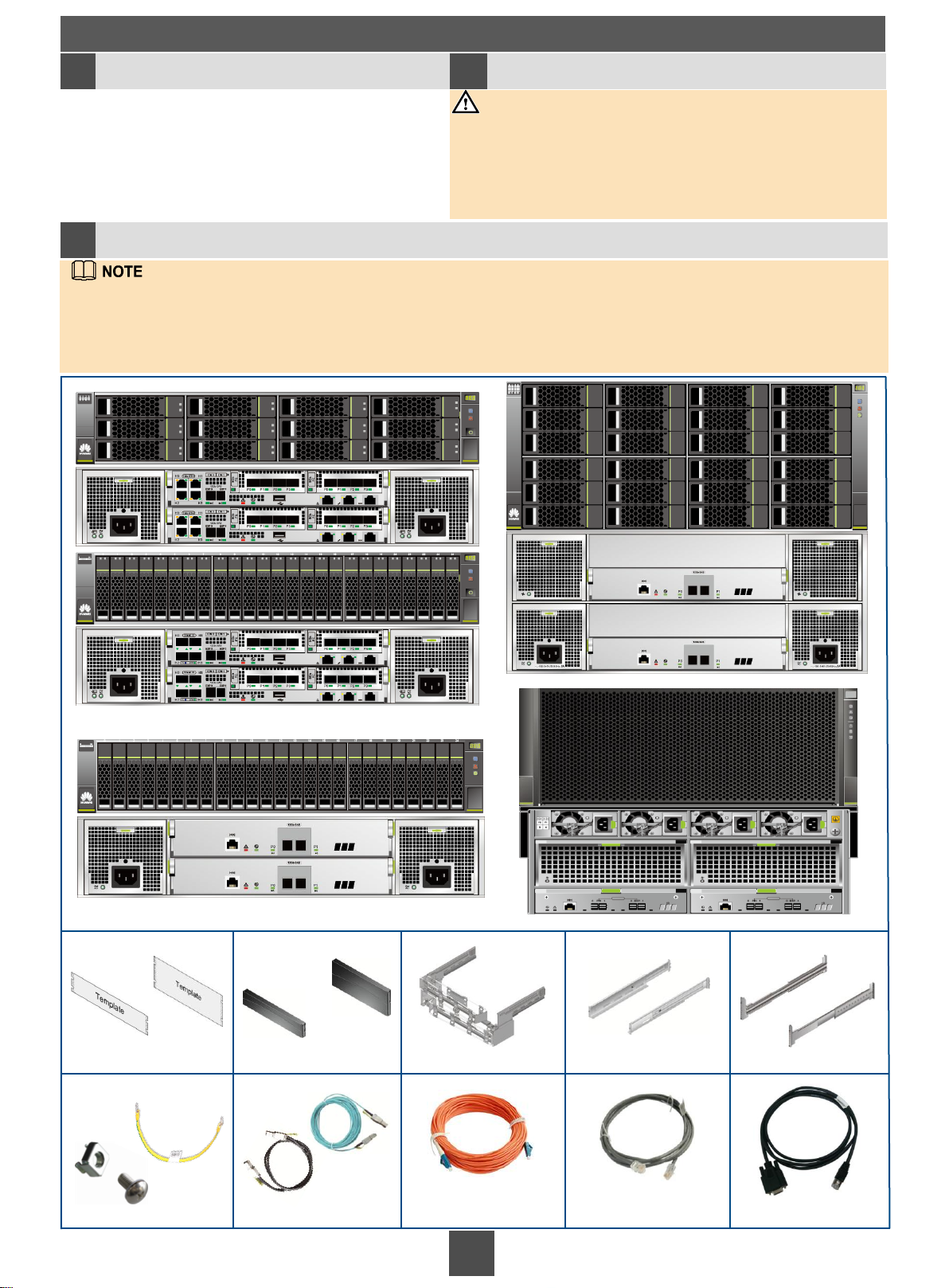

1 Installation Preparations

Only materials used in the installation process are listed here. The Packing List contains all materials required by the installation. The bag

containing the Packing List is attached to the outside of the carton.

Each controller of the OceanStor 5110 V5/5300 V5 is equipped with four GE electrical ports. Each controller enclosure of the OceanStor 5500

V5 is equipped with four SmartIO ports that do not support IP Scale-out networking. The following sections describe the process for installing

the OceanStor 5500 V5. The process for installing the OceanStor 5110 V5/5300 V5 is similar.

5110 V5 does not support high-density disk enclosures.

Disk enclosure (2 U)

Controller enclosure (2 U)

Installation template

(for 2 U devices) Front panel of a

2 U device

High-density disk enclosure (4 U)

Adjustable guide rails Ball bearing guide rails

Disk enclosure (4 U)

Installation template (for

4 U devices) Front panel of a 4 U

device

Checking installation tools Checking circuit breakers1b1a

NOTICE

Cable tray

Floating nut and M6 screw

Ground cable

Multi-mode optical fiber

cable Network cable Serial cable

Mini SAS HD optical

cable

Mini SAS HD electrical

cable

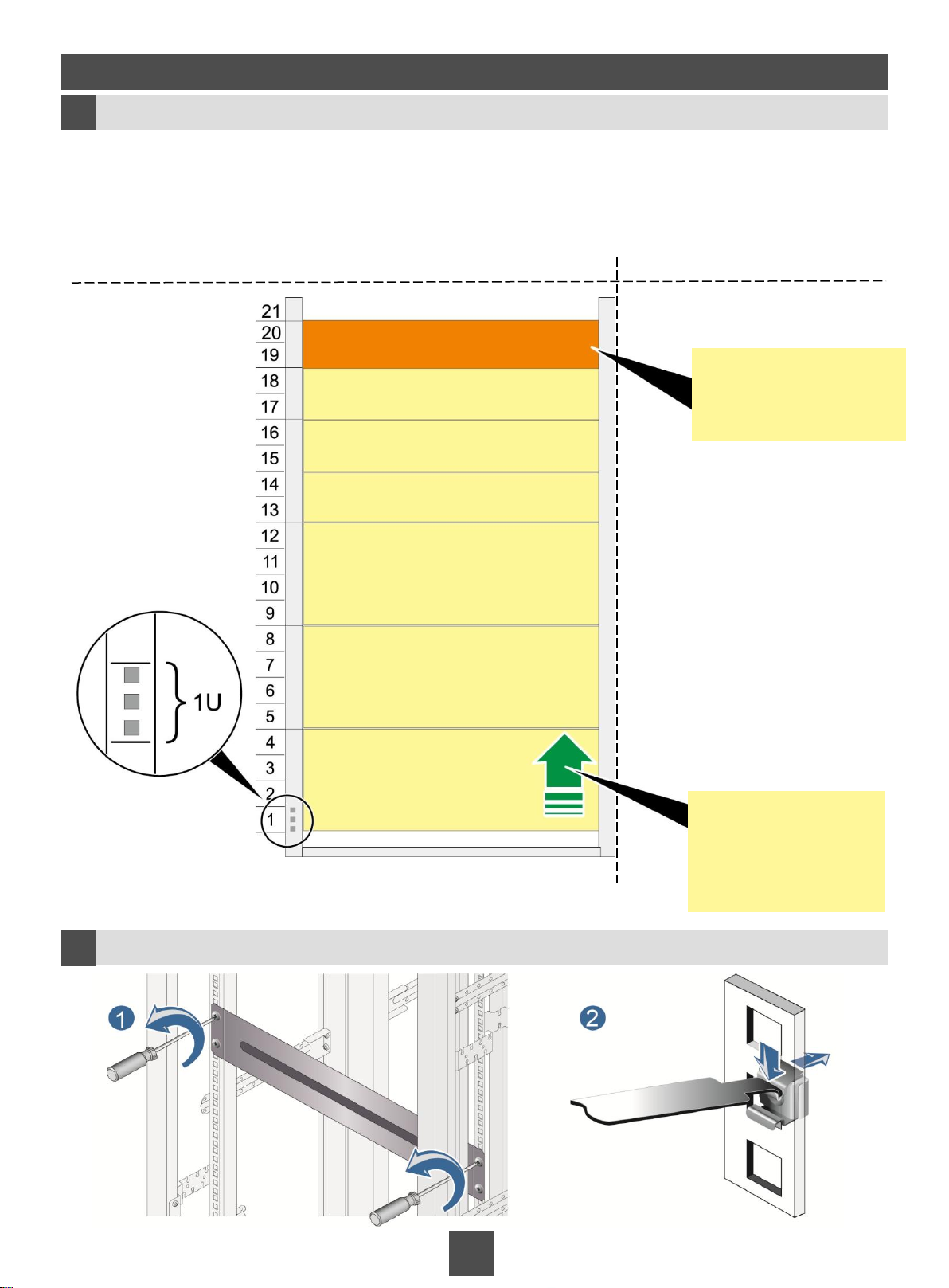

Planning device installation positions

Removing filler panels from device installation positions

2 Installing Devices

Recommended installation positions

Total required cabinet space = 2 U + 2 U x (Number of 2 U disk enclosures) + 4 U x (Number of 4 U disk enclosures)

For example, if the OceanStor 5500 V5 is equipped with three 2 U disk enclosures and three 4 U disk enclosures,

the space required by a cabinet is calculated as follows:

20 U = 2 U + 2 U x 3 + 4 U x 3

Note: The height of the storage system is measured by the unit of U. 1 U equals 44.45 mm (1.75 inches).

Tips

Install devices from the

bottom up and from heavy

to light (The total power of

all the devices cannot

exceed the total power of

the cabinet).

Disk enclosure (4 U)

Install the controller

enclosure in the middle of

a cabinet between 19 U

and 20 U.

Disk enclosure (4 U)

Disk enclosure (2 U)

Controller enclosure (2 U)

Disk enclosure (2 U)

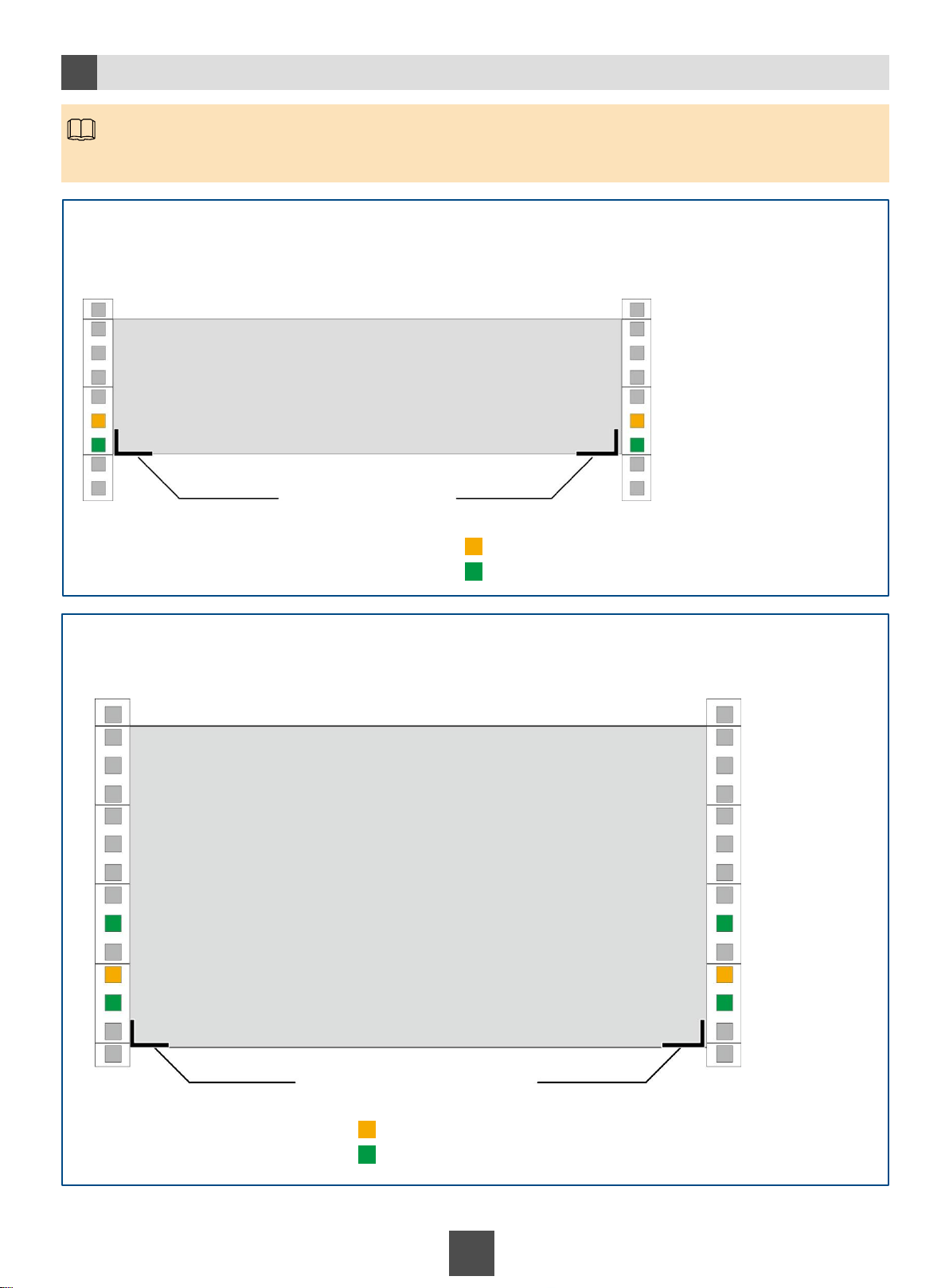

Determining device installation positions using installation templates

Scenario 2

Installation position of a 4 U device

Scenario 1

Installation position of a 2 U device

Low base of

the guide rail

On the mounting bars, use a marker to mark the holes where screws will be installed to secure the storage devices.

Installation positions of 2 U device fixing screws

Installation positions of guide rail fixing screws

Installation positions of 4 U device fixing screws

Installation positions of guide rail fixing screws

NOTE

Low base of the guide rail

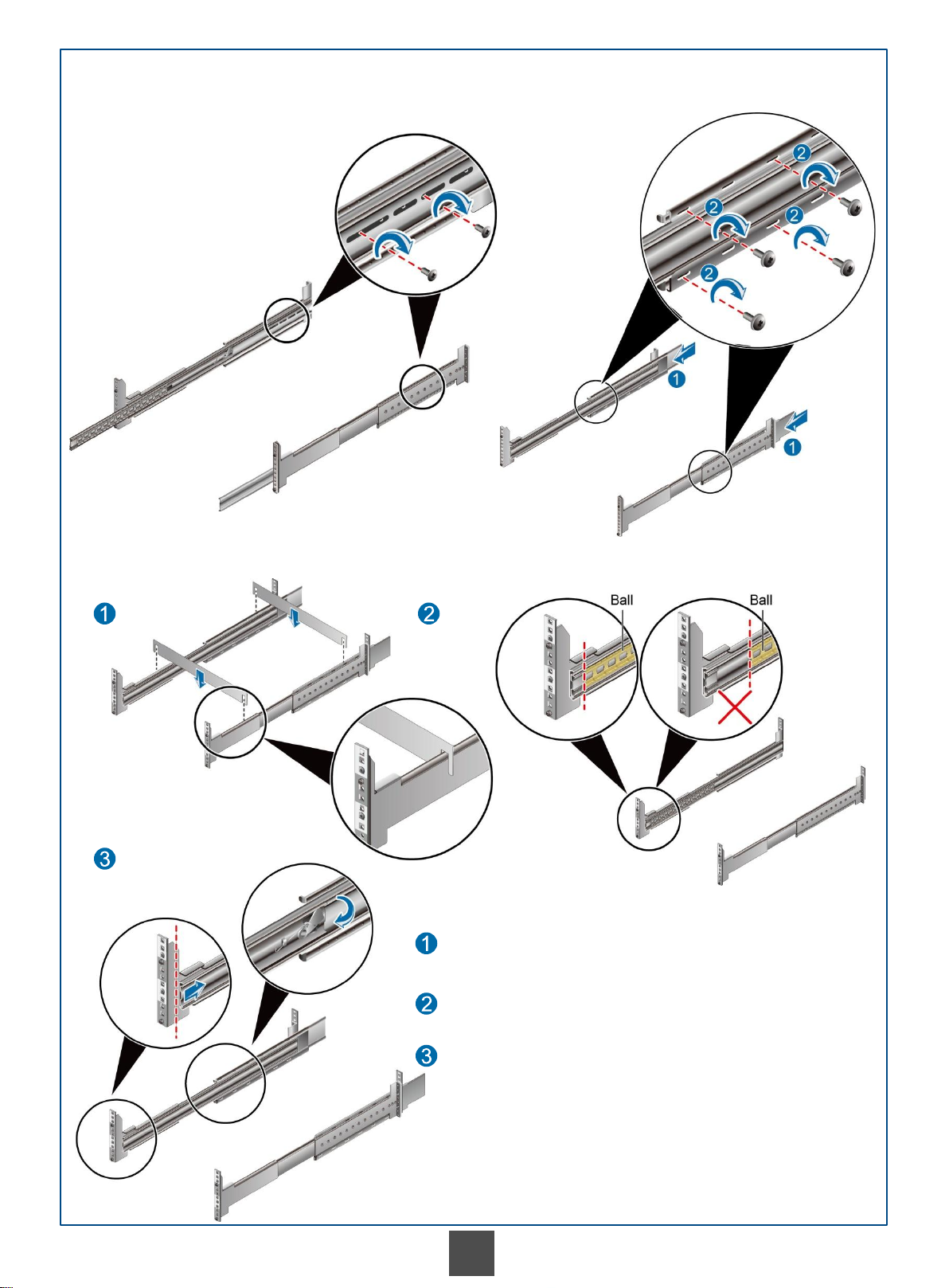

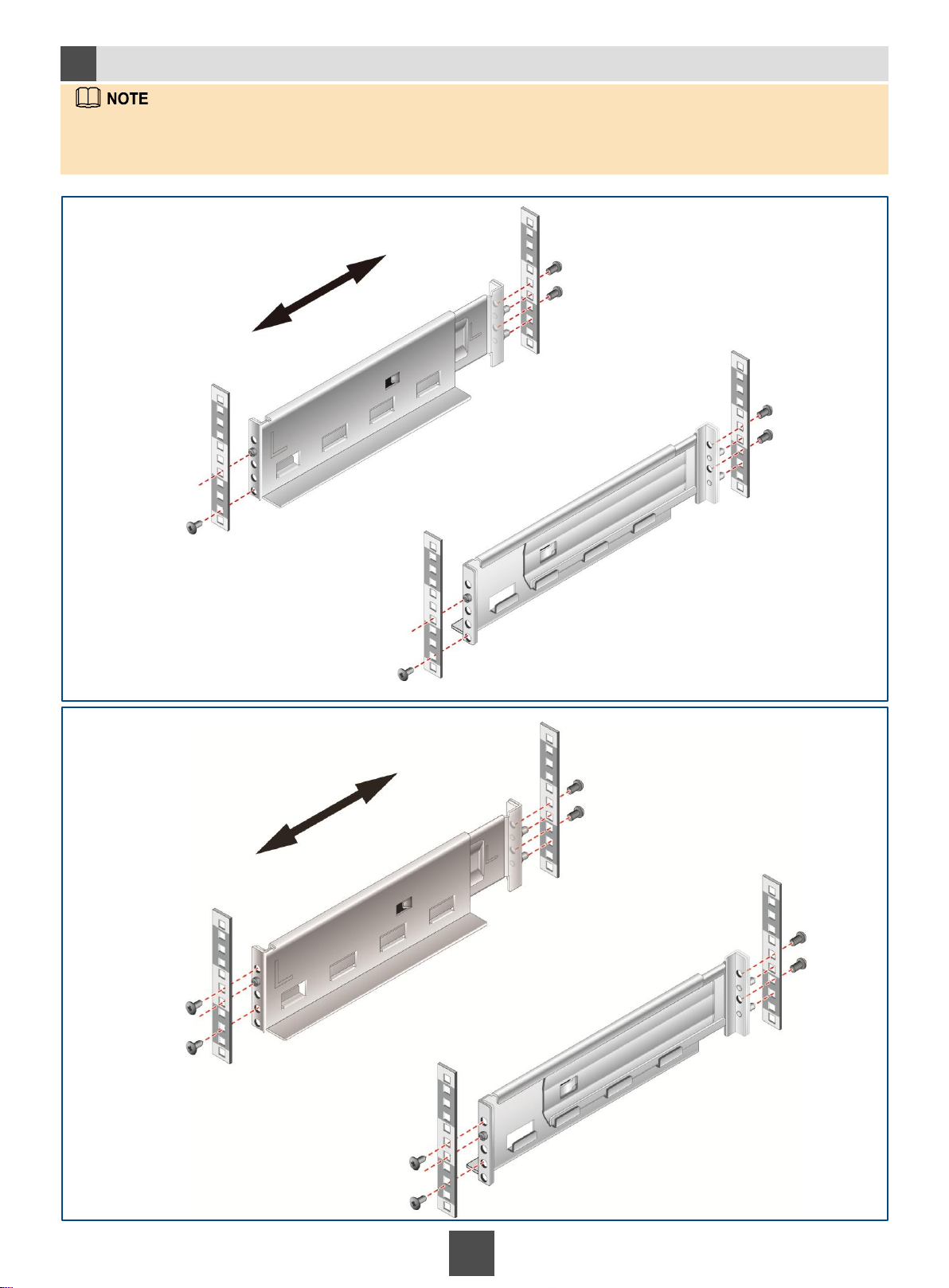

Installing guide rails

The adjustable guide rails are 600 mm (23.62 inches) to 900 mm (35.43 inches) long.

The adjustable guide rails are preconfigured with positioning pins before delivery.

Two paired adjustable guide rails must be positioned exactly parallel to one another.

Scenario 2

Installing adjustable guide rails for

a 4 U device

Scenario 1

Installing adjustable guide rails for a

2 U device

Front

Rear

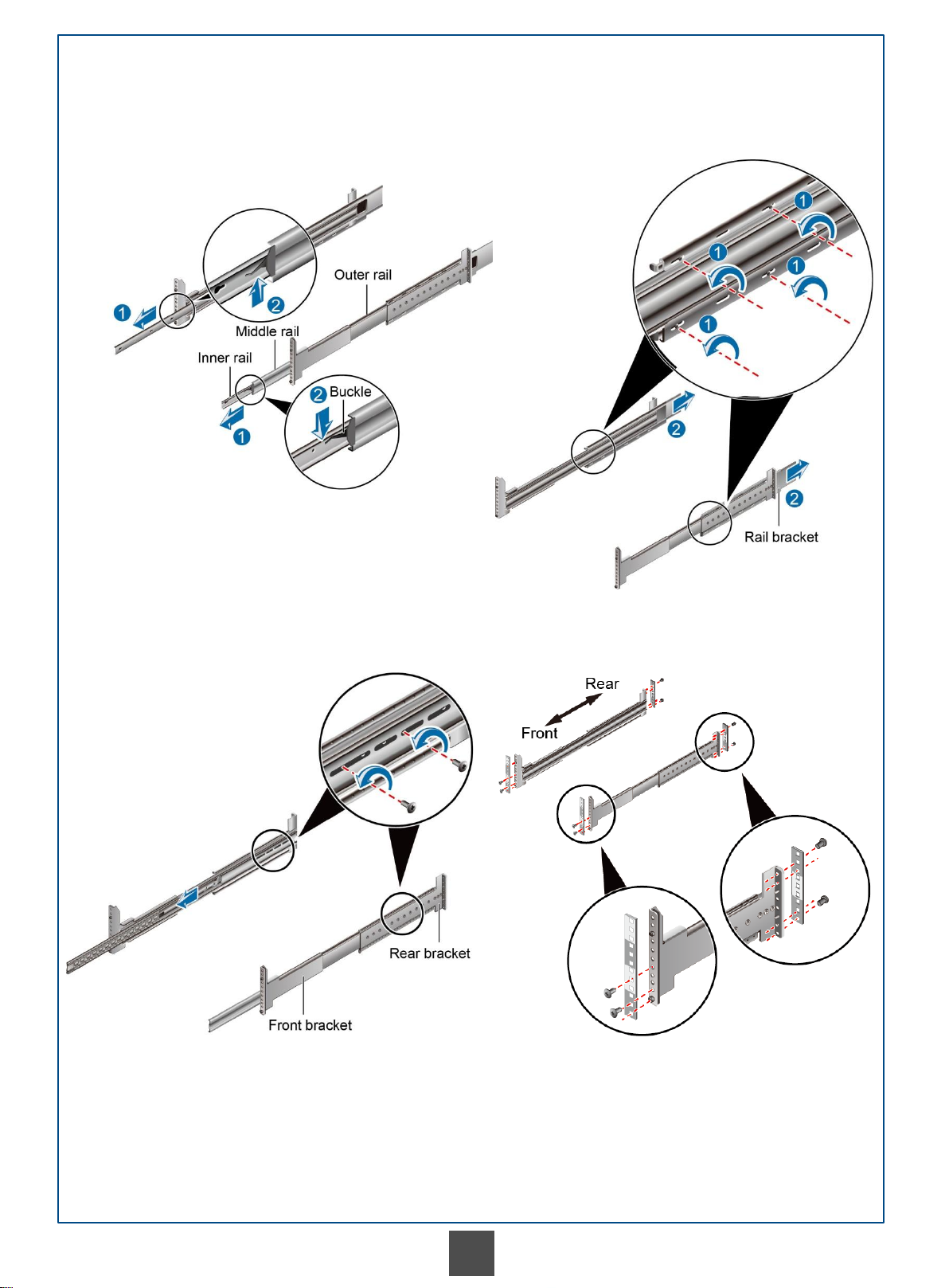

Scenario 3

Installing ball bearing guide rails for a high-density disk enclosure

(2) Remove a rail support.(1) Pull out the inner rail of the ball bearing guide rails.

(3) Loosen the screws and adjust the length of the ball

bearing guide rail to be the same of the cabinet depth. (4) Install the ball bearing guide rails.

Left guide rail

Right guide rail

(6) Installing a ball bearing guide rail bracket.

(7) Check the installation of the ball bearing guide rails.ng Hardware Installation

Check the distance between the left and right guide rails, and

ensure that the two templates can align and slot into the ball

bearing guide rails.

Check that the ball of the ball bearing guide rail has been

placed at the most front end of the middle rail.

Check that the edges of the middle rail and external rail are

at the same vertical plane.

(5) Fasten screws.

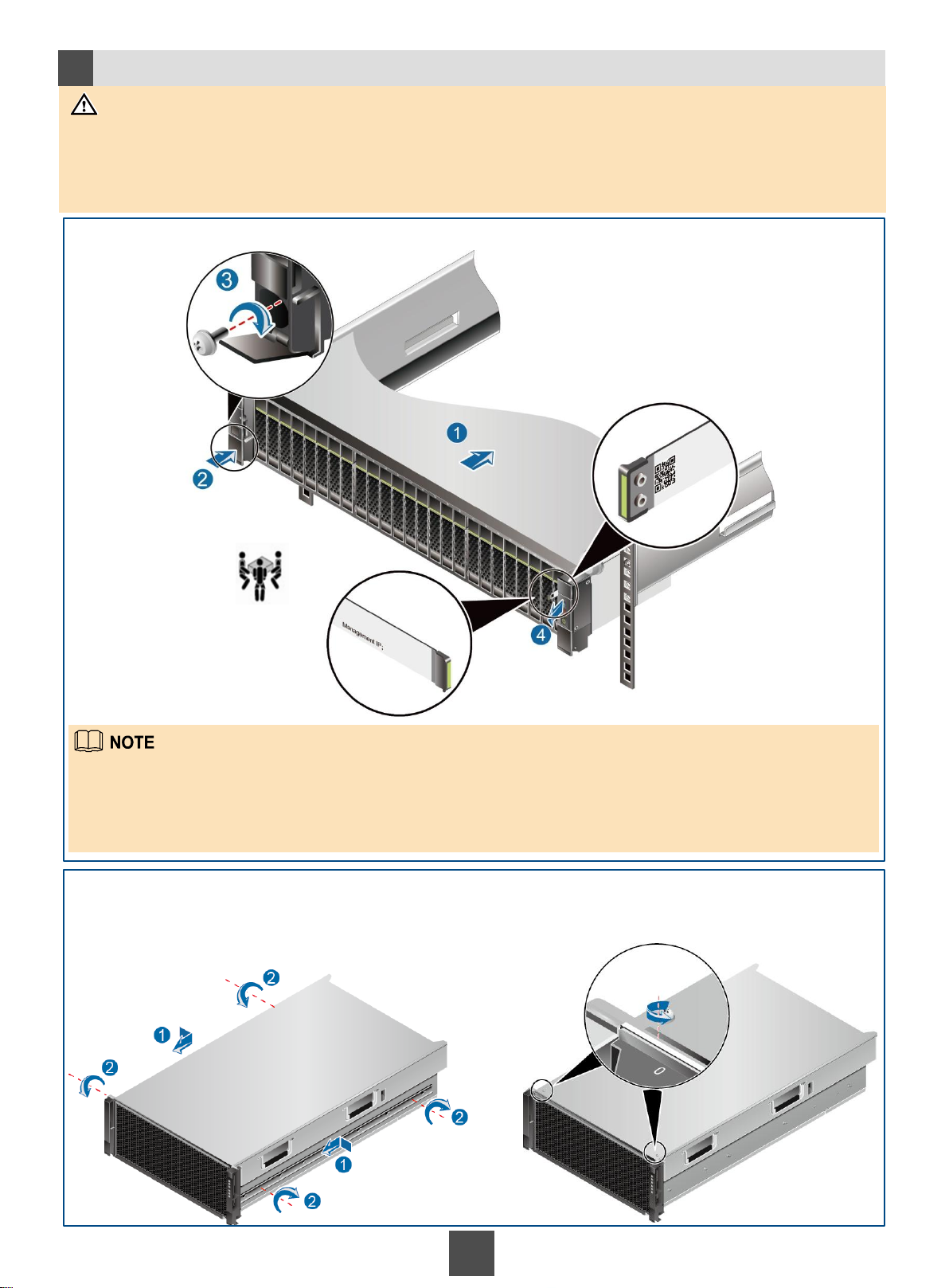

Scenario 2 Installing a high-density disk enclosure

Scenario 1 Installing a controller enclosure and a disk enclosure

Install a disk enclosure onto the guide rails using the same method as installing the controller enclosure.

After the controller enclosure is installed, pull out the information plate from the controller enclosure, as

instructed in step 4 in the preceding figure. On the left part of the information plate, you can record the

device's management IP address. On the right of the information plate, you can use your cellphone to

scan the QR code to obtain more information.

2e Installing storage devices into the cabinet

To avoid device damage, do not stack any components but install them onto guide rails.

If you remove controllers and disks for easily moving and installing enclosures, record the slots of these

controllers and disks in advance. This helps you insert controllers and disks back to their correct slots later. If a

controller is inserted into a different location, a system power-on failure may occur.

NOTICE

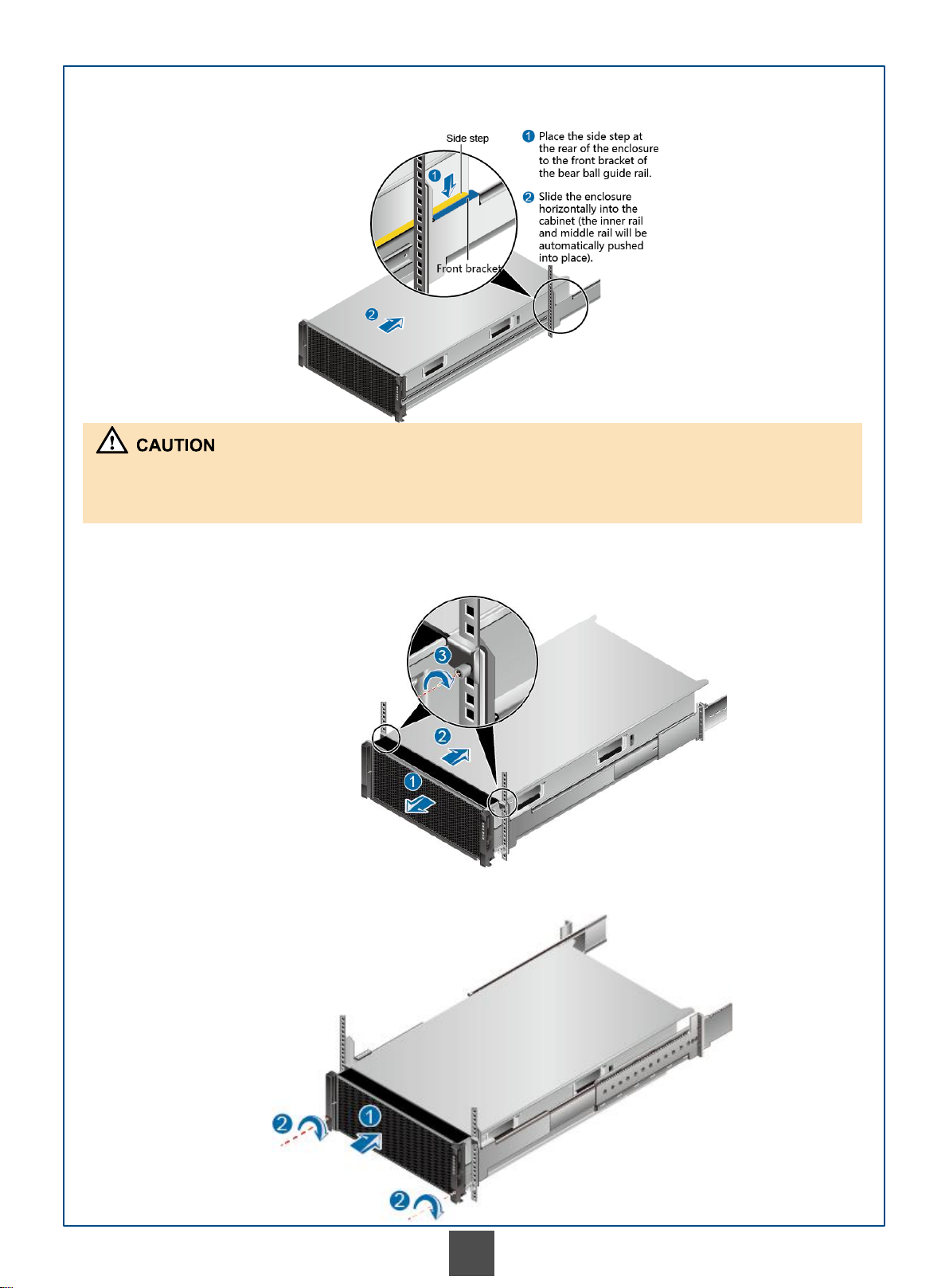

(1) Install the inner rail.

1. Install the inner rail onto the system enclosure.

2. Use two M4 screws to secure the inner rail.

(2) Remove the two M3 screws from the upper panel.

1010

(3) Place the side step at the rear (excluding the inner rail) of the high-density disk enclosure onto the front

bracket of the ball bearing guide rails, and slide the disk enclosure into the cabinet along the ball bearing guide

rails (no manual alignment is required because the inner rail automatically connects to the middle rail).

Do not pull out the middle guide rails when sliding the high-density disk enclosure into the cabinet.

Otherwise, the guide rails may be warped.

Before you install disk modules, install the high-density disk enclosure into the cabinet.

(4) Install a cover.

1. Pull out the enclosure slowly.

2. Push the upper cover backward until the upper cover touches the mounting bars.

3. Fasten the two captive screws on the cover.

(5) Secure the high-density disk enclosure.

1. Slide the enclosure into the cabinet slowly along the ball bearing guide rails.

2. Fasten the two captive screws on the front panel.
