Huawei B525s-23a Bedienungsanleitung

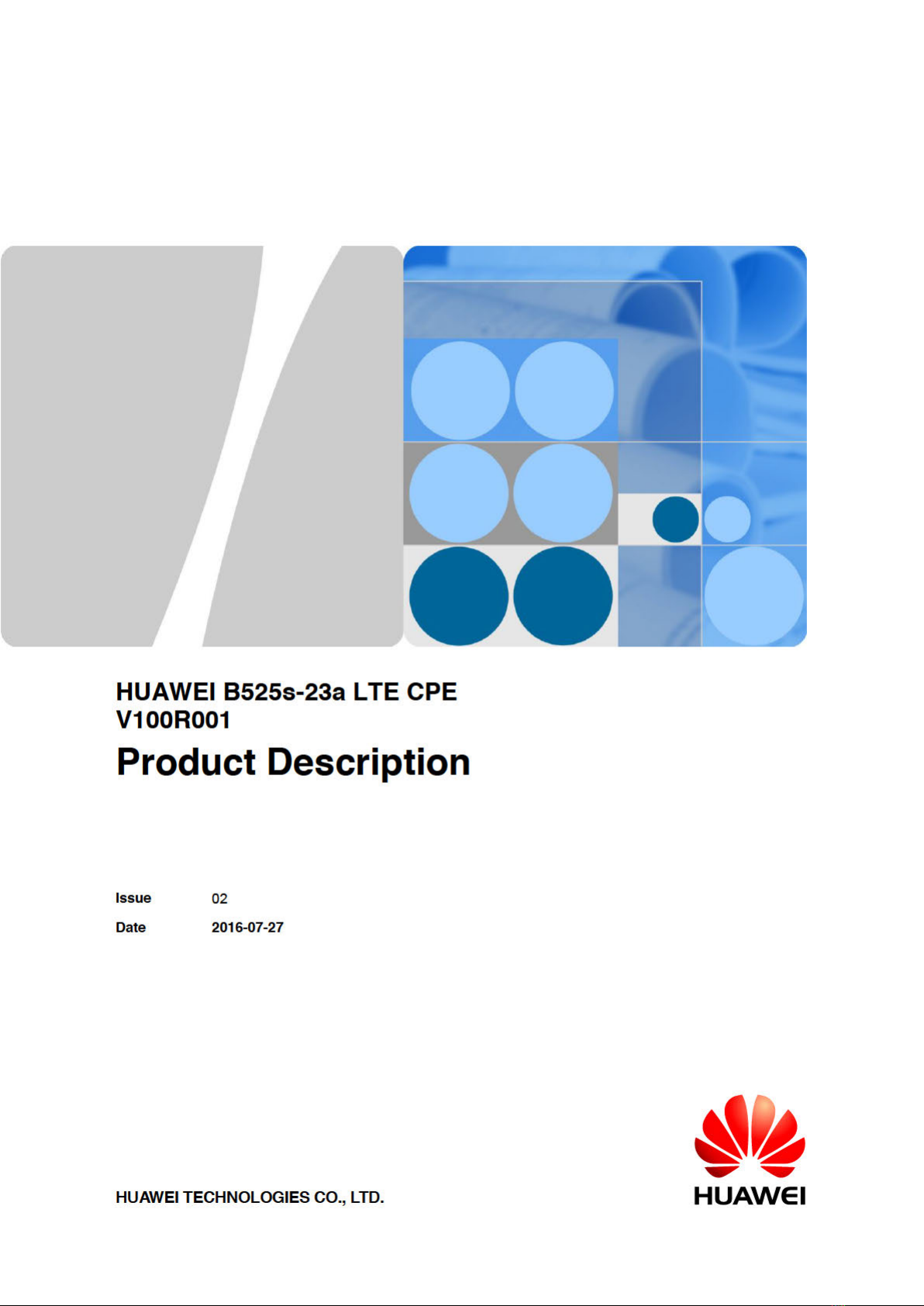

HUAWEI B525s-23a LTE CPE

Product Description

Product Overview

Issue 02 (2016-07-27)

Huawei Proprietary and Confidential

1 Product Overview

The HUAWEI B525s-23a LTE CPE (B525s-23a for short) is a wireless gateway that

integrates LTE and high-speed Ethernet uplink access, which provides users with flexible and

diversified data access and voice services.

The frequency bands of the product are as follows.

B525s-23a support:

LTE: B1/3/7/8/20/32/38

FDD: 2100 MHz/1800 MHz/2600 MHz/ 900 MHz/800 MHz/1500 MHz/

TDD: 2600 MHz

Intra-band contiguous: B3+B3, B7+B7, B38+B38

Inter-band: B3+B7, B3+B20, B7+B20, B7+B8, B3+B8, B1+B20, B1+B8,

B20+B32

DC-HSPA+/HSPA+/HSPA/UMTS：Band 1/8 2100MHz/900MHz

EDGE/GPRS/GSM：Band 2/3/5/8 1900MHz/1800MHz/850MHz/900MHz

The B525s-23a supports the following standards:

LTE（Long Term Evolution）

DC-HSPA+（Dual Carrier High Speed Packet Access Plus）

HSPA+（High Speed Packet Access Plus）

HSUPA（High Speed Uplink Packet Access）

HSDPA（High Speed Downlink Packet Access）

UMTS（Universal Mobile Telecommunications System）

EDGE（Enhanced Data Rates for Global Evolution）

GPRS（General Packet Radio Service）

GSM（Global System for Mobile Communications）

The B525s-23a supports wired and wireless network access, and provides data routing

service.

HUAWEI B525s-23a LTE CPE

Product Description

Product Overview

Issue 02 (2016-07-27)

Huawei Proprietary and Confidential

The B525s-23a provides the following services:

Data service

Voice service

SMS

Security service

Local maintenance management function

Figure 1-1 B525s-23a appearance

HUAWEI B525s-23a LTE CPE

Product Description

Features

Issue 02 (2016-07-27)

Huawei Proprietary and Confidential

2 Features

The B525s-23a mainly supports the following features:

Access to LTE wireless networks

Access to Gigabit Ethernet networks

High-speed data access

−LTE FDD: DL 300 Mbit/s, UL 50 Mbit/s

−LTE TDD: DL 220 Mbit/s, UL 10 Mbit/s

−DC-HSPA+: DL 42 Mbit/s, UL 5.76 Mbit/s

−HSPA+: DL 21 Mbit/s (64QAM) / 28 Mbit/s (MIMO), UL 5.76 Mbit/s

−HSPA: DL 14.4 Mbit/s, UL 5.76 Mbit/s

−WCDMA PS: 384 kbit/s

−EDGE: DL 296 kbit/s, UL 236.8 kbit/s

−GPRS: 85.6 kbit/s

Complies with wireless 802.11b/g/n standards with data rates up to 300 Mbit/s

Complies with wireless 802.11a/ac standards with data rates up to 1300 Mbit/s

SMS

IPv4 /IPv6 dual stack

Compatibility with RJ11 telephone ports; can be set to Voice over Internet Protocol

(VoIP) voice mode or Circuit Switch (CS) voice mode

External LTE antenna port

Support for HUAWEI HiLink App

WPS 2.0

HOTA updates

Built-in DHCP Server, DNS RELAY and NAT

Security services. Provides instant protection to block potential security risks and

intrusion attempts

Windows 7, Windows 8, Windows 8.1, Windows 10 (does not support Windows RT),

MAC OS X 10.7, 10.8, 10.9 and 10.10 with latest upgrades

User-friendly design of LED indicator. Easy to observe the status of equipment.

HUAWEI B525s-23a LTE CPE

Product Description

Technical Specifications

Issue 02 (2016-07-27)

Huawei Proprietary and Confidential

3 Technical Specifications

3.1 Hardware Specifications

Table 3-1 Technical specifications of the B525s-23a main unit

Item

Description

Technical

standard

WAN

LTE/DC-HSPA+/HSPA+/HSPA/UMTS/EDGE/GPRS/GSM

LAN

IEEE 802.3/802.3u

WLAN

IEEE 802.11a/b/g/n/ac

Working

frequency band

LTE

B525s-23a support:

LTE: B1/3/7/8/20/32/38

FDD: 2100 MHz/1800 MHz/2600 MHz/900

MHz/800 MHz/1500 MHz/

TDD: 2600 MHz

Intra-band contiguous: B3+B3, B7+B7,

B38+B38

Inter-band: B3+B7, B3+B20, B7+B20, B7+B8,

B3+B8, B1+B20, B1+B8, B20+B32

DC-HSPA+/HSPA+/

HSPA/UMTS

Band 1/8 2100 MHz /900 MHz

EDGE/GPRS/GSM

Band 2/3/5/8 1900 MHz/1800 MHz/850

MHz/900 MHz

WLAN

2.4GHz 2.402 GHz～2.472 GHz

5GHz 5.150GHz～5.350GHz &

5.470GHz～5.725GHz

HUAWEI B525s-23a LTE CPE

Product Description

Technical Specifications

Issue 02 (2016-07-27)

Huawei Proprietary and Confidential

Item

Description

External port

One power adapter port

Three LAN port (RJ45)

One LAN/WAN port (RJ45)

One phone port (RJ11)

Two external LTE antenna ports (SMA-J1.5)

One micro-SIM card slot

One USB 2.0 port (Supports a maximum of 500mA current)

Antenna

Built-in LTE/UMTS/GSM primary antenna

Built-in LTE/UMTS secondary antenna

Built-in WLAN 2.4G antenna

Built-in WLAN 5G antenna

Indicator

One power indicator

One Internet status indicator

One WLAN/WPS indicator

One LAN indicator

One group of signal strength indicators

Button

One Power ON or OFF switch

One WPS button

One Reset button

Maximum

transmit power

LTE

Conform to 3GPP Power Class 3 Definition

WLAN

2.4G

802.11b 16 dBm

802.11g 17 dBm

802.11n 17 dBm

Low band

802.11a 17 dBm

802.11n 16 dBm

802.11ac 16 dBm

Middle band

802.11a 17 dBm

802.11n 16 dBm

802.11ac 16 dBm

High band

802.11a 21 dBm

802.11n 21 dBm

802.11ac 21 dBm

HUAWEI B525s-23a LTE CPE

Product Description

Technical Specifications

Issue 02 (2016-07-27)

Huawei Proprietary and Confidential

Item

Description

Receiving

sensitivity

LTE

Conform to 3GPP Definition

UMTS

Conform to 3GPP Definition

GSM

-104 dBm

WLAN

802.11a：-71 dBm（54 Mbit/s）

802.11b：-85 dBm（11 Mbit/s）

802.11g：-71 dBm（54 Mbit/s）

802.11n：-69 dBm（65 Mbit/s）

802.11ac：-65 dBm（78 Mbit/s）

Power

consumption

< 20W

AC/DC

power supply

AC: 100 V - 240 V

DC: 12 V/2 A

Dimensions

(Maximum)

226mm ×163mm ×52mm

Weight

About 370g (excluding the power adapter)

Temperature

Working temperature: 0°C to 40°C

Storage temperature: -20°C to +70°C

Humidity

5% - 95%

3.2 Antenna and Radio Frequency Specifications

Table 3-2 LTE mai n d ive r sity a n tenna sp e cifica tions

Item

Description

Frequency

703 MHz~960 MHz /1452 MHz~1496 MHz /1710 MHz~2690

MHz

Input impedance

50 Ω

Standing wave ratio

< 3

Efficiency

≥ -4dB@703MHz~960MHz

≥-4 dB@1452 MHz~1496 MHz

H side gain

≥ 1dBi

Polarization

Linear polarization

HUAWEI B525s-23a LTE CPE

Product Description

Technical Specifications

Issue 02 (2016-07-27)

Huawei Proprietary and Confidential

Table 3-3 WLAN 2.4 GHz antenna specifications

Item

Description

Frequency

2.401 GHz～2.495 GHz

Input impedance

50 Ω

Standing wave ratio

< 2

Efficiency

≥ -3dB

H side gain

≥ 1dBi

Polarization

Linear polarization

Table 3-4 WLAN 5 GHz antenna specifications

Item

Description

Frequency

5.15-5.35GHz / 5.47-5.725GHz

Input

impedance

50 Ω

Standing wave

ratio

Efficiency

≥ -3dB

H side gain

≥ 1dBi

Polarization

Linear polarization

Table 3-5 External antenna specifications

The external antenna is an optional accessory. Signals may be weak in some areas; thus, you can

choose whether to use the external antenna.

The external antenna can be used indoor only. Put it near the window when using to get better signal.

Avoid thunderstorms when using.

Item

Description

Technical

standard

LTE/DC-HSPA+/HSPA+/HSPA/WCDMA/EDGE/GPRS/GSM

Frequency

703 MHz - 960 MHz

1452 MHz~1496 MHz

1710 MHz - 2690 MHz

Input

impedance

50 Ω

Standing wave

ratio

< 3

HUAWEI B525s-23a LTE CPE

Product Description

Technical Specifications

Issue 02 (2016-07-27)

Huawei Proprietary and Confidential

Item

Description

H side gain

≥ 3 dBi (horizontal level)

Polarization

Linear polarization

Interface

standard

SMA-J1.5

HUAWEI B525s-23a LTE CPE

Product Description

Technical Specifications

Issue 02 (2016-07-27)

Huawei Proprietary and Confidential

3.3 Software Specifications

Table 3-6 Software specifications

Item

Description

Gateway

Supports the default route: 0.0.0.0.

Supports the default gateway address: 192.168.8.1.

Supports the Address Resolution Protocol (ARP).

Supports the Internet Control Message Protocol (ICMP).

Supports the domain name service (DNS).

NAT

Supports NAT and Network Address and Port

Translation (NAPT), which complies with

RFC2663, RFC3022, and RFC3027.

Supports CONE NAT.

Supports fragmented message identification

during common NAT.

DHCP server

Enables and disables the DHCP server.

Configures DHCP server address pools.

Sets the lease time.

VPN client

Support L2TP VPN client (When L2TP vpn client function is

enabled, the throughput performance will slow down, the

maximum speed can up to 50Mbps (dependent on network

environment).)

SMS

Writing/Sending/Receiving

Writing/Sending/Receiving extra-long messages

Voice(optional)

VoIP

Supports the Session Initiation Protocol (SIP).

Supports G.711a/G.711u/G.726

(-24/-32)/G.722 for encoding and decoding.

CS voice

Supports CS voice communication over UMTS

and GSM networks.

Supports the circuit switched fallback (CSFB).

Firewall

Enables and disables the firewall.

Filters LAN MAC addresses.

Filters LAN IP addresses.

Filters URLs.
