Huawei Mobile WiFi Bedienungsanleitung
1
Thank you for choosing HUAWEI Mobile WiFi
Supported functions and actual appearance depend on the specific models you purchased.
The illustrations are provided for your reference only. For details about the model you
selected, consult your service provider.
This guide briefly describes the functions of the Mobile WiFi. For more details, see help on
the web management page.
Copyright © Huawei Technologies Co., Ltd. 2012. All rights reserved.
THIS DOCUMENT IS FOR INFORMATION PURPOSE ONLY, AND DOES NOT CONSTITUTE
ANY KIND OF WARRANTIES.
2
Getting to Know HUAWEI Mobile WiFi
Connection Scenario
A Wi-Fi device can be connected to the Internet through the Mobile WiFi. The actual
connection procedure depends on the operating system of the Wi-Fi device. The
connection scenario illustrated here is for your reference.
3
Appearance
No. Item
1 Screen
2
WPS button
Press it twice in one second to view
the SSID and wireless network key
sequentially.
Press and hold it until a WPS
activation animation is displayed to
enable the WPS function.
3 Power/Wi-Fi button
4 SIM card slot
5 Strap hole
6 USB port
7 Reset button
8 microSD card slot
6
7
8
2
3
4
5
1
4
Screen
No. Item
1 Signal strength
2 Network
3 Wi-Fi enabled
Number of devices connected
4 Internet connection status
5 New messages
Number of new messages
6 Battery level
7 International roaming state
8 Traffic data
Connection duration
9 A: Auto mode
M: Manual mode
1
2
3
4
5
6
R
8
7
000:00
B
A
9
4G
5
Note:
Wi-Fi: Wireless Fidelity
WPS: Wi-Fi Protected Setup
Traffic statistics are for your reference only. To obtain the actual traffic data, contact
your service provider.
SSID and Wireless Network Key
To connect a Wi-Fi device to your Mobile WiFi, an SSID and a wireless network key are
required. The default SSID and wireless network key can be found in the gift box. In
addition, press the button twice in one second to view the current SSID and wireless
network key sequentially on the screen.
6
Before You Start
Installing the SIM Card
Caution: Do not use any SIM card that is not standard or
is incompatible with the Mobile WiFi. Otherwise, the
Mobile WiFi may be damaged.
Insert the SIM card in the card slot. Be sure that the SIM card is facing in the right direction,
as shown in the following figure, and then slide the SIM card into the slot.
7

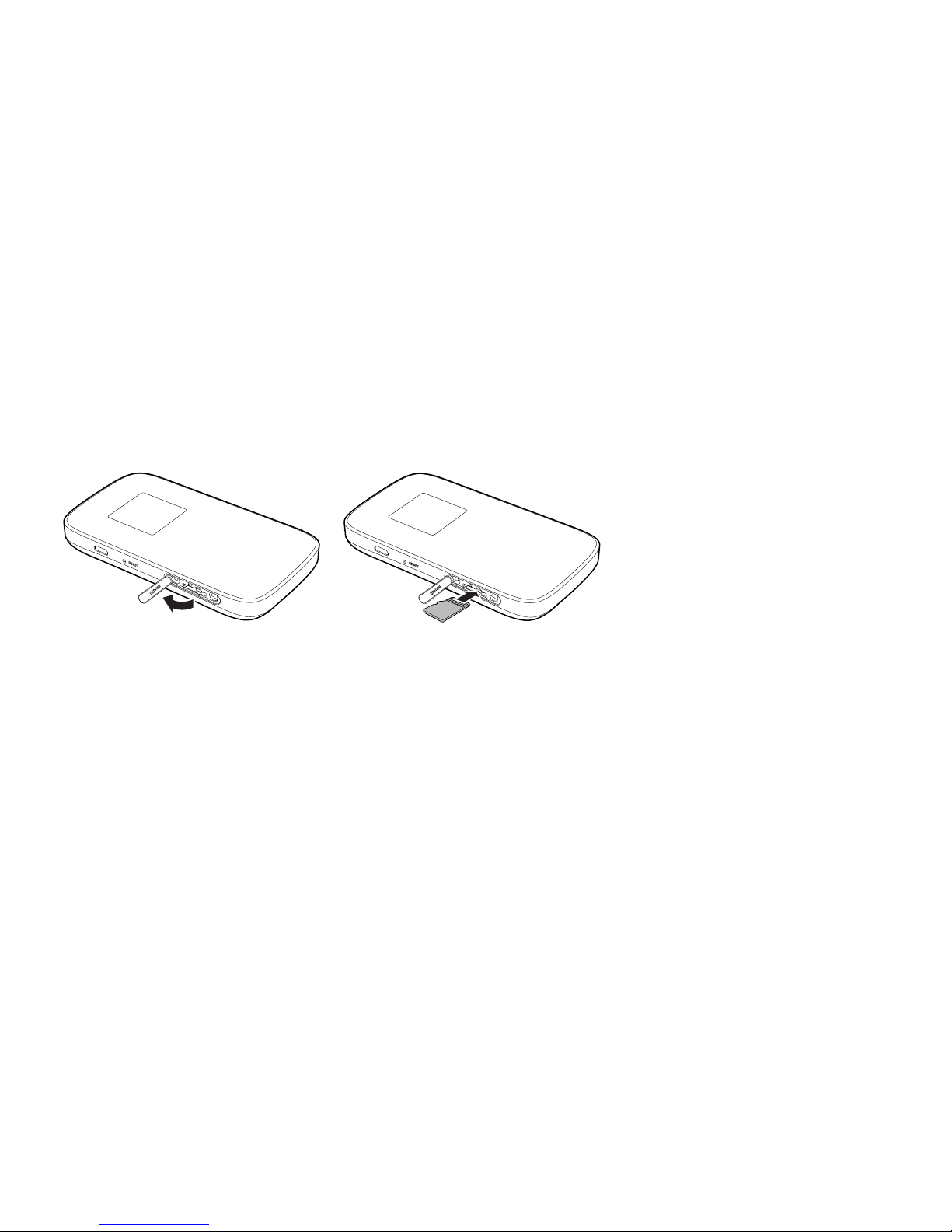

Installing the microSD Card
Insert the microSD card into the Mobile WiFi, as shown in the following figure.
Note:
The microSD card is an optional accessory. If a microSD card did not come with your
Mobile WiFi, you may purchase one yourself.
To remove the microSD or SIM card, press in the card gently. The microSD or SIM card
will pop out for removal.
Do not remove the microSD or SIM card when the card is in use. Otherwise, the card
as well as your Mobile WiFi may get damaged and the data stored on the card may be
corrupted.
8
Charging the Battery
Charge your Mobile WiFi the first time you use it or if it has not been used for a long time.

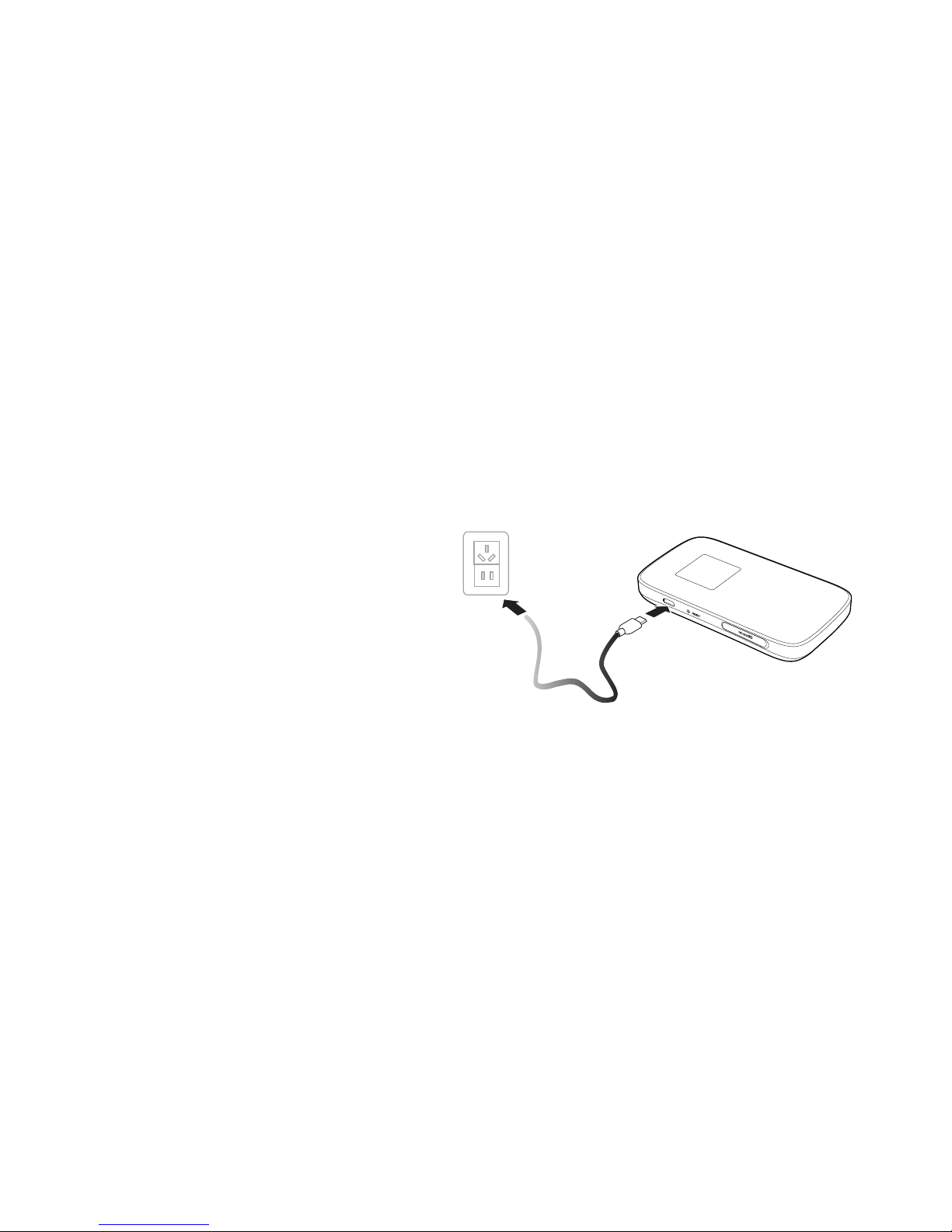

Method 1: Using the charger
Caution:
Only use chargers compatible with
the Mobile WiFi and provided by a
designated manufacturer
(HW-050200E3W). Use of an
incompatible charger or one from
an unknown manufacturer may
cause the Mobile WiFi to
malfunction, fail, or could even cause a fire. Such use voids all warranties, whether
expressed or implied, on the product.
The charger is an optional accessory. If the charger is not provided in the package,
you can contact your local dealer to buy one yourself.
9
Method 2: Connecting to a PC for charging
Connect the Mobile WiFi to a PC using a compatible data cable.
10
Accessing the Internet via Wi-Fi Connection
By default, management parameters are preset on the Mobile WiFi according to the
requirements of the service provider. Follow the steps below to quickly access the Internet.
For the details about how to set management parameters, see help on the web
management page.
Step1: Power on the Mobile WiFi
Press and hold until the screen lights up.
The Mobile WiFi is powered on.
Note: Press and hold to power off the
Mobile WiFi.
