Huffy 89780 Bedienungsanleitung
1P/N 211487C 04/02
Customer Service
N53 W24700 South Corporate Circle
Sussex, WI 53089
U.S.A.
A Huffy Company
BASKETBALL
CENTER
BASKETBALL
CENTER
IMPORTANT!
To ensure prompt and correct handling of any problems, or to answer any questions, please contact the Sample
and Display Technician at 1-800-558-5234.
REQUIRED TOOLS AND
MATERIALS:
• Wrenches: (Two each) 7/16”, 1/2”, 9/16”,
and 3/4” or Pliers
• 3/16” Allen Wrench
• Step Ladder, 8 ft. (2.4 m)
Model 89780
SAFETY INSTRUCTIONS
FAILURE TO FOLLOW THESE SAFETY INSTRUCTIONS MAY
RESULT IN SERIOUS INJURY,
PROPERTY DAMAGE AND WILL VOID WARRANTY.
This unit is intended for display purposes only and
should not be used for play.
To ensure safety, do not attempt to assemble this system without
following the instructions carefully. Check entire box and inside all
packing material for parts. Before beginning assembly, read the
instructions and identify parts in this document. Proper and
complete assembly, use and supervision is essential for proper
operation and to reduce the risk of accident or injury. A high
probability of serious injury exists if this system is not installed,
maintained, and operated properly.
• During assembly, if using a ladder use extreme caution. Two
people are recommended for this operation.
• If technical assistance is required, contact Huffy Sports’ Sample
and Display Technician.
• Serious injury could occur if teeth/face come in contact with
backboard, net or rim.
• Display recommended for 3” (7.6 cm) or 3-1/2” (9 cm) Round or 4”
(10 cm) Square poles only.
• All instructions and warnings MUST accompany any display item
that is sold.
Most injuries are caused by misuse and/or not following
instructions.
Use caution when installing this unit.
Internet Address: http://www.huffysports.com
P/N 211487C 04/02 2
PARTS LIST
Item Qty. Part No. Description
1 2 203257 Zip Tie
2 4 207103 Pole Cap for 3.5” Pole Section
3 26 203100 Nut, Hex Flange 5/16-18*
4 6 204872 Height, Decal
5 8 201611 Bolt, Hex Flange, 5/16-18 x 3”
6 16 203218 Washer, Flat, 5/16*
7 8 200516 Bolt Cover, Vinyl*
8 4 200863 POP Header Cards
9 6 200892 Plastic Push Clips
10 4 900013 3.5” Pole Section
11 1 200862 POP Insert
* YOU MAY HAVE EXTRA HARDWARE
3P/N 211487C 04/02
Move display to location on sales floor and
remove 2 X 4 runners under feet.
P.O.P.
Install pegboard panels onto
corresponding side support
railings. Secure with zip tie to
temporarily hold panel in place.
Remove zip ties after assembly is
complete. Attach P.O.P. sign (11)
with plastic push clips (9) so that it
faces aisle as shown.
FRONT
9
11
1
2
P/N 211487C 04/02 4

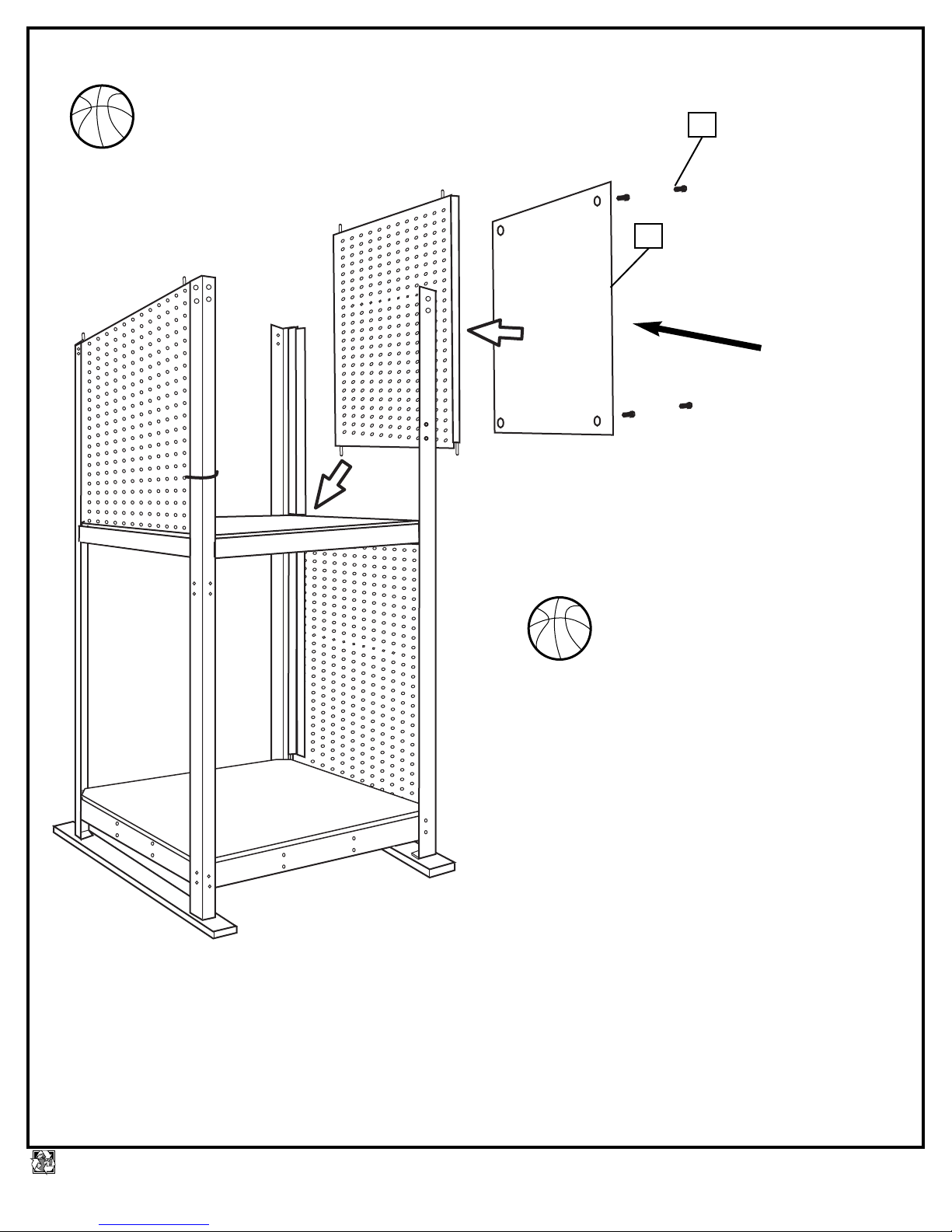

Install support railings, as shown. Insert
particle board as shown and rest on second
support railing.
FRONT
NOTE:
Top shelf has
square
corners.
TWO PERSON MINIMUM
REQUIRED FOR THIS
PROCEDURE. NOT
FOLLOWING
RECOMMENDATION MAY
RESULT IN BODILY INJURY.
WARNING
IMPORTANT:
Top Support Railing Must
Be Inserted In The Positions
Shown. POP Cards Will
Later Be Inserted Into Rail
Slots.
3
NOTE:
Location of
tab on lower
panel.
NOTE:
Use shorter
bolts to
assemble.
5P/N 211487C 04/02
TWO PEOPLE ARE
NECESSARY TO MOUNT THE
ELEVATOR ASSEMBLY TO
THE POLE. ONE PERSON
SHOULD NOT ATTEMPT TO
DO THIS ALONE.
WARNING
TOP
VIEW
FRONT
D
3-1/2” Rnd. Pole
3-1/2” Rnd. Pole X 30” Pole
Install enclosed pole mounting hardware and pole
for each assembly.
3-1/2” Rnd. Pole
3-1/2” Rnd. Pole
NOTE:
Enclosed One Set
Of Hardware For
(Each) Pole Installation
A
B
C
908811
Upper Support
Railing
4
P/N 211487C 04/02 6

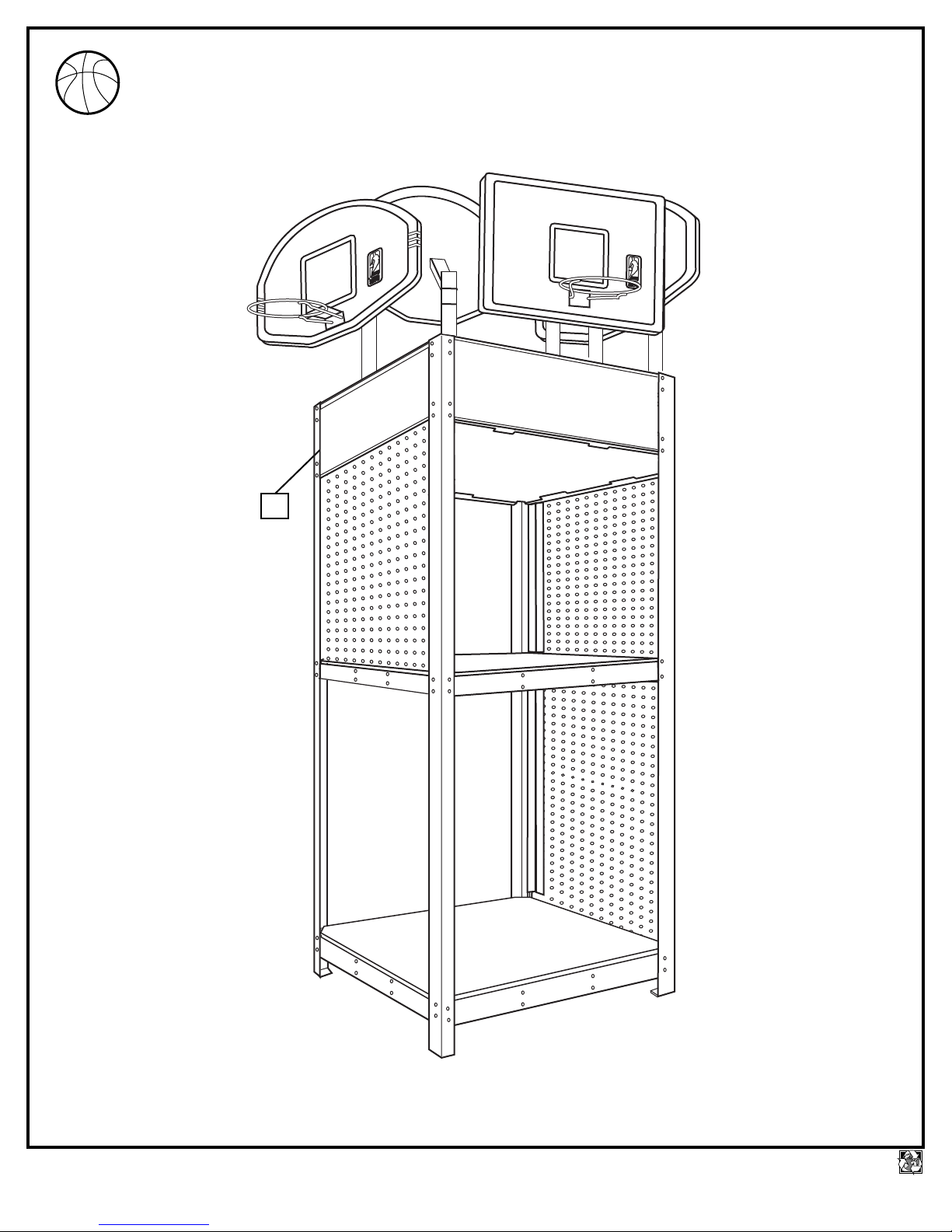

Assemble display products per diagram below and
procedures on following pages for each model. Then
mount to corresponding backboard hardware.
INSTALLATION
DIAGRAM
FRONT
TWO PERSON MINIMUM
REQUIRED FOR THIS
PROCEDURE. NOT
FOLLOWING
RECOMMENDATION MAY
RESULT IN BODILY INJURY.
WARNING
MOUNTING THE ELEVATOR
ASSEMBLY TO THE POLE IS
PERFORMED AT AN
ELEVATED HEIGHT. USE
PROPER PRECAUTION.
WARNING
73092
44” Fan
Backboard
w/Slam Jam Rim
89036 44” SFA
w/Slam Jam Rim
Steel Framed Acrylic
81410
48” Fan Backboard
w/Slam Jam Rim
C
B
LINE-UP
CLEAR SLAM
FREE
STYLE
HUFFY TUFF
D
A
5
80550
44” Fan
w/Standard Rim
7P/N 211487C 04/02
Mount extension arm and
rim to backboard and
finger tighten.
NOTE: For spring
loaded rim assembly,
refer to instructions
included with rim
hardware.
Secure hardware to extension
arm as shown and tighten
completely. install pole cap (2)
Refer To Combo For
Goal Assembly
Instructions
D
ABC
1.
2.
9
56
6
2
10
3
Pole Locations
P/N 211487C 04/02 8
Insert header cards (8) into place as shown.
8
6
BASKETBALL
CENTER
BASKETBALL
CENTER
