HYCON HY16F3981 Gebrauchsanweisung

www.hycontek.com

APD-HY16IDE012-V02_EN

HY16F3981

IDE Hardware User’s Manual

HY16F3981

IDE Hardware User’s Manual

www.hycontek.com

APD-HY16IDE012-V02_EN

page2

Table of Contents

1. PACKAGE CONTENTS............................................................................................................................4

2. SAFETY PRECAUTIONS.........................................................................................................................5

3. SOFTWARE INSTALLATION REQUIREMENTS.....................................................................................6

3.1. IDE Software Installation Requirements...............................................................................................6

4. DESCRIPTION OF THE IDE HARDWARE (HY16F MINI LINK) .............................................................7

4.1. Schematic architecture description.......................................................................................................7

4.2. Mini Link diagram..................................................................................................................................7

4.3. Mini Link connection with EDM.............................................................................................................8

4.4. Connection Diagram of Mini Link and Target Board (Powered by Mini Link) .......................................8

5. HARDWARE TARGET BOARD INTRODUCTION...................................................................................9

5.1. Target Board Features..........................................................................................................................9

5.2. External Power Supply and Precautions.............................................................................................10

5.3. Target Board Circuit Diagram.............................................................................................................. 11

6. LCD BOARD INTRODUCTION..............................................................................................................12

7. HARDWARE CONNECTION INTRODUCTION.....................................................................................13

8. REVISIONS.............................................................................................................................................14

HY16F3981

IDE Hardware User’s Manual

www.hycontek.com

APD-HY16IDE012-V02_EN

page3

Attention:

1、HYCON Technology Corp. reserves the right to change the content of this datasheet

without further notice. For most up-to-date information, please constantly visit our

website: http://www.hycontek.com .

2、HYCON Technology Corp. is not responsible for problems caused by figures or

application circuits narrated herein whose related industrial properties belong to third

parties.

3、Specifications of any HYCON Technology Corp. products detailed or contained herein

stipulate the performance, characteristics, and functions of the specified products in the

independent state. We does not guarantee of the performance, characteristics, and

functions of the specified products as placed in the customer’s products or equipment.

Constant and sufficient verification and evaluation is highly advised.

4、Please note the operating conditions of input voltage, output voltage and load current

and ensure the IC internal power consumption does not exceed that of package

tolerance. HYCON Technology Corp. assumes no responsibility for equipment failures

that resulted from using products at values that exceed, even momentarily, rated

values listed in products specifications of HYCON products specified herein.

5、Notwithstanding this product has built-in ESD protection circuit, please do not exert

excessive static electricity to protection circuit.

6、Products specified or contained herein cannot be employed in applications which

require extremely high levels of reliability, such as device or equipment affecting the

human body, health/medical equipments, security systems, or any apparatus installed

in aircrafts and other vehicles.

7、Despite the fact that HYCON Technology Corp. endeavors to enhance product quality

as well as reliability in every possible way, failure or malfunction of semiconductor

products may happen. Hence, users are strongly recommended to comply with safety

design including redundancy and fire-precaution equipments to prevent any accidents

and fires that may follow.

8、Use of the information described herein for other purposes and/or reproduction or

copying without the permission of HYCON Technology Corp. is strictly prohibited.

HY16F3981

IDE Hardware User’s Manual

www.hycontek.com

APD-HY16IDE012-V02_EN

page4

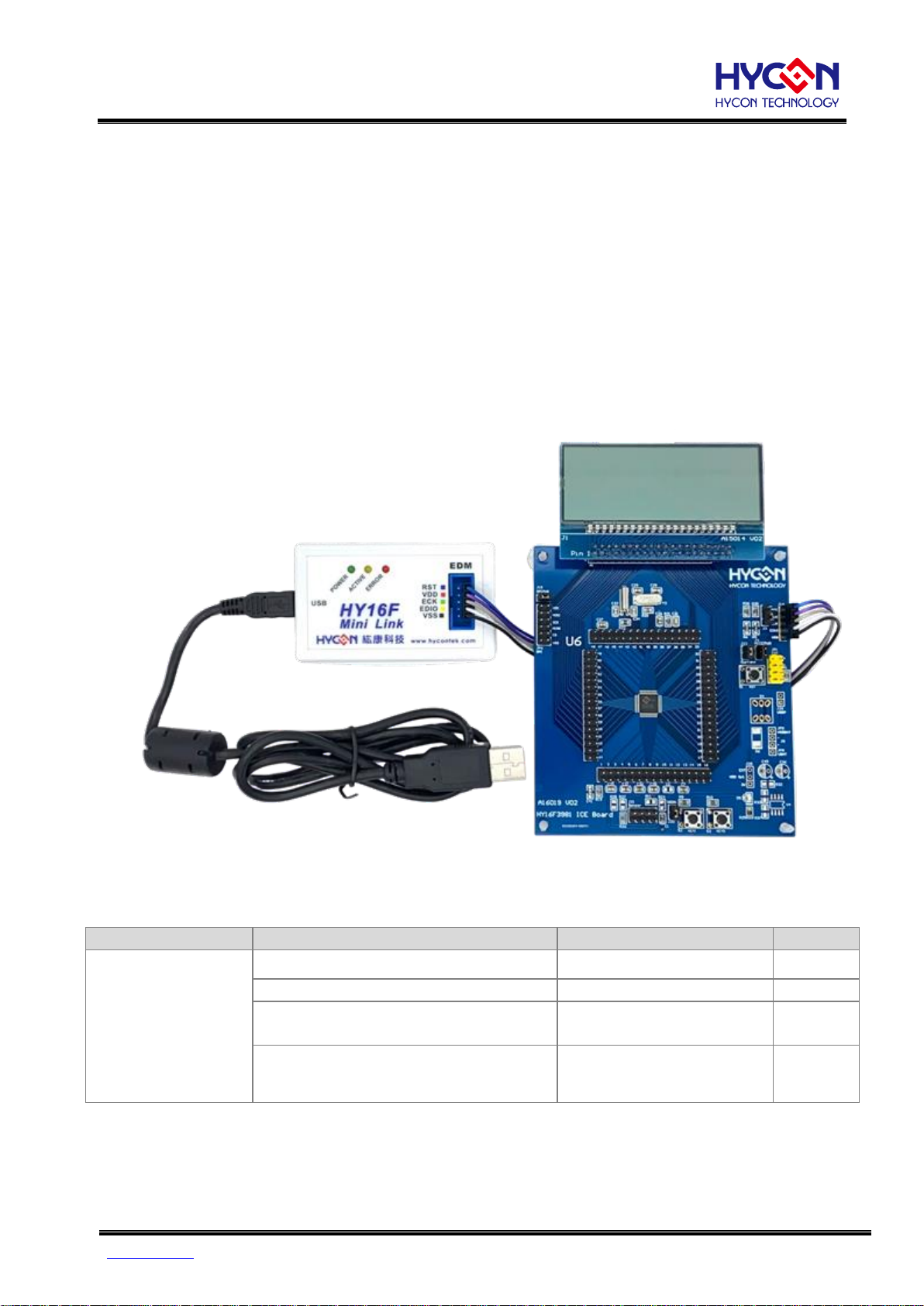

1. Package Contents

HY16F3981 IDE Hardware development kit includes HY16F Mini Link and HY16F3981-

L064 Target Board.

Integrated Hardware development kit helps to develop MCU application program of

HY16F3981. Program compiling, hardware debug, IC programming was implemented

through NB/PC end connection.

Serial number

Name

Spec

Quantity

HY16F3981-

DK01

1. HY16F3981-L064 Target Board

HY16F3981-IM02

2. HY16F Mini Link debug tool

HY16000-CM04

3. USB cable

USB Type A to Mini B

Cable

4. EDM line

5pin to 4x2pin

(2.54mm pitch)

HY16F3981

IDE Hardware User’s Manual

www.hycontek.com

APD-HY16IDE012-V02_EN

page5

2. Safety Precautions

Do not place heavy objects on the display panel, in order to avoid damage caused by

stress.

Place the application display boards at steady place, so as to avoid falling damage.

Do not use this product with the input voltage which is not meeting the electrical

specifications, , in order to avoid working abnormally or damage

Avoid application display boards being touched by liquid, dirt and avoid being exposed

to moisture during operation. This application should be kept in a dry environment, so

as not to affect the function and performance

Remove the power supply when not using it.

When following status occurred, please remove the power supply immediately, and

contact our engineer.

Power Supply line is worn or damaged.

Power source (battery) connected but no any light on while operating.

Component off.

HY16F3981

IDE Hardware User’s Manual

www.hycontek.com

APD-HY16IDE012-V02_EN

page6

3. Software Installation Requirements

3.1. IDE Software Installation Requirements

Minimum System Requirements of operating AndeSight RDS:

(1) PC/NB hardware requirement:

IBM PC compatible X86 system CPU

4GB Memory

8GB Hard disk

(2) Product number support:

HY16F3981

(3) Hardware model support:

HY16F3981 development tools, HY16F3981-DK02.

(4) Software version support:

AndeSight V2.3.1 RDSp3 version above

Device => HY16F_RDSp3_DeviceV0.1

Mini Link Version information => Andes AICE-MINI v1.0.1

(5) Operating system support:

Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10

(6) Apply the following interface modes:

USB Port

HY16F3981

IDE Hardware User’s Manual

www.hycontek.com

APD-HY16IDE012-V02_EN

page7

4. Description of the IDE hardware (HY16F Mini Link)

4.1. Schematic architecture description

HY16F Mini Link (AICE) for the HY16F3981-L064 Target Board and PC / NB end, the

middle connection device. Mainly used as a Programming program and Debug mode.

AndeSight

RDS S/W

USB2.0 EDM line

HY16F3981

Target Board

PC/NB

EDM

ICE

Note: EDM (Embedded debug module)

4.2. Mini Link diagram

Pin Name

Description

RST

Reset Pin

VDD

The VDD pin of the Mini Link is fixed to provide 3.3V, And to provide

IC (HY16F3981-L064) power directly from the Target Board EDM

Pin7.

ECK

EDM Clock Pin

EDIO

EDM Data Input / Output Pin

VSS

Ground Pin

HY16F3981

IDE Hardware User’s Manual

www.hycontek.com

APD-HY16IDE012-V02_EN

page8

Mini Link LED Description:

POWER LED (Green LED): When the USB Port connection, POWER LED will

continue to light.

ACTIVE LED (Yellow LED): When enter Debug Mode, ACTIVE LED will flash

continuously.

ERROR LED (Red LED): When the USB Port is connected but the Target Board is not

connected, the Error LED is on.

4.3. Mini Link connection with EDM

HY16F

Mini Link EDM line Target Board EDM

RST (Blue)-> Target board EDM Pin2

VDD (Red)-> Target board EDM Pin7

ECK(Green)-> Target board EDM Pin6

EDIO(Yellow)-> Target board EDM Pin4

VSS(Black)-> Target board EDM Pin3,5

4.4. Connection Diagram of Mini Link and Target Board (Powered by Mini Link)

Step1: The EDM Line Connection Mini Link and Target Board.

Step2: Connect the PC's USB Port to the Mini Link.

Step3: The Power LED is on.

STEP1

STEP2

STEP3

HY16F3981

IDE Hardware User’s Manual

www.hycontek.com

APD-HY16IDE012-V02_EN

page9

5. Hardware Target Board Introduction

1. 4Com x 17Seg LCD Panel

11. HY16F3981-L064

4. EDM port

8. Tack Switch x 2

7. Power Management

9. External HSXT 4MHz

and LSXT 32768Hz

13. Bridge Sensor

Connector

10. 4 wires SPI

connector

6. JP8,JP9

12. Power LED

5. External power switch

2. Writer connector(5pin)

3. MCU reset switch

5.1. Target Board Features

No.

Name

Description

4Com*17Seg

LCD Panel

See Chapter 6 for details

Writer connector

Programming IC use

MCU reset switch

Reset MCU is used

EDM Port

Connection Mini Link

(See Section 4.3 ICE Connection for details)

External power switch

see section 5.2

JP8,JP9

External Power (see section 5.2)

Power Management

External power supply voltage regulator circuit

(see section 5.2)

Tack Switch*2

S2 and S3 are Tack Switches

HY16F3981

IDE Hardware User’s Manual

www.hycontek.com

APD-HY16IDE012-V02_EN

page10

External HSXT

and LSXT

External HSXT (4MHz) & LSXT (32768Hz)

4 wires SPI Connector

4 wires SPI Interface

HY16F3981-L064

HY16F3981 LQFP64 MCU

Power LED

When the Target Board is powered normally, the

Power LED is on

Bridge Sensor

Connector

ADC Input Pin AI0 & AI1

5.2. External Power Supply and Precautions

Use an external power supply method (Through the Power Management will power

regulator into 3V, and then provided to HY16F3981 IC)

5.2.1. Use an external power supply step

Step1: Remove the EDM Line

Step2: By JP8 (+), JP9 (-) to provide external power supply.

(Input range VDD~9.0V)

Step3: Press S4 switch (External power switch) Through the Power Management will

power regulator into 3V, and then provided to HY16F3981 IC

STEP1

STEP3

STEP2

Precautions:

Because Mini Link supplied power = 3.3V, so when want to use an external power

supply, be sure to remove EDM line, avoid voltage different voltages caused conflict.
