Hypertherm MAX200 Merkblatt
© Copyright 1998 Hypertherm, Inc.
All Rights Reserved
HYPERTHERM, HT and LongLife are trademarks of Hypertherm, Inc. and may be
registered in the United States and/or other countries
MAX200
Plasma Arc Cutting System
Product Configuration Manual
PM-345
(P/N 803450)
Revision 0 December, 1998
HYPERTHERM, Inc.
P.O. Box 5010
Hanover, New Hampshire 03755-5010
Tel.: (603) 643-3441
Fax: (603) 643-5352
http://www.hypertherm.com
email:[email protected]
®
Hypertherm Offices Worldwide
:
Hypertherm, Inc.
Etna Road, P.O. Box 5010
Hanover, NH 03755 USA
Tel.: (603) 643-3441 (Main Office)
Fax: (603) 643-5352 (All Departments)
Tel.: (800) 643-9878 (Technical Service)
Tel.: (800) 737-2978 (Customer Service)
Hypertherm Plasmatechnik GmbH
Technologiepark Hanau
Rodenbacher Chaussee 6
D–63457 Hanau-Wolfgang, Germany
Tel.: 49 6181 58 2100
Fax: 49 6181 58 2134
European Technical Support Organization (ETSO)
Technologiepark Hanau
Rodenbacher Chaussee 6
D–63457 Hanau-Wolfgang, Germany
Tel.: 49 6181 58 2100
Fax: 49 6181 58 2134
Hypertherm Singapore Pte Ltd
No. 19 Kaki Bukit Road 2
K.B. Warehouse Complex
Singapore 417847, Republic of Singapore
Tel.: 65 841 2489
Fax: 65 841 2490
Hypertherm U.K.
9 Berkeley Court •Manor Park
Runcorn, Cheshire, England WA7 1TQ
Tel.: 44 1928 579 074
Fax: 44 1928 579 604
Hypertherm France
10, Allée de I’lsara
F-95000 Cergy-Pontoise, France
Tel.: 33 1 34 24 03 05
Fax: 33 1 34 25 09 64
Hypertherm Italy
Via Stilicone 18
20154 Milan, Italy
Tel.: 39 2 34 53 22 11
Fax: 39 2 34 53 20 18
MAX200 Product Configuration Manual 1-1
SPECIFICATIONS
Section 1
SPECIFICATIONS
PRODUCT SPECIFICATIONS
MAX200 Power Supplies
The MAX200 is a constant current, secondary converter chopper power supply providing
continuously variable amperage from 40 amps to 200 amps. It conforms to the following
specifications:
Maximum OCV (U0)......................................280 VDC
Output Current (I2)........................................40-200 amps
Output Voltage (U2) ......................................150 VDC
Duty Cycle Rating (X)...................................100% up to 30kW
Input Power (Input Voltage (U1) x Input Current (I1):
073002*........................................................240/480 VAC, 3Ø, 60 Hz, 90/45 amps
073020**
073003*........................................................600 VAC, 3Ø, 60Hz, 36 amps
073021**
073004*........................................................208 VAC, 3Ø, 60Hz, 104 amps
073022**
073005*........................................................220/380/415 VAC, 3Ø, 50 Hz, 98/57/52
073023** amps
073026*........................................................200 VAC, 3Ø, 50 Hz, 108 amps
073024**
073200*........................................................400 VAC - CE, 3Ø, 50 Hz, 56 amps
073213**
073036*........................................................500 VAC, 3Ø, 50 Hz, 43 amps
073039**
* MAX200 Power Supply - comes without THC Configuration
** MAX200 Power Supply for use with the machine torch - comes with THC Configuration
MAX200 Product Configuration Manual
1-2
SPECIFICATIONS
Dimensions:
Width ............................................................28-1/4" (71 cm)
Height...........................................................35-1/2" (90 cm) w/o casters; 40-3/4" (104 cm) -CE
43" (109 cm) w/casters; 48-1/4" (122 cm) -CE
Depth............................................................41-1/4" (104 cm) w/o handle
50" (127 cm) w/handle
Weight ..........................................................780 pounds (351 kg); 800 pounds (363 kg) -CE
Cooling .........................................................ForcedAir (Class F)
Torch Coolant Tank Capacity .......................2.9 gallons (11 liters)
Torch Coolant Requirements and
Coolant Safety Data .....................................SeeAppendix section of instruction manual
Gas Requirements:
Gas Type/Quality..........................................Air (compressed)/clean, dry, oil-free
Oxygen (O2)/99.5% (liquid)
Nitrogen (N2)/99.995% (liquid)
Carbon Dioxide (CO2 )/99.5% (compressed or
liquid)
Argon/Hydrogen (H35 = 35% Hydrogen/65%
Argon)
Plasma Gases..............................................Air, O2, N2, H35
Shield Gases................................................Air, CO2, N2
Plasma Gas Flow .........................................66 scfh (Air), 60 scfh (N2), 70 scfh (H35),
72 scfh (O2)
Shield Gas Flow ...........................................220 scfh (CO2), 280 scfh (Air), 290 scfh (N2)
Plasma Gas Inlet Pressure ..........................90/120 psi (6.2/8.3 bar) (flowing)
Shield Gas Inlet Pressure ............................90 psi (6.2 bar) (flowing)
Plasma Gas Pressure (Test/Run).................See
Cut Charts
in Operation section of IM87
(#800870) or IM98 (#800980)
Shield Gas Pressure ....................................70 psi (4.8 bar)
PAC200T (90°& 65°) Cutting/PAC200E (65°) Gouging/MAX200 Rev 1 (90°) Hand
Torches
Maximum cutting thickness ..........................2 inches (50 mm)
Maximum current at 100% duty cycle ..........200 amps
Plasma Gas Flow .........................................66 scfh (Air), 60 scfh (N2), 70 scfh (H35), 72 scfh
(O2)
Shield Gas Flow ...........................................220 scfh (CO2), 280 scfh (Air), 290 scfh (N2)
Water Coolant Flow Rate .............................0.8 gpm (3.0 l/min)
Weight ..........................................................3 lbs (1.4 kg - MAX200 Rev 1 90°) 2-1/2 lbs.
(1.1 kg - PAC200T/E)
MAX200 Product Configuration Manual 1-3
SPECIFICATIONS
MAX200 Machine Torch
Maximum cutting thickness ..........................2 inches (50 mm)
Maximum current at 100% duty cycle ..........200 amps
Plasma Gas Flow .........................................66 scfh (Air), 60 scfh (N2), 70 scfh (H35), 72 scfh (O2)
Shield Gas Flow ...........................................220 scfh (CO2), 280 scfh (Air), 290 scfh (N2)
Water Coolant Flow Rate .............................0.8 gpm (3.0 l/min)
Weight ..........................................................2-1/2 lbs. (1.1 kg)
Switch Remote (SR) V/C Control - Optional
Controls........................................................Start button:
Activates IHS (if on) and initializes
pilot arc. Stop button:
Deactivates main contactor in
power supply. IHS On/Off switch:
Turns IHS system on or off.
Auto Height On/Off switch:
Activates THC in power supply.
Voltage adjust pot:
Adjusts arc cutting voltage and
displays value on LEDs. Current adjust pot:
Adjusts arc cutting current and
displays value on LEDs.
Control Range ..............................................Current: 40 to 200 Amps
Voltage: 100 to 200 Volts
Control Resolution........................................Current: 20 Amps
Voltage: 5 Volts
Dimensions:
Width ............................................................11-1/2" ( 29 cm)
Height...........................................................5" (13 cm)
Depth............................................................13-1/4" (34 cm)
Weight ..........................................................6 pounds (2.7 kg)
Digital Remote (DR) V/C Control - Optional
Controls........................................................Voltage adjust pot:
Adjusts arc cutting voltage and
displays value on LEDs. Current adjust pot:
Adjusts arc cutting current and
displays value on LEDs.
Dimensions:
Width ............................................................11-1/2" (29 cm)
Height...........................................................3" (7.6 cm)
Depth............................................................13-3/8" (34 cm)
Weight ..........................................................5 pounds-5 oz. (2.4 kg)
MAX200 Product Configuration Manual
1-4
SPECIFICATIONS
Programmable Remote (PR) V/C Control - Optional
Controls........................................................None. Controlled through guidance
machinery computer.
Dimensions:
Width ............................................................11-1/2" (29 cm)
Height...........................................................3" (7.6 cm)
Depth............................................................12-1/2" (31.8 cm)
Weight ..........................................................5 pounds-5 oz. (2.4 kg)
Remote Current (RCC) Control - Optional
Dimensions and Weight:
Width ............................................................6-1/2" (16.5 cm)
Height...........................................................2-1/2" (6.2 cm)
Depth............................................................8-1/2" (21.6 cm)
Weight ..........................................................3 pounds (1.4 kg)
Initial Height Sensing - Optional
Input Power ..................................................120 VAC from power supply
Air Pressure .................................................20 psi (1.4 bar) regulated shop air input
to solenoid.
Dimensions:
Width ............................................................9" (23 cm)
Height...........................................................4-1/2" (11 cm)
Depth............................................................11-1/2" (29 cm)
Weight ..........................................................13 pounds (6 kg)
Water Muffler - Optional - (not used with the stainless steel torch)
Refer to Water Muffler Instruction Manual (P/N 802050).
MAX200 ProductConfigurationManual 2-1
Section 2
MAX200 MACHINE SYSTEM ORDER FORM
MAX200 ProductConfigurationManual2-2
Programmable
Remote V/C
CNC
Interface
(customer
supplied)
Torch
WM
IHS
Console
Air Reg.
Second
MAX200
Power
Supply
WM
Pump
Digital
Remote V/C Switch
Remote V/C
Remote
Current
Control
MAX200
Power
Supply

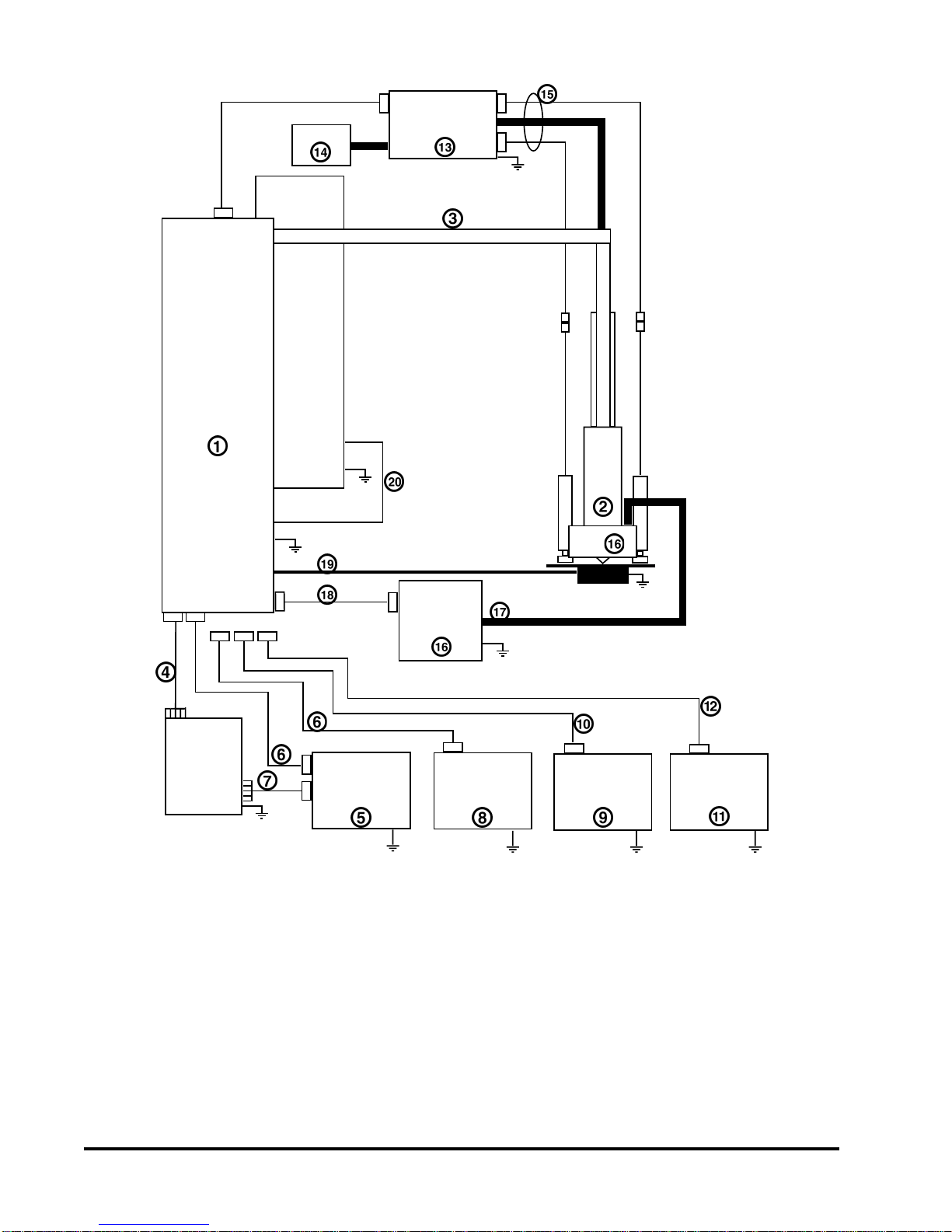

1 MAX200 Power Supply (PS)
2 Machine Torch Assembly
3 Leads Between Power Supply and Torch
4 Machine Interface Cable Between Power Supply and
CNC Interface
5 Programmable Remote Voltage & Current Control
6 Cable Between Power Supply and Programmable Remote or
Digital Remote
7 Cable Between Programmable Remote and CNC Interface
8 Digital Remote Voltage & Current Control
9 Switch Remote Voltage & Current Control
10 Cable Between Power Supply and Switch Current
11 Remote Current Control
12 Cable Between Power Supply and Current Remote
13 Inductive IHS System
14 IHS Pressure Regulator Assembly
15 Inductive IHS Lead Set
16 Water Muffler System (not used with the stainless steel torch)
17 Additional Length WM Hose
18 Cable Between Water Muffler Pump and Power Supply
19 Work Cable Between Power Supply and Work Table
20 Hold Cable Between Power Supplies
MAX200 Machine System Block Diagram
MAX200 ProductConfigurationManual 3-1
Section 3
MAX200 HAND SYSTEM ORDER FORM
MAX200 ProductConfigurationManual3-2
1 MAX200 Hand Cutting System
2 MAX200 Hand Gouging System
3 MAX200 Power Supply
4 PAC200T 90°Cutting Torch Assembly with
25 ft (7.6 m) Leads MAX200 Hand Systems and Options
5 PAC200T 65°Cutting Torch Assembly with 25 ft (7.6 m) Leads
6 PAC200E Gouging Torch Assembly with 25 ft (7.6 m) Leads
7 Extended Leads
1
2
3
4
5
6
MAX200
Power
Supply
MAX200
Power
Supply
MAX200
Power
Supply
7
Andere Handbücher für MAX200
3
Inhaltsverzeichnis
Andere Hypertherm Schweißsystem Handbücher
Hypertherm
Hypertherm Powermax 65 Referenzhandbuch
Hypertherm
Hypertherm HyPerformance Plasma HPR800XD Bedienungsanleitung
Hypertherm
Hypertherm powermax1650 Bedienungsanleitung
Hypertherm
Hypertherm powermax65 Referenzhandbuch
Hypertherm
Hypertherm HPR130 Bedienungsanleitung
Hypertherm
Hypertherm HT4400 Technisches Datenblatt
Hypertherm
Hypertherm HyDefinition HD4070 Referenzhandbuch
Hypertherm
Hypertherm XPR Series Fehlerbehebungshandbuch
Hypertherm
Hypertherm HyPerformance Plasma HPR800XD Referenzhandbuch
Hypertherm
Hypertherm MAXPRO200 Bedienungsanleitung
Hypertherm
Hypertherm HPR130 Bedienungsanleitung
Hypertherm
Hypertherm Powermax45 XP Referenzhandbuch
Hypertherm
Hypertherm Powermax30 AIR Referenzhandbuch
Hypertherm
Hypertherm powermax 350 Bedienungsanleitung
Hypertherm
Hypertherm powermax65 Bedienungsanleitung
Hypertherm
Hypertherm powermax1650 Bedienungsanleitung
Hypertherm
Hypertherm HPRXD Series Leitfaden
Hypertherm
Hypertherm POWERMAX350 Bedienungsanleitung
Hypertherm
Hypertherm Powermax45 XP Referenzhandbuch
Hypertherm
Hypertherm Powermax45 XP Referenzhandbuch
Beliebte Schweißsystem Handbücher anderer Marken
TAFA
TAFA 30*8B35 Bedienungsanleitung
Lincoln Electric
Lincoln Electric INVERTEC V350-PRO CE Bedienungsanleitung
ESAB
ESAB Buddy Arc 145 Bedienungsanleitung
CIGWELD
CIGWELD 636804 Kurzanleitung
Red-D-Arc
Red-D-Arc DC-400 Bedienungsanleitung
Hobart Welding Products
Hobart Welding Products Spool Gun DP 3035-10 Bedienungsanleitung
