HyperX Cloud Revolver S HX-HSCRS-GM/AS Bedienungsanleitung

User Manual

HyperX Cloud Revolver S Headset

Find the language and latest documentation for your HyperX Cloud Revolver S Headset here.

HyperX Cloud Revolver S Headset Installation Guide

Simplied Chinese .....

Traditional Chinese ....

............For instructions in English

. . . . . . . . . . . . . . . . . . Para instrucciones en Español

.........Für Anleitungen in Deutsch

. . . . . . . . . . . . . . . . . . Pour des instructions en Français

. . . . . . . . . . . . . . . . . . Per le istruzioni in Italiano

............Por as instruções em Português

. . . . . . . . . . . . . . . . . . Instrukcje w jezyku Polskim

. . . . . . . . . . . . . . . . . . Для инструкции на Pусском

. . . . . . . . . . . . . . . . . . Turkce talimatlar Icin

. . . . . . . . . . . . . . . . . . Japanese

. . . . . . . . . . . . . . . . . . Korean

. . . . . . . . . . . . . . . . . . Thai

. . . . . . . . . . . . . . . . . . Vietnamese

Document No. 480HX-HSCRS001.A01

HyperX Cloud Revolver S Headset

Page 1 of 20

HyperX Cloud Revolver S Headset

Part Numbers:

HX-HSCRS-GM/AS

HX-HSCRS-GM/EE

HX-HSCRS-GM/EM

HX-HSCRS-GM/LA

HX-HSCRS-GM/NA

Document No. 480HX-HSCRS001.A01

HyperX Cloud Revolver S Headset

Page 2 of 20

TABLE OF CONTENTS

Introduction ..............................................................................................................................3

What’s included........................................................................................................................3

Features ...................................................................................................................................4

Technical Specifications...........................................................................................................4

Overview ..................................................................................................................................5

USB Audio Control Box operation............................................................................................6

Usage with USB Audio Control Box (PC/Mac).........................................................................7

Configuration with USB Audio Control Box (Windows) ............................................................8

Configuration with USB Audio Control Box (Mac)..................................................................11

Usage (PC) with PC extension cable .....................................................................................15

Usage (Xbox One™ & Xbox One S™) .....................................................................................16

Usage (PS4™& PS4™Pro) with USB Audio Control Box ......................................................17

Usage (PS4™& PS4™Pro) with direct 3.5mm connection ....................................................18

Usage (Wii U™) ......................................................................................................................19

Usage (Mobile Device)...........................................................................................................20

Document No. 480HX-HSCRS001.A01

HyperX Cloud Revolver S Headset

Page 3 of 20

Introduction

HyperX™ Cloud Revolver S is primed for action with Plug N Play virtual Dolby® Surround 7.1

audio — no software required. Hear every footstep, explosion and gunshot with cinematic

clarity as the simulated seven positional speakers provide precise sound with distance and

depth. The advanced USB DSP sound card handles everything, delivering consistent

premium-quality sound, no matter what system you’re playing on.

What’s included

•HyperX Cloud Revolver S Headset

•Detachable Microphone

•USB Audio Control Box

•PC extension cable

Document No. 480HX-HSCRS001.A01

HyperX Cloud Revolver S Headset

Page 4 of 20

Features

•Plug N Play Dolby® Surround 7.1 audio technology

•Advanced USB Audio Control Box with DSP Sound Card

•Studio grade sound stage

•Signature HyperX memory foam

•Wide Headband for Maximum Comfort

Technical Specifications

Headphone

•Driver: Dynamic, 50mm with neodymium magnets

•Type: Circumaural, Closed back

•Frequency Response: 12Hz–28,000 Hz

•Impedance: 30 Ω

•Sound pressure level: 100.5dBSPL/mW at 1kHz

•T.H.D.: < 2%

•Input power: Rated 30mW, Maximum 500mW

•Weight: 360g

•Weight w/ mic: 376g

•Cable length:

Headset (1m)

USB Audio Control Box (2.2m)

PC extension cable (2m)

•Connection:

Headset - 3.5mm plug (4 pole)

USB Audio Control Box – USB

PC extension cable - 3.5mm stereo and mic plugs

Microphone

•Element: Electret condenser microphone

•Polar Pattern: Uni-directional, Noise-canceling

•Frequency Response: 50Hz-18,000 Hz

•Sensitivity: -40dBV (0dB=1V/Pa,1kHz)

Document No. 480HX-HSCRS001.A01

HyperX Cloud Revolver S Headset

Page 5 of 20

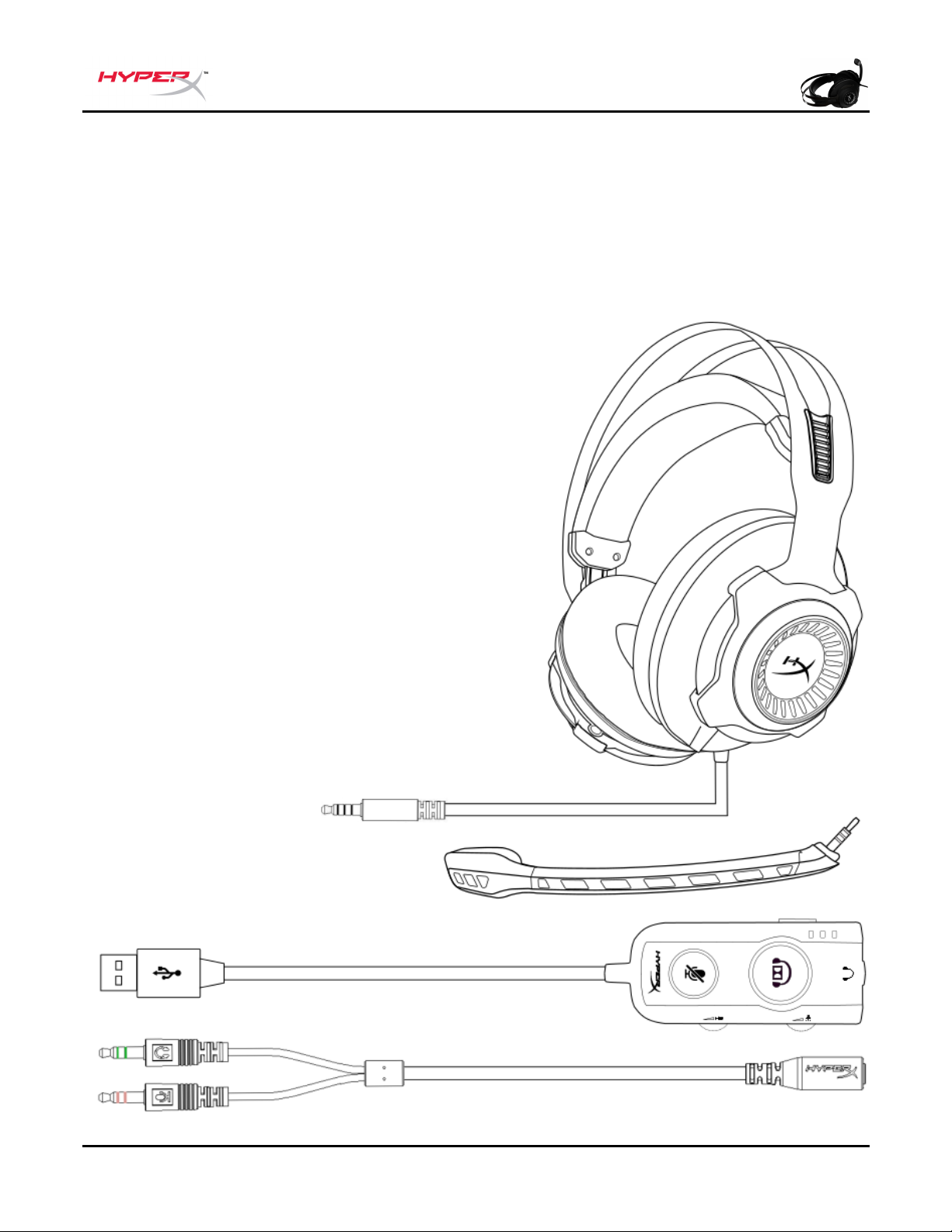

Overview

A. Durable Steel Frame

B. Suspension headband

C. Detachable noise cancellation

mic

D. Attached cable w/ 4 pole

3.5mm plug

E. USB Audio control box

F. PC extension cable

Document No. 480HX-HSCRS001.A01

HyperX Cloud Revolver S Headset

Page 6 of 20

USB Audio Control Box operation

The USB Audio Control Boxhas the following features:

•Dolby® Surround 7.1 audio technology

•3 preset equalizer modes

•Microphone Mute

•Headphone volume adjustment

•Microphone volume adjustment

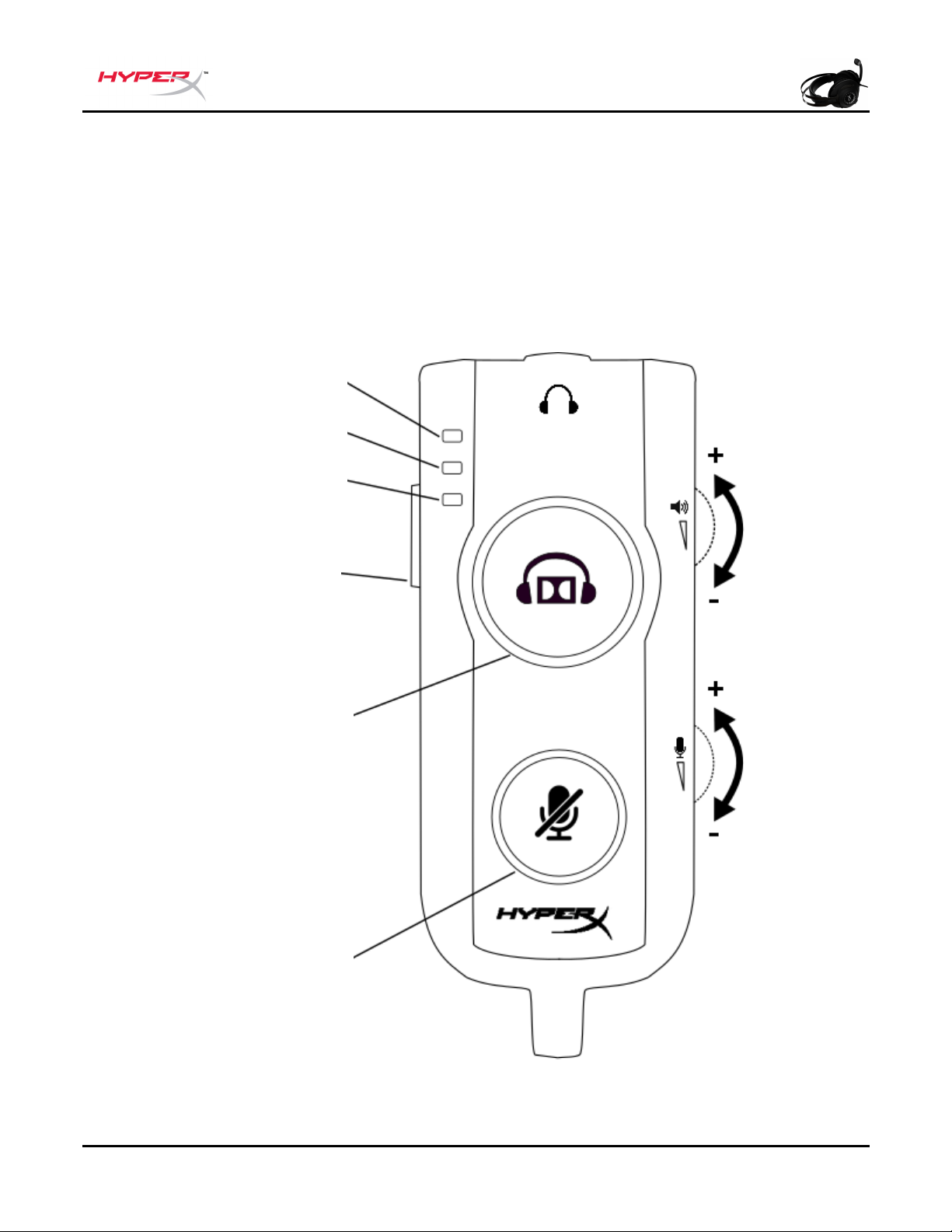

Using the USB Audio Control Box

Flat EQ LED

Microphone Mute button

LED On – Mic muted

LED Off – Mic active

Headphone

Volume

Bass Boost EQ LED

Equalizer Button

Press to cycle through EQ

modes

Vocals EQ LED

Dolby® Surround 7.1 button

LED On – Dolby enabled

(Equalizer function will be

disabled)

LED Off – Dolby disabled

Microphone

Volume

Document No. 480HX-HSCRS001.A01

HyperX Cloud Revolver S Headset

Page 7 of 20

Usage with USB Audio Control Box (PC/Mac)

To use the headset to your computer, connect the headset’s 3.5mm plug to the female 3.5mm

jack on the USB Audio Control Box, then plug the USB cable into your computer.

Using with USB Audio Control Box

Document No. 480HX-HSCRS001.A01

HyperX Cloud Revolver S Headset

Page 8 of 20

Configuration with USB Audio Control Box (Windows)

For optimal surround sound performance configure Windows using the steps below.

1. Right-click the speaker icon in

the task tray and select

‘Playback Devices’.

2. Right-click on ‘HyperX Cloud

Revolver S’ and select ‘Set as

Default Device’.

Document No. 480HX-HSCRS001.A01

HyperX Cloud Revolver S Headset

Page 9 of 20

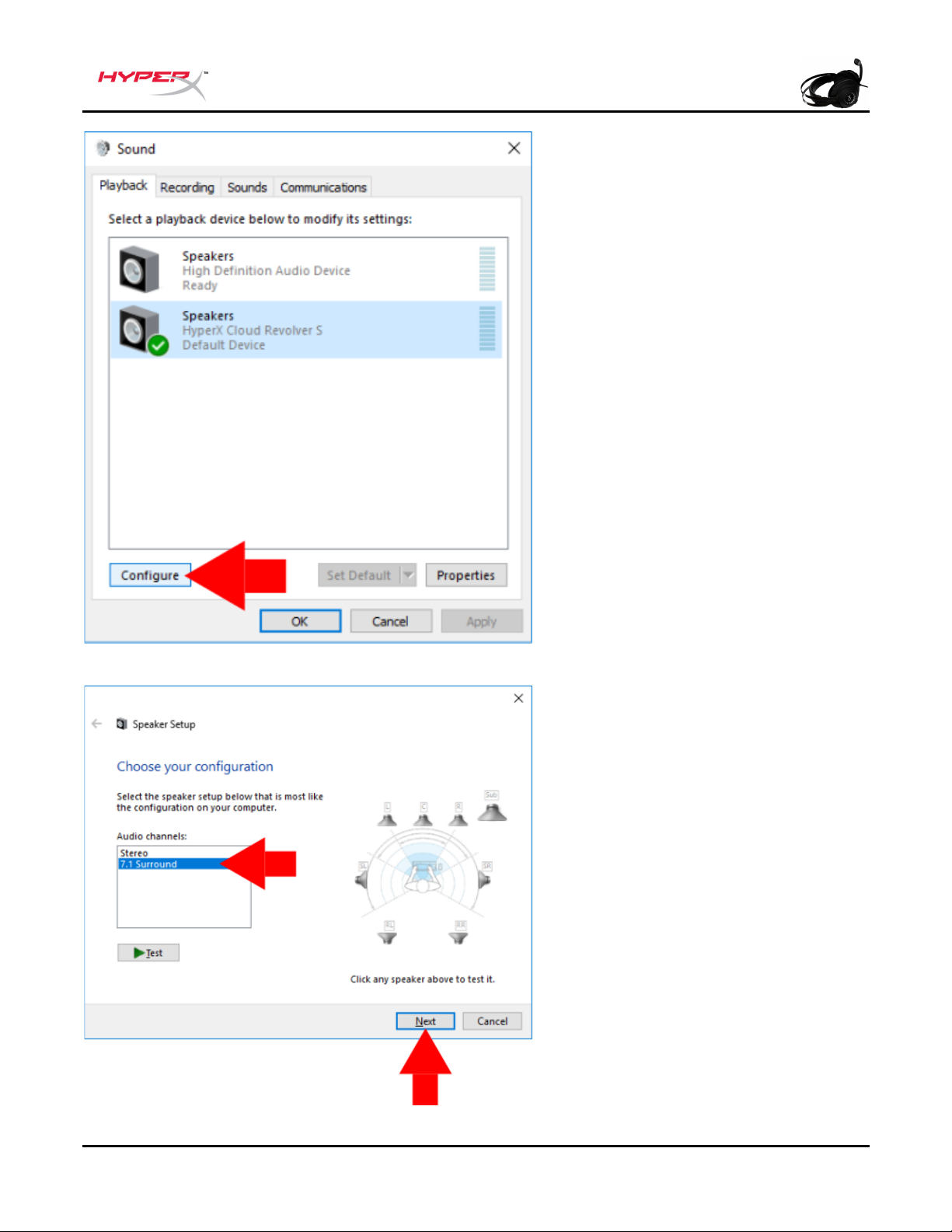

3. With ‘HyperX Cloud Revolver

S’ selected click on the

‘Configure’ button.

4. In the ‘Audio channels’ list

select 7.1 Surround and click

on ‘Next’.

5. In the ‘Optional speakers’ list

make sure all boxes are

checked then click ‘Next’.

6. In the ‘Full-range speakers’ list

make sure all boxes are

checked then click ‘Next’.

7. Click ‘Finish’ to save the

settings.
