Hytorc LITHIUM II Series Bedienungsanleitung

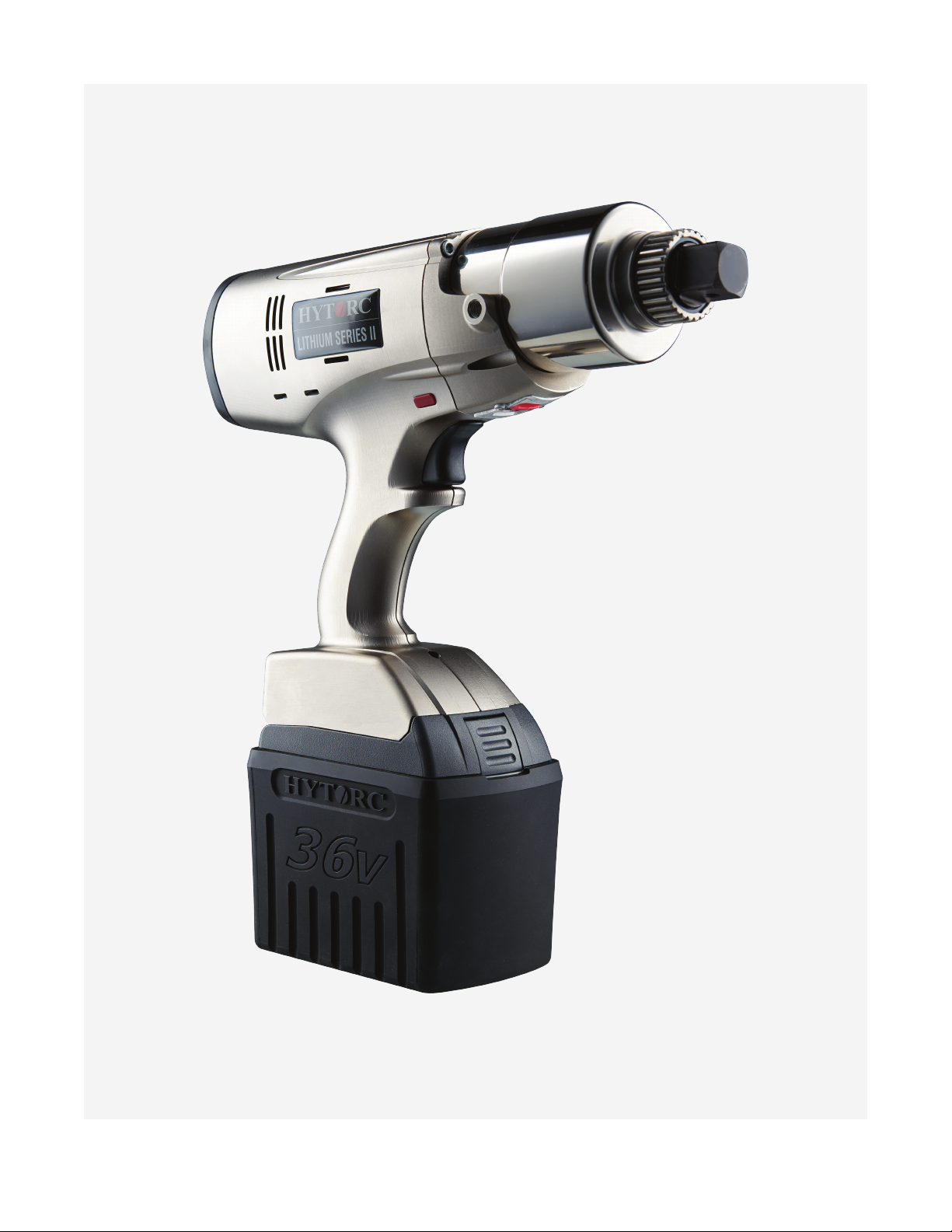

LITHIUM SERIES® II Electric Torque Tool

Icon Reference Guide

333 Route 17 N.

Mahwah, NJ 07430

USA

800-FOR-HYTORC

(800-367-4986)

201-512-9500

hytorc.com

LITHIUM SERIES® II ELECTRIC TORQUE TOOL ICON REFERENCE GUIDE

TABLE OF CONTENTS

LANGUAGE TRANSLATIONS

1. Chinese

2. Japanese

3. German

4. Italian

5. French

6. Spanish

DISCLAIMER: Featured imagery and content subject to change without notice.

. HOME SCREEN

. 主页

. ホーム画面

. HAUPTBILDSCHIRM

. SCHERMO INIZIALE

. ÉCRAN D'ACCUEIL

. PANTALLA PDE INICIO



. MENU NAVIGATION

. 菜单导航

. ナビゲーションメニュー

. MENÜ NAVIGIERUNG

. MENU DI NAVIGAZIONE

. MENU DE NAVIGATION

. MENÚ DE NAVEGACIÓN



. MAIN MENU

.主菜单

. メインメニュー

. HAUPTMENÜ

. MENU PRINCIPALE

. MENU PRINCIPAL

. MENÚ PRINCIPAL



. ADVANCED BOLTING

. 先进的螺栓紧固技术

. 高度ボルト締結

. ERWEITERTE VERFAHREN

. BULLONATURA AVANZATA

. BOULONNAGE SUPÉRIEUR

. EMPERNADO AVANZADO



. JOBS

. 工单

. 作業

. SCHRAUBPROGRAMME

. LAVORI

. EMPLOIS

. TRABAJOS



. SETTINGS

. 设置

. 設定

. EINSTELLUNGEN

. IMPOSTAZIONI

. RÉGLAGES

. AJUSTES



. ADMIN

. 管理员

. 管理者

. ADMINISTRATOR

. AMMINISTRATORE

. ADMINISTRATEUR

. ADMINISTRADOR



. ACCESS LEVELS

. 访问级别

. アクセスレベル

. ZUGANGSEBENEN

. LIVELLI DI ACCESSO

. NIVEAUX D'ACCÈS

. NIVELES DE ACCESO



NOTICE OF PROPRIETARY RIGHTS: HYTORC Division UNEX Corporation (“HYTORC”) is the owner of all content included in this document and all right, title and interest to such content shall

TRADEMARK NOTICE: This document contains numerous registered trademarks and servicemarks of HYTORC in the U.S. and other countries. PATENT NOTICE: Products in this document are

covered by numerous registered and/or pending patents in the U.S. and other countries.

LITHIUM SERIES® II ELECTRIC TORQUE TOOL ICON REFERENCE GUIDE 1

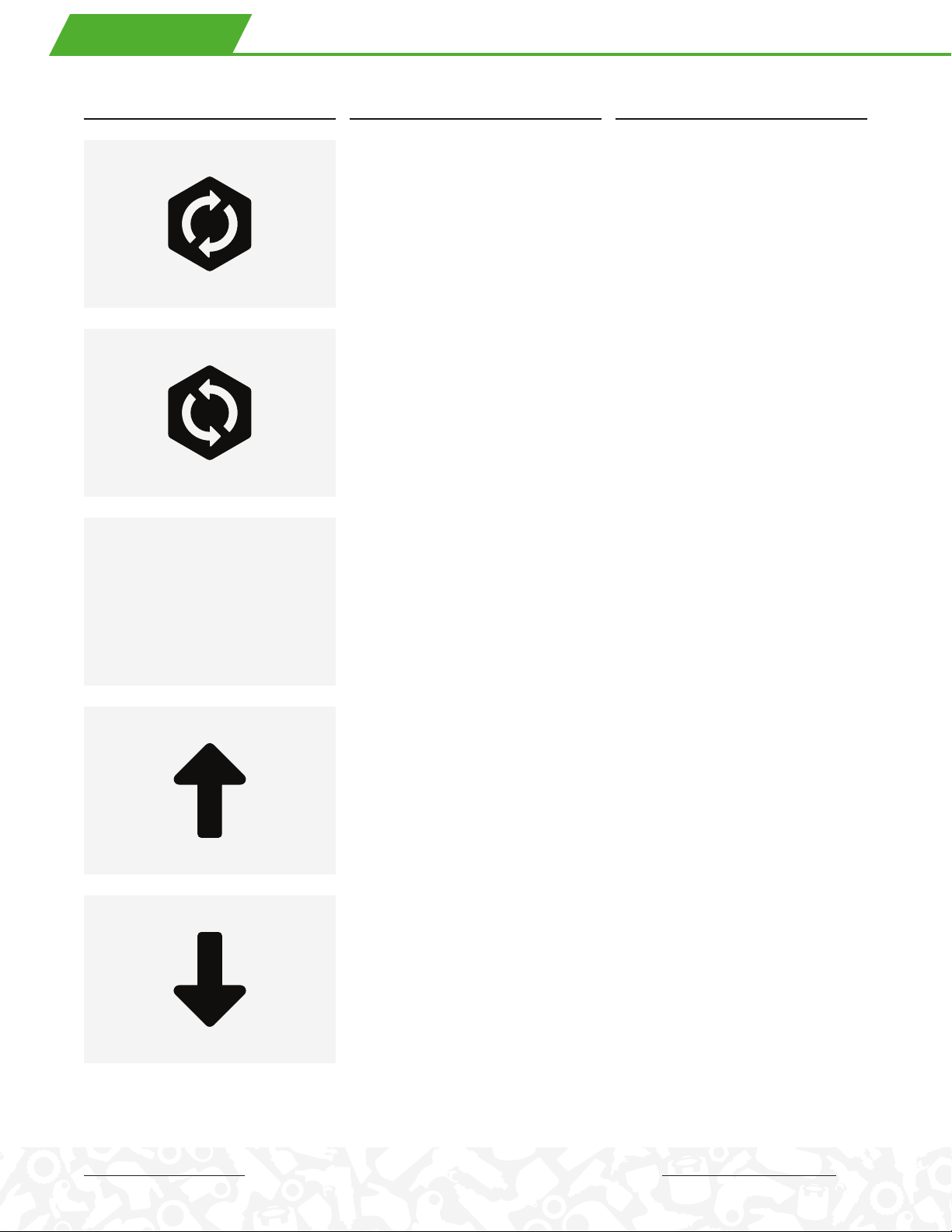

Counter Clockwise Direction

1. 逆时间方向

2. 反時計回り

3. Lösen

4. Direzione Anti-Oraria

5. Sens Antihoraire

6. Rotación en sentido antihorario

Directional Indicator with arrows

showing the counter clockwise (CCW)

rotational direction set in the tool. The

direction may be reversed by depressing

the directional switch.

Fastener Type

1. 紧固件类型

2. 締結方法

3. Schraubenart

4. Tipo di Fissaggio

5. Élément de montage

6. Tipo de cierre

Indicates the selected Fastener Type,

which sets the proper motor direction for

tightening and loosening with the tool.

RH – Right Hand Fastener

LH – Left Hand Fastener

HWR – HYTORC Washer Right

HWL – HYTORC Washer Left

HN – HYTORC Nut

Increase/Up

1. 增加

2. トルク/増

3. Erhoehen

4. Aumento/Su

5. Augmentation / En Haut

6. Arriba

The Up-Arrow in the lower left box

indicates that by pushing the left button,

the value on the screen will increase.

Decrease/Down

1. 减小

2. トルク/ 減

3. Verringern

4. Diminuzione/Giù

5. Diminution / En Bas

6. Abajo

The Down-Arrow in the lower right box

indicates that by pushing the right button,

the value on the screen will decrease.

LHRH

HWR

HWL

Clockwise Direction

1. 顺时针方向

2. 時計回り

3. Im Uhrzeigersinn

4. Senso Orario

5. Sens Horaire

6. Rotación hacia la derecha

Directional Indicator with arrows

showing the clockwise (CW) rotational

direction set in the tool. The direction

may be reversed by depressing the

directional switch.

ICON MEANING DESCRIPTION

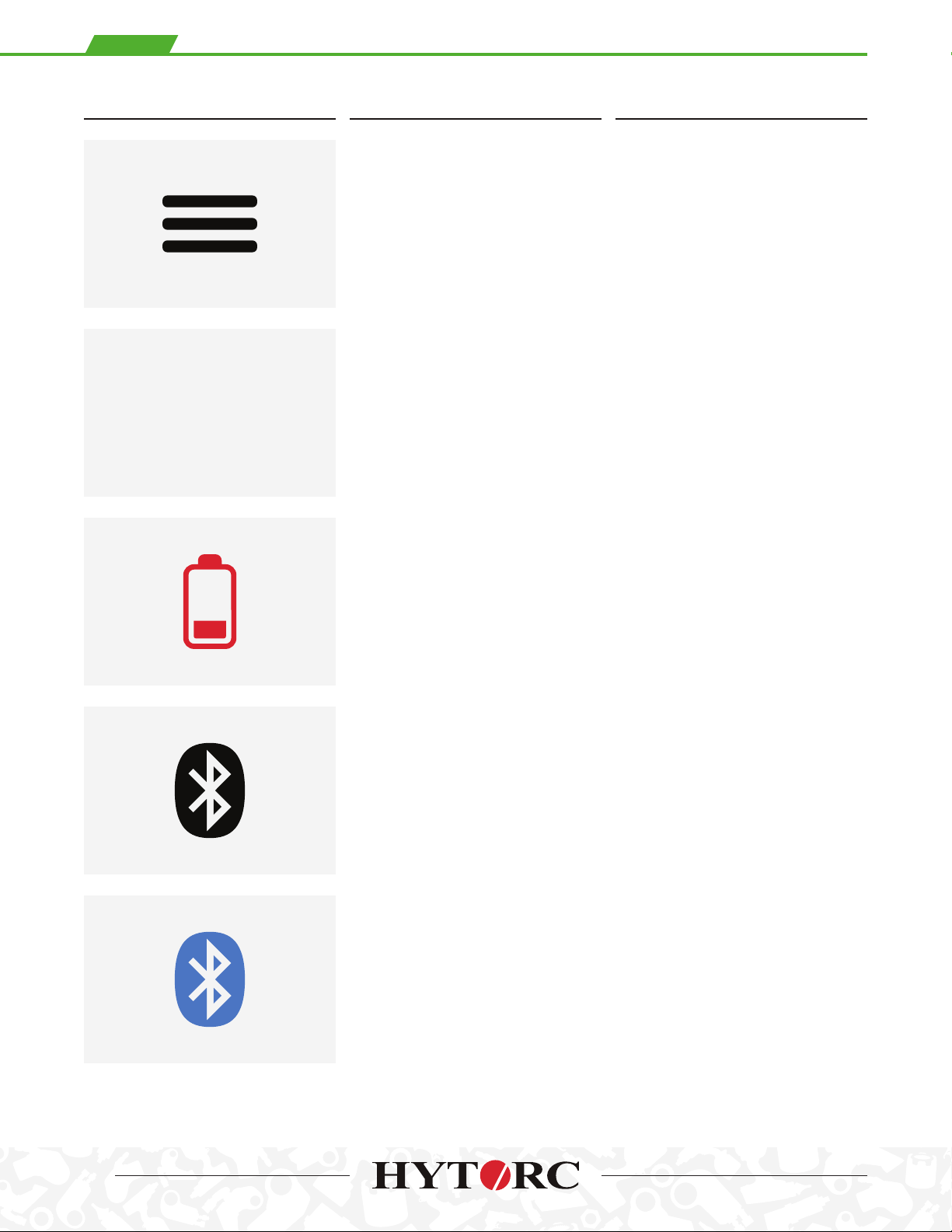

. HOME SCREEN

User Access Level

1. 用户访问级别

2. ユーザーアクセスレベル

3. Benutzerzugriffsebene

4. Livello di accesso dell’utente

5. Niveau d’accès utilisateur

6. Nivel de acceso del usuario

The Access Level currently set on the

tool is displayed just to the right of the

hamburger icon.

L1 – Jobs User

L2 – Flex User

L3 – Full User

L4 – Admin

L5 - Service

Low Battery

1. 电量不足

2. バッテリ不足

3. Akku schwach

4. Batteria scaricata

5. Batterie faible

6. Cargo bajo

The Low Battery icon indicates that

the battery is almost fully discharged,

signaling to the user to recharge the

current battery and switch to another fully

charged battery.

Bluetooth® Wireless Technology

(Classic)

1. Bluetooth®

2. Bluetooth®

3. Bluetooth®

4. Bluetooth®

5. Bluetooth®

6. Bluetooth®

Bluetooth® Wireless Technology

(Low Energy)

1. Bluetooth®

2. Bluetooth®

3. Bluetooth®

4. Bluetooth®

5. Bluetooth®

6. Bluetooth®

The Bluetooth Classic indicator (in black)

is displayed when Bluetooth Classic mode

is enabled.

The Bluetooth Low Energy indicator

(in blue) is displayed when Bluetooth Low

Energy mode is enabled.

L1 L2

Main Menu

1. 主菜单

2. メインメニュー

3. Hauptmenü

4. Menu principale

5. Menu Principal

6. Menú principal

Main Menu “Hamburger” icon is

displayed in the lower center box of the

Home Screen, which corresponds to the

center button. Pushing the center button

displays the Main Menu.

ICON MEANING DESCRIPTION

(CONT’D.)

LITHIUM SERIES® II ELECTRIC TORQUE TOOL ICON REFERENCE GUIDE 3

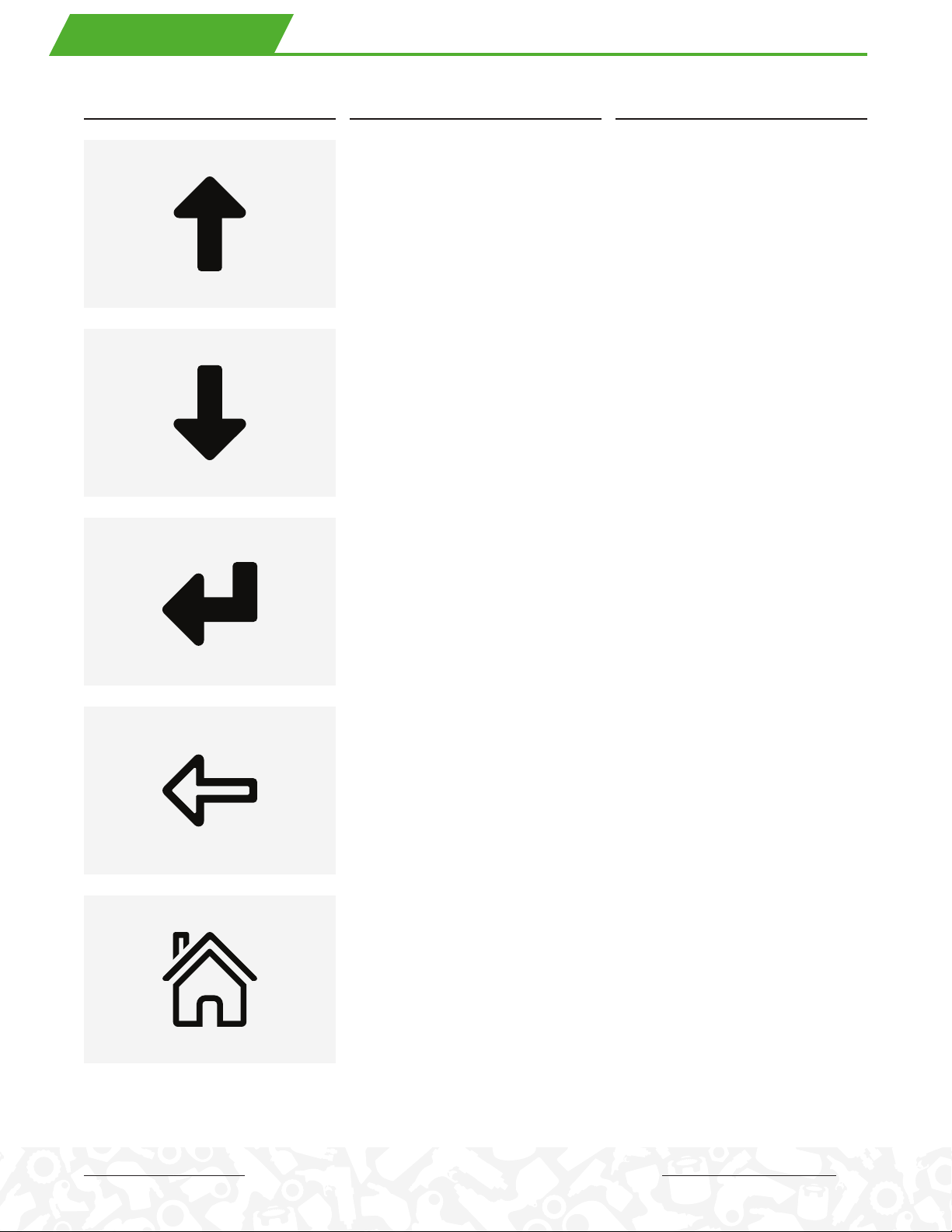

Select

1. 选择

2. 選択

3. Wählen

4. Selezionare

5. Sélectionner

6. Seleccionar

On menu screens, the Select icon

appears in the lower center box, guiding

the user to push the center button to

select the highlighted menu option.

Back

1. 返回

2. 戻る

3. Zurück

4. Indietro

5. Retour

6. Regresar

The Back icon is displayed near the

bottom of most sub-menus to allow the

user to move back one level in the menu

structure.

Home

1. 主页

2. ホーム

3. Home

4. Menu

5. Accueil

6. Inicio

The Home icon is displayed at the bottom

of most menus and sub-menus to allow

the user to return directly to the Home

Screen.

Scroll Down

1. 向下滚动

2. スクロールダウン

3. Nach unten scrollen

4. Scorrere In Basso

5. Défiler vers le bas

6. Abajo

On menu screens, the Down-Arrow

guides the user to push the right button

to scroll down the menu.

Scroll Up

1. 向上滚动

2. スクロール上

3. Nach oben scrollen

4. Scorrere

5. Défiler vers le haut

6. Desplazarse hacia arriba

On menu screens, the Up-Arrow guides

the user to push the left button to scroll

up the menu.

ICON MEANING DESCRIPTION

. MENU NAVIGATION. MENU NAVIGATION

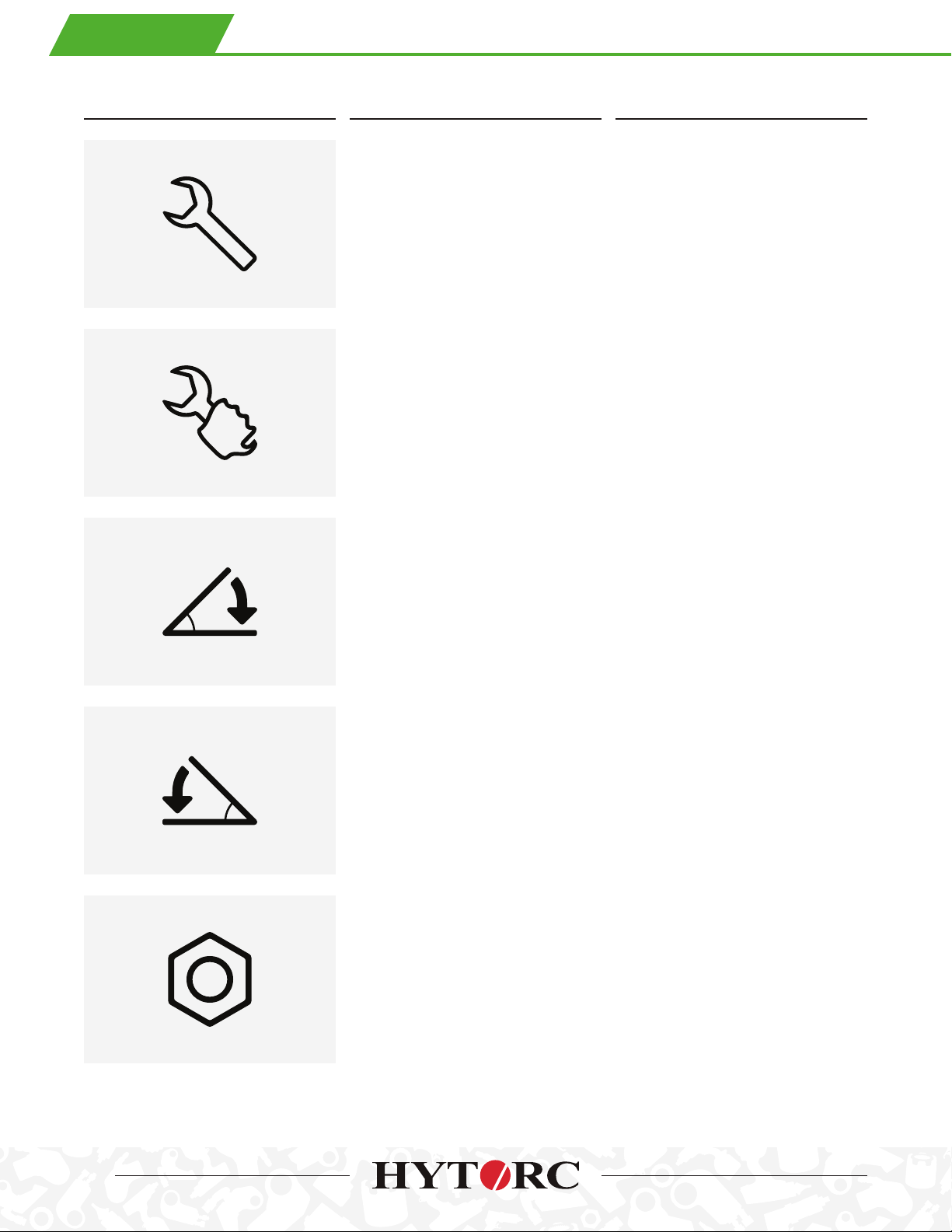

Snug

1. 预拧扭矩

2. 着座

3. Fuegen

4. Stretto

5. Ajustement serré

6. Ajustado

Torque

1. 扭矩

2. トルク

3. Drehmoment

4. Coppia

5. Couple

6. Torque

Enables the Torque function, allowing

the user to adjust the torque value up and

down as required for bolting applications.

Enables the Snug function, allowing users

to set a torque value at the lower end of

the tool's capability in order to bring two

structural surfaces into contact.

Angle

1. 角度

2. 角度

3. Winkel

4. Angolo

5. Angle

6. Ángulo

Enables the Angle function, allowing

users to adjust the angle as part of

“Torque and Angle” sequence within the

same trigger event as the Torque.

Release

1. 发布

2. 開放

3. Freidrehwinkel

4. Rilascio

5. Déblocage

6. Liberación

Release adjusts the tool release angle to

take the tension off the motor following a

torque operation, allowing the tool to be

released from the application.

Fastener

1. 紧固件

2. ファスナー

3. Verbindungselement

4. Fissaggi di serraggio

5. Fixation

6. Sujetador

Fastener allows the selection of fastener

type: Right Hand Nut, Left Hand Nut,

HYTORC Washer Right Hand, HYTORC

Washer Left Hand and HYTORC Nut.

ICON MEANING DESCRIPTION

. MAIN MENU

LITHIUM SERIES® II ELECTRIC TORQUE TOOL ICON REFERENCE GUIDE 5

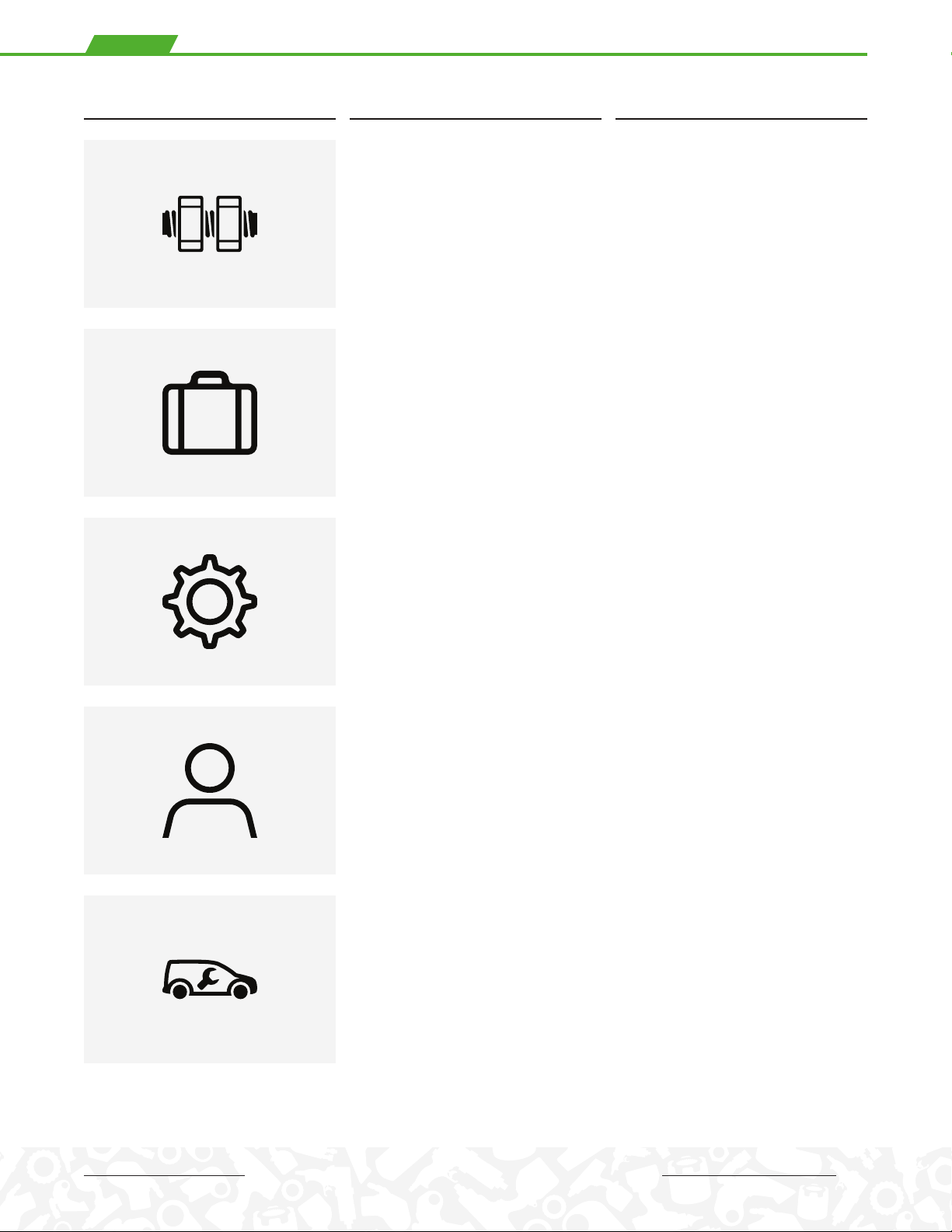

Advanced Bolting

1. 先进的螺栓紧固技术

2. 高度ボルト締結

3. Erweiterte Verfahren

4. Bullonatura Avanzata

5. Boulonnage Supérieur

6. Empernado avanzado

Advanced Bolting sub-menu

contains specialized bolting options

that include motor control and bolting

sequence operations.

Jobs

1. 工作

2. 作業

3. Schraubprogramm

4. Lavori

5. Emplois

6. Trabajos

Jobs sub-menu provides options for

documenting job data and preconfiguring

profiles in the tool.

Settings

1. 设置

2. 設定

3. Einstellungen

4. Impostazioni

5. Paramètres

6. Ajustes

Settings sub-menu provides options

typically used upon initial setup or at the

start of a new project.

Admin

1. 管理员

2. 管理者

3. Administrator

4. Amministratore

5. Administrateur

6. Administrador

Admin sub-menu allows users to manage

access levels, passwords, menu options,

and useful tool information.

Service

1. 服务

2. サービス

3. Service

4. Servizio

5. Un service

6. Servicio

Service sub-menu provides access to

the calibration menu and other options

typically only used by authorized HYTORC

service personnel.

ICON MEANING DESCRIPTION

(CONT’D.)

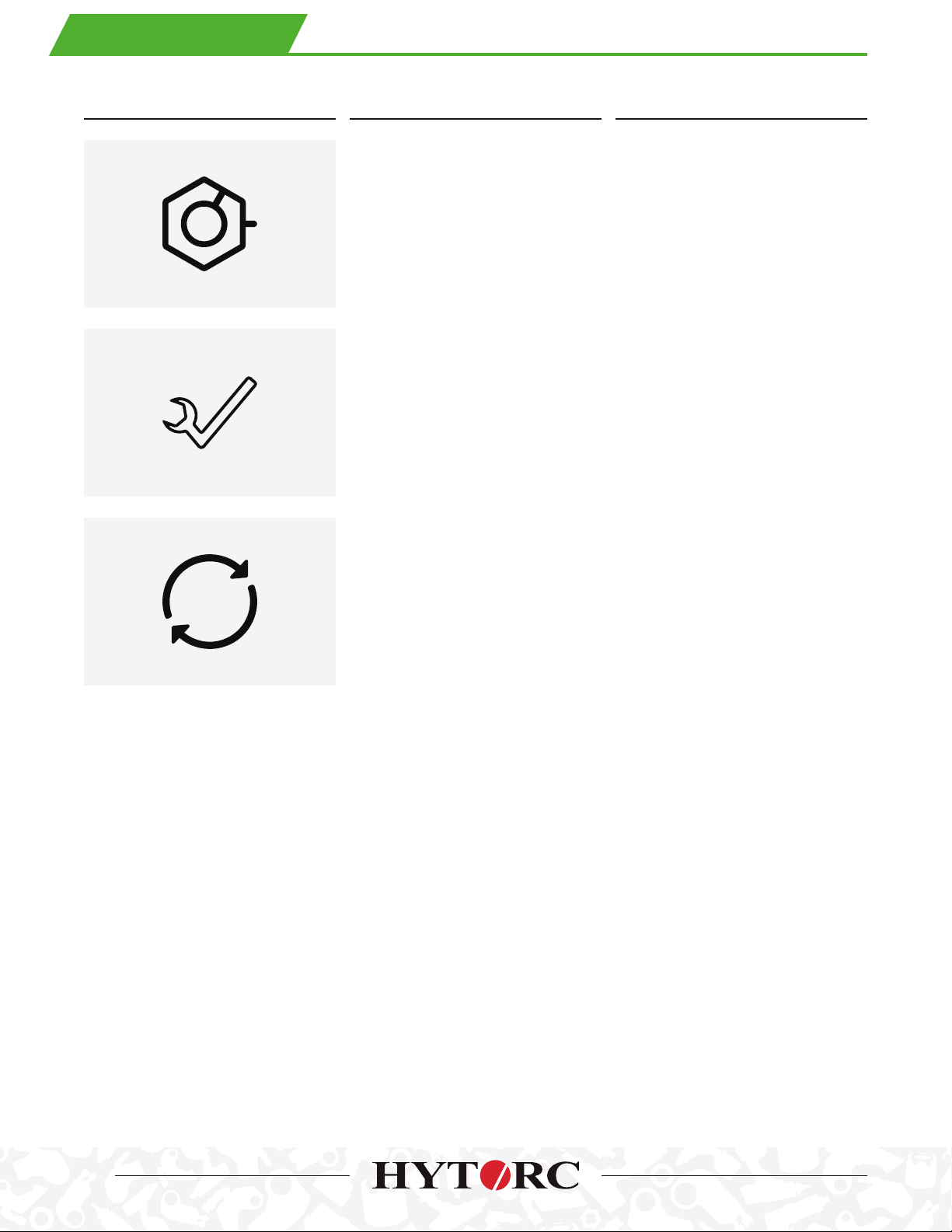

Turn Angle

1. 转动角度

2. 角度締め

3. Weiterdrehwinkel

4. Girare l’angolo

5. Angle de rotation

6. Ángulo de giro

Turn Angle allows the user to tighten a

fastener to a specific angle independent

of the torque previously applied. Often

applied in operations that have previously

been snug tightened, such as turn-of-nut.

Torque Check

1. 扭矩检查

2. トルクチェック

3. Torque Check

4. Controllo di coppia

5. Vérification du couple

6. Verificacion de torque

Torque Check allows user to detect if

a previously tightened nut still meets

specification. The user pulls the trigger

and monitors the nut to detect if any

movement occurs.

Rotations

1. 旋转圈数

2. 回転

3. Drehungen

4. Rotazioni

5. Rotations

6. Rotaciones

Rotations allows the user to turn a valve

under resistance through a specific

number of rotations; for example, to turn a

valve 20 revolutions clockwise.

ICON MEANING DESCRIPTION

. ADVANCED BOLTING

Andere Handbücher für LITHIUM II Series

Inhaltsverzeichnis

Andere Hytorc Elektrowerkzeuge Handbücher

Hytorc

Hytorc TORQUE GUN ZGUN-A.75 Bedienungsanleitung

Hytorc

Hytorc jGun J-.25 Montageanleitung

Hytorc

Hytorc Stealth 2 Bedienungsanleitung

Hytorc

Hytorc Stealth 2 Bedienungsanleitung

Hytorc

Hytorc LITHIUM II Series Montageanleitung

Hytorc

Hytorc jGun DIGITAL Bedienungsanleitung

Hytorc

Hytorc HY-1XLT Bedienungsanleitung

Hytorc

Hytorc Lithium BTM-0250 Bedienungsanleitung

Hytorc

Hytorc XLCT Series Bedienungsanleitung

Hytorc

Hytorc LION-.25 Bedienungsanleitung

Hytorc

Hytorc jGun DIGITAL Montageanleitung

Hytorc

Hytorc BTM-0250-DOC Bedienungsanleitung

Hytorc

Hytorc jGun Series Bedienungsanleitung

Hytorc

Hytorc Torque Gun FLASH-5 Kurzanleitung

Hytorc

Hytorc MXT-XLT032011 Leitfaden

Hytorc

Hytorc LITHIUM II Series Bedienungsanleitung

Hytorc

Hytorc MXT-.7 Bedienungsanleitung

Hytorc

Hytorc LION GUN Montageanleitung

Hytorc

Hytorc LITHIUM II Series Montageanleitung

Hytorc

Hytorc Avanti p7 Bedienungsanleitung

Hytorc

Hytorc jGun Series Bedienungsanleitung

Hytorc

Hytorc Stealth series Leitfaden

Hytorc

Hytorc Clicker Bedienungsanleitung

Hytorc

Hytorc Lithium BTM-0250 Bedienungsanleitung

Beliebte Elektrowerkzeuge Handbücher anderer Marken

AEG

AEG OMNI-JS Bedienungsanleitung

SIP

SIP 01533 Bedienungsanleitung

Ribimex

Ribimex PRS499 Bedienungsanleitung

3M Fiber Optic Connector Crimp Tool Bedienungsanleitung

Ryobi

Ryobi P524 Bedienungsanleitung

ROJEK

ROJEK FSN 300A Bedienungsanleitung

Kemper

Kemper 1740PRO Bedienungsanleitung

WABCO

WABCO OptiTire Bedienungsanleitung

EINHELL

EINHELL TE-MS 18/210 Li Bedienungsanleitung

Orgapack

Orgapack OR-T 85 Kurzanleitung

TOUGHCUT

TOUGHCUT Diamond 400 Bedienungsanleitung

Yaros

Yaros PB-3603 Bedienungsanleitung

Fein

Fein BSS 2.0 E Einrichtungshandbuch

Baileigh Industrial

Baileigh Industrial SS-2725 Bedienungsanleitung

Milwaukee

Milwaukee 2674-20 Bedienungsanleitung

Fein

Fein BLs 1.6 Bedienungsanleitung

Princess

Princess Electric Multi Sharpener Bedienungsanleitung

FOREDOM

FOREDOM K.1050 Handbuch
