Hyundai R227DP Series Montageanleitung

Product End-of-Life Disassembly Instructions

Product Category: Monitors and Displays

Marketing Name / Model

[List multiple model if applicable]

LCD Monitor

R227DP*/

R247DP*

Purpose: The document is intended for use by end-of-life recyclers or treatment facilities. It provides the basic

instructions for the disassembly of Hyundai IT products to remove components and materials requiring selective

treatment, as defined by EU directive 2012/19/EU, Waste Electrical and Electronic Equipment (WEEE).

1.0 Items Requiring Selective Treatement

1.1 Items listed below are classified as requiring selective treatment.

1.2 Enter the quantity of items contained within the product which require selective treatment in the right column, as

applicable.

Item Description Notes

Quality

of items

included

in product

Printed Circuit Board (PCB) or Printed Circuit

Assemblies (PCA)

With a surface greater than 10 sq

Main board, LCD driver board 2

Batteris All types including standard alkaline and lithium

coin or button style batteries None -

Mercury-containing components For example, mercury in lamps, display backlights.

Scanner lamps, swithches, batteries None -

Liquid Crystal Display (LCD) with a surface

greater than 100 sq cm

Included background illuminated displays with gas

discharge lamps 1

Cathode Ray Tubes (CRT) None

Capacitors / Condensers (Containing PCB/PCT) None

Electrolytic Capacitors / Condensers measuring

greater than 2.5 cm in diameter or height None -

External electrical cables and cords DP cable 1

Gas Discharge Lamps None

Plastics containing Brominated Flame

Retardants weighing > 25 grams (not including

PCBs or PCAs already listed as a separate item

above)

None

Components and parts containing toner and ink,

including liquids, semi-liquids (gel/paste) and

toner

Include the cartridges, print heads, tubes, vent

chambers, and service stations. None

Components and wates containing asbestos None

Components, parts and materials containing

refactory ceramic fibers None

Components, parts and material containing

radioactive substances None

2.0 Tools Required

List the type and size of the tools that would typically be used to disassemble the product to a point where

components and materials requiring selective treatment can be removed.

Tool Description Tool Size (if

applicable)

Screwdrivers 1

Plastic Jig 1

3.0 Product Disassembly Process

List the basic steps that should typically be followed to remove components and materials requiring selective

tratement:

1. With the aid of a screwdriver, loosen the four screws of stand.

2. Loosen the two screws of rear cover with screwdriver and then disassemble the rear cover from set.

3. Disconnect the backlight wire from the panel.

4. Loosen the three screws of driver board with screwdriver then disassemble driver board from set.

5. Loosen the six screws of mainboard cover with screwdriver then disassemble mainboard cover from set.

6. Loosen the four screws of mainboard with screwdriver then disassemble mainboard from set.

7. Loosen the four screws of speakers with screwdriver then disassemble speakers from set.

8. Disconnect the LVDS cable from the panel.

9. Loosen the five screws of front frame with screwdriver.

10. Loosen the six screws of Middle frame with screwdriver then disassemble middle frame from set.

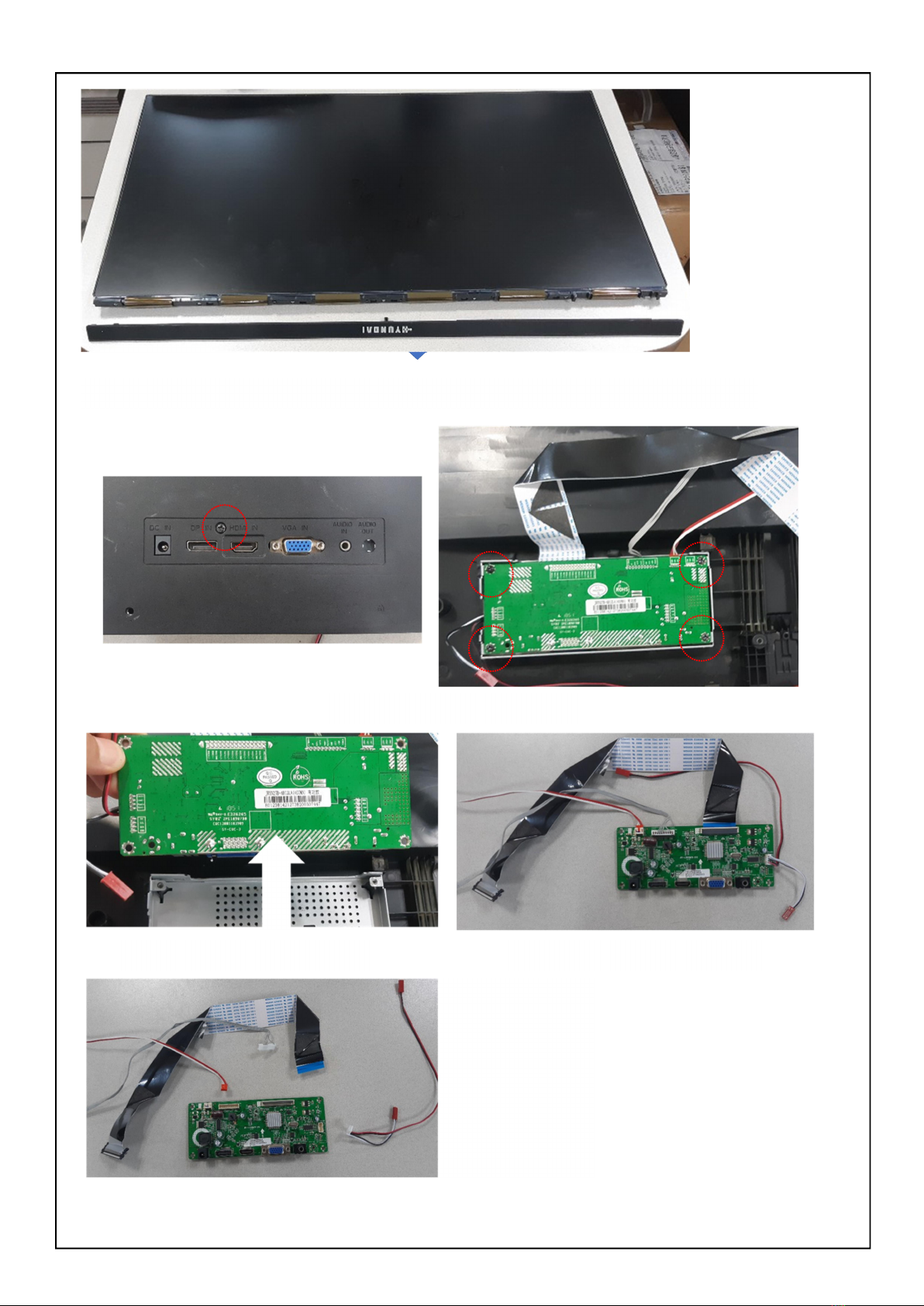

3-1. Disassemble and Assemble

3-2. Disassemble Product

1) Unscrew the screw using the driver.

(*Tool)

2) Open Rear Cover with Tool.

6) Unscrew with Driver 2points

7) After unlock hook parts, separate Plastic Mold from LCD Module Assembly.

Screw

4) Open the Rear cover from Front cover

5) Separate cables and Remove the REAR cover Assembly from Front cover Assembly.

Separate the KEY board and remove Speakers with screw driver.

Key Pad

Screw

3) Separate Rear Cover with Tool

LCD module Assembly

Front mold

8) Separate the Main board from Rear Cover.

Unscrew with Driver 5points.

Separate the main board. Main board Assembly.

Separate cables.

Main board

Cables

9) Separate the board of LCD driver board on the Panel.

Unscrew with Driver 3points

Press the film by hand and remove it from the T-con board.
