Installation Guide
Included Installation Instructions
Dome Cover
Model No. WV-QDC502
2
Caution:
• Before attempting to connect or operate this product, please read these instructions carefully.
Precaution
Do not use this product except with suitable cameras.
Failure to observe this may cause a drop resulting in injury or accidents.
Refer installation work or dome cover replacement to the dealer.
Installation work requires technique and experiences.
Failure to observe this may cause fire, electric shock, injury, or damage to the product.
Be sure to consult the dealer.
The screws and bolts must be tightened to the specified torque.
Failure to observe this may cause a drop resulting in injury or accidents.
When using this product, also read the “Precautions” described in the operating
instructions for the camera to be attached.
3
Preface
This product is the clear type dome cover. <WV-QDC502C>
This product is the smoke type dome cover (approx. 45 % of transmittance).
<WV-QDC502G>
The latest information about the supported cameras
<Control No.: C0501>
Specifications
Ambient operating
temperature:
–50 °C to +60 °C {–58 °F to 140 °F}
Dimensions: ø131 mm × 89 mm (H)
{ø5-5/32 inches × 3-1/2 inches (H)}
Diameter of the dome: 63.5 mm {2-1/2 inches}
Mass: Approx.110 g{0.24lbs}
Finish: PC resin Clear <WV-QDC502C>
Smoke <WV-QDC502G>
Precaution for installation
Screw tightening.
Do not use an impact driver. Use of an impact driver may damage the screws or cause
tightening excessively.
Standard accessories
The following accessories are for Type1 (PTZ) models only.
Dome cover holding plate...............................................................................................4 pcs.
Mounting screw............................................................................................................10 pcs.
(of them, 2 for spare)
5

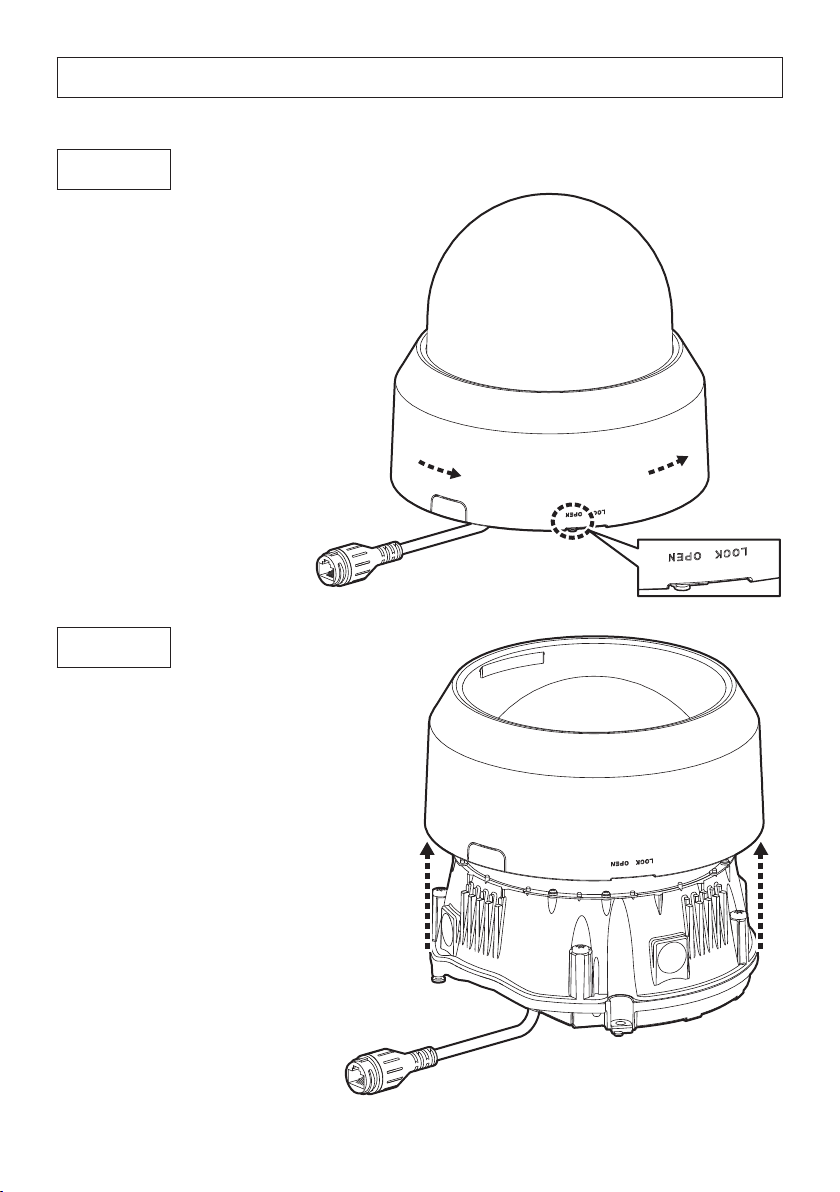

Installation Type1
Illustrations onward are the example of replacing the smoked type dome cover.
Step 1
Rotate the decorative cover by
approximately 10 degrees
counterclockwise in topneath
view.
Step 2
Remove the decorative cover.
6
Step 3 more than 75 mm
{2-15/16 inches}
Remove the dome cover
holding plate (4 pcs.).
Caution:
• Use the screwdriver (locally
procured) with a bit length of 75 mm
{2-15/16 inches} or more.
• Dispose of the removed dome cover
holding plates (4 pcs.) and mounting
screws (8 pcs.).
7
Step 4
Remove the dome cover.
Be careful to the following when
replacing the dome cover:
- The waterproof rubber may come off
simultaneously. Attach the waterproof
rubber to the original position before
attaching this product.
- It is recommended to check whether the
waterproof rubber is deteriorated. When it
has deteriorated, the waterproof
performance will decrease, so consider
repairing it.
Step 5
Attach the dome cover (clear/
smoke).
Remove the protection film covering
outside the new dome cover.
Keep the removed protection film until
using it upon the installation.
(Handle the new dome cover with care not
to scratch inside and outside.)
8
Step 6
Mounting screw
(8 pcs.) (accessory)
Dome cover
holding plate
(4 pcs.)
(accessory)
②
①
③
④
more than 75 mm
{2-15/16 inches}
Tighten the mounting screws
(accessory) to attach the dome
cover holding plate
(accessory).
Caution:
• Use the screwdriver (locally
procured) with a bit length of
75 mm {2-15/16 inches} or more.
• Tighten the mounting screws from
①to ④in order in the illustration.
0.3 N·m {0.22 lbf·ft}
Step 7
Projection part
“OPEN” mark
Attach the decorative cover.
9
Step 8
Rotate the decorative cover by approximately 10 degrees clockwise in
topneath view.
Attach the protection film that was removed in the step 5 to the surface of the dome cover
again.
After completing the installation, remove the protection film.
Step 9
Install the camera by following the instructions in the Installation Guide of
the camera.
10
Installation Type2

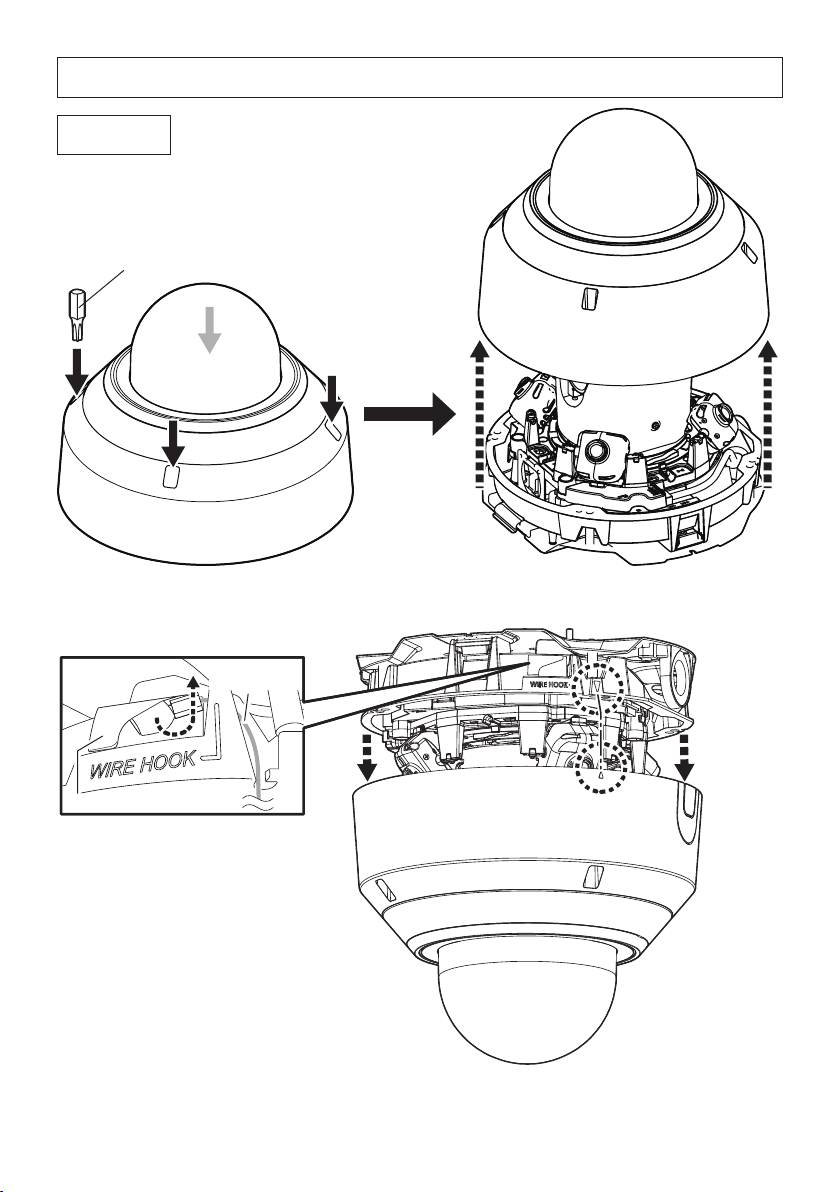

Step 1
When replacing before installation
Bit
(camera accessory)
When replacing after installation
Installed
auxiliary wire
Resin sheet
