i3-TECHNOLOGIES i3TOUCH EX Bedienungsanleitung
i3TOUCH EX
Quick start guide
Thank you.
Enjoy the purchase of your i3TOUCH interactive touch display.
Lets see what’s in the box.
i3-Technologies is conscious about the environmental impact of the products that we produce. Therefore we would
like you to support us in this mission by disposing all packaging according to to any local regulations.
To check if we packed your product correctly, please verify if all these items are present:
i3TOUCH EX |WHAT’S IN THE BOX
1x Sl01 WIFI MODULE 2x Passive pens
1x Touch cable (5m)
1x User guide
1x HDMI cable (3m) 3x Replacement pen tips
1x Wall mount (seperate)
1x EU/US Power cable
1x USB-C Cable (1.5m)
Is something missing or
does it look damaged?
We’re so sorry, please contact our
support service on support@i3-
technologies.com, or contact your
local reseller.
Time to set things up.
Use your favourite applications during meetings.
i3TOUCH EX |SETUP
On the right rear side you’ll find the power button, it’s
located at the top of the display connections.
Once you’ve got the power cable connected switch on the
power supply by turning the button to the "1" position.
Connect the power cable to the power socket located
centrally at the bottom of the display.
POWER
HDMI OUT
HDMI IN 4
TOUCH 1
HDMI IN 1
HDMI 2
HDMI 3
TOUCH 2
USB 3.0
USB C
i3TOUCH EX |MULTI-FUNCTION BUTTON
Understanding the multi-function button.
The multi-function button can be found on the rightside of the display.
According to the settings you configure, this button will react accordingly.
Possible configuration settings are:
1. Off
The multi-function button doesn’t perform any action.
2. Input source
Quickly switch to the predefined video input source.
3. Freeze image
Freeze the current displayed image. The image will be
paused until you press the button again.
4. Windows: Task view
Trigger the task view on a Windows computer connect-
ed with USB-C or inserted as OPS.
5. Windows: Function key
Perform the predefined function key on a Windows
computer connected with USB-C or inserted as OPS.
6. Screen capture
Capture the current image on screen and import into
the whiteboard application.
Understanding the multi-function button
The multi-function button can be found on the rightside of the display.
According to the settings you configure, this button will react accordingly.
i3TOUCH EX |PEN
Start writing.
Our passive pens have been designed to write as comfortable as possible
during long-term usage. Some more things you can expect:
Good things come in small packages
In the display packaging you can find two pens and
three replacement pen tips included with your display.
It’s magnetic
Never lose a pen again thanks to the magnetic pen-
holder located at the bottom of the screen.
No batteries needed
Thanks to the passive nature of our pens, you’ll never
have to worry about changing a battery again.
Soft, natural writing
The passive pen has a soft tip for smooth and pres-
sure-free writing.
i3TOUCH EX |NAVIGATION MENU
Let the menu guide you.
Use your favourite applications during meetings.
Clicking the hamburger button will make the menu
appear with a number of options:
1. Exit the menu and navigate back.
2. Navigate to the homescreen.
3. Start the Whiteboard application.
4. Start the Present application.
5. Work with Annotate and make annotations on everything that ap-
pears on the screen.
6. Switch between the input sources of the display.
7. Adjust volume of the display.
1
2
3
4
5
6
7
BIZ & EDU Studio.
All our i3TOUCH devices are available with a BIZ or EDU Studio, bringing ease of use and simplicity to your desired
workspace. You can choose which studio you want to use at first boot or through the settings menu.
i3TOUCH EX |BIZ & EDU STUDIO
BIZ STUDIO EDU STUDIO
The BIZ studio equips the display with a
stylish background and extends the user
interface with an extra configurable button.
You can customize the link and label of this
button through the settings menu or in the
startup wizard at first boot.
The EDU studio equips the display with a
colorful, fun background and extends the
user interface with an extra button for
i3LEARNHUB.
i3TOUCH EX |START WHITEBOARDING
Start whiteboarding.
The whiteboard button opens an interactive whiteboard that allows you to take notes, make drawings or facilitate
workshops. The output can be shared very easily with all participants.
Start whiteboarding
WHITEBOARD

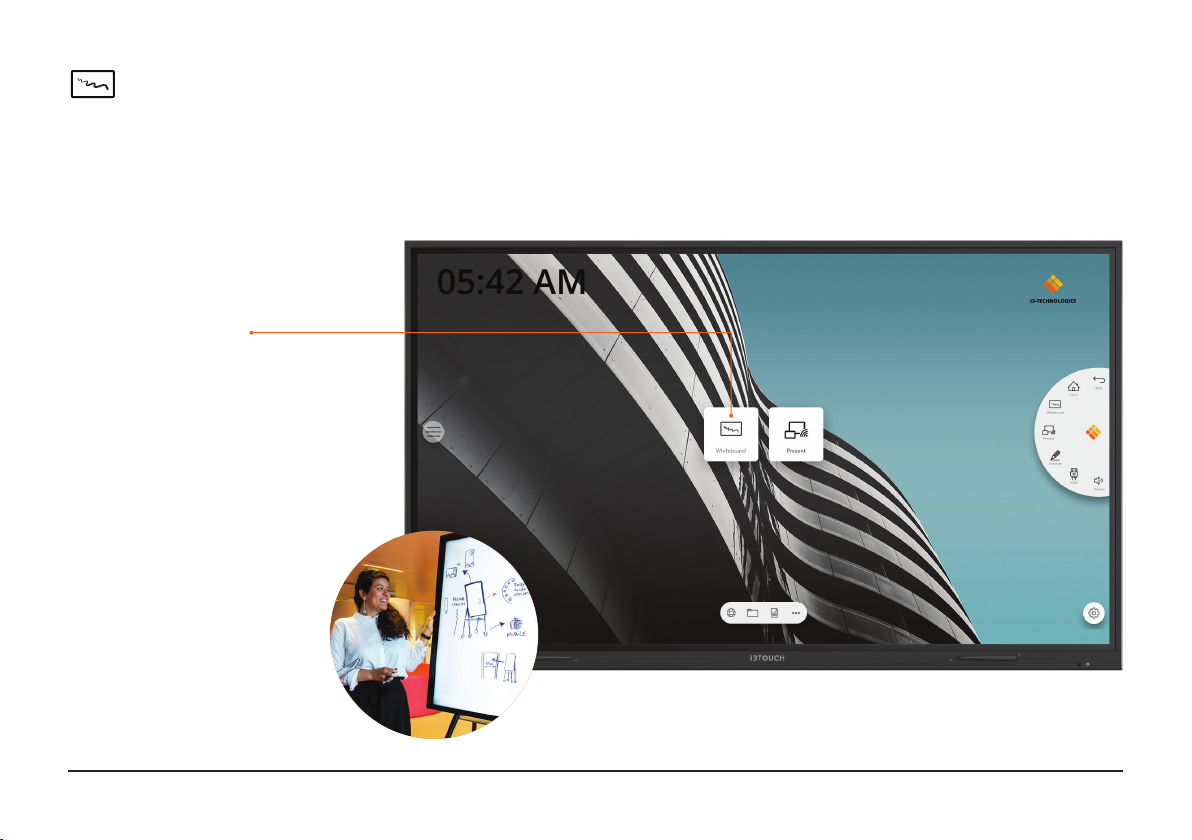

1. Tap the whiteboard button.
2. Start writing in the active
tab.
3. Activate the writing
options by tapping the
eraser.
i3TOUCH EX |START PRESENTING
Start presenting.
Content from other devices can be streamed to the display with a push-of-a-button.
Also source switching to another input channel is just a click away.
PRESENT
1. Tap the present button.
2. Choose your platform of
choice.
3. Follow the setup guide on
screen.
