IAdea MBR-1100 Gebrauchsanweisung

MBR-1100

Hardware User Manual

Contents

1. Introduction 1

1.1. Package contents 1

1.2. Installation 1

1.3. Physical view 3

2. Technical Data 4

2.1. Specifications 4

1. Introduction

This document describes the hardware of the MBR-1100.

1.1. Package contents

NOT INCLUDED: A USB mouse is required for system setup

1.2. Installation

Attach wireless antenna

Attach the wireless antenna as shown below, and then screw antenna clockwise onto the post.

Mounting Option 1: [VESA Mount] The media bar can be attached to mounting posts on the back of screens

by the supplied VESA MIS-D100 (100mmx100mm) compatible mounting plate(screw thread on the plate: M4)

Attach media bar to the VESA mount plate

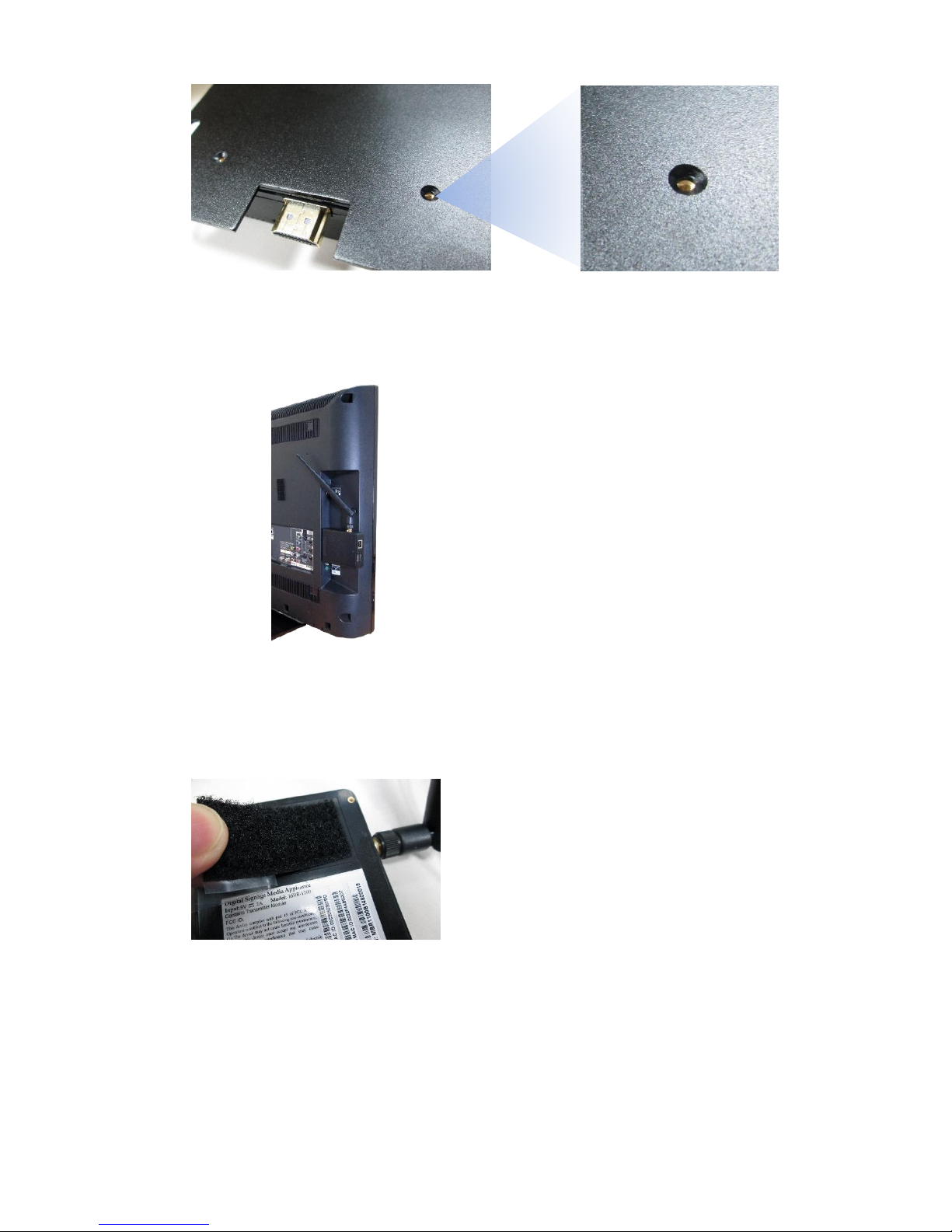

1. Put the VESA mount plate on the bottom of the player, with the screw holes aligned.

2. Make sure the countersunk holes are facing up, so when the screw goes in, the screw head is level

with the surface.

Media Bar Unit

HDMI Extension Cord

Wireless Antenna

AC Adapter

(with select power plug)

VESA Mount Plate

and screws

Velcro

Mounting Option 2: [Attach to HDMI port] Simply plug the player into the HDMI port of the monitor as

shown below.

Mounting Option 3: [Attach the player on the back of the monitor using Velcro]

1. Separate the Velcro pads and stick one of them to the bottom of player.

2. Stick the other Velcro pad onto the back of monitor, and then attach the player to it. Use HDMI extension

cord to connect player and the monitor.

1.3. Physical view

Physical features (left to right in above illustration)

HDMI connector for digital video and audio combined output

Micro SD card slot

Micro USB for power adapter and ADB , Android debug console port

Reset button to perform factory reset

USB ports for USB content update and configuration

Power(green) and Status(orange) LED indicator

Ethernet port for network content update

Wireless antenna post

2. Technical Data

2.1. Specifications

MBR-1100

Video format support

H.264 (up to 1080p,10Mbps)

VC-1 (up to 1080p,10Mbps)

MPEG-4 ASP (up to 1080p,10Mbps)

MPEG-2 (up to 1080p,10Mbps)

POPAI Screen Media Standards : S6 to S12, E4,E7,E8

Image format support

JPEG,PNG up to 1920x1080

POPAI Screen Media Standards : S1 to S3, E1 to E3

Audio codec support

MP3 up to 320Kbps

POPAI Screen Media Standards : S4, S5

Dynamic content

W3C HTML5 (HTML, CSS, JavaScript)

W3C SMIL 3.0 instructions (sub-set)

Physical I/O connectors

HDMI

USB 2.0 x 2

RJ45 Ethernet port

Wireless antenna port

Micro USB for DC in/ADB

Micro SD card slot

LED: Power(green)/Status(orange)

Local storage

8 GB on-board flash memory or 8GB eMMC memory (only on Rev1.1)

(up to 6 hrs of typical 720p video @ 3 Mbps)

Micro SD card expansion slot

Accessories

AC adapter(UL/FCC/CE/CCC/C-Tick certified power supplies)

HDMI extension cord

Wireless antenna

VESA mount plate (screw thread : M4 )

Velcro

Power requirement

5V 2A DC

Power consumption

Average 6 W

Environmental

Operating temperature: 0 –40°C / 32 –104°F

Humidity: 10 –85% @ 40°C / 32 –104°F non-condensing

Dimensions

107 x 68 x 25.3 mm (4.21 x 2.68 x 1 inches)

Weight

108.1 g

0.24 lbs

Certifications

CE/FCC/IC

Warranty

One-year limited parts & labor
