IBASE Technology IB952 Series Bedienungsanleitung

IB952 Series

AMD V2000™

3.5” Disk-Size SBC

User’s Manual

Version 1.0

(August 2021)

ii IB952 User’s Manual

No part of this publication may be reproduced, copied, stored in a retrieval

system, translated into any language or transmitted in any form or by any

means, electronic, mechanical, photocopying, or otherwise, without the prior

written consent of IBASE Technology, Inc. (hereinafter referred to as

“IBASE”).

Disclaimer

IBASE reserves the right to make changes and improvements to the

products described in this document without prior notice. Every effort has

been made to ensure the information in the document is correct; however,

IBASE does not guarantee this document is error-free.

IBASE assumes no liability for incidental or consequential damages arising

from misapplication or inability to use the product or the information

contained herein, nor for any infringements of rights of third parties, which

may result from its use.

Trademarks

All the trademarks, registrations and brands mentioned herein are used for

identification purposes only and may be trademarks and/or registered

trademarks of their respective owners.

IB952 User’s Manual

iii

Compliance

This is a class B product. In a domestic environment, this product may cause

radio interference in which case users may be required to take adequate

measures.

This product has been tested and found to comply with the limits for a Class

B device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with manufacturer’s

instructions, may cause harmful interference to radio communications.

WEEE

This product must not be disposed of as normal household

waste, in accordance with the EU directive of for waste

electrical and electronic equipment (WEEE - 2012/19/EU).

Instead, it should be disposed of by returning it to a

municipal recycling collection point. Check local

regulations for disposal of electronic products.

Green IBASE

This product is compliant with the current RoHS

restrictions and prohibits use of the following substances in

concentrations exceeding 0.1% by weight (1000 ppm)

except for cadmium, limited to 0.01% by weight (100 ppm).

• Lead (Pb)

• Mercury (Hg)

• Cadmium (Cd)

• Hexavalent chromium (Cr6+)

• Polybrominated biphenyls (PBB)

• Polybrominated diphenyl ether (PBDE)

iv IB952 User’s Manual

Important Safety Information

Carefully read the precautions before using the board.

Environmental conditions:

•Use this product in environments with ambient temperatures between

0˚C and 60˚C.

•Do not leave this product in an environment where the storage

temperature may be below -20° C or above 70° C. To prevent from

damages, the product must be used in a controlled environment.

Care for your IBASE products:

•Before cleaning the PCB, unplug all cables and remove the battery.

•Clean the PCB with a circuit board cleaner, degreaser, or use cotton

swabs and alcohol.

•Vacuum the dust with a computer vacuum cleaner to prevent the fan

from being clogged.

WARNING

Attention during use:

•Do not use this product near water.

•Do not spill water or any other liquids on this product.

•Do not place heavy objects on the top of this product.

Anti-static precautions

•Wear an anti-static wrist strap to avoid electrostatic discharge.

•Place the PCB on an anti-static kit or mat.

•Hold the edges of PCB when handling.

•Touch the edges of non-metallic components of the product instead of

the surface of the PCB.

•Ground yourself by touching a grounded conductor or a grounded bit of

metal frequently to discharge any static.

CAUTION

Replace only with the same or equivalent type recommended by the

manufacturer. Dispose of used batteries according to the manufacturer’s

instructions or recycle them at a local recycling facility or battery collection

point.

IB952 User’s Manual

Warranty Policy

•IBASE standard products:

24-month (2-year) warranty from the date of shipment. If the date of

shipment cannot be ascertained, the product serial numbers can be

used to determine the approximate shipping date.

•3

-party parts:

12-month (1-year) warranty from delivery for the 3rd-party parts that are

not manufactured by IBASE, such as CPU, CPU cooler, memory,

storage devices, power adapter, panel and touchscreen.

＊ PRODUCTS, HOWEVER, THAT FAIL DUE TO MISUSE, ACCIDENT,

IMPROPER INSTALLATION OR UNAUTHORIZED REPAIR SHALL

BE TREATED AS OUT OF WARRANTY AND CUSTOMERS SHALL

BE BILLED FOR REPAIR AND SHIPPING CHARGES.

Technical Support & Services

1. Visit the IBASE website at www.ibase.com.tw to find the latest

information about the product.

2. If you need any further assistance from your distributor or sales

representative concerning problems that you may have encountered,

please prepare the following information:

•Product model name

•Product serial number

•Detailed description of the problem

•The error messages in text or in screenshots if there is any

•The arrangement of the peripherals

•Software in use (such as OS and application software, including the

version numbers)

3. If repair service is required, you can download the RMA form at

http://www.ibase.com.tw/english/Supports/RMAService/.

Fill out the form and contact your distributor or sales representative.

vi IB952 User’s Manual

Table of Contents

Chapter 1 General Information ............................................... 1

1.1

Introduction .........................................................................................2

1.2

Features..............................................................................................2

1.3

Packing List.........................................................................................3

1.4

Optional Accessories........................................................................... 3

1.5

Specifications ...................................................................................... 4

1.6

Block Diagram ..................................................................................... 6

1.7

Product View ....................................................... 錯誤! 尚未定義書籤。

1.8

Dimensions .........................................................................................9

Chapter 2

Hardware Configuration......................................... 11

2.1

Installations ....................................................................................... 12

2.2

Setting the Jumpers........................................................................... 12

2.3

Jumper & Connector Locations on IB952........................................... 14

2.4

Jumpers Quick Reference ................................................................. 15

2.5

Connectors Quick Reference............................................................. 19

Chapter 3

Drivers Installation.............................................. 31

3.1

Introduction ....................................................................................... 32

3.2

AMD Ryzen V2000 Chipset Drivers Installation ................................. 32

3.3

AMD Ryzen V2000 Graphics Drivers Installation ............................... 34

3.4

Realtek High Definition Audio Driver Installation ................................ 36

3.5

LAN Driver Installation....................................................................... 37

Chapter 4

BIOS Setup .......................................................... 39

4.1

Introduction ....................................................................................... 40

4.2

BIOS Setup ....................................................................................... 40

4.3

Main Settings..................................................................................... 41

4.4

Advanced Settings............................................................................. 41

4.5

Chipset Settings ................................................................................ 55

4.6

Security Settings ............................................................................... 56

4.7

Boot Settings..................................................................................... 58

4.8

Save & Exit Settings .......................................................................... 59

Appendix ........................................................................................ 61

I/O Port Address Map ........................................................................ 62

Interrupt Request Lines (IRQ)............................................................64

Onboard Connector Types ................................................................ 65

Chapter 1

General Information

The information provided in this chapter includes:

•Features

•Packing List

•Specifications

•Block Diagram

•Product View

•Board Dimensions

2 IB952

User’s Manual

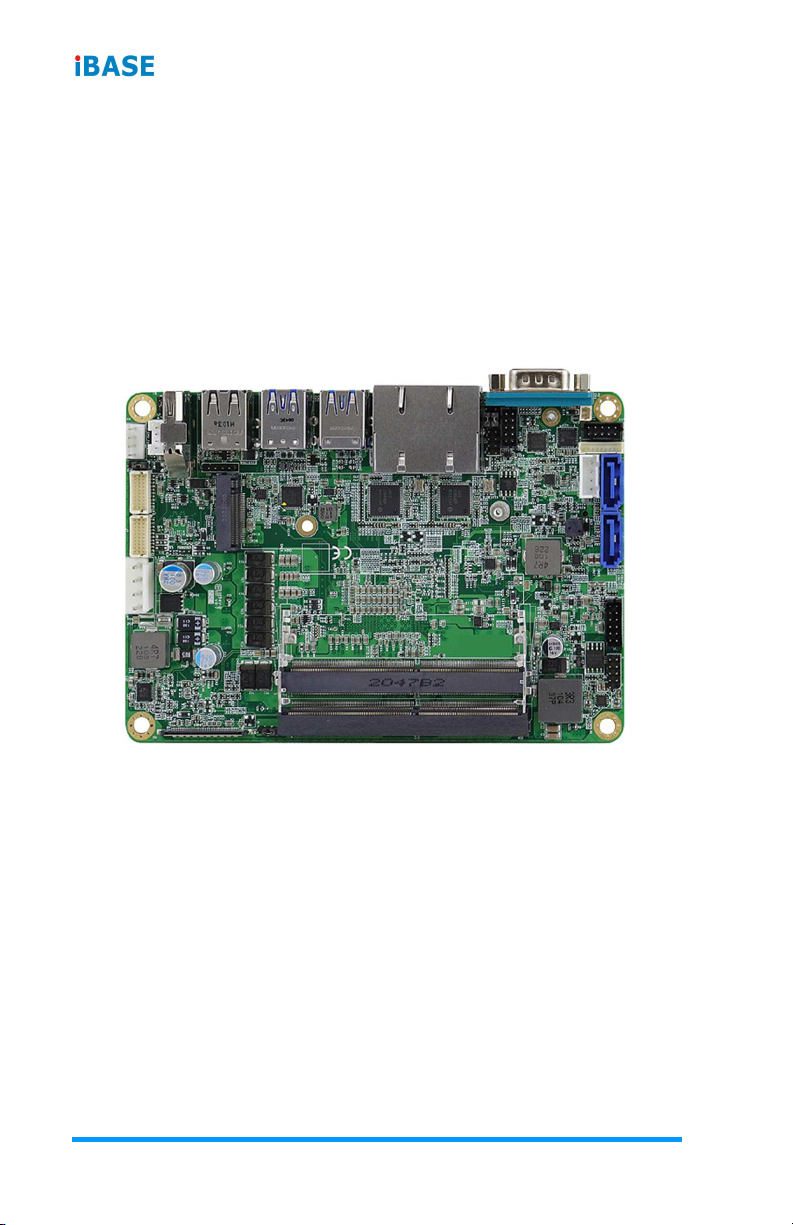

1.1 Introduction

•IB952F is a 3.5-inch SBC based on AMD Ryzen™ V2000-series

processor. The integrated graphics device on the AMD Ryzen

V2000-series processor integrated graphics drives four

DisplayPort interfaces. Aside from supporting two DDR4 with up

to 64GB capacity, it features flexible I/O connections are

provided by 2 x GbE, 3 x USB 3.1, 2 x USB 2.0, 2 x COM, 2x

SATA III, 2 x M.2 (M2280 & E2230), and 1 x USB Type C

(USB3.1 Gen.2).

IB952F

1.2 Features

•AMD Ryzen™ V2000-series processor, up to 4.15 GHz

•2 x DDR4 SO-DIMM, expandable up to 64GB, ECC supported

per CPU SKUs

•AMD Ryzen™ V2000-series processor integrated graphics

device for four DisplayPort

•2 x GbE, 3 x USB 3.1, 2 x USB 2.0, 2 x COM, 2x SATA III

•2 x M.2 (M2280 & E2230)

•1 x USB Type C (USB3.1 Gen.2)

•Configurable watchdog timer and digital I/O

•TPM (2.0)

General Information

IB952 User’s Manual

1.3 Packing List

Your IB952F package should include the items listed below. If any of the

items below is missing, contact the distributor or dealer from whom you

purchased the product.

•IB952F Motherboard

•Disk (for chipset drivers)

•This User’s Manual

1.4 Optional Accessories

IBASE provides optional accessories as follows. Please contact us or your

dealer if you need any.

•Cable kit (IB92) including:

SATA & HDD power cable (SATA-53A) x1

COM port cable (PK1H) x1

DC-in power cable (PW595) x1

•Audio cable (Audio-18)

•Heat sink (HSIB952-B for IB952F-2748)

•Heat sink (HSIB952-A for IB952F-2718)

•Heat spreader (HSIB952-1)

4 IB952

User’s Manual

1.5 Specifications

Model Name

IB952F-2748 IB952F-2718

Form Factor

3.5” Disk-Size SBC

System

Operating

System

•Windows 10

•Linux Ubuntu

CPU Type AMD Ryzen™ V2748 AMD Ryzen™ V2718

CPU Speed 2.9 GHz / 4.15 GHz 1.7 GHz / 4.15 GHz

Cache 8MB / L3; 4MB / L2 8MB / L3; 4MB / L2

Chipset Integrated in AMD Ryzen™ V2000-series processor

Memory 2 x DDR4-3200 SO-DIMM, Up to 64GB (ECC or Non-ECC)

Storage M.2 socket x 1(M-Key, type 2280) SSD

Graphics AMD Ryzen™ V2000-series integrated graphics

Network 2 x Intel I211AT

Super I/O Fintek F81804U-I

Audio Codec

& Controller

AMD Ryzen™ V2000-series processor built-in HD audio

controller

Realtek ALC888S codec

Power

Requirement

12V ~ 24V DC-In

USB Type C USB 3.1 (Gen.2)

TPM 2.0

Watchdog

Timer Yes (256 segments, 0, 1, 2…255 sec / min)

BIOS AMI BIOS

H/W Monitor

Yes

Dimensions 102.22 x 147.01 mm (4.02” x 5.8”)

RoHS Yes

Certification

CE, FCC Class B

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere IBASE Technology Computerhardware Handbücher

IBASE Technology

IBASE Technology IBT300 Series Bedienungsanleitung

IBASE Technology

IBASE Technology SP-63ER Bedienungsanleitung

IBASE Technology

IBASE Technology IB811LF Series Bedienungsanleitung

IBASE Technology

IBASE Technology IP414 Bedienungsanleitung

IBASE Technology

IBASE Technology IB835F Bedienungsanleitung

IBASE Technology

IBASE Technology IB990 Bedienungsanleitung

IBASE Technology

IBASE Technology IB980 Bedienungsanleitung

IBASE Technology

IBASE Technology SI-22-415 Bedienungsanleitung

IBASE Technology

IBASE Technology IB990AF Bedienungsanleitung

IBASE Technology

IBASE Technology IB837 Series Bedienungsanleitung

IBASE Technology

IBASE Technology AMS100-807-PCI Bedienungsanleitung

IBASE Technology

IBASE Technology IB995 Bedienungsanleitung

IBASE Technology

IBASE Technology 11th Gen Intel Core U-Series Bedienungsanleitung

IBASE Technology

IBASE Technology IB838 Series Bedienungsanleitung

IBASE Technology

IBASE Technology SI-64 Series Bedienungsanleitung

IBASE Technology

IBASE Technology ET880 Series Bedienungsanleitung

IBASE Technology

IBASE Technology IB936 Bedienungsanleitung

IBASE Technology

IBASE Technology IP413 Series Bedienungsanleitung

IBASE Technology

IBASE Technology MPT-1000V Bedienungsanleitung

IBASE Technology

IBASE Technology SI-102-424 Series Bedienungsanleitung

IBASE Technology

IBASE Technology ET910 Bedienungsanleitung

Beliebte Computerhardware Handbücher anderer Marken

EMC2

EMC2 VNX Series Betriebsanleitung

Panasonic

Panasonic DV0PM20105 Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Bedienungsanleitung

Gigabyte

Gigabyte B660M DS3H AX DDR4 Bedienungsanleitung

Raidon

Raidon iT2300 Bedienungsanleitung

National Instruments

National Instruments PXI-8186 Bedienungsanleitung

Hauppauge

Hauppauge WinTV-HVR-2250 Bedienungsanleitung

Kontron

Kontron CP6002 Bedienungsanleitung

Manhattan

Manhattan 702843 Bedienungsanleitung

Aphex

Aphex 230 Bedienungsanleitung

AMD

AMD Phenom II Betriebshandbuch

Intel

Intel NUC 12 Pro Bedienungsanleitung

dbx

dbx Zone Pro 1260 Bedienungsanleitung

Galaxy

Galaxy GHDX2-2430S-24F4D Bedienungsanleitung

Intel

Intel AXXRMFBU4 Bedienungsanleitung

Kontron

Kontron DIMM-PC/MD Bedienungsanleitung

ST X-NUCLEO-SAFEA1B Betriebsanleitung

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Bedienungsanleitung
