IBM Power System AC922 Bedienungsanleitung

IBM

Power System AC922

(8335-GTX) Quick Install

Guide IBM

IBM®Power®System AC922 (8335-GTX) Quick Install Guide

Read all precautions and instructions before you start working on the system and its parts.

Use normal electrostatic discharge (ESD) procedures when working on the system and parts. IBM

recommends wearing gloves and an ESD wrist strap to avoid possible damage to the equipment.

The information about the 8335-GTX system is available online in the IBM Knowledge Center.

http://www.ibm.com/support/knowledgecenter/8335-GTX

Parts

Use this information to find the field-replaceable unit (FRU) part numbers.

Figure 1. Rack final assembly

Figure 2. System parts

2

Figure 3. Additional system parts (8335-GTC, 8335-GTG, or 8335-GTH air-cooled system)

3

Figure 4. Additional system parts (8335-GTW or 8335-GTX water-cooled system with 4 GPUs)

4

Figure 5. Additional system parts (8335-GTW or 8335-GTX water-cooled system with 6 GPUs)

5

Rear ports

Table 1. Port descriptions

Identifier Description

1 Video Graphics Array (VGA)

2 Intelligent Platform Management Interface (IPMI) serial

3 Ethernet. Use the top Ethernet port for the BMC/IPMI

interface (as PHY0) and direct OS usage. Use the bottom

Ethernet port for only direct OS usage (as PHY1).

4 USB 3.0

Installing and removing IBM Power System AC922 (8335-GTX)

parts

Figure 6. Rear view of the system with ports displayed

6

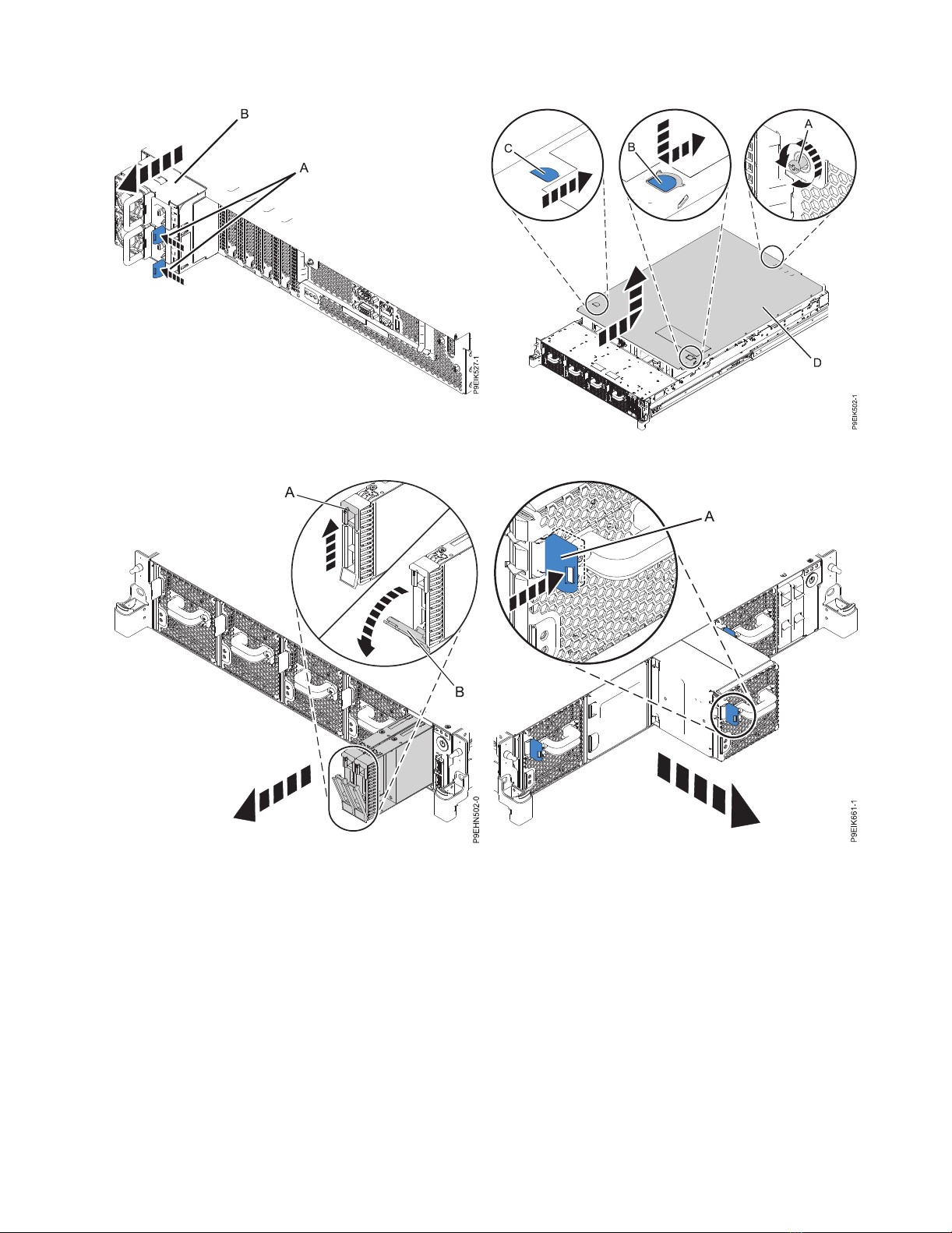

Figure 7. Removing the power supplies from the system

Figure 8. Removing the cover

Figure 9. Disk drive lock detail Figure 10. Removing a fan from the system

7

Figure 11. Removing the disk and fan signal cable Figure 12. Removing the fan power cable from the system

Figure 13. Removing the front pipe holder Figure 14. Moving the front pipe away

8

Figure 15. Screw locations for the disk drive and fan card

Figure 16. Removing the disk drive and fan card

Figure 17. Removing a memory module

Figure 18. Location of the memory modules

9

Figure 19. Removing the time-of-day battery from the

system backplane

Figure 20. Removing a PCIe adapter

Figure 21. Removing the BMC card

10
