IBM F12 Bedienungsanleitung

8271 NWAYS ETHERNET LAN SWITCH

MODELS F12 AND F24

QUICK REFERENCE GUIDE

Hardware Features

The Illustration shows a Switch Model F24

(02L0879). The port and LED layout is different for a

Switch Model F12 (02L0878).

110BASE-T/100BASE-TX Ports These auto-negotiat-

ing ports can automatically detect the speed of a

link and provide a 10Mbps connection to Ethernet

devices or a 100Mbps connection to Fast Ethernet

devices. The ports are configured as MDIX

(cross-over) and support a maximum segment length

of 100m (328ft) over Category 5 twisted pair cable.

2Status LEDs These LEDs provide a quick method of

diagnosing problems. See “LEDs” for more informa-

tion.

3Power Socket Insert the power cord into this

socket to connect the Switch to the main power

supply. Note that there is no On/Off button.

4Redundant Power System Socket Use this socket

to connect an Advanced Redundant Power System

(RPS) to the Switch, and therefore protect against

internal power supply failure.

5Console Port Use this port to connect a terminal or

terminal emulator to the Switch, and therefore allow

out-of-band management. The console port uses

standard null modem cable and is set to

auto-baud, 8 data bits, no parity and 1 stop bit.

6Expansion Module Slot Remove the blanking plate

to install an optional Expansion Module that pro-

vides an additional high-speed link, or a Matrix

Module that provides four matrix ports for stacking

Switch units together.

7Matrix Port Use this port to connect a Matrix

Cable, which allows you to stack Switch units

together.

LEDs

Default Settings

Default Passwords

LED Color Indicates

Port Status LEDs

Packet Yellow Packets are being transmitted/received on the

port.

Off No packets are being transmitted/received on

the port.

Status Green A link is present, and the port is enabled.

Green

flashing

A link is present, but the port is disabled.

Off No link is present.

Expansion Module Port Status LEDs

Packet Yellow Packets are being transmitted/received on the

Expansion Module port(s).

Off No packets are being transmitted/received on

the Expansion Module port(s).

Status Yellow A valid Expansion Module is installed in the

Switch.

Yellow

flashing

An unrecognized Expansion Module is installed

in the Switch.

Off No Expansion Module is installed in the Switch.

Unit LEDs

1 – 8 Green Indicates the position of the Switch in the

stack and that a link is present. Note that

although there are eight LEDs, only four

Switch units can be stacked at present.

1 – 8 Off The Switch is stand-alone.

LED Color Indicates

Power/Self Test LED

Green The Switch is powered-up.

Green

flashing

The Switch is either downloading software or

is initializing (which includes running a Power

On Self Test).

Yellow The Switch has failed its Power On Self Test.

Off The Switch is not receiving power.

Port Status Enabled

Port Speed 10BASE-T/100BASE-TX ports are

auto-negotiated

Duplex Mode All fixed ports are auto-negotiated

Flow Control Enabled in half duplex,

auto-negotiated in full duplex

Security Disabled

Broadcast Storm Control Enabled

Spanning Tree (STP) Disabled

Monitor access level User Name: monitor

Password: monitor

Manager access level User Name: manager

Password: manager

Security access level User Name: admin

Password: (no password)

User Name: security

Password: security

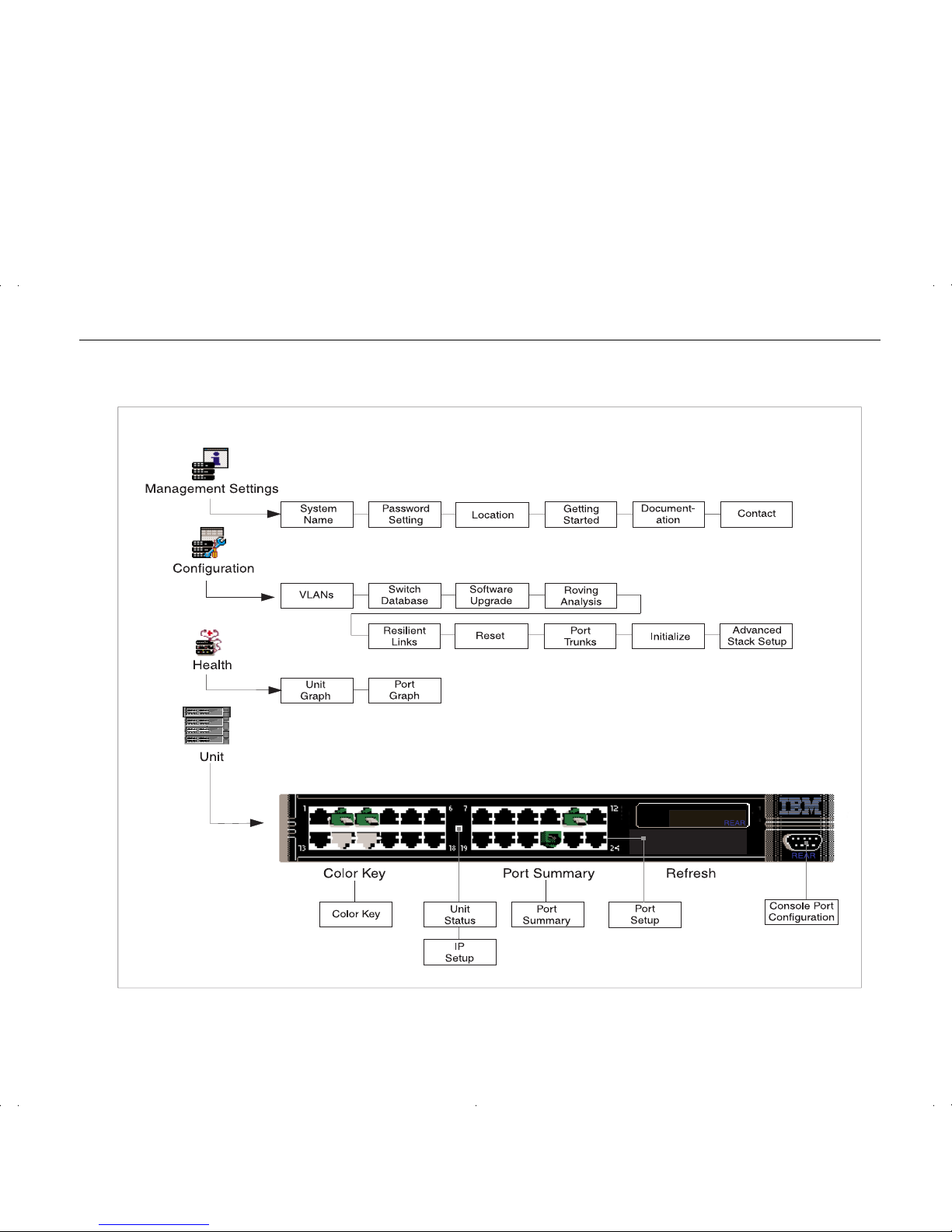

Web Interface Map

Command Line Interface Map

■To display sub-menus:

At the Select menu option prompt, enter the

name of the menu or menus.

■To display parent menus:

At the Select menu option prompt, enter q.

■To display the Top-level menu:

Press the [Esc] key.

■To obtain help:

At the Select menu option prompt, enter ?.

Part Number: 35L2190

Published: January, 1999
